Introduction
This manual provides essential instructions for the installation, operation, and maintenance of your Generic 891263 Refrigerator Freezer Temperature Control Knob. This genuine OEM replacement part is designed for precise temperature regulation in compatible refrigerator and freezer units. Please read these instructions carefully before proceeding with installation or use to ensure proper function and safety.
Коопсуздук маалыматы
- Кубатты өчүрүү: Always disconnect power to the appliance before attempting any installation or maintenance. Failure to do so can result in electric shock or injury.
- Коргоочу шаймандарды кийүү: Use appropriate personal protective equipment, such as gloves, during installation to prevent cuts or scrapes.
- Кесиптик орнотуу: Эгер кандайдыр бир кадамга ишенбесеңиз, квалификациялуу техникке кайрылыңыз.
- Чыныгы бөлүктөр: Use only genuine replacement parts to ensure compatibility and safe operation.
Орнотуу жана орнотуу
This section guides you through the process of replacing or installing the temperature control knob.
- Электр энергиясын өчүрүү: Ensure the refrigerator or freezer is unplugged from the power outlet.
- Locate Existing Knob (if applicable): Identify the current temperature control knob on your appliance.
- Эски баскычты алып салуу: Gently pull the old knob straight off its shaft. It may require a firm but steady pull. Avoid twisting or prying forcefully, as this could damage the control shaft.
- Валды текшерүү: Examine the control shaft for any damage or debris. Clean if necessary.
- Жаңы баскычты орнотуу: Align the new 891263 control knob with the control shaft. The knob has a specific orientation to fit correctly. Push the knob firmly onto the shaft until it is seated securely.
- Жарактуулугун текшерүү: Gently turn the knob to ensure it rotates smoothly and engages with the temperature control mechanism.
- Кубатты кайра туташтыруу: Plug the appliance back into the power outlet.
Сүрөт 1: жогорудан ылдыйга view of the 891263 control knob, highlighting the shaft opening for installation.
Сүрөт 2: Side profile of the 891263 control knob, illustrating its overall shape and 1 1/4 inch diameter.
Иштөө нускамалары
Once installed, the 891263 temperature control knob allows you to adjust the internal temperature of your refrigerator or freezer.
- Температураны жөндөө: Turn the knob clockwise to decrease the temperature (make it colder) or counter-clockwise to increase the temperature (make it warmer).
- Түзмөктүн колдонмосун караңыз: For specific temperature settings and recommendations, always refer to your refrigerator or freezer's original instruction manual.
- Allow Time for Change: After adjusting the knob, allow several hours for the appliance's internal temperature to stabilize at the new setting.
Техникалык тейлөө
The 891263 control knob requires minimal maintenance to ensure its longevity and proper function.
- Тазалоо: Баскычты мезгил-мезгили менен жумшак, d менен сүртүңүзamp кездеме жана жумшак самын. Абразивдүү тазалоочу каражаттардан же эриткичтерден алыс болуңуз, анткени алар капталга зыян келтириши мүмкүн.
- Текшерүү: Occasionally check that the knob remains securely attached to the control shaft.
Проблемаларды чечүү
If you encounter issues with your temperature control knob, consider the following:
- Тумшугу бошоп калды: If the knob feels loose, remove it and re-install, ensuring it is pushed firmly onto the shaft. If it continues to be loose, the shaft or the knob's internal fitting might be worn, requiring replacement of the control unit or another knob.
- Knob Does Not Turn: Ensure no obstructions are preventing the knob from turning. Do not force it, as this could damage the internal thermostat mechanism. If it still does not turn, the thermostat itself may be faulty.
- Temperature Not Changing: If adjusting the knob does not affect the appliance's temperature after several hours, the issue is likely with the thermostat or other internal components of the refrigerator/freezer, not the knob itself. Consult your appliance's service manual or a qualified technician.
Техникалык шарттар
| Атрибут | Деталь |
|---|---|
| Модель номери | 891263 |
| Бренд | Жалпы |
| Материал | Металл |
| Түс | Ак |
| Сырткы бүтүрүү | Metallic |
| Өзгөчөлүктөр | Орнотуу оңой, бекем |
| Камтылган компоненттер | Single knob |
| Бирдик саны | 1.0 Сан |
| Сырткы диаметри | 1 1/4 дюйм |
| Узундук | 1 дюйм |

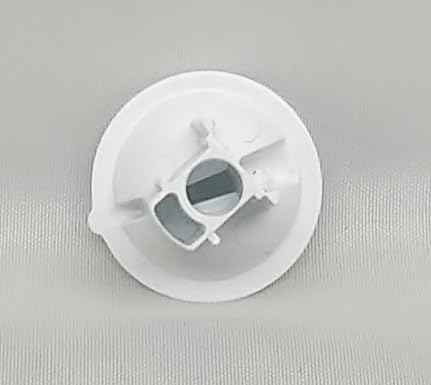

Сүрөт 3: Төмөнкү view of the 891263 control knob, illustrating the internal fitting designed to connect with the control shaft.
Кепилдик жана колдоо
For warranty information or technical support regarding the 891263 Refrigerator Freezer Temperature Control Knob, please refer to the original purchase documentation or contact the seller directly. As this is a replacement part, specific warranty terms may vary.
For issues related to the overall appliance, please consult your refrigerator or freezer's manufacturer support.
