G Shape Ear Piece GP328 PTT Mic Earpiece User Manual

1. Киришүү

This user manual provides detailed instructions for the G Shape Ear Piece GP328 PTT Mic Earpiece, designed to enhance communication for users of compatible Motorola 2-way radios. This earpiece offers clear audio transmission and reception, along with a sensitive Push-to-Talk (PTT) microphone for reliable communication.

1.1 Пакеттин мазмуну

• 1 x G Shape Ear Piece GP328 PTT Mic Earpiece

1.2 Шайкештик

This earpiece is compatible with Motorola Multi-Pin plug 2-way radio models, including but not limited to:

• HT Series: HT750, HT1250, HT1250LS, HT1550, HT1550XLS
• GP Series: GP140, GP240, GP280, GP328, GP330, GP340, GP360, GP380, GP540, GP580, GP640, GP680, GP1280
• MT сериясы: MT850, MT850LS, MT950, MT8250, MT8250LS, MT9250
• PRO Сериялар: PRO860, PRO5350, PRO5450, PRO5460, PRO5550, PRO5750, PRO7150, PRO7350, PRO7450, PRO7550
• PTX Series: PTX700, PTX760
• MTX Series: MTX950, MTX960

2. Продукт бүтүп калдыview

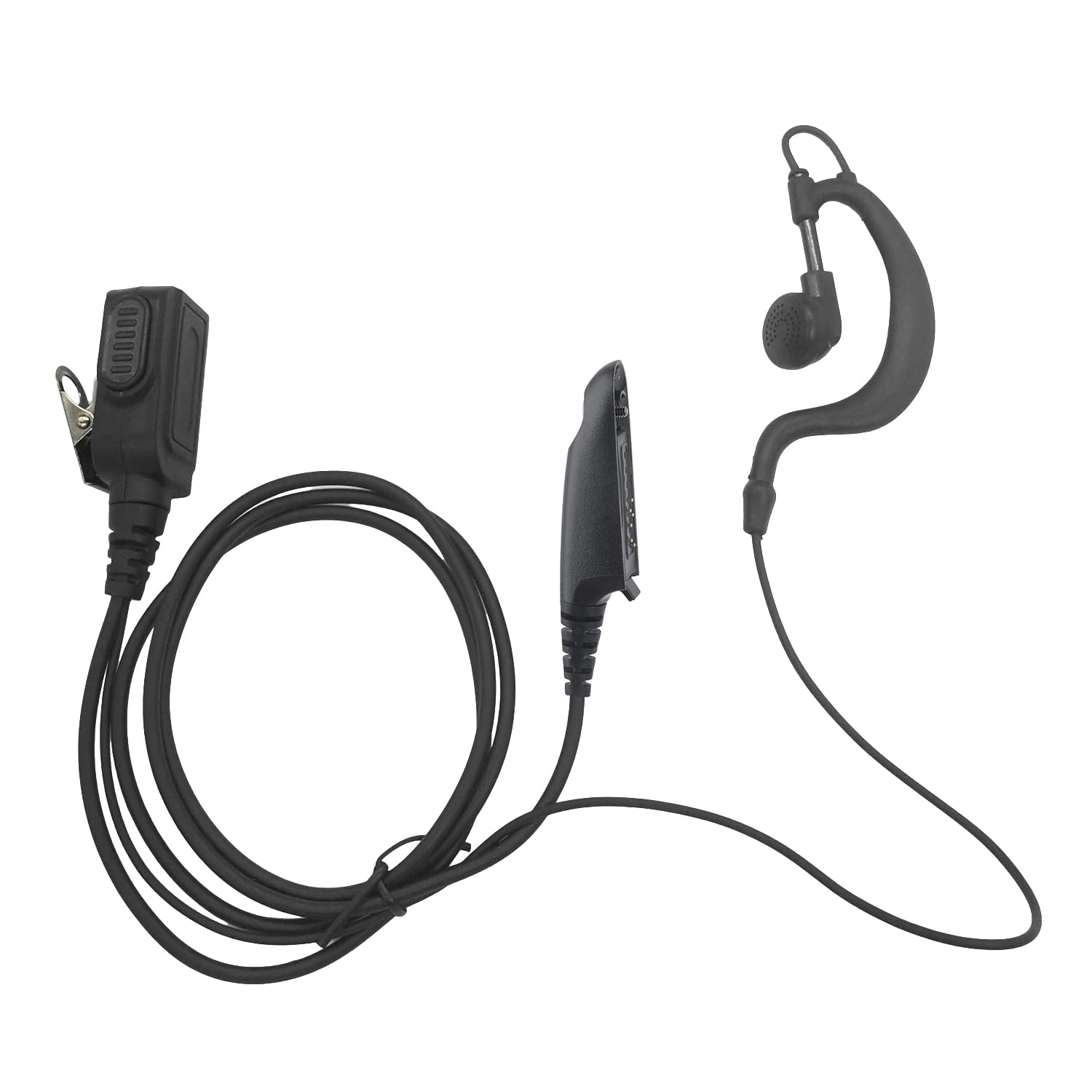

2.1-сүрөт: Толук view of the earpiece, PTT unit, and connector.

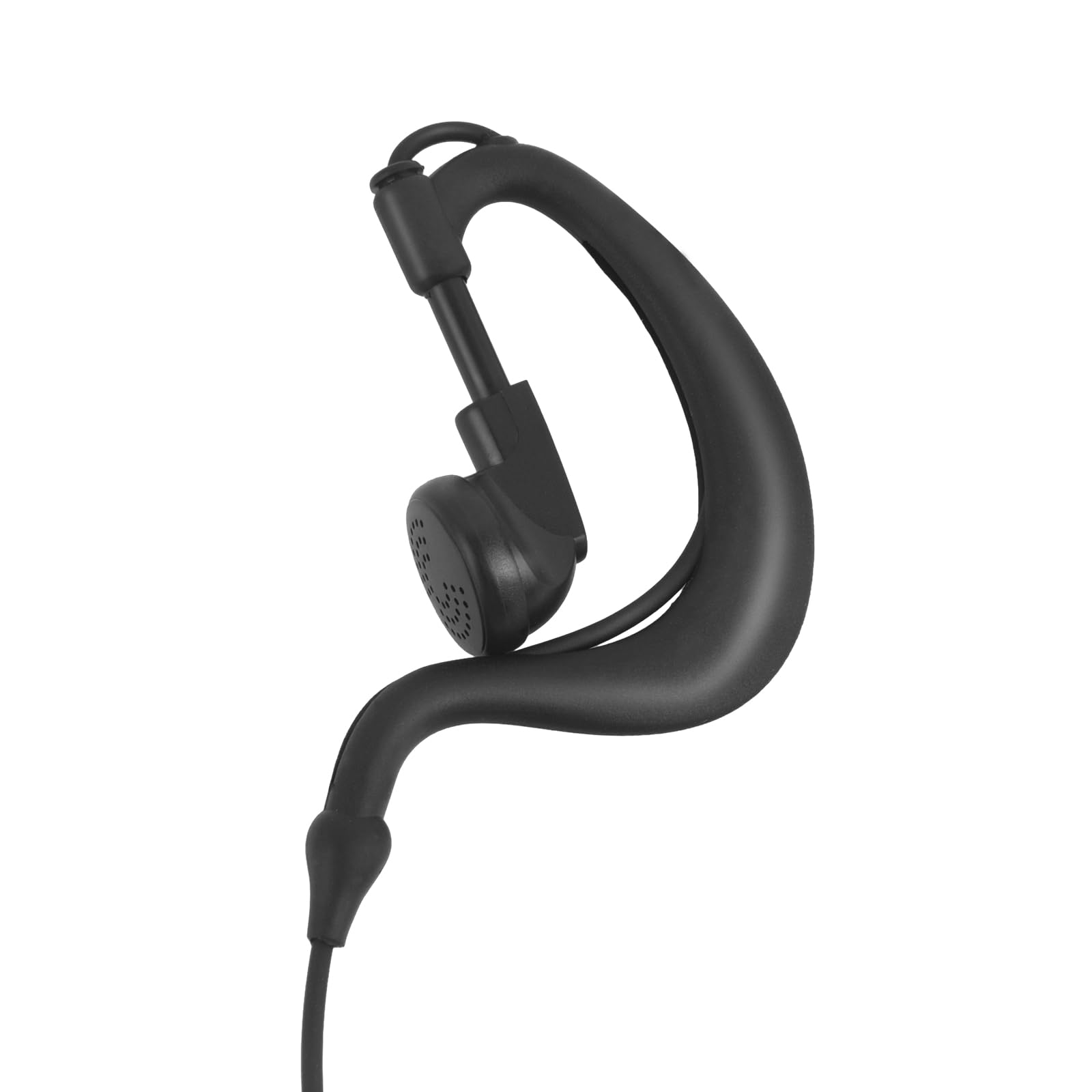

Figure 2.2: Close-up of the G-shape ear hook and earpiece.

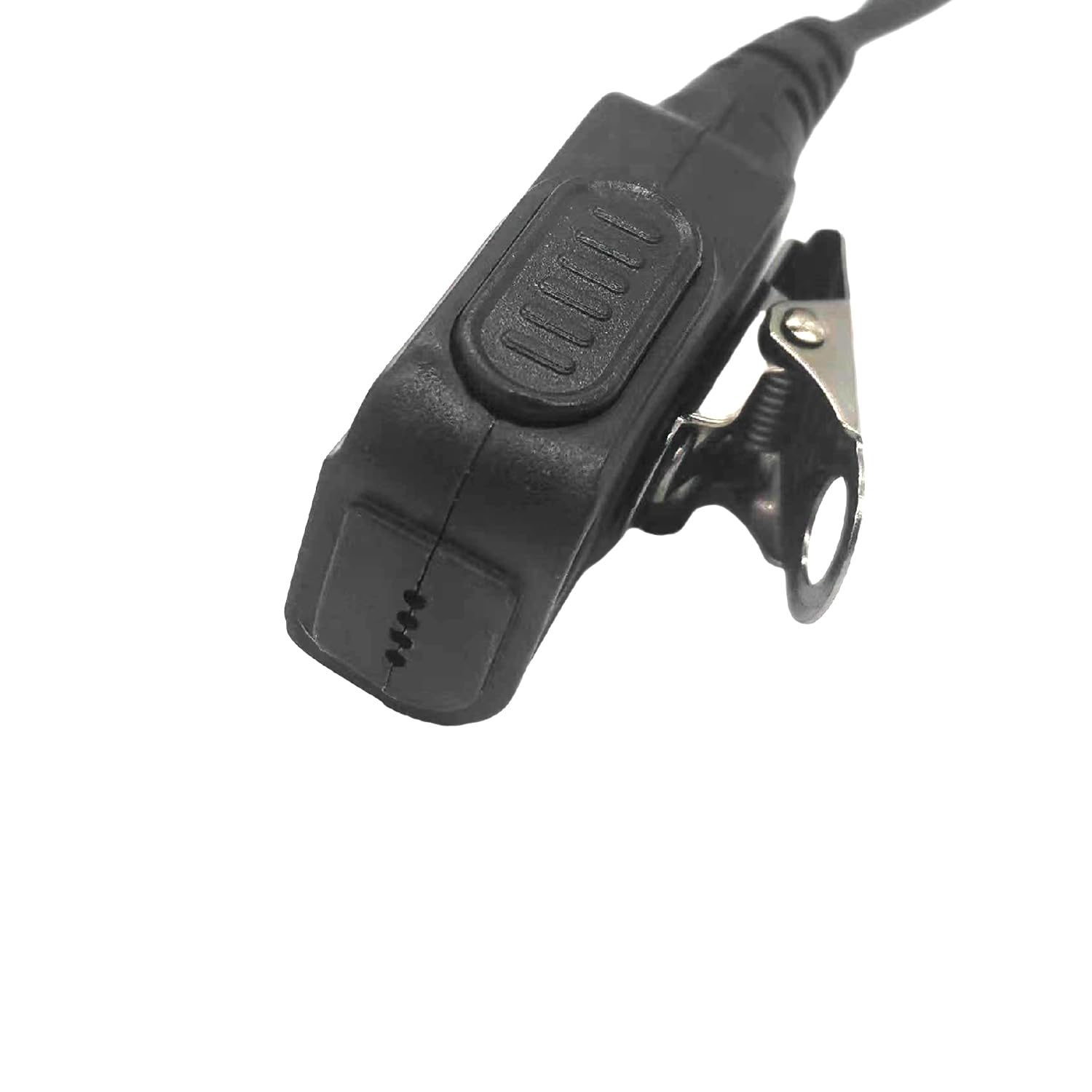

Figure 2.3: Close-up of the PTT button and clip.

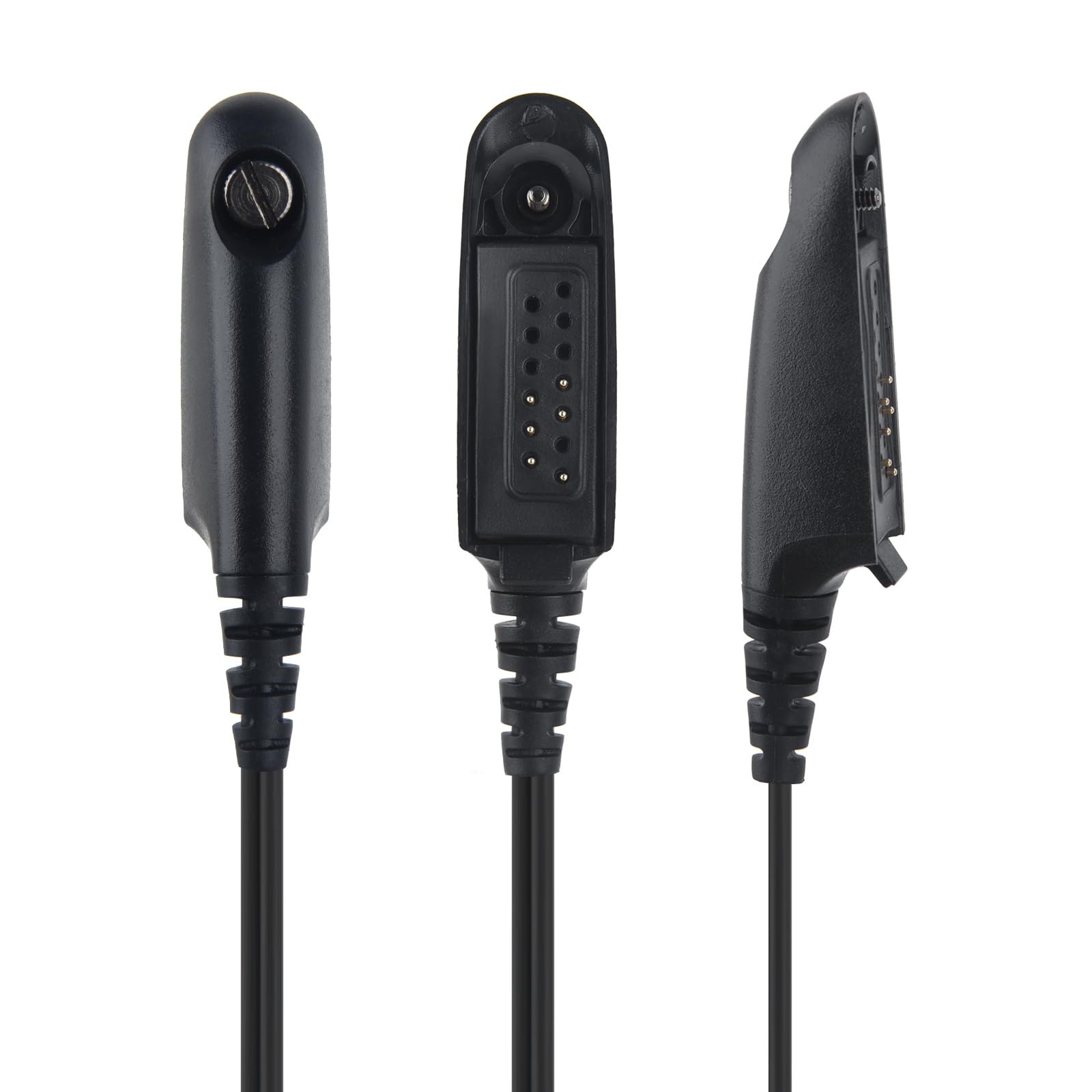

2.4-сүрөт: Ар түрдүү views of the multi-pin connector.

3. Орнотуу

3.1 Кулакчынды туташтыруу

1. Радиону өчүрүү: Ensure your Motorola 2-way radio is powered off before connecting the earpiece.
2. Туташтыргычты тегиздөө: Align the multi-pin connector of the earpiece with the corresponding port on your radio.
3. Бекем киргизиңиз: Gently push the connector firmly into the radio's port until it clicks securely into place.
4. Secure PTT Unit: Secure the PTT unit to your clothing (e.g., collar, lapel) using the integrated clip for easy access during operation.
5. Adjust Earpiece: Adjust the G-shape ear hook over your ear for a comfortable and secure fit. The earpiece should rest comfortably in your ear.
6. Радиону күйгүзүү: Once connected, power on your radio.

4. Иштөө нускамалары

4.1 Receiving Audio

Once the earpiece is properly connected and the radio is powered on, audio from your radio will be transmitted directly to the earpiece. Adjust your radio's volume control for optimal listening comfort and clarity.

4.2 Transmitting Audio (Push-to-Talk - PTT)

To transmit your voice, press and hold the Push-to-Talk (PTT) button located on the inline unit. Speak clearly into the microphone. Release the PTT button when you are finished speaking to return to receive mode.

4.3 Clear Sound

The earpiece is engineered to provide clear audio transmission and reception, ensuring effective communication even in noisy environments.

4.4 Sensitive PTT and Microphone

The integrated PTT button and microphone are highly sensitive, designed to pick up your voice effectively and provide responsive transmission.

5. Техникалык тейлөө жана кам көрүү

• Тазалоо: Wipe the earpiece, PTT unit, and cable with a soft, dry cloth. Do not use harsh chemicals, abrasive cleaners, or immerse the unit in water.
• Сактагыч: Store the earpiece in a cool, dry place away from direct sunlight, extreme temperatures, and excessive humidity.
• Кабельге кам көрүү: Avoid sharp bends, kinks, or excessive pulling on the reinforced TPU cable to prevent internal wire damage.
• Туташтыргыч: Keep the multi-pin connector clean and free of dust or debris to ensure a reliable and stable connection with your radio.

6. Кыйынчылыктарды

6.1 No Audio from Earpiece

• Ensure the earpiece connector is fully and securely inserted into the radio's port.
• Check the radio's volume level and increase it if necessary.
• Verify that the radio is powered on and functioning correctly.

6.2 Cannot Transmit (PTT not working)

• Ensure the PTT button is fully depressed when attempting to transmit.
• Check the earpiece connection to the radio for any looseness.
• Confirm that your radio is in a transmit-enabled mode and not experiencing any internal errors.

6.3 Poor Audio Quality (Static, Muffled Sound)

• Check for any visible damage to the earpiece speaker or microphone.
• Ensure the earpiece and microphone are clean and free of obstructions.
• Verify the radio's signal strength and audio settings. Move to an area with better reception if signal is weak.

7. Техникалык шарттар

8. Кепилдик жана колдоо

This product comes with a warranty period of 1 year from the date of purchase. For technical support, troubleshooting assistance, or to inquire about warranty claims, please contact the seller or manufacturer directly through the platform where the product was purchased.

Кепилдикти текшерүү үчүн сатып алганыңыздын далилин сактап коюңуз.
