KYMQ-14

Жалпы электр туз жана мурч майдалагыч топтому (KYMQ-14 модели) боюнча колдонмо

Your guide to effortless seasoning.

1. Киришүү

Thank you for choosing the Generic Electric Salt and Pepper Grinder Set, Model KYMQ-14. This set is designed to provide a convenient and efficient way to grind fresh salt and pepper, enhancing the flavor of your meals. Please read this manual thoroughly before use to ensure proper operation and maintenance.

Two black electric salt and pepper grinders on a charging base, one filled with black peppercorns and the other with pink Himalayan salt.

Image: The Electric Salt and Pepper Grinder Set (Model KYMQ-14) on its base, showcasing its sleek design and transparent spice chambers.

2. Коопсуздук маалыматы

  • Балдар жетпеген жерде сактаңыз.
  • Мотор блогун сууга же башка суюктуктарга батырбаңыз.
  • Жарнама менен тазалаңызamp cloth. The grinding container is not dishwasher safe.
  • Use only the specified battery type (AAA batteries).
  • Эски жана жаңы батарейкаларды же ар кандай типтеги батареяларды аралаштырбаңыз.
  • Remove batteries if the appliance is not used for an extended period.
  • Иштеп жаткан учурда кыймылдуу бөлүктөргө тийбеңиз.

3. Пакеттин мазмуну

Сураныч, пакетте төмөнкү нерселерди текшериңиз:

  • 2 x Electric Salt and Pepper Grinders
  • 1 x тазалоочу щетка
  • 1 x User Manual
Contents of the Electric Grinder Set: two black grinders, a small cleaning brush, and the product box.

Image: The Electric Grinder Set components, including the two grinders, cleaning brush, and packaging.

4. Продукт бүтүп калдыview

The Electric Salt and Pepper Grinder Set features a sleek, modern design with a one-handed operation for ease of use. Each grinder includes a transparent chamber to monitor spice levels and an adjustable coarseness setting.

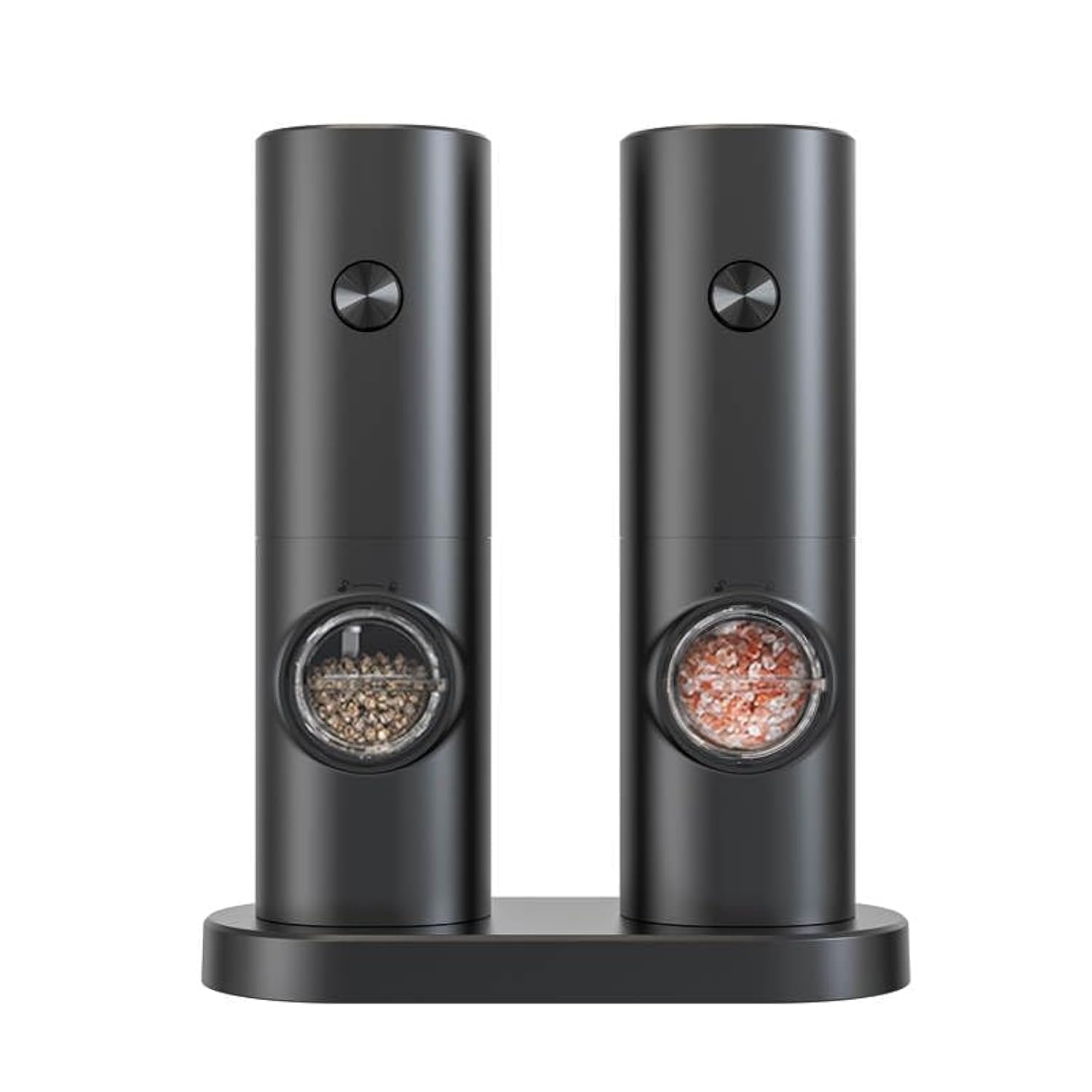

Two black electric salt and pepper grinders standing upright on a black base, one filled with black peppercorns and the other with pink Himalayan salt.

Image: The Electric Salt and Pepper Grinder Set, highlighting its design and the visible spices.

An electric grinder shown next to various whole spices including black pepper, white pepper, coarse salt, rose salt, mung beans, and Sichuan pepper.

Image: The grinder is suitable for various kitchen spices, demonstrating its versatility.

5. Орнотуу

5.1. Батареяны орнотуу

Each grinder requires 6 x AAA batteries (not included). Please note that despite some product descriptions, these grinders are battery-operated and are not rechargeable.

  1. Twist the top section of the grinder counter-clockwise to separate it from the transparent spice chamber.
  2. Insert 6 x AAA batteries into the battery compartment, ensuring correct polarity (+/-).
  3. Align the top section with the spice chamber and twist clockwise to secure.
Жакын план view of the battery compartment of the electric grinder, showing where to insert AAA batteries.

Сүрөт: деталдуу view of the battery compartment, illustrating the correct placement of AAA batteries.

5.2. Filling the Grinder

  1. Twist the transparent spice chamber counter-clockwise to detach it from the motor unit.
  2. Fill the chamber with your desired whole spices (e.g., peppercorns, coarse salt). Do not overfill.
  3. Align the spice chamber with the motor unit and twist clockwise until securely fastened.
A hand detaching the transparent spice chamber from the top motor unit of the electric grinder, ready for refilling.

Image: Demonstrating how to open the grinder for refilling spices.

6. Иштөө нускамалары

6.1. Татымалдарды майдалоо

To operate the grinder, simply press and hold the button located on the top of the unit. The grinder will activate, and a built-in blue LED light will illuminate the grinding area, allowing for precise seasoning.

A hand holding an electric grinder over a steak, with the blue LED light illuminating the grinding process.

Image: The electric grinder in action, showing the blue LED light illuminating the spices as they are dispensed onto food.

6.2. Adjusting Coarseness

The grinder features an adjustable coarseness mechanism. To change the grind size:

  1. Locate the adjustment knob at the bottom of the grinder.
  2. Rotate the knob clockwise for a finer grind or counter-clockwise for a coarser grind.
Diagram illustrating the coarseness adjustment mechanism at the bottom of the electric grinder, with settings from coarse to fine.

Image: Visual guide for adjusting the spice coarseness from fine to coarse.

7. Техникалык тейлөө жана тазалоо

  • Тазалоодон мурун ар дайым батареяларды алып салыңыз.
  • Жаргылчактын сыртын жумшак менен сүртүңүз, гamp кездеме.
  • Use the provided cleaning brush to remove any residual spice particles from the grinding mechanism.
  • The transparent spice chamber can be hand-washed with mild soap and water. Ensure it is completely dry before reattaching.
  • Do not use abrasive cleaners or immerse the motor unit in water.

8. Кыйынчылыктарды

КөйгөйМүмкүн себепЧечим
Майдалагыч иштебейт.Батареялар аз же туура эмес орнотулган.Батареяларды алмаштырыңыз же туура полярдуулукту камсыз кылыңыз.
Майдалоо шайкеш келбейт.Coarseness setting is too loose or too tight.Оордук баскычын каалаган параметрге тууралаңыз.
Spices are not dispensing.Spice chamber is empty or clogged.Refill the chamber or clean the grinding mechanism with the brush.

9. Техникалык шарттар

  • Модел: KYMQ-14
  • Бренд: Жалпы
  • Материал: Acrylonitrile бутадиен Styrene
  • Түсү: Кара
  • Иштөө режими: Automatic (Push-button)
  • Кубат булагы: 6 x AAA Батареялар (киргизилген эмес)
  • Продукциянын өлчөмдөрү: Туурасы 2.16" x Бийиктиги 7.08" (туурасы 55 мм x бийиктиги 180 мм)
  • Элемент Салмагы: 1.23 фунт (комплект үчүн)
  • Идиш жуугучта коопсуз: Жок
Diagram showing the dimensions of a single electric grinder: 55mm width and 180mm height.

Image: Dimensions of the electric grinder for reference.

10. Кепилдик жана колдоо

For any questions, concerns, or support regarding your Generic Electric Salt and Pepper Grinder Set, please refer to the retailer's return policy or contact the manufacturer directly. Please retain your proof of purchase for warranty claims.
