Outsunny 11' x 11' Pop Up Canopy Instruction Manual

1. Киришүү

This manual provides detailed instructions for the assembly, operation, maintenance, and safety of your Outsunny 11' x 11' Pop Up Canopy. Please read all instructions carefully before setup and retain this manual for future reference.

Image 1.1: The Outsunny 11' x 11' Pop Up Canopy in an outdoor setting.

2. Коопсуздук маалыматы

Коопсуз иштөөнү камсыз кылуу жана зыяндын алдын алуу үчүн төмөнкү коопсуздук көрсөтмөлөрүн сактаңыз:

• Do not use in strong wind or heavy rain.
• Do not leave up during adverse weather conditions, including snow, sleet, and hail.
• Always secure the canopy with the provided ground stakes and ropes.
• Ensure the canopy is assembled on a level surface.
• Keep children and pets away from the canopy during assembly and disassembly.
• Regularly inspect all components for wear or damage. Do not use if damaged.

3. Пакеттин мазмуну

Монтаждоону баштоодон мурун бардык компоненттердин бар экендигин текшериңиз:

• Pop Up Canopy Frame
• Canopy Top (2-Tier Soft Top)
• Mesh Sidewalls (with zippers)
• Ташуу сумкасы
• Жер казыктары (8 даана)
• Ropes (4 pieces)
• Drainage Holes (integrated into canopy top)

4. Орнотуу нускамалары

Assembly requires two people. Follow these steps for quick setup:

1. Таңылганын ачуу: Remove the canopy frame and canopy top from the carrying bag.
2. Алкакты жайыңыз: With a partner, gently pull the frame outwards from opposite corners until it is partially open.
3. Чатырдын үстүн тиркөө: Place the canopy top over the partially opened frame, ensuring the corners align. Secure the canopy top to the frame.
4. Кадрды толугу менен кеңейтүү: Continue to pull the frame outwards until it is fully extended and locked into place. Lift each leg and extend it to the desired height, ensuring all legs are locked.
5. Тор каптал дубалдарын бекитүү: Hang the mesh sidewalls from the canopy frame using the attached fasteners. Zip the sidewalls together to enclose the space.
6. Коопсуз чатыр: Use the provided ground stakes and ropes to anchor the canopy firmly to the ground. Attach ropes to the canopy corners and stake them into the ground at an angle.

Image 4.1: Visual guide for the pop-up assembly process.

5. Продукциянын өзгөчөлүктөрү

Your Outsunny Pop Up Canopy is designed with several features for comfort and convenience:

• 2-Tier Vented Canopy: The double-roof design allows for improved airflow and helps to redirect wind, enhancing stability.
• Дренаждык тешиктер: Eight drainage holes on the canopy top prevent water buildup during light rain.
• Removable Zipper Netting: Four mesh sidewalls provide protection from insects while allowing air circulation. They can be zipped closed or tied back.
• Бекем болот алкагы: The powder-coated steel frame offers durability and resistance to rust.
• Overhanging Eave: Provides a larger shaded area for comfort.

Image 5.1: Detail of the vented roof and drainage system.

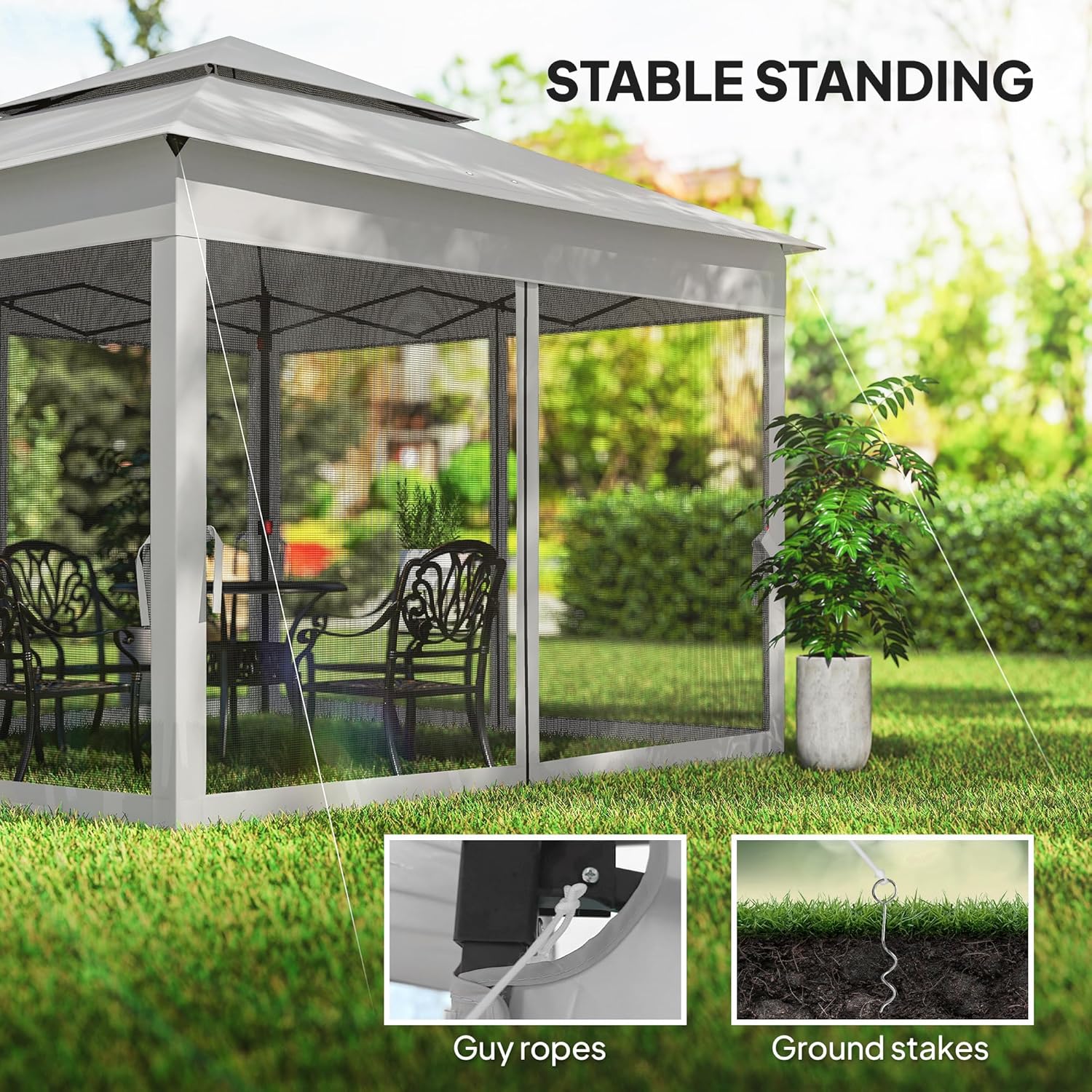

Image 5.2: Illustration of stable standing features with guy ropes and ground stakes.

6. Колдонуу боюнча көрсөтмөлөр

To maximize the lifespan and enjoyment of your canopy:

• Use for outdoor activities such as parties, backyard gatherings, or camping.
• Always ensure the canopy is properly anchored to prevent movement or collapse.
• Close the mesh sidewalls to protect against insects or open them for increased airflow.
• Рамкага оор нерселерди илип албаңыз.
• Avoid using open flames or heating devices directly under the canopy.

7. Кароо жана тейлөө

Proper care will help maintain your canopy's condition:

• Тазалоо: Чатырдын кездемесин жумшак самын жана суу менен тазалаңыз. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз. Кылдаттык менен жууп, сактоо алдында толугу менен кургатуу.
• Frame Care: Жарнама менен болот рамканы сүртүңүзamp cloth. If rust appears, clean and apply a rust-inhibiting paint.
• Сактагыч: When not in use, disassemble the canopy and store all components in the provided carrying bag in a dry, cool place, away from direct sunlight.
• Текшерүү: Periodically check all nuts, bolts, and fabric for tightness, wear, or damage. Replace any worn or damaged parts immediately.

8. Кыйынчылыктарды

Бул жерде жалпы маселелерди чечүү жолдору болуп саналат:

• Canopy not stable: Ensure all legs are fully extended and locked. Verify that ground stakes and ropes are securely fastened. Relocate to a more sheltered area if wind is a factor.
• Чатырда суу топтоо: Check that the canopy fabric is taut and properly attached to the frame. Ensure drainage holes are clear of debris.
• Монтаждоо/демонтаждоо кыйынчылыгы: Ensure two people are assisting. Refer to the setup instructions and ensure all locking mechanisms are correctly engaged or disengaged.
• Сыдырмалардын жабышып калышы: Сыдырма тиштерине силикон негизиндеги майлоочу каражатты сүйкөңүз.

9. Техникалык шарттар

Key product specifications for your Outsunny Pop Up Canopy:

Image 9.1: Overall dimensions of the Outsunny Pop Up Canopy.

10. Кепилдик жана колдоо

Your Outsunny Pop Up Canopy comes with a manufacturer's warranty and support information:

• Өндүрүүчүнүн Кепилдиги: 90 Day Warranty Against Manufacturer Defects.
• Өндүрүүчүнүн Байланыш маалыматы: Markham, Ontario, CA Tel. 1-416-792-6088.

For further assistance or to report any issues, please contact the manufacturer directly using the provided contact details.
