1. Киришүү
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Hilitand NLQ3-125/2P Automatic Transfer Switch (ATS). This device is designed to automatically switch between a normal power supply and a standby power supply, such as a PV inverter or generator, ensuring continuous power for critical loads.
2. Коопсуздук маалыматы
Please read all safety warnings and instructions carefully before installing or operating this device. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.
- Орнотуу жана тейлөө квалификациялуу электриктер тарабынан гана аткарылышы керек.
- Ensure all power sources are disconnected before performing any wiring or maintenance.
- Туура томду текшериңизtagд жана аппаратты туташтыруудан мурун учурдагы рейтингдер.
- Эгер өчүргүч бузулуп калса иштетпеңиз.
- Ар дайым тиешелүү жеке коргонуу шаймандарын (ЖКК) колдонуңуз.
3. Продукт бүтүп калдыview
The Hilitand NLQ3-125/2P is a 110V 63A 2-pole automatic transfer switch featuring millisecond switching capabilities. It is designed for applications requiring uninterrupted power, such as in homes, shopping malls, factories, laboratories, and farms. The switch ensures continuity, reliability, and safety of the power supply by automatically transferring to a backup source when the normal supply is abnormal.
Негизги өзгөчөлүктөрү:
- Автоматтык которуу: Seamlessly switches between normal and standby power supplies.
- Millisecond Switching: Ensures minimal interruption to power supply.
- Туруктуу курулуш: Made from flame-retardant PC material and silver alloy contacts for good insulation and aging resistance.
- Кеңири колдонуу: Suitable for various environments requiring continuous power.
- Isolation and Interference Resistant: Designed for reliable performance.
Продукт компоненттери:
3.1-сүрөт: Фронт view of the Hilitand NLQ3-125/2P Automatic Transfer Switch, showing input/output terminals, manual/auto selector, and power indicators.
3.2-сүрөт: Жогорку view of the Automatic Transfer Switch, highlighting the 'Normal Power A' and 'Reverse Power B' sections, along with the manual/auto switch and terminal connections.

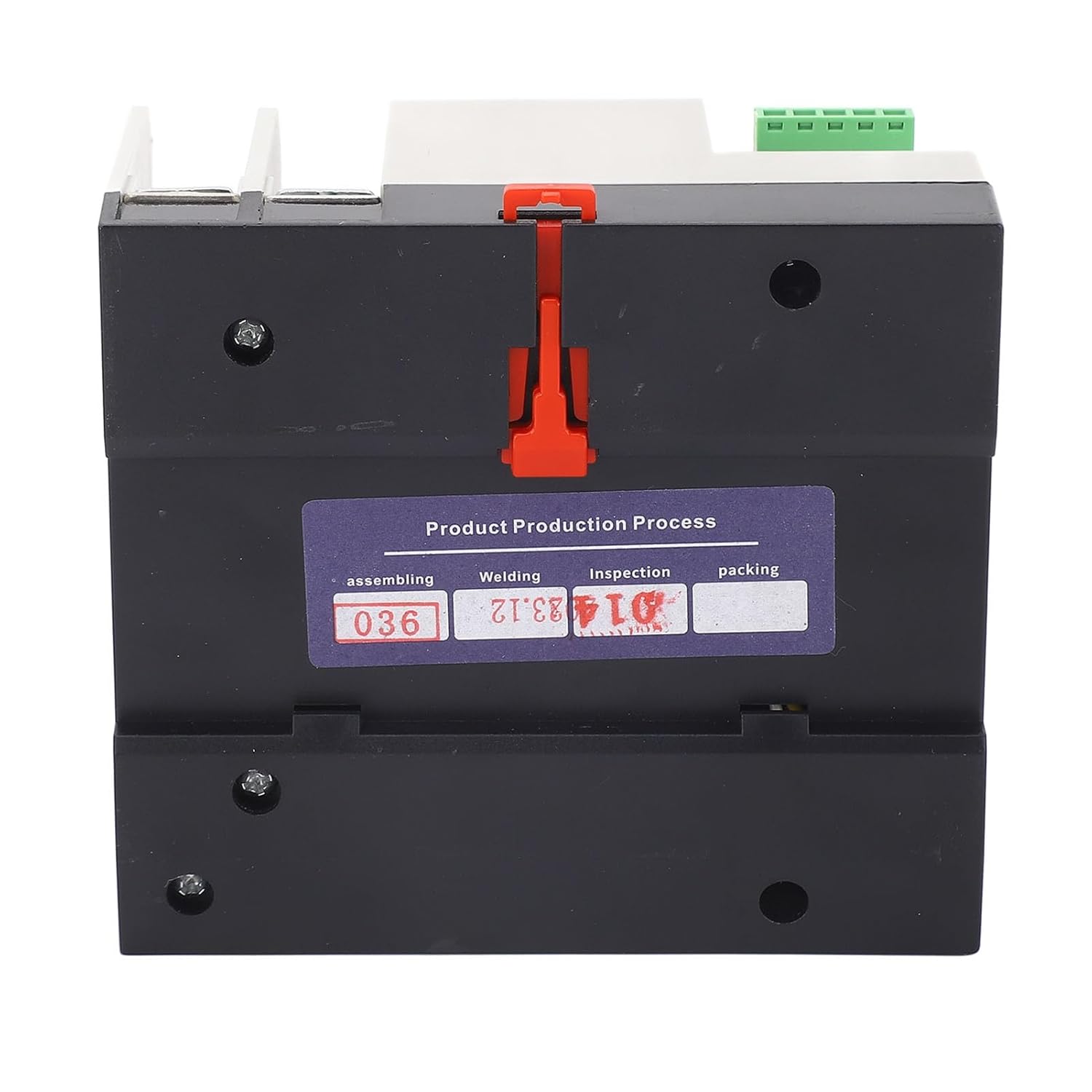

3.3-сүрөт: Төмөнкү view of the Automatic Transfer Switch, showing the base and a production process label.
4. Техникалык шарттар
| Параметр | Нарк |
|---|---|
| Продукт модели | NLQ3-125/2P |
| Элемент түрү | Dual Power Automatic Transfer Switch |
| Материал | Flame Retardant PC, Silver Alloy |
| Которуу түрү | Экинчи бөлүштүрүү |
| Номиналдуу ток | 63A |
| Coil Voltage | 110V AC |
| Insulation Voltage | AC690V AC |
| Rated Voltage | AC400V AC (Note: Product title states 110V, please verify application voltage) |
| Номиналдуу жыштык | 50/60 Гц |
| Электрдик деңгээл | PC Isolation Type |
| Rated Impulse Stend Voltage | 8КВ |
| Башкаруу схемасынын номиналдык башкаруу көлөмүtage Us | AC110V 85% Us-110% Us |
| Көмөкчү схема | 2 Relays, each with 2 sets of contacts capacity: AC110V50HZ le=5y |
| Почталардын өлчөмдөрү | 11 x 10 x 8 см |
| Салмагы | 606 г |
4.1-сүрөт: Dimensions of the Hilitand NLQ3-125/2P Automatic Transfer Switch, showing approximate measurements of 109mm (4.3in) length, 97mm (3.8in) width, and 69mm (2.7in) height.
5. Орнотуу жана орнотуу
Proper installation is crucial for the safe and reliable operation of the ATS. Refer to the wiring diagram and follow local electrical codes.
Орнотууга чейинки текшерүү:
- Before installation, carefully inspect the integrity of the ATS for any physical damage.
- Use the operating handle to manually open or close the ATS. Check the flexibility of the internal transmission device.
- Test the generation and disconnection conditions of the load for both the normal and standby power supply in each phase to ensure proper functionality before final wiring.
Зымдар диаграммасы:
5.1-сүрөт: Wiring diagram for the Automatic Transfer Switch. It illustrates connections for Common Feed, Common Control Line, Back-up Line, Stand-by Control Line, and Load Output for both Normal Power A (Solar Energy) and Reverse Power B (City Power).
Орнотуу кадамдары:
- Mount the ATS securely in a suitable enclosure, ensuring adequate ventilation and clearance.
- Connect the normal power supply (e.g., grid power) to the designated 'Normal Power A' input terminals.
- Connect the standby power supply (e.g., PV inverter or generator) to the designated 'Reverse Power B' input terminals.
- Connect the load to the output terminals of the ATS.
- Connect the control lines as per the wiring diagram. Ensure all connections are tight and secure.
- Double-check all wiring for correctness and adherence to safety standards before applying power.
6. Иштөө нускамалары
The NLQ3-125/2P ATS can operate in both automatic and manual modes.
Автоматтык режим:
- Set the selector switch on the device to 'Auto'.
- In this mode, the ATS will automatically monitor the normal power supply.
- If the normal power supply fails or falls outside acceptable parameters, the ATS will automatically switch the load to the standby power supply within milliseconds.
- When the normal power supply is restored, the ATS will automatically transfer the load back to the normal power supply.
Кол режими:
- Set the selector switch on the device to 'Manual'.
- In manual mode, the user can use the operating handle to switch between 'Normal Power A' and 'Reverse Power B' as needed.
- This mode is typically used for testing, maintenance, or in situations where automatic transfer is not desired.
Колдонмо Examples:
6.1-сүрөт: Визуалдык эксamples of environments where the ATS can be applied, including household electricity, shopping malls, company offices, and factories, demonstrating its versatility.
6.2-сүрөт: Another illustration of the ATS's broad applicability, showing it in contexts such as factories, shopping malls, nurseries, and residential buildings with solar panels, emphasizing its use where continuous power is critical.
6.3-сүрөт: The Automatic Transfer Switch positioned within an industrial manufacturing environment, highlighting its suitability for robust and demanding operational settings.
7. Техникалык тейлөө
Үзгүлтүксүз техникалык тейлөө сиздин АТСтин узак мөөнөттүү жана ишенимдүү иштешин камсыз кылууга жардам берет.
- Мезгилдүү текшерүү: Regularly inspect the ATS for any signs of wear, damage, or loose connections.
- Тазалоо: Түзмөктү таза жана чаң менен таштандылардан таза кармаңыз. Тазалоо үчүн кургак, жумшак чүпүрөк колдонуңуз. Суюк тазалоочу каражаттарды колдонбоңуз.
- Терминал текшерүү: Periodically check all terminal connections to ensure they are tight and secure. Loose connections can lead to overheating and potential failure.
- Функционалдык тест: Conduct periodic functional tests (in manual mode, if safe to do so) to ensure the switching mechanism operates smoothly.
- Кесиптик кызмат: For any complex issues or internal inspections, consult a qualified electrician.
8. Кыйынчылыктарды
Эгерде сиз ATS менен көйгөйлөргө туш болсоңуз, төмөнкү кеңири таралган көйгөйлөрдү жана чечимдерди караңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| ATS does not switch automatically | 1. Selector switch in 'Manual' mode. 2. No power detected on standby source. 3. Control circuit fault. | 1. Set selector switch to 'Auto'. 2. Verify standby power source is active. 3. Consult a qualified electrician. |
| Эч кандай кубаттуулук чыгаруу | 1. Both normal and standby power sources are off. 2. Loose wiring connections. 3. Ички күнөө. | 1. Check both power sources. 2. Inspect and tighten all wiring connections (with power off). 3. Consult a qualified electrician. |
| Overheating of terminals | 1. Бошоң байланыштар. 2. Ашыкча жүктөө. 3. Incorrect wire gauge. | 1. Tighten all terminal screws (with power off). 2. Reduce load or verify load is within rated capacity. 3. Ensure appropriate wire gauge is used for the current rating. |
For issues not listed above or if solutions do not resolve the problem, contact customer support or a qualified electrician.
9. Кепилдик жана колдоо
Кепилдик маалыматы:
This Hilitand product comes with a manufacturer warranty for 90 days from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.
Кардарларды колдоо:
For technical assistance, warranty claims, or further inquiries, please contact Hilitand customer support through your retailer or the official Hilitand channels. Please have your product model number (NLQ3-125/2P) and purchase details ready when contacting support.
