Fresh 'n Rebel BOLD M2
Fresh 'n Rebel Bold M2 Bluetooth Speaker User Manual
Model: Bold M2
Your guide to portable, powerful sound.
Introduction
The Fresh 'n Rebel Bold M2 is a portable Bluetooth speaker designed for robust sound and ultimate portability. With its durable, waterproof, and dustproof design, extended battery life, and versatile connectivity options, it's ready for any adventure. This manual provides essential information for setting up, operating, and maintaining your Bold M2 speaker.
Кутуда эмне бар
The Fresh 'n Rebel Bold M2 package includes:
- Bold M2 Wireless Bluetooth Speaker
- USB-C заряддоо кабели
- Ташуу боосу
- User Manual
Image: A visual representation of the Bold M2 speaker, USB-C charging cable, carrying strap, and user manual, as typically found inside the product packaging.
Жайгашуу
1. Динамикти кубаттоо
Before first use, fully charge your Bold M2 speaker. Use the provided USB-C cable to connect the speaker to a power source (e.g., a USB wall adapter or computer USB port).
- The LED battery indicator lights will show the charging status.
- Толук кубаттоо 24 саатка чейин ойноо убактысын камсыз кылат.

Image: A person holding the Bold M2 speaker, with text overlay highlighting "24 Hours Playtime," demonstrating the speaker's long battery life.
2. Күйгүзүү / Өчүрүү
Динамикти күйгүзүү же өчүрүү үчүн анын жогорку панелинде жайгашкан кубат баскычын басып, кармап туруңуз.
3. Bluetooth Жупташтыруу
- Turn on your Bold M2 speaker. It will automatically enter Bluetooth pairing mode, indicated by a blinking LED light.
- Түзмөгүңүздө (смартфон, планшет, компьютер) Bluetooth иштетип, жеткиликтүү түзмөктөрдү издеңиз.
- Select "Bold M2" from the list of devices.
- Once connected, the LED light on the speaker will turn solid, and you will hear a confirmation sound.
Иштөө нускамалары
Үндү башкаруу шакеги
The Bold M2 features an intuitive volume control ring on its top panel. Rotate the ring clockwise to increase the volume and counter-clockwise to decrease it.

Сүрөт: деталдуу view of the speaker's top control panel, highlighting the volume control ring for easy adjustment.
Party Mode (Connect 2 Devices)
Party Mode allows two different devices to connect to the Bold M2 speaker simultaneously, enabling seamless music sharing between friends.

Image: A graphic demonstrating Party Mode, where two mobile devices are simultaneously connected to the speaker, allowing for shared control of music playback.
Double Fun Mode (Link 2 Speakers for Stereo)
For a true stereo experience, you can wirelessly link two Bold M2 speakers together using Double Fun Mode.
- Ensure both Bold M2 speakers are powered on and not connected to any other Bluetooth devices.
- On one speaker, press and hold the Bluetooth button until you hear a specific tone, indicating it's ready to pair with another speaker.
- Эки динамик бири-бирине автоматтык түрдө кошулат. Туташкандан кийин алар стерео жуп катары иштешет.
- Now, connect your device to one of the paired Bold M2 speakers via Bluetooth.

Image: A graphic illustrating Double Fun Mode, where two Bold M2 speakers are wirelessly paired to create a stereo sound system.
Суу жана чаң өткөрбөйт (IP67)
The Bold M2 speaker is rated IP67, meaning it is fully protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. This makes it ideal for outdoor use, by the pool, or at the beach.

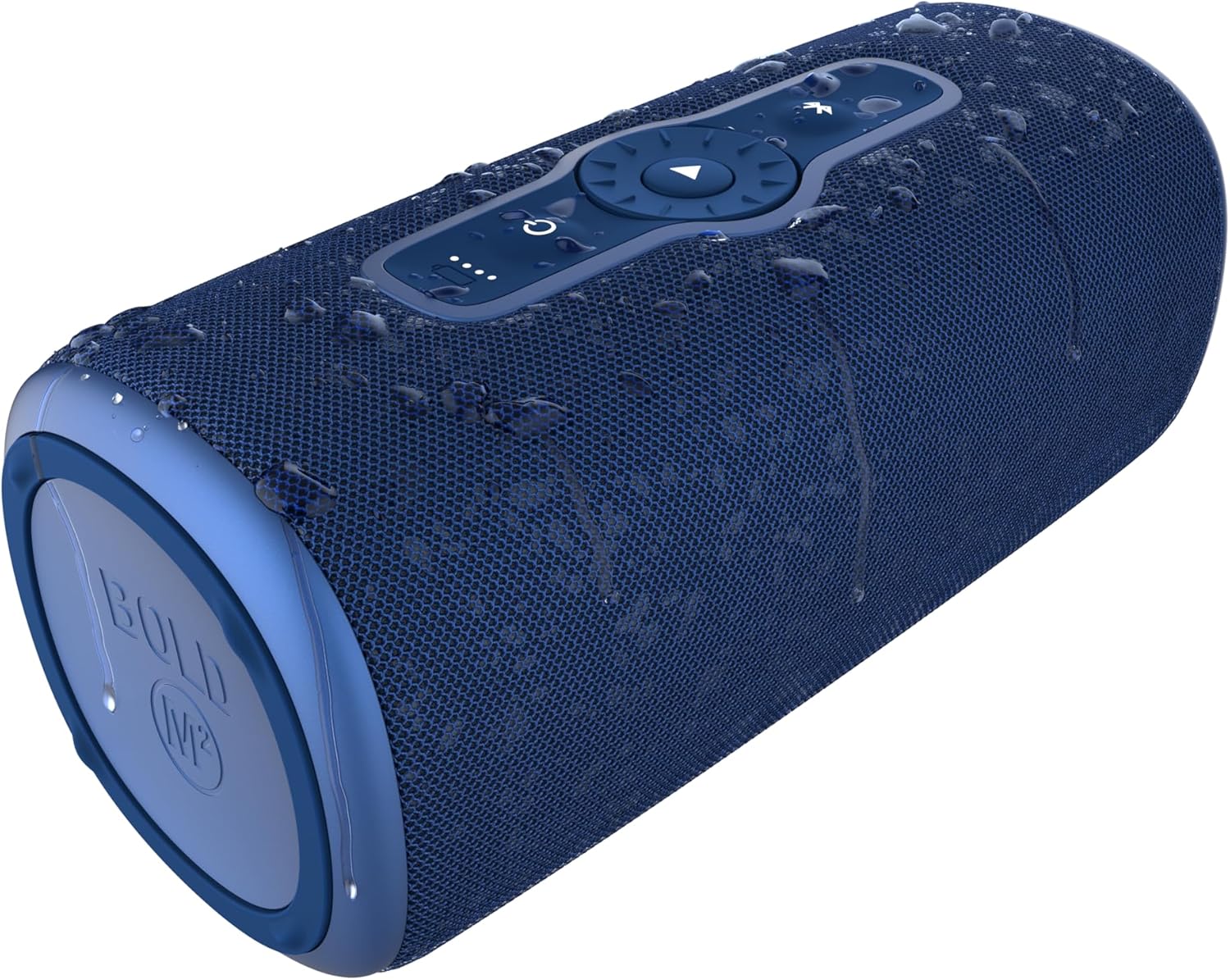

Image: The Bold M2 speaker with water droplets on its surface, visually confirming its waterproof capabilities.

Image: A hand holding the Bold M2 speaker, showcasing its compact size and water-resistant design, suitable for various environments.
Расмий продукт Video
Video: An official promotional video for the Fresh 'n Rebel Bold M2 speaker, demonstrating its key features such as volume control, Party Mode, Double Fun Mode, and waterproof capabilities in various settings.
Техникалык тейлөө
Тазалоо
To clean your Bold M2 speaker, use a soft, damp cloth. Do not use abrasive cleaners or solvents, as they may damage the surface. Ensure the USB-C port is dry before charging.
Сактагыч
When not in use for extended periods, store the speaker in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to charge the speaker at least once every three months to maintain battery health.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Динамик күйбөйт. | Батарея түгөнүп калды. | Берилген USB-C кабели аркылуу динамикти кубаттаңыз. |
| Bluetooth аркылуу жупташтыруу мүмкүн эмес. | Speaker is not in pairing mode; device Bluetooth is off; too many devices connected. | Ensure speaker is in pairing mode (blinking LED). Turn device Bluetooth off and on. Disconnect other Bluetooth devices. |
| Үн жок же үнү төмөн. | Динамикте же түзмөктө үн өтө төмөн; динамик туташкан эмес. | Динамиктин жана туташкан түзмөктүн үнүн жогорулатуу. Bluetooth байланышын кайра орнотуу. |
| Double Fun Mode not working. | Speakers not properly paired; one speaker already connected to a device. | Ensure both speakers are disconnected from other devices before initiating Double Fun Mode pairing. Follow pairing steps carefully. |
Техникалык шарттар
- Модель аты: Bold M2
- Модель номери: BOLD M2
- Продукциянын өлчөмдөрү: 8 x 8.1 x 18 см
- Салмагы: 940 грамм
- Байланыш технологиясы: Bluetooth, USB
- Bluetooth версиясы: 5.3
- Суу өткөрбөйт рейтинги: IP67
- Динамиктин максималдуу чыгаруу күчү: 20 Ватт
- Аудио чыгаруу режими: Стерео
- Киргизүү көлөмүtage: 5 вольт (ток)
- Оюн убактысы: 24 саатка чейин
- Шайкеш түзмөктөр: Смартфон, Планшет, Компьютер
- Өндүрүүчү: Fresh 'n Rebel
- Келип чыккан өлкө: Кытай

Image: A diagram illustrating the physical dimensions of the Bold M2 speaker, providing a clear understanding of its size.
Кепилдик жана колдоо
For warranty information and customer support, please refer to the official Fresh 'n Rebel webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз. Ар кандай кепилдик дооматтары үчүн сатып алганыңыздын далилин сактаңыз.
Онлайн колдоо: www.freshnrebel.com/support
