WEILAILIFE 8MP 4K PoE Security Camera System User Manual

1. Киришүү

This manual provides detailed instructions for the installation, operation, and maintenance of your WEILAILIFE 8MP 4K PoE Security Camera System. This system features 8-megapixel (4K) resolution cameras, Power over Ethernet (PoE) for simplified installation, two-way audio communication, 130° ultra-wide-angle lenses, and advanced AI human detection. Please read this manual thoroughly before using the product to ensure proper setup and functionality.

2. Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:

• 1 x 4K 8MP 8-Channel Network Video Recorder (NVR) with 1TB HDD
• 4 x 4K 8MP Cameras
• 4 x 18.2m LAN Cables for Cameras
• 1 х USB чычкан
• 1 x 1m HDMI кабели
• 1 x NVR Power Adapter (48V2A)
• 1 x Алыстан башкаруу
• 1 x 1m LAN Cable
• 1 x Instruction Manual & Warning Label
• 4 x Camera Mounting Screw Packs

3. Орнотуу

The WEILAILIFE security camera system is designed for easy plug-and-play installation. Follow these steps to set up your system:

1. NVR туташтыруу: Connect the NVR to a power source using the provided power adapter. Connect the NVR to a monitor via the HDMI or VGA port, and connect the USB mouse for navigation.
2. Камераларды туташтыруу: Connect each camera to the NVR using the provided LAN cables. The PoE technology will supply power and video signal through a single cable.
3. Network Connection (Optional for Remote Access): Алыскы үчүн viewing, connect the NVR to your router using the provided 1m LAN cable.
4. Кубат режимдери: The cameras support dual power interfaces. For distances exceeding standard PoE range (up to 200m), an additional power source can be used.

Figure 3.1: Camera Power Modes. The system supports PoE for distances up to 200m, with an option for an additional power adapter for extended range.

Figure 3.2: Plug-and-Play Connection. Cameras connect directly to the NVR via LAN cables, providing power, video, and audio.

Figure 3.3: IP66 Waterproof Connector. Ensure the waterproof connector is properly installed for outdoor camera use.

4. Иштөө нускамалары

4.1. Эки тараптуу аудио

The system supports two-way audio, allowing you to communicate with individuals near the camera using the dedicated mobile application. This feature enables real-time conversations, such as speaking to a delivery person at your door.

Figure 4.1: Two-Way Audio Communication. Interact with visitors or deter intruders directly through the camera.

4.2. Алыстан байкоо

Түз эфирдеги видео берүүлөргө жана жаздырылган тамак-ашка кирүүtage from anywhere using the free 'Honestview' or 'Eseecloud' app on your smartphone (iOS/Android), tablet, or computer. The system supports multiple users (up to 4) viewing streams simultaneously.

Figure 4.2: Remote Access. Monitor your property from various devices, including smartphones, tablets, and PCs.

4.3. Кыймылды аныктоо жана эскертүүлөр

Leveraging advanced recognition algorithms and infrared detection, the system sends real-time notifications to your device when abnormal activity is detected. Dual detection (PIR & AI) minimizes false alarms from leaves, clouds, animals, or insects, significantly improving accuracy over traditional motion detection.

Figure 4.3: PIR & AI Dual Detection. The system accurately identifies human movement while reducing false alarms.

4.4. Жазуу режимдери

The NVR supports various recording modes to suit your needs:

• Пландаштырылган жаздыруу: Үзгүлтүксүз жаздыруу үчүн белгилүү бир убакыттарды коюңуз.
• Кол менен жаздыруу: Керек болсо кол менен жаздырууну баштоо жана токтотуу.
• Кыймылды аныктоо жазуусу: Кыймыл аныкталганда гана жаздырат, бул сактагычтагы орунду үнөмдөйт.

Figure 4.4: Recording Options. Choose between continuous, scheduled, or motion-activated recording.

5. Өзгөчөлүктөрү

5.1. 4K 8MP Ultra-High Resolution

The 3264 x 2488 high-resolution security cameras provide clear and detailed images, ensuring 24/7 security for your home or business. Even at night, you can see everything within 24 meters.

5.2. 130° Ultra-Wide Angle Lens

Equipped with a 130° wide-angle optical lens, the cameras capture a broad field of view, minimizing blind spots and enhancing surveillance coverage. This allows for clear recording and monitoring of large areas.

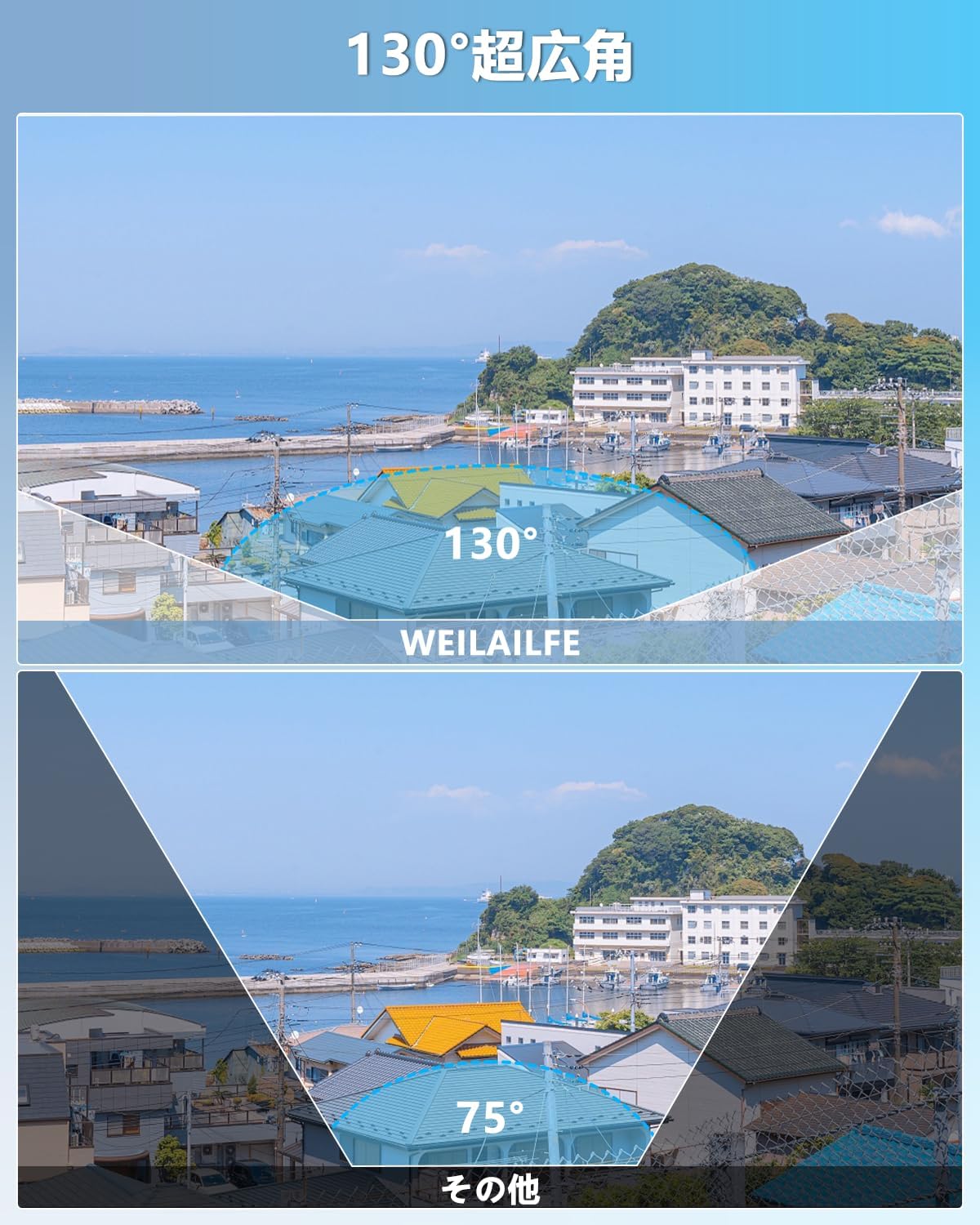

Figure 5.1: 130° Ultra-Wide Angle. Capture more of your surroundings with an expanded field of view.

5.3. H.265 Compression Technology

The system utilizes H.265 compression, which allows for more than double the recording time compared to H.264 while maintaining image quality. This technology also improves processing speed by 50%, enabling smoother viewing even with slower internet connections.

Figure 5.2: H.265+ Compression. Efficiently store more footage without compromising video quality.

5.4. IP66 аба ырайына туруктуу дизайн

With an IP66 dustproof and waterproof rating, the cameras are built to withstand harsh weather conditions, effectively preventing dust and rain from affecting performance. This makes them suitable for both indoor and outdoor installation.

Figure 5.3: IP66 Weatherproof. Reliable surveillance in various weather conditions, from -25°C to 50°C.

5.5. Түнкү көрүнүш

The IR-LED system automatically activates infrared mode in low-light conditions, providing clear night vision up to 20 meters. This ensures continuous monitoring even in complete darkness.

Figure 5.4: Automatic Day/Night Switching. The camera adapts to lighting conditions for optimal visibility.

5.6. Кеңейтилиши

The system is expandable, allowing you to add up to 8 cameras in total to meet your surveillance needs. This flexibility makes it suitable for various locations such as offices, gardens, shops, or villas.

Figure 5.5: Expandable System. Add up to 8 cameras to cover all desired areas.

5.7. AI WDR Function

The AI WDR (Wide Dynamic Range) function adjusts the balance between bright and dark areas in surveillance footage, enhancing image clarity and detail. This is particularly useful in scenes with high contrast.

Figure 5.6: AI WDR Function. Improves image clarity in high-contrast lighting conditions.

5.8. Ийкемдүү сактоо

The system includes a built-in 1TB hard drive and supports H.265+ compression, which reduces required storage capacity by 50% while providing clear images. The internal hard drive automatically overwrites old footage and can be expanded up to 6TB. Cloud storage options are also available.

Figure 5.7: Storage Options. Utilize the built-in HDD or cloud storage for continuous recording.

6. Техникалык тейлөө

To ensure optimal performance and longevity of your security camera system, regular maintenance is recommended:

• Таза камера линзалары: Камера линзаларын мезгил-мезгили менен жумшак, d чүпүрөк менен сүртүп туруңузamp cloth to remove dust and smudges that may affect image clarity.
• Байланыштарды текшерүү: Ensure all cable connections (power, LAN, HDMI/VGA) are secure and free from damage.
• Программалык камсыздоо жаңыртуулары: Check for and install any available firmware updates for the NVR and cameras to ensure the latest features and security patches.
• Катуу дисктин ден соолугу: Маалыматтардын жоголушун алдын алуу үчүн NVRдин катуу дискинин абалын системанын жөндөөлөрү аркылуу көзөмөлдөңүз.
• Экологиялык факторлор: Ensure cameras are not obstructed by foliage or other objects that could interfere with their field of view же жалган ойготкучтарды иштетүү.

7. Кыйынчылыктарды

If you encounter any issues with your WEILAILIFE security camera system, refer to the common problems and solutions below. If the problem persists, please contact customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

WEILAILIFE is committed to providing high-quality products and excellent customer service. Our products undergo strict quality control during manufacturing and inspection.

9.1. Кепилдик маалыматы

Бул продукт менен келет бир жылдык акысыз кепилдик сатып алынган күндөн тартып. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.

Figure 9.1: 12-Month Warranty. Your product is covered for one year.

9.2. Кардарларды колдоо кызматы

If you have any questions, concerns, or require assistance with your product, please do not hesitate to contact our support team. We offer Japanese language support via email and aim to respond within 24 hours.

• Электрондук почта: info-jp@weilailifetech.com
• Webсайт: jp.weilailifetech.com

You can also connect with us via LINE for quick support:

Figure 9.2: WEILAILIFE LINE Service. Scan the QR code to connect for support.

Түз шилтеме: https://lin.ee/EqPKtnq

Our service center is located at: Chiba-ken, Chiba-shi, Inage-ku, Tendai 5-8-9, Rose Avenue Inage Tendai 1F.
