SURFOU Wireless Doorbell (Model 1T2-B) Instruction Manual

1. Киришүү

Сатып алганыңыз үчүн рахматasing the SURFOU Wireless Doorbell. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and longevity of your device. Please read this manual carefully before use and retain it for future reference.

Негизги өзгөчөлүктөрү:

• Кеңейтилген зымсыз диапазон: Ачык жерлерде 300 метрге (1000 фут) чейин.
• Оңой орнотуу: No wiring required, simple setup.
• Ыңгайлаштырылуучу обондор: 55 тандалуучу рингтон.
• Жөнгө салынуучу Көлөмү: 5 levels of volume control, from 0dB (mute) to 110dB.
• Эстутум функциясы: Retains your last selected melody and volume settings after power off.
• Туруктуу дизайн: IP55 waterproof and dustproof transmitter for outdoor use.
• Кеңири иштөө температурасы: -30 ° Cдан 70 ° Cка чейин (-22 ° F-158 ° F).

2. Пакеттин мазмуну

Сураныч, бардык буюмдар бар экенин жана жакшы абалда экендигин текшерүү үчүн пакетти текшериңиз:

• 1 x Зымсыз эшик коңгуроосунун өткөргүчү (баскыч)
• 1 x Wireless Doorbell Receiver (Chime Unit)
• 1 x 12V 23A Alkaline Battery (for Transmitter)
• 2 x Монтаждоо бурамалар
• 2 х дубал казыктары
• 1 x эки тараптуу скотч
• 1 x Мини Screwdriver
• 1 x User Manual

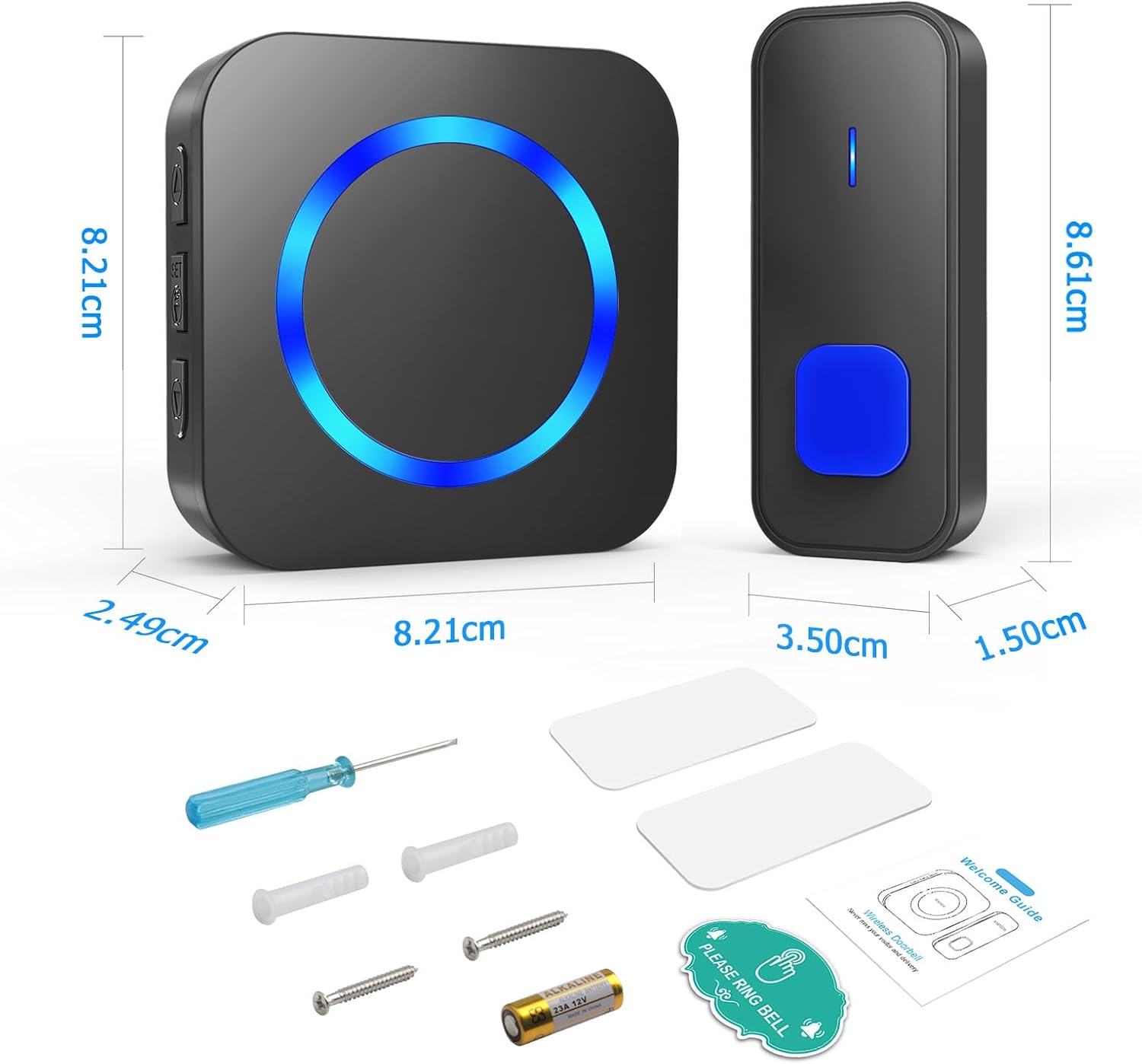

Сүрөт: Бул сүрөт ачык-айкын камсыз кылат view of the SURFOU wireless doorbell components, including the transmitter and receiver, with their dimensions labeled in centimeters. Below the units, the package contents are displayed: a screwdriver, mounting screws, wall anchors, double-sided adhesive tape, a 12V 23A battery for the transmitter, and a welcome guide/manual.

3. Орнотуу жана орнотуу

The SURFOU Wireless Doorbell offers flexible installation options. No complex wiring is required.

3.1 Өткөргүчтү (баскычты) орнотуу

Choose a suitable location near your door. Ensure the surface is clean and dry.

1. Method 1: Adhesive Tape Installation
   • Clean the back of the transmitter and the desired mounting surface.
   • Peel off one side of the double-sided adhesive tape and attach it firmly to the back of the transmitter.
   • Peel off the other side of the tape and press the transmitter firmly onto the wall for at least 30 seconds.
2. Метод 2: Бурама орнотуу
   • Open the back cover of the transmitter using the provided mini screwdriver.
   • Mark the desired mounting points on the wall through the screw holes on the transmitter's back plate.
   • Drill two holes at the marked positions. Insert the wall anchors if installing on masonry or drywall.
   • Align the transmitter's back plate with the holes and secure it with the provided screws.
   • Close the back cover of the transmitter.

3.2 Receiver (Chime Unit) Setup

The receiver is designed for plug-and-play convenience.

• Simply plug the receiver into any standard electrical outlet indoors.
• Ensure the receiver is within the effective wireless range of the transmitter (up to 300 meters in open areas).
• You can move the receiver to different outlets as needed to ensure you hear the chime in various rooms.

Сүрөт: This image illustrates two simple installation methods for the SURFOU wireless doorbell transmitter. Method 1 shows the use of double-sided adhesive tape for quick, non-invasive mounting. Method 2 demonstrates a more secure installation using screws and a drill, with an internal view of the transmitter showing the battery compartment and mounting points.

Сүрөт: This image illustrates the impressive 300-meter wireless range of the SURFOU doorbell system in an open area. It shows how the signal can effectively pass through various obstacles like doors and walls, ensuring reliable communication between the outdoor transmitter and indoor receiver. The diagram also depicts a typical house layout with multiple receivers placed strategically to cover different areas.

4. Иштөө нускамалары

4.1 Мелодияларды өзгөртүү

1. Press the 'Melody Selection' button on the side of the receiver to cycle through the 55 available ringtones.
2. Once you hear your desired melody, stop pressing the button. The doorbell will automatically save this selection.

4.2 Үндү тууралоо

1. Press the 'Volume Control' button on the side of the receiver to adjust the volume level.
2. There are 5 volume levels, ranging from 0dB (mute) to 110dB. Cycle through them until you reach your preferred volume.
3. The receiver will remember your last volume setting.

4.3 Pairing Additional Transmitters/Receivers (Optional)

If you have purchased additional SURFOU wireless doorbell components, you can easily pair them:

1. Plug in the new receiver.
2. Press and hold the 'Volume Control' button on the receiver for approximately 5 seconds until you hear a 'ding' sound and the LED indicator flashes rapidly. This indicates it's in pairing mode.
3. Immediately press the transmitter button you wish to pair.
4. If successful, the receiver will chime with the selected melody.
5. Repeat for any other transmitters or receivers.

Сүрөт: This image highlights the customizable sound features of the SURFOU wireless doorbell. It shows the receiver unit alongside musical notes, indicating the availability of multiple melodies. Below, a scale from 0dB (mute) to 120dB demonstrates the 5-level volume adjustment feature. The text "Memory Function" confirms that the device remembers the last selected melody and volume setting.

Сүрөт: This image demonstrates the plug-and-play convenience of the SURFOU wireless doorbell receiver, shown plugged into a wall outlet. Accompanying icons represent key features: an LED light indicator, 55 selectable ringtones, 5 levels of volume adjustment, and a mute option for silent operation.

5. Техникалык тейлөө

• Тазалоо: Эшиктин коңгуроо блокторун жумшак, кургак чүпүрөк менен сүртүңүз. Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонбоңуз.
• Батареяны алмаштыруу: The transmitter uses a 12V 23A alkaline battery. When the transmitter's LED indicator no longer lights up or the signal range decreases significantly, it's time to replace the battery. Use the mini screwdriver to open the transmitter, replace the battery, and re-secure the cover.
• Экологиялык шарттар: While the transmitter is IP55 waterproof and dustproof, avoid immersing it in water. Ensure the operating temperature remains within -30°C to 70°C (-22°F to 158°F).

Сүрөт: This image details the robust design of the SURFOU wireless doorbell transmitter. It prominently displays the IP55 waterproof and dustproof rating, indicating its resilience against outdoor elements. The operating temperature range of -22°F to 158°F (-30°C to 70°C) is also shown, along with an estimated battery life of 1 to 3 years, highlighting its durability and low maintenance.

6. Кыйынчылыктарды

Сүрөт: This image emphasizes the reliability of the SURFOU wireless doorbell. One part shows a hand pressing the outdoor transmitter button, while the other shows people inside a home, suggesting that visitors won't be missed. Key features highlighted are low signal transmission delay, stable signal, and good signal penetration, ensuring consistent performance.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official SURFOU webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
