1. Киришүү
This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your Baicycle Folding Electric Bike. Please read it carefully before your first ride to ensure proper use and to maximize the lifespan of your e-bike.
Figure 1.1: Baicycle Folding Electric Bike (Grey)
The Baicycle Electric Bike is designed for versatile use, including commuting, mountain trails, and beach riding. It features a powerful 750W motor, a removable 48V battery, and a 7-speed gear system, offering a comfortable and efficient riding experience.
2. Коопсуздук маалыматы
Сиздин коопсуздугуңуз баарынан маанилүү. Ар дайым төмөнкү коопсуздук эрежелерин сактаңыз:
- Ар дайым коопсуздук стандарттарына жооп берген туулга кийиңиз.
- Perform a pre-ride inspection before each use, checking brakes, tires, battery, and all fasteners.
- Электр велосипеддерине байланыштуу жергиликтүү жол кыймылынын эрежелери жана эрежелери менен таанышып алыңыз.
- Ичкиликтин же баңгизаттын мас абалында минүүгө болбойт.
- Коопсуз ылдамдыкты жана башка унаалардан жана жөө жүргүнчүлөрдөн аралыкты сактаңыз.
- Be aware of your surroundings, especially in traffic or on uneven terrain.
- Жүрүүдөн мурун батарейканын бекем кулпуланганын текшериңиз.
- Аба ырайынын катаал шарттарында минүүдөн качыңыз.
3. Пакеттин мазмуну
Upon opening the package, verify that all components are present and undamaged. The electric bike is 85% pre-assembled. The package should contain:
- Baicycle Folding Electric Bike (Main Unit)
- Removable 48V Battery
- Батарея заряддагыч
- Куралдар топтому (жыйноо үчүн)
- Колдонуучунун колдонмосу (бул документ)
- Keys for Battery Lock
- Шайкештик сертификаттары
3.1-сүрөт: Чогултуу үчүн кошулган компоненттер
4. Орнотуу жана чогултуу
Your Baicycle electric bike comes 85% pre-assembled. Follow these steps to complete the assembly:
- Пакеттен чыгаруу: Велосипедди жана бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
- Алкакты ачуу: Locate the folding mechanism on the frame. Release the latch and unfold the bike until the frame locks into place. Ensure the locking mechanism is fully engaged and secure.
- Рулду орнотуу: Insert the handlebar stem into the fork tube. Adjust the height to your preference and tighten the quick-release lever or bolts securely. Ensure the handlebars are aligned with the front wheel.
- Педал орнотуу: Identify the left (L) and right (R) pedals. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise. Apply a small amount of grease to the threads and screw them firmly into the crank arms using the provided tool.
- Отуруучу жана ээр: Insert the seat post into the frame's seat tube. Adjust the saddle height for comfortable pedaling with a slight bend in your knee at the bottom of the pedal stroke. Secure the quick-release lever.
- Батарея орнотуу: Insert the removable battery into its compartment, typically located within the seat tube or frame. Ensure it clicks into place and use the key to lock it securely.
- Баштапкы төлөм: Before your first ride, fully charge the battery. Connect the charger to the battery charging port and then to a power outlet. The charging indicator will show when charging is complete (typically 6-8 hours).
- Айдоо алдындагы текшерүү: Before riding, double-check all bolts, quick releases, brakes, and tire pressure. Ensure everything is tight and functioning correctly.
5. Иштөө нускамалары
5.1 Күйгүзүү/өчүрүү жана дисплей
The intelligent LED display allows you to monitor real-time speed, battery status, Pedal Assist System (PAS) levels, and mileage. To power on the bike, press and hold the power button on the display. To power off, press and hold the same button.
Figure 5.1: Display Panel and Brake System
5.2 Айдоо режимдери
Your Baicycle electric bike offers three distinct riding modes:
- Pure Electric Mode (PAS 1-3): Engage the throttle for motor-only propulsion. This mode is ideal for effortless cruising without pedaling.
- Pedal-Assisted Mode (PAS 1-5): The motor provides assistance as you pedal. You can adjust the level of assistance (PAS 1-5) via the display to suit your desired effort and terrain. Higher PAS levels provide more motor power.
- Manual Mode (PAS 0): Ride the bike like a traditional bicycle, using only pedal power. The motor will not provide assistance in this mode.
Figure 5.2: Three Riding Modes and Battery Range
5.3 Редукторду алмаштыруу
The professional 7-speed gear shifter allows you to adapt to various terrains and riding conditions. Shift gears smoothly by operating the shifter on the handlebar. Downshift for climbing hills and upshift for flat terrain or descents.
5.4 Тормоздоо системасы
The bike is equipped with dual disc brakes for reliable and responsive stopping power. Apply both front and rear brakes simultaneously for optimal control and shorter stopping distances. Avoid sudden, hard braking, especially at high speeds.
5.5 Бүктөлүшү жана көчмөлүүлүгү
The Baicycle electric bike features a foldable design for easy storage and transport. To fold the bike:
- Lower the seat post completely.
- Рульду ылдый бүктүңүз.
- Release the main frame folding latch and carefully fold the frame in half.
- Secure any folding clamps to prevent accidental unfolding.

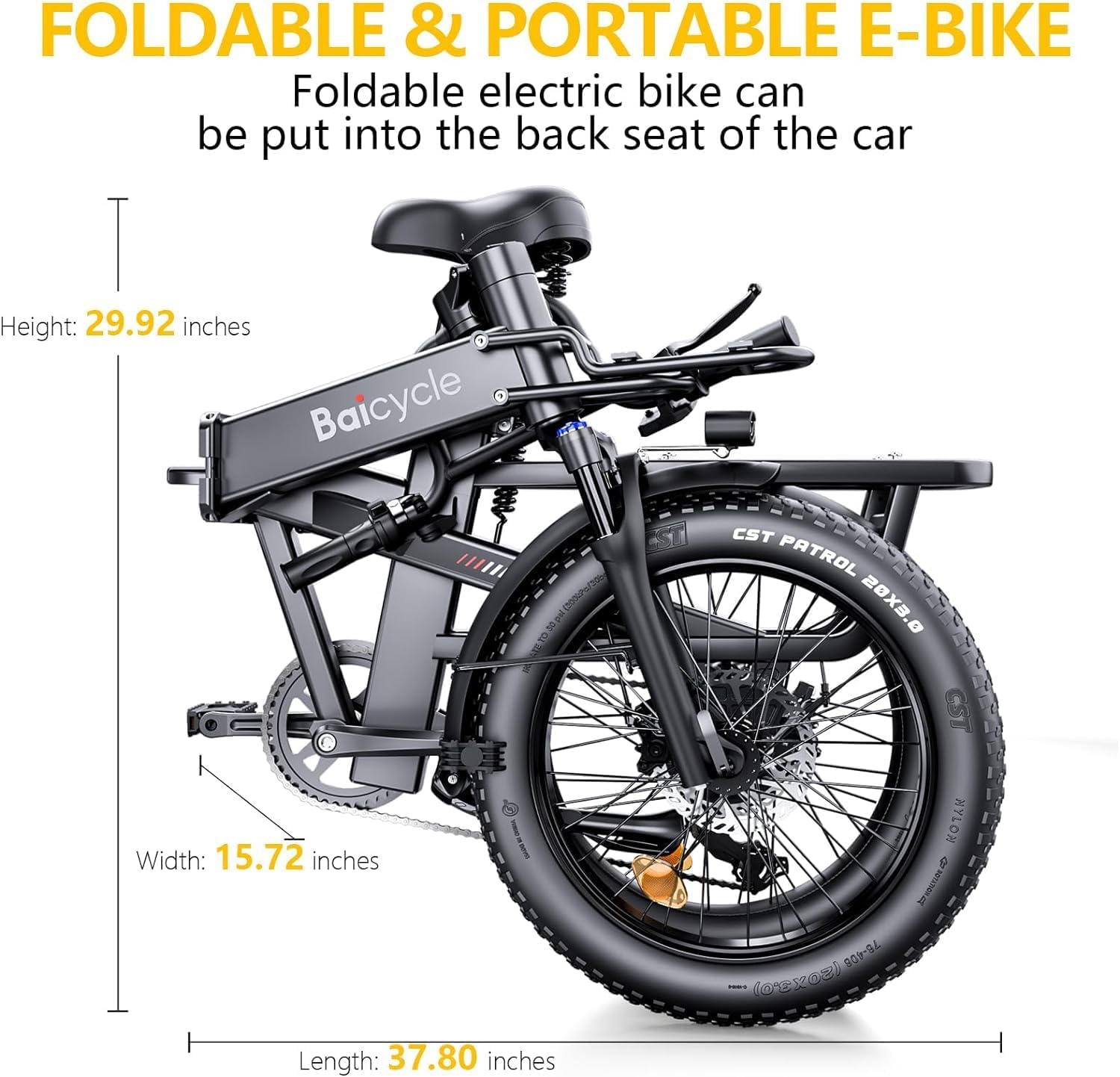

Figure 5.3: Folded Dimensions for Portability
6. Техникалык тейлөө
Үзгүлтүксүз тейлөө электрондук велосипедиңиздин узак мөөнөттүү жана коопсуз иштешин камсыз кылат.
- Батареяга кам көрүү:
- Биринчи жолу колдонуудан мурун батарейканы толук кубаттаңыз.
- Avoid completely draining the battery. Recharge after each significant use.
- Store the battery in a cool, dry place when not in use, and charge it periodically if stored for long periods.
- Батареяны экстремалдуу температурага калтырбаңыз.
- Шина басымы: Check tire pressure regularly (recommended pressure is usually indicated on the tire sidewall). Proper inflation improves ride quality and prevents flats.
- Тормоздор: Тормоздук колодкалардын эскирбегендигин текшерип, тормоз рычагдары бекем жана жооп берүүчү тормозду камсыздайт. Керектүү түрдө тууралаңыз же алмаштырыңыз.
- Chain and Gears: Keep the chain clean and lubricated. Periodically check the gear system for smooth shifting and adjust if necessary.
- бекиткичтер: Бардык болтторду, гайкаларды жана тез ачылуучу бөлүктөрүн бекем жана коопсуз экенине ынануу үчүн үзгүлтүксүз текшерип туруңуз.
- Тазалоо: Велосипедди жарнама менен тазалаңызamp кездеме. Жогорку басымдагы шайбаларды түздөн-түз электрдик тетиктерге колдонуудан алыс болуңуз.
7. Кыйынчылыктарды
This section addresses common issues you might encounter with your Baicycle electric bike.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Велосипед күйбөйт. | Battery is low or not installed correctly; power button not pressed long enough; loose connection. | Charge the battery; ensure battery is fully inserted and locked; press and hold power button for 3 seconds; check all cable connections. |
| Мотор жардам бербейт. | PAS level is 0; battery low; brake levers engaged; motor connection issue. | Increase PAS level on display; charge battery; ensure brake levers are fully released; check motor cable connection. |
| Тормоз алсыз сезилет. | Эскирген тормоз колодкалары; бош тормоз тросу; гидравликалык системадагы аба (эгер бар болсо). | Inspect and replace brake pads; adjust brake cable tension; consult a professional for hydraulic brake bleeding. |
| Берилиштер бир калыпта жылбай жатат. | Derailleur out of adjustment; dirty or dry chain. | Adjust derailleur limits and cable tension; clean and lubricate the chain. |
Бул жерде көрсөтүлбөгөн маселелерге туш болсоңуз же кошумча жардам керек болсо, кардарларды колдоо бөлүмүнө кайрылыңыз.
8. Техникалык шарттар
Key technical specifications for the Baicycle Folding Electric Bike:
- Модель аты: QUEST 1 (A01)
- Велосипед түрү: Катталма велосипед
- Жаш аралыгы: бойго жеткен
- Бренд: Велосипед
- Ылдамдыктардын саны: 7
- Түсү: Боз
- Дөңгөлөктүн көлөмү: 20 дюйм
- Рамка материалы: Алюминий
- Токтотуу түрү: Dual
- Өзгөчө өзгөчөлүгү: Бүктөлүүчү
- Мотор күчү: 750W (Peak Power 1000W)
- Максималдуу ылдамдык: 20 миль/саат
- Батарея: 48V 15.3Ah Removable Li-ion Battery (734.4 mAh Lithium Battery Energy Content)
- Заряддоо убактысы: 6-8 саат
- Диапазон: 62 миляга чейин
- Тормоз стили: Disc, Caliper
- Maximum Салмагы сунуш: 330 фунт (120 кг)
- Элемент Салмагы: 32 килограмм
- Бүктөлгөн өлчөмдөр (Уз.х.К.х.): 37.8 x 15.75 x 29.92 дюйм
- Ассамблея талап кылынат: Ооба (85% алдын ала чогултулган)
Figure 8.1: Powerful Motor Specifications

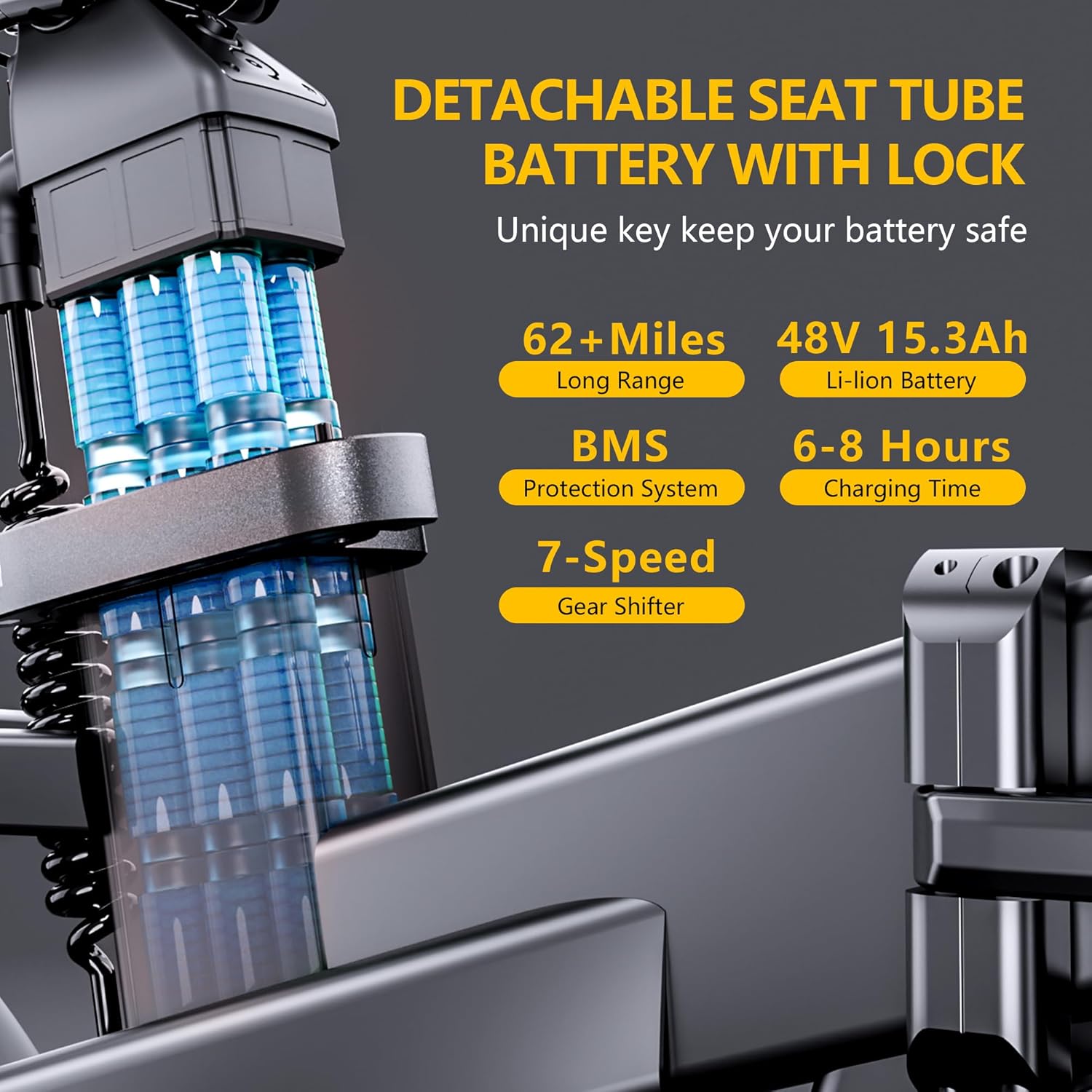

Figure 8.2: Detachable Battery System
9. Кепилдик жана колдоо
Baicycle provides a 3-year manufacturer's limited warranty for this product. This warranty covers defects in materials and workmanship under normal use. Please refer to the warranty card included in your package for full terms and conditions.
For any questions, technical support, or warranty claims, please contact Baicycle customer service. They are committed to providing 100% satisfactory after-sales support.
Кардарларды тейлөө:
- Онлайн колдоо: Visit the official Baicycle website (if available, otherwise general support contact).
- Электрондук почта: Refer to your purchase documentation or the Baicycle webбайланыш электрондук почта үчүн сайт.
- Телефон: Refer to your purchase documentation or the Baicycle webбайланыш номери үчүн сайт.
Please have your model number (QUEST 1 (A01)) and purchase date ready when contacting support.
