LMHOME 4G GPS Tracker User Manual

1. Киришүү

Thank you for choosing the LMHOME 4G GPS Tracker. This manual provides essential information for the proper setup, operation, and maintenance of your device. Please read these instructions carefully before using the product to ensure optimal performance and safety.

2. Продукт бүтүп калдыview

The LMHOME 4G GPS Tracker is a versatile tracking device designed for vehicles such as cars, motorcycles, and other assets. It features a strong integrated magnet for easy attachment and operates on a 4G network for reliable, real-time location tracking.

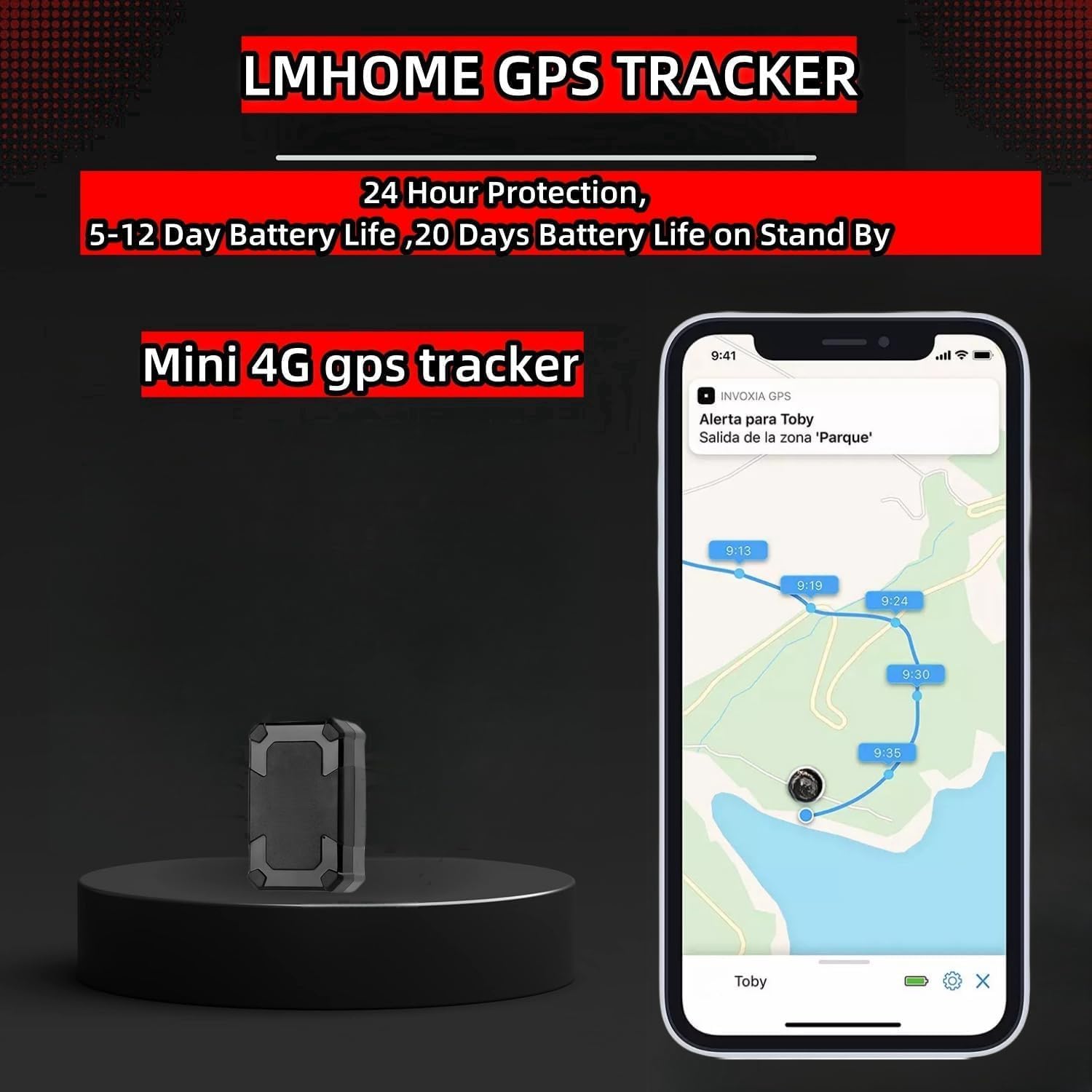

Image: The LMHOME 4G GPS Tracker device, a compact black unit.

3. Негизги өзгөчөлүктөрү

• Ар тараптуу колдонмо: Equipped with a powerful integrated magnet for easy mounting on cars, motorcycles, RVs, boats, excavators, and containers.
• Узартылган батареянын иштөө мөөнөтү: The internal battery can last up to 70 days, reducing the need for frequent recharging. Battery status can be monitored, and low battery alerts can be configured.
• Бир нече ойготкучтар: Provides various alerts including vibration alarm, low battery alarm, drop alarm, and overspeed alarm to enhance vehicle security.
• 4G тармактык байланышы: Utilizes the 4G network for high-speed data transmission and extensive coverage, ensuring reliable tracking.
• Real-time Global Positioning: Offers real-time location tracking globally and stores historical data for up to 365 days.
• Industrial Grade Waterproof: Designed to withstand rain and wind, ensuring durability.
• GPS + LBS Double Positioning: Combines GPS for outdoor accuracy and LBS (Location Based Service) for indoor or weak signal environments.

Image: Three panels illustrating industrial-grade waterproof design, strong magnetic adsorption for easy attachment, and power-saving standby mode.

Image: Demonstrates GPS positioning in an outdoor road scene and LBS positioning in an indoor parking garage, highlighting 4G LTE network compatibility.

4. Пакеттин мазмуну

Сураныч, алгандан кийин пакеттин мазмунун текшериңиз. Эгерде кандайдыр бир нерселер жок болсо же бузулса, кардарларды колдоо менен байланышыңыз.

• LMHOME 4G GPS Tracker (Model: MAGNETIC)
• Заряддоо кабели
• Колдонуучунун Колдонмосу (бул документ)

5. Орнотуу колдонмосу

5.1. Аппаратты заряддоо

Before first use, fully charge the GPS tracker using the provided charging cable. Connect the cable to the device's charging port and a standard USB power adapter (not included). The charging indicator will show the charging status.

5.2. SIM картаны орнотуу

The device requires a 4G-compatible SIM card (not included) with data, SMS, and call functions enabled. Ensure the SIM card is activated and has sufficient credit/data. Carefully insert the SIM card into the designated slot on the tracker, following the orientation indicated on the device.

5.3. Күйгүзүү / Өчүрүү

To power on, press and hold the power button until the indicator lights illuminate. To power off, press and hold the power button until the indicator lights turn off.

5.4. Колдонмону орнотуу жана аккаунтту түзүү

Download the dedicated GPS tracking application to your smartphone. The app name or QR code for download is typically found in the packaging or a separate quick start guide. Follow the in-app instructions to register an account and add your device using its unique ID number (usually found on the device itself or its packaging).

6. Иштөө нускамалары

6.1. реалдуу убакытта көз салуу

Once the device is powered on and connected to the network, open the tracking application on your smartphone. The app will display the current location of the tracker on a map in real-time. The refresh rate can often be configured within the app settings.

Image: A child walking with a backpack, and two smartphone screens displaying real-time GPS tracking and history tracking data, illustrating continuous monitoring.

6.2. Жайгашкан жердин тарыхы

The tracking application allows you to view the historical routes taken by the device. Select a date range to review past movements. Data is stored for up to 365 days.

Image: A family walking on a road with a scenic background, and a smartphone screen showing the location history trail on a map, demonstrating the history tracking feature.

6.3. Geofence Setup

You can define virtual boundaries (geofences) on the map within the application. The device will send an alert if it enters or exits these predefined areas.

7. Ойготкучтар жана эскертмелер

The LMHOME 4G GPS Tracker supports various alarm types to keep you informed about the device's status and movements:

• Дирилдөө сигналы: Alerts you if the device detects significant movement or impact.
• Батареянын азайышы: Notifies you when the battery level is critically low, prompting a recharge.
• Drop Alarm: Triggers an alert if the device is removed or falls from its mounted position.
• Ашыкча ылдамдык сигналы: Sends a notification if the device exceeds a preset speed limit.
• Geofence Alarm: Alerts when the device enters or exits a defined virtual boundary.

These alarms can typically be configured and managed through the dedicated tracking application.

Image: A map displaying a geofence alarm, with icons representing movement, shift, and trailer alarms. Additional icons below illustrate low battery, overspeed, and vibrate alarms.

8. Колдонуу сценарийлери

The LMHOME 4G GPS Tracker is suitable for a wide range of tracking needs:

• Vehicle Tracking: Ideal for cars, motorcycles, electric vehicles, RVs, boats, and construction equipment like excavators.
• Personal Tracking: Can be used to monitor the location of elderly individuals or children.
• Мүлккө көз салуу: Suitable for tracking luggage, backpacks, valuable items, and even pets.

Image: A grid of images illustrating diverse application scenarios, including tracking for elderly people, children, cars, electric vehicles, suitcases, knapsacks, pets, and other valuables.

9. Техникалык тейлөө

9.1. Заряддоо

To maintain optimal battery health, charge the device regularly, especially when a low battery alert is received. Avoid completely draining the battery frequently.

9.2. Тазалоо

Wipe the device with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. While the device is industrial-grade waterproof, avoid submerging it in water for extended periods.

9.3. Сактоо

Store the device in a cool, dry place away from direct sunlight and extreme temperatures when not in use for prolonged periods. For long-term storage, ensure the battery is partially charged (around 50%) to prevent deep discharge.

10. Кыйынчылыктарды

11. Техникалык шарттар

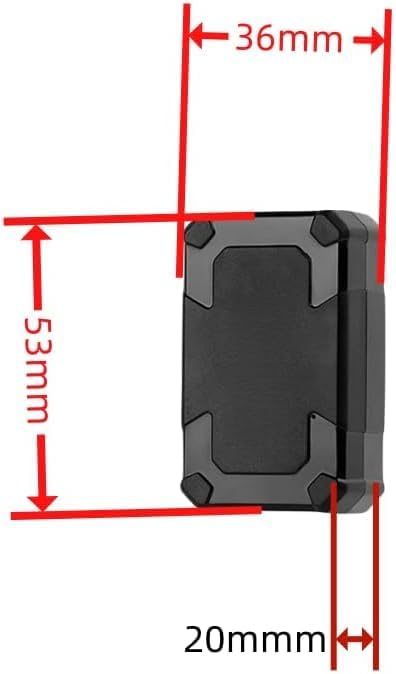

Image: Diagram illustrating the physical dimensions of the LMHOME 4G GPS Tracker: 53mm height, 36mm width, and 20mm thickness.

12. Кепилдик жана колдоо

For warranty information and technical support, please refer to the contact details provided with your purchase or visit the official LMHOME webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
