WLLKIY 3000W Hybrid Solar Inverter Instruction Manual

1. Киришүү

This document provides comprehensive instructions for the installation, operation, and maintenance of the WLLKIY 3000W Hybrid Solar Inverter, Model SM-3200H. This multi-functional inverter/charger combines the functions of an inverter, MPPT solar charger, and battery charger to provide uninterruptible power support. It features a comprehensive LCD display for user-configurable operations such as battery charging current, AC/solar charger priority, and acceptable input voltage.

Негизги өзгөчөлүктөрү:

• Pure sine wave output inverter.
• Тандалма кириш томtage range for home appliances or personal computers.
• Adjustable battery charging current via LCD display.
• Configurable battery charging priority mode.
• LCD display for monitoring and settings.
• Optional dust filter.
• Compatible with utility grid and generator inputs.
• Maximizes PV power utilization with automatic restart function upon PV restoration.
• Overload, high temperature, and inverter output short circuit protection.
• Муздак баштоо функциясы.
• Supports lithium batteries.
• Optional WIFI monitoring and setting capabilities.

2. Коопсуздук нускамалары

Please read all instructions and warnings in this manual carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or severe injury. Keep this manual for future reference.

• Орнотуу квалификациялуу кызматкерлер тарабынан аткарылышы керек.
• Инвертордун туура жерге туташтырылышын камсыз кылыңыз.
• Do not expose the inverter to rain, snow, or liquids of any type.
• Агрегатты ажыратпаңыз. Ичинде колдонуучу тейлей турган бөлүктөр жок.
• Disconnect all power sources (PV, battery, AC) before performing any maintenance or wiring.
• Ашыкча ысып кетүүнүн алдын алуу үчүн инвертордун айланасында жетиштүү желдетүүнү камсыз кылыңыз.

3. Продукт бүтүп калдыview

The WLLKIY SM-3200H is a compact and efficient hybrid solar inverter designed for various power applications. It integrates an inverter, solar charger, and battery charger into a single unit.

Сүрөт 3.1: Алдыңкы view of the SM-3200H Hybrid Solar Inverter, highlighting its display and main features.

The inverter features a clear LCD display for monitoring system status and configuring operational parameters. The rear panel provides all necessary connection terminals for PV input, battery, AC input, and AC output.

3.2-сүрөт: Арткы view of the SM-3200H, illustrating connection points for AC, battery, and PV.

3.3-сүрөт: Арткы бөлүгүнүн деталдары view of the SM-3200H, showing the input breaker and cooling vents.

4. Орнотуу

Proper installation is crucial for the safe and efficient operation of your hybrid solar inverter. Ensure all local electrical codes are followed.

4.1 Таңгактан чыгаруу жана текшерүү

Upon receiving the inverter, carefully unpack it and inspect for any shipping damage. Report any damage to your dealer immediately. Ensure all accessories are present.

4.2 Агрегатты монтаждоо

Mount the inverter on a vertical surface in a clean, dry, and well-ventilated area. Ensure there is sufficient clearance around the unit for proper airflow. Avoid direct sunlight and heat sources.

4.3 Зымдарды туташтыруу

All wiring must be performed with power disconnected from all sources. Use appropriate gauge wiring for all connections.

1. Батарея туташуу: Connect the battery bank to the BATTERY terminals. Ensure correct polarity (+ to + and - to -).
2. Фотоэлектрдик массивдин туташуусу: Connect the solar panel array to the PV IN terminals. Observe correct polarity and ensure the PV input voltage 450VDC ашпайт.
3. AC киргизүү туташуу: Connect the utility grid or generator AC source to the AC IN terminals.
4. AC чыгаруу туташуусу: Connect your loads (home appliances, computers) to the AC OUT terminals.

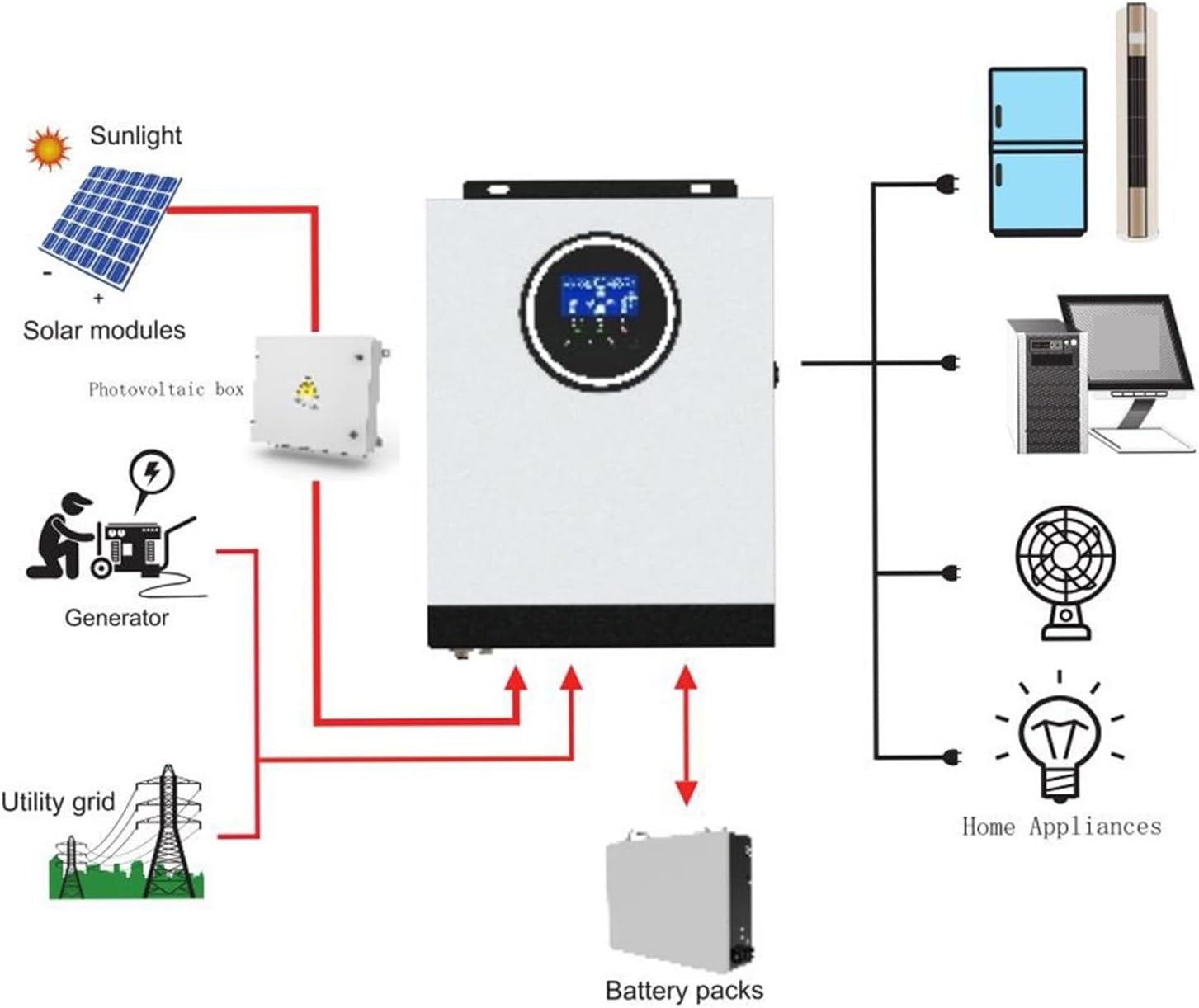

Figure 4.1: Typical system connection diagram for the SM-3200H Hybrid Solar Inverter.

5. Иштөө нускамалары

Once all connections are securely made, you can begin operating the inverter.

5.1 Күйгүзүү/өчүрүү

1. Күйгүзүү үчүн: Ensure the input breaker is in the 'ON' position. The inverter will perform a self-test and the LCD display will illuminate.
2. Өчүрүү үчүн: Disconnect all AC loads. Turn off the input breaker. Disconnect the PV input and then the battery input.

5.2 LCD дисплей жана жөндөөлөр

The LCD display provides real-time system information and allows for configuration of various parameters. Use the buttons adjacent to the display to navigate menus and adjust settings.

• Мониторинг: View киргизүү/чыгарма томtage, frequency, battery status, charging current, and load percentage.
• Параметр орнотуулары: Adjust settings such as battery charging current, AC input voltage range (170-280VAC for PC or 90-280VAC for appliances), and charger source priority (Solar first, Utility first, SBU priority).

6. Техникалык тейлөө

Үзгүлтүксүз тейлөө сиздин инверторуңуздун узак иштөөсүн жана оптималдуу иштешин камсыздайт.

• Тазалоо: Periodically clean the exterior of the inverter with a dry cloth. Ensure ventilation openings are free from dust and debris. If an optional dust filter is installed, clean or replace it as recommended.
• Байланыштары: Annually check all electrical connections for tightness and corrosion.
• Батареяны текшерүү: Regularly inspect battery terminals for corrosion and ensure battery voltage алгылыктуу чектерде.
• Курчап турган чөйрө: Орнотуу чөйрөсү белгиленген температуранын жана нымдуулуктун чегинде болушун камсыз кылыңыз.

7. Кыйынчылыктарды

Бул бөлүм сиз кабылышы мүмкүн болгон жалпы маселелер боюнча чечимдерди берет.

Бул чечимдерди колдонуу аракетинен кийин көйгөй чечилбесе, кардарларды колдоо кызматына кайрылыңыз.

8. Техникалык шарттар

9. Кепилдик жана колдоо

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact your dealer or the manufacturer directly.

Кепилдик үчүн сатып алуу дүмүрчөгүн сатып алуунун далили катары сактаңыз.
