1. Киришүү
This manual provides essential information for the safe and efficient use of your BoxWave Wall Charger Direct (15W), designed for compatibility with the Seesii NANOVNA-H4. This charger features a built-in 3-foot USB Type-C cable for direct and reliable power delivery.
The BoxWave Wall Charger Direct is engineered to provide 15W of power, ensuring rapid and safe charging for your compatible device. Its adaptive circuitry supports both North American and international voltage стандарттары, аны саякатка ылайыктуу кылат.

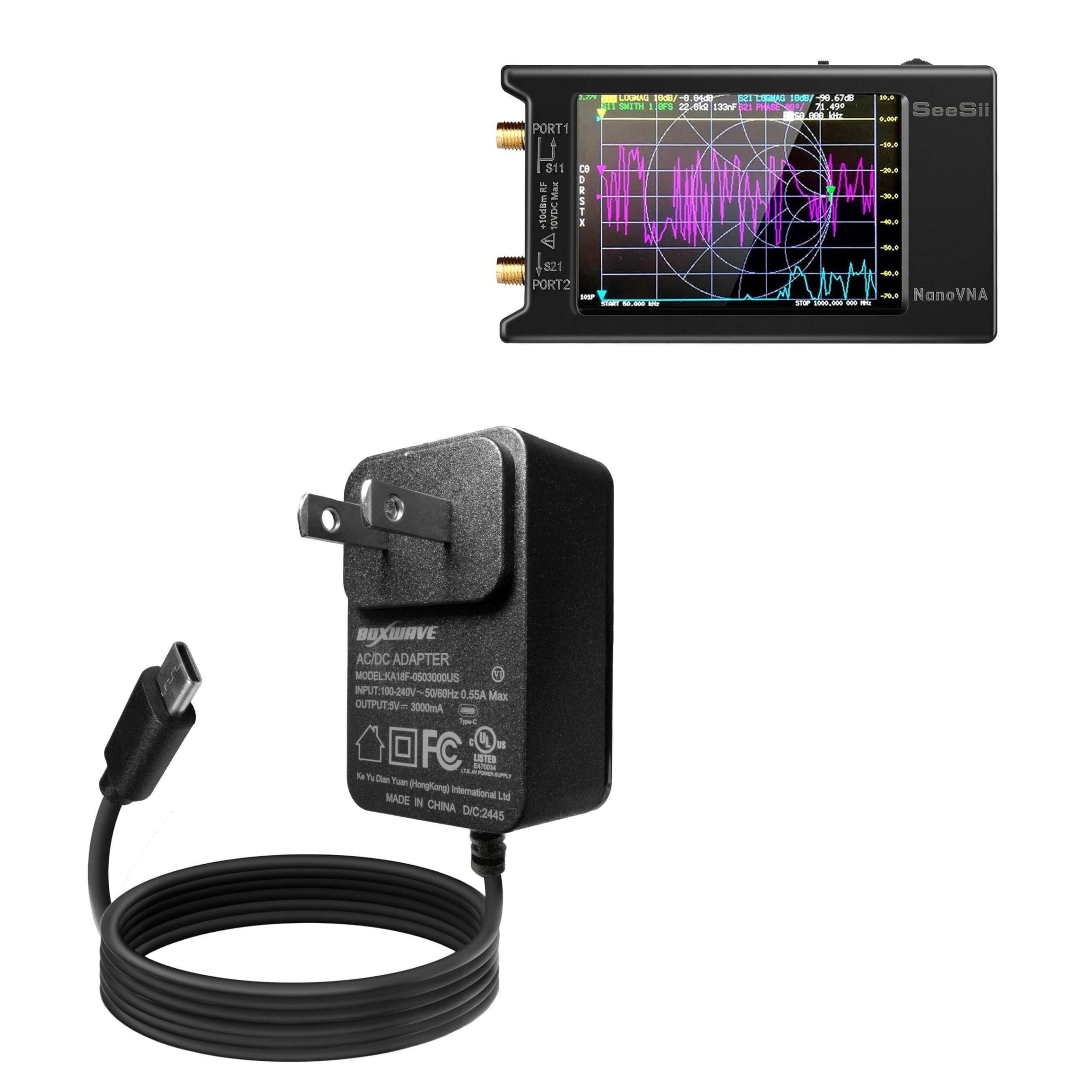

Image 1.1: The BoxWave Wall Charger Direct with its integrated USB Type-C cable.
2. Коопсуздук маалыматы
- Do not expose the charger to liquids or extreme temperatures.
- Заряддагычты ажыратууга же өзгөртүүгө аракет кылбаңыз.
- Ensure the wall outlet is easily accessible for quick disconnection if needed.
- Балдар жетпеген жерде сактаңыз.
- Туура келген түзмөктөр менен гана колдонуңуз.
3. Орнотуу
Setting up your BoxWave Wall Charger Direct is a straightforward process:
- Заряддагычты таңгактан чыгаруу: Заряддоо түзүлүштү таңгагынан кылдаттык менен чыгарып алыңыз.
- Электр розеткасын табыңыз: Оңой жетүүгө боло турган стандарттуу AC дубал розеткасын (100-240V) табыңыз.
- Заряддагычка сайыңыз: Insert the charger's prongs into the wall outlet. Ensure it is securely seated.
- Түзмөккө туташуу: Plug the integrated USB Type-C cable into the charging port of your Seesii NANOVNA-H4 or other compatible device.
The charger is designed for simple plug-and-play functionality, eliminating the need for additional cables or complex setup procedures.
Image 3.1: Illustrates the simple plug-and-play functionality of the charger.
4. Иштөө нускамалары
Once connected, the BoxWave Wall Charger Direct will automatically begin charging your device. The 15W power output ensures efficient charging.
- Заряддоо көрсөткүчү: Your device's screen or indicator light will typically show that it is receiving power and charging.
- Оптималдуу заряддоо: For best results, ensure your device is not in heavy use during charging.
- Ажыратууда: To stop charging, simply unplug the USB Type-C cable from your device, then remove the charger from the wall outlet.
Image 4.1: A visual representation of a device undergoing 15W fast charging.
5. Техникалык тейлөө
Proper care will extend the life of your BoxWave Wall Charger Direct:
- Тазалоо: Disconnect the charger from the power outlet before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or aerosols.
- Сактагыч: Колдонулбай турган учурда, кубаттагычты салкын, кургак жерде, күндүн түз нурунан жана нымдуулуктан алыс сактаңыз.
- Кабельге кам көрүү: Avoid sharp bends or kinks in the cable. The charger features reinforced strain relief to minimize wear, but proper handling is still recommended.
Image 5.1: Detail of the reinforced strain relief designed to protect the cable from damage.
6. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк заряддалбай жатат | Charger not properly plugged in; device not compatible; faulty outlet. | Ensure charger is fully inserted into the wall outlet. Verify device compatibility. Try a different wall outlet. |
| Жай кубаттоо | Device in heavy use; background apps consuming power. | Close unnecessary applications on your device. Avoid heavy usage during charging. |
| Заряддоочу жылуулукту сезет | Заряддоо учурунда кадимкидей иштейт. | A slight warmth is normal. If it becomes excessively hot or emits smoke/odor, immediately unplug and discontinue use. |
If you experience issues not covered here, please refer to the support section.
7. Техникалык шарттар
- Модель номери: BW-WCD
- Киргизүү: 100-240V ~ 50/60Hz, 0.55A Макс
- Чыгуу: 5V === 3000mA (15W)
- Кабелдин узундугу: 3 фут (болжол менен 0.91 метр)
- Туташтыргыч түрү: USB Type-C
- Элемент Салмагы: 3.3 унция (болжол менен 93.5 грамм)
- Өндүрүүчү: BoxWave
Image 7.1: Product label displaying detailed electrical specifications.
8. Кепилдик жана колдоо
BoxWave Corporation stands by the quality of its products. For specific warranty details, please refer to the documentation included with your purchase or visit the official BoxWave webсайт.
For technical assistance or inquiries regarding your BoxWave Wall Charger Direct, you may contact BoxWave customer support. Limited third-party technical support for your device (up to 3 inquiries via messaging) is also available, though this is not affiliated with or endorsed by Seesii.
Please note that the Seesii NANOVNA-H4 device itself is not included with this charger and any support for the NANOVNA-H4 device should be directed to Seesii.
