PHWALK 10 Inch Soft Close Undermount Drawer Slides

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your PHWALK 10 Inch Soft Close Undermount Drawer Slides. Designed for durability and smooth functionality, these heavy-duty stainless steel slides offer full extension and a 100lb capacity, ideal for various cabinet applications. Please read these instructions carefully before beginning installation to ensure proper function and longevity of your product.

Продукт өзгөчөлүктөрү

• Soft Close, Quiet Operation: Integrated hydraulic soft-close damper ensures gentle and silent drawer closure, reducing noise to approximately 30 dB. This mechanism prevents slamming, enhancing safety and maintaining a peaceful environment.
• Full Extension & Smooth Glide: The 3-section slide design allows for 100% drawer extension, providing complete access to the drawer's contents. Dual rows of steel ball bearings ensure minimal friction and noise, even under heavy loads.
• Heavy Duty 100 lb Capacity: Constructed from thick-gauge stainless steel, these slides support up to 100 lbs per pair. Rigorously tested for over 150,000 open/close cycles, ensuring long-lasting durability and stability.
• Concealed & Rust-Proof: The undermount design hides the hardware for a clean, professional aesthetic. Made of stainless steel with a galvanized coating, they resist rust in humid environments like kitchens and bathrooms.

Пакеттин мазмуну

Each set of PHWALK 10 Inch Soft Close Undermount Drawer Slides includes:

• 1 Pair of 10 Inch Undermount Drawer Slides (Left and Right)
• Locking Fittings (Clips)
• Бардык керектүү бекитүүчү бурамалар

Image: Contents of the PHWALK 10 Inch Soft Close Undermount Drawer Slides package, showing the left and right slides, red locking clips, and a set of mounting screws.

Техникалык шарттар

Орнотуу боюнча колдонмо

Follow these steps for proper installation of your PHWALK Undermount Drawer Slides. Ensure you have the necessary tools, including a drill, measuring tape, and screwdriver.

1. Орнотууга чейинки кароолор

• Maximum load capacity is 45kg (100lb).
• Suitable for drawer depth of 10 inches.
• Drawer width should be equal to Cabinet inner width minus 1.6 inches (42mm).
• Suitable for drawer side panels ≤ 0.6 inches (16mm).

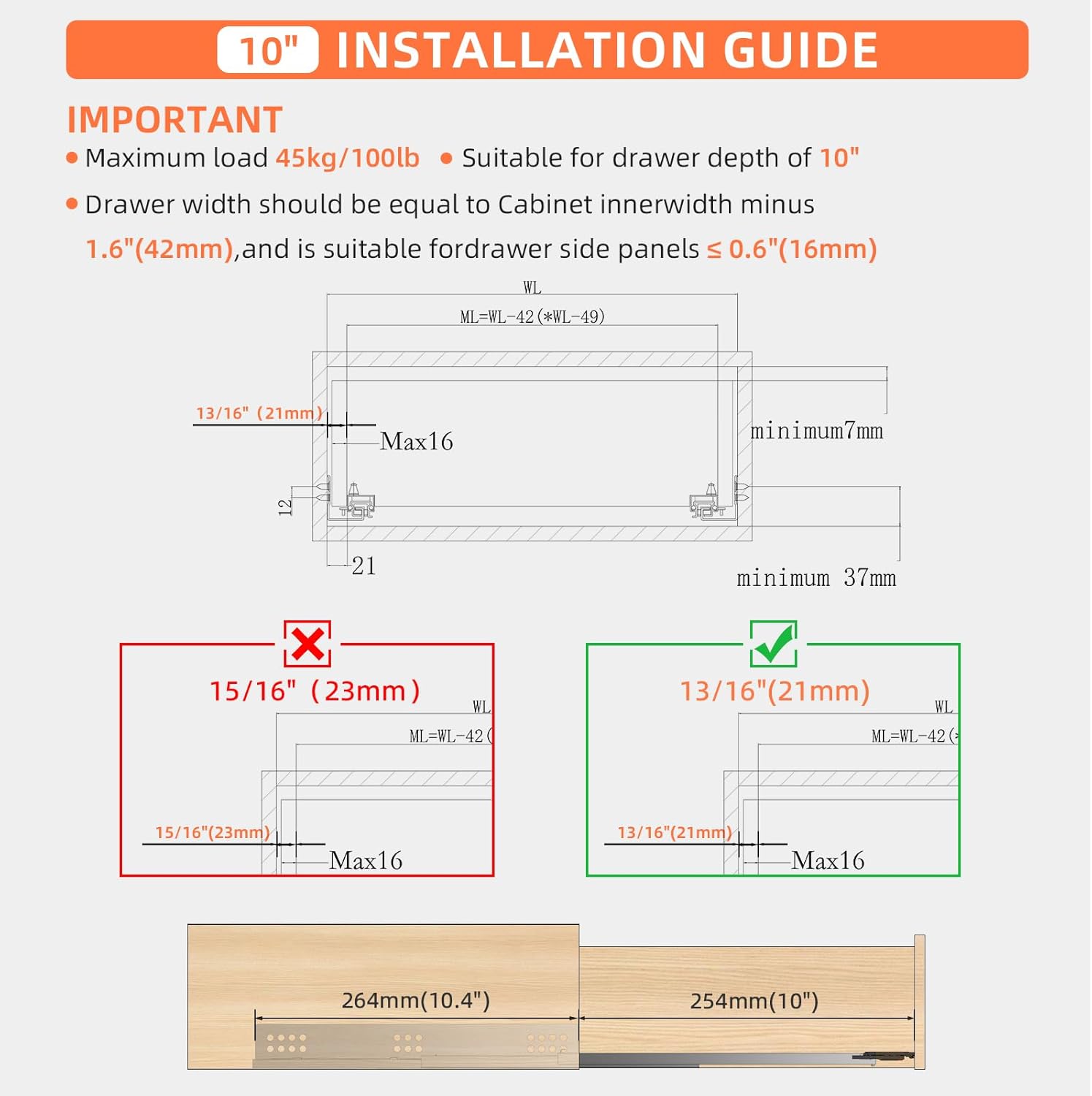

Image: Detailed diagram illustrating the required dimensions and clearances for installing 10-inch undermount drawer slides, including minimum cabinet depth and drawer width calculations.

2. Choosing the Correct Size

Measure your drawer's length accurately. The slide length should be equal to or just shorter than your drawer depth for the best fit.

Image: Visual guide on how to measure your drawer to select the appropriate slide size, showing various slide lengths from 10 to 24 inches.

3. Drawer Type Compatibility

These slides are suitable for both inset and overlay drawers. Refer to the diagram for specific measurements based on your drawer type.

Image: Technical drawing comparing installation requirements for 'Outer Lid Type Drawer' (overlay) and 'Inset Drawer', detailing minimum cabinet depth (LT) based on drawer length (SKL) and panel thickness (X).

4. Side Panel Requirement

Drawer slides can only be installed if there are side panels on both sides of the drawer opening. If your cabinet lacks side panels, these slides are not suitable.

Image: A visual comparison showing correct installation with side panels (Yes) and incorrect installation without side panels (No), emphasizing that side panels are required for these drawer slides.

5. Кадам-кадам орнотуу

1. Prepare the Drawer: First, confirm that the back panel hook hole occupies 6mm. Then, use a drill bit to make a hole, ensuring the position is correct before placing the drawer.
2. Install Quick Release Handle: Install the quick release handle onto the drawer. After confirming its position, secure it with three fixing screws. Once the handle is fixed, slide the slide rail to check that it moves smoothly.
3. Remove Slide Rail: Press the handle to remove the slide rail from the drawer.
4. Position Cabinet Slides: Use two panels (or a spacer of appropriate thickness) to confirm the position of the third slide rail within the cabinet. The depth position is the thickness of a vent panel, with the width reduced by 10mm, and the side panel sunk by 10mm.
5. Secure Cabinet Slides: After confirming the position, insert two fixing screws at both ends of the cabinet slide. Once the position is confirmed, insert the middle screw to reinforce the slide rail. Repeat for the other side.
6. Салгычты салуу: Once both cabinet slides are installed, retract them. Carefully insert the drawer into the cabinet, aligning it with the installed slides.

Image: Step-by-step visual guide for drilling holes, tightening handle screws, removing rails, and installing the slides onto the drawer and cabinet frame.

Операция

The PHWALK Soft Close Undermount Drawer Slides are designed for effortless operation:

• Ачылышы: Gently pull the drawer open. The full extension design allows the drawer to come out completely, providing full access to its contents.
• Жабуу: Push the drawer closed. As it approaches the cabinet frame, the integrated hydraulic buffer will engage, slowing the drawer down and pulling it shut softly and silently. Avoid forcing the drawer shut, as the soft-close mechanism will handle the final closure.

Техникалык тейлөө

To ensure the long-term smooth operation of your drawer slides, follow these simple maintenance tips:

• Тазалоо: Periodically wipe the slide rails with a clean, damp cloth to remove dust and debris. Avoid using abrasive cleaners or solvents that could damage the finish or lubrication.
• Майлоо: The slides are pre-lubricated. If you notice any stiffness over time, a small amount of silicone-based lubricant can be applied to the ball bearings. Do not use oil-based lubricants as they can attract dust.
• Текшерүү: Regularly check all mounting screws to ensure they are tight. Over time, screws can loosen, affecting slide performance.
• Ашыкча жүктөөдөн качыңыз: Do not exceed the 100 lb (45 kg) weight capacity to prevent damage to the slides and ensure smooth operation.

Проблемаларды чечүү

If you encounter any issues with your drawer slides, refer to the following common problems and solutions:

• Drawer is Sticking or Hard to Open/Close:
  • Check for obstructions in the slide mechanism or debris on the rails.
  • Сумка ашыкча жүктөлбөгөнүн текшериңиз.
  • Verify that all mounting screws are securely tightened.
  • Apply a small amount of silicone lubricant to the ball bearings.
• Drawer Does Not Close Softly:
  • Ensure the soft-close mechanism is not obstructed.
  • Check if the drawer is properly aligned and seated on the slides. Misalignment can prevent the damper from engaging correctly.
• Drawer is Wobbly:
  • Tighten all mounting screws on both the drawer and cabinet sides.
  • Verify that the drawer box itself is structurally sound and not loose.

If these steps do not resolve the issue, please contact PHWALK customer support for further assistance.

Кепилдик жана колдоо

PHWALK products are manufactured to high-quality standards. For any questions regarding installation, operation, or if you require technical support, please refer to the contact information provided with your purchase or visit the official PHWALK webсайт. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
