Introduction
Thank you for choosing the WLIVE Wood Dresser with 5 Drawers. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and efficient use of your new furniture. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Коопсуздук маалыматы
- Чоңдор үчүн зарыл: Бул продукт чоңдор тарабынан чогултулушу керек.
- Учууга каршы түзмөк: For your safety, an anti-tip device is included. It is crucial to secure the dresser to the wall using this device to prevent accidental tipping, especially in households with children.
- Салмактык чектөөлөр: Do not exceed the recommended weight capacity for the top surface (30 kg / 66 lbs) and each drawer (10 kg / 22 lbs). Overloading can cause damage or injury.
- Туруктуу бети: Шкафты ар дайым тегиз, түз жана туруктуу бетке коюңуз.
- Таза кармоо: Майда тетиктерди жана таңгактоочу материалдарды чогултуу учурунда балдардан алыс кармаңыз.
Пакеттин мазмуну
Before starting assembly, verify that all parts and hardware are present. Refer to the included parts list diagram for identification. If any parts are missing or damaged, please contact customer support.
Figure 1: Product Dimensions and Weight Capacities
Монтаждоо көрсөтмөлөрү
Assembly typically requires two adults and a clear, spacious area. Follow the steps below in sequence. A power tool can expedite the process, but ensure screws are not overtightened to prevent damage.
Ассамблея бүттүview Video
Video: Detailed assembly guide for the WLIVE Wood Dresser with 5 Drawers.
Негизги Ассамблея кадамдары
- Панелдерди даярдоо: Lay out all wooden panels and identify them according to the instruction manual's diagrams.
- Суурманын слайддарын бекитүү: Secure the metal drawer slides to the side panels of the dresser frame. Ensure they are firmly attached and aligned.
- Рамканы чогултуу: Connect the main frame components using the provided screws and dowels. Ensure all connections are tight and stable.
- Салгычтарды куруу: Assemble each drawer box. Pay close attention to the alignment of the drawer bottom and sides for smooth operation.
- Орнотуу баскычтары: Attach the antique knobs to the front of each drawer.
- Салгычтарды салуу: Carefully slide each assembled drawer into its respective slot on the dresser frame.
- Anti-Tip Kit орнотуу: Securely attach the anti-tip device to the back of the dresser and to a wall stud. This step is critical for safety.

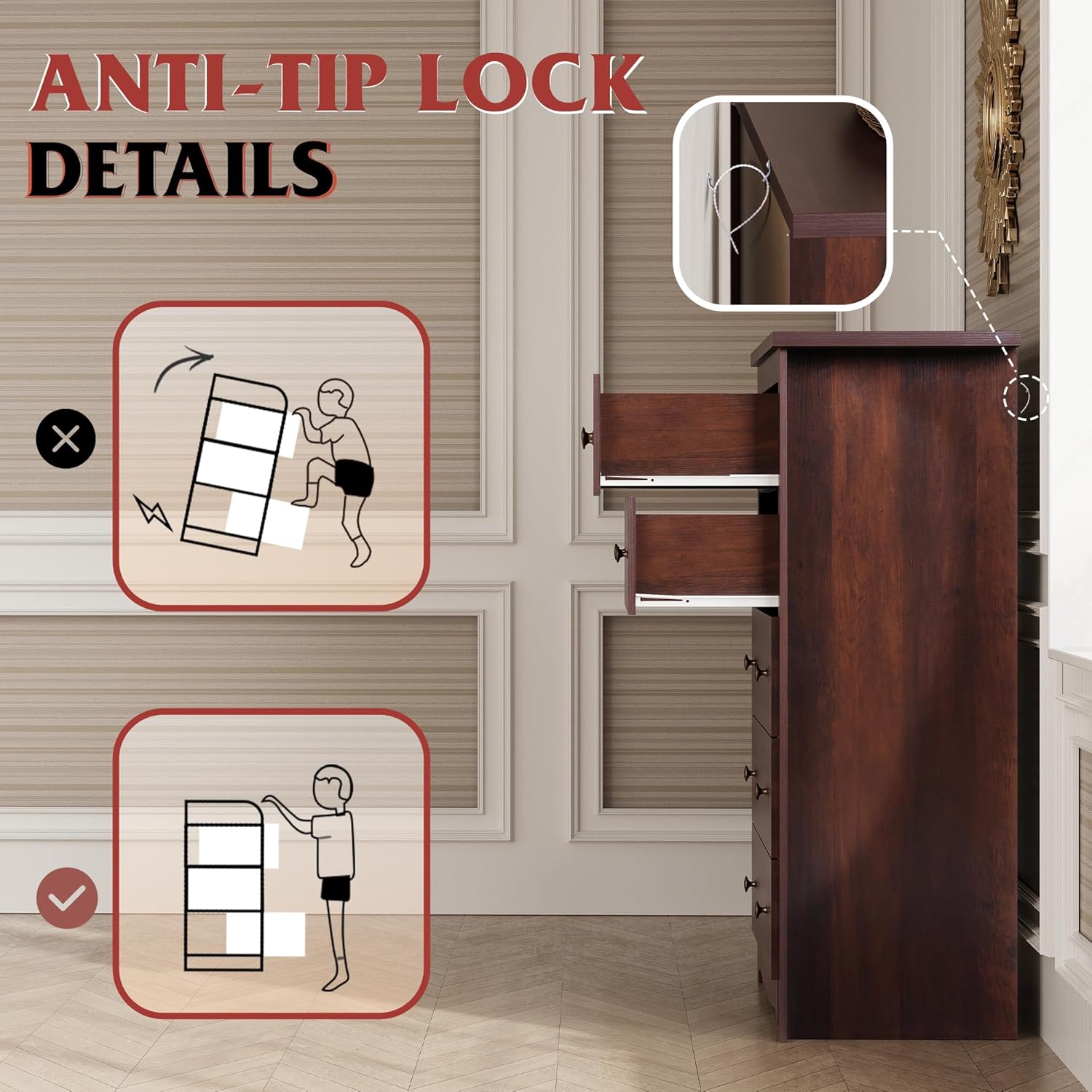

Figure 2: Anti-Tip Lock Installation Details
Иштөө нускамалары
The WLIVE Wood Dresser is designed for convenient storage in various rooms. Its five spacious drawers provide ample space for organizing clothes, books, toys, and other items.
Продукт өзгөчөлүктөрү бүттүview Video
Видео: Бүттүview of the WLIVE Wood Dresser's features and functionality.
Тарткычтын иштеши
- The drawers are equipped with smooth metal slides for easy opening and closing.
- To open, gently pull the antique knob. To close, push the drawer firmly until it is fully seated.
- Avoid forcing drawers if they feel stuck; check for obstructions or misalignment.
Figure 3: Large Drawer Storage Capacity
Figure 4: Focus on Details: Knobs, Slides, and Support
Техникалык тейлөө
Туура кам көрүү шкафыңыздын иштөө мөөнөтүн жана көрүнүшүн узартат.
- Тазалоо: Wipe the surface with a dry cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
- Төгүлүүлөр: Immediately wipe up any spills with a soft, dry cloth to prevent moisture damage.
- Күн нурунун таасири: Жыгачтын өңү өчүп кетпеши үчүн, күндүн түздөн-түз нуруна көпкө чейин тийбеңиз.
- Үзгүлтүксүз текшерүүлөр: Мезгил-мезгили менен бардык бурамалар жана бекиткичтер бекем болушу үчүн текшерип туруңуз. Керек болсо кайра тартыңыз.
Figure 5: Sturdy and Durable Materials
Проблемаларды чечүү
Жалпы маселелер жана чечимдер
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Шифер солкулдап жатат | Uneven surface; loose fasteners; not anchored to wall. | Ensure dresser is on a perfectly flat surface. Tighten all assembly screws. Anchor the dresser to the wall using the provided anti-tip kit. |
| Тартмалар жабышып калат же жылмакай жылбайт | Misaligned drawer slides; screws not flush; overloaded drawer. | Check that all screws on the drawer slides are fully tightened and flush. Ensure drawers are not overloaded. Verify drawer box is assembled squarely. |
| Strong odor (off-gassing) | New furniture materials. | Ensure adequate ventilation in the room. Open windows and doors. The odor should dissipate over time. |
| Paint chipping during assembly | Forceful screw insertion. | Use care when inserting screws. While minor chipping on internal surfaces may occur, it does not affect structural integrity. |
Техникалык шарттар
- Бренд: WLIVE
- Модель аты: ASNG130ZX
- Продукциянын өлчөмдөрү: 15.7"D x 31.5"W x 45.3"H
- Түсү: Күрөң
- Монтаж түрү: Floor Mount
- Бөлмө түрү: Bedroom, Hallway, Living Room, Office
- Өзгөчө өзгөчөлүгү: Бекем
- Эмерек бүтүрүү: Күрөң
- Элемент Салмагы: 82 фунт
- Ассамблея талап кылынат: Ооба
- Продукцияга кам көрүү боюнча көрсөтмөлөр: Кургак чүпүрөк менен сүртүңүз
Кепилдик жана колдоо
WLIVE is committed to providing high-quality products. While specific warranty details are not provided in this manual, please refer to your purchase documentation or contact WLIVE customer support for any warranty-related inquiries or assistance.
For questions regarding assembly, missing parts, or product issues, please contact the seller directly through the platform where you made your purchase. They are equipped to provide prompt assistance and support.
