KK 2.1.5 Flight Control Board User Manual

Introduction

The KK 2.1.5 Flight Control Board is an advanced flight controller designed for various multi-rotor aircraft, including VTOL (Vertical Take-Off and Landing) and V-tail configurations. It provides exceptional flight experience with support for both self-leveling and acrobatic flights, ensuring stability and flexibility across different flight scenarios. This manual provides essential information for the proper setup, operation, and maintenance of your flight control board.

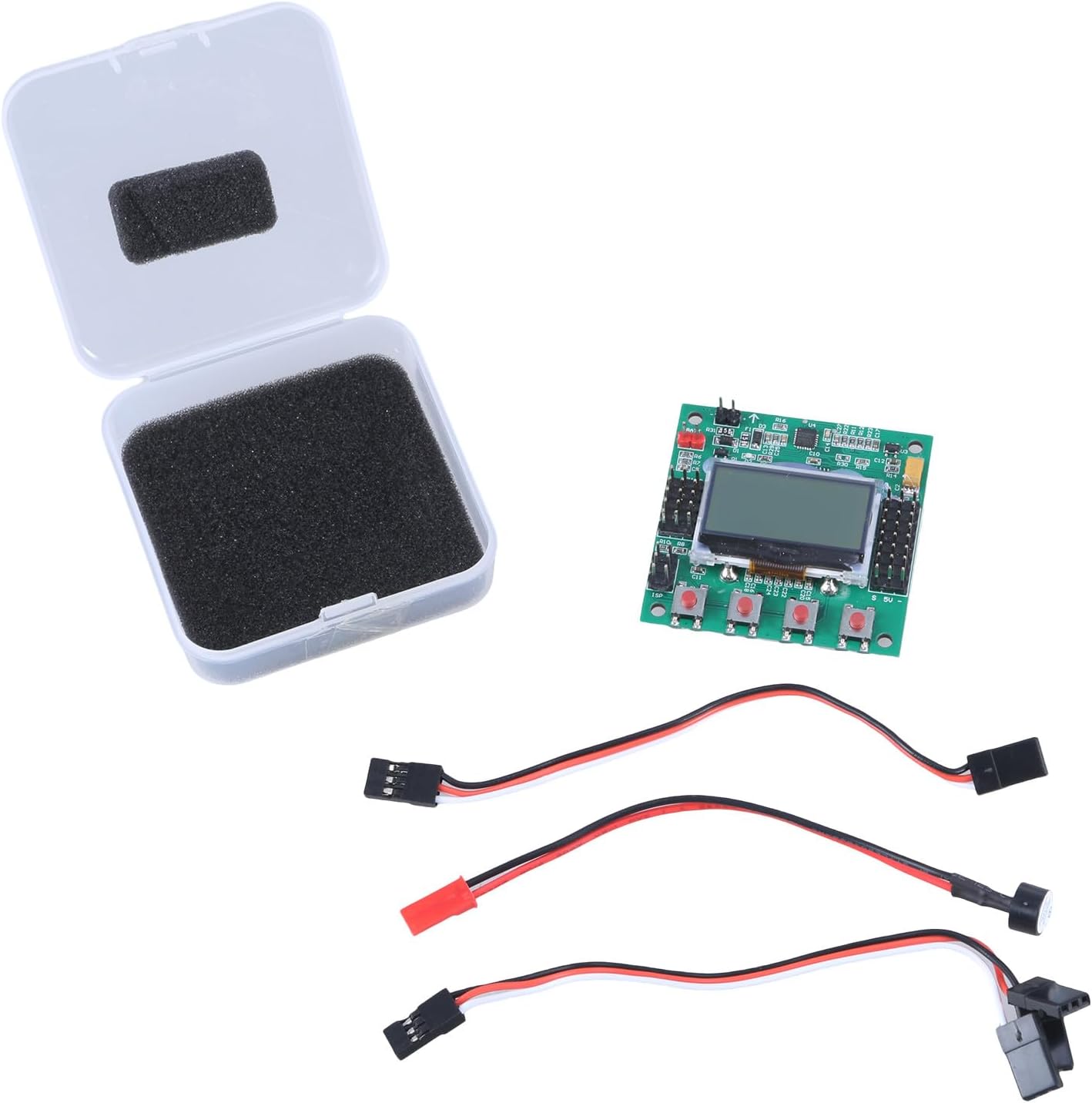

Сүрөт: The KK 2.1.5 Flight Control Board shown with its included accessories, including connection cables and a protective case.

Коопсуздук маалыматы

Please read and understand all safety warnings and precautions before using the KK 2.1.5 Flight Control Board. Improper use can lead to damage to the product, property, or personal injury.

• Always ensure correct polarity when connecting power to the flight control board. Incorrect connections can cause irreversible damage.
• Operate your aircraft in open areas, away from people, obstacles, and power lines.
• Бардык зымдарды жана туташууларды эскирүү же бузулуу белгилери үчүн үзгүлтүксүз текшерип туруңуз.
• Keep the flight control board away from moisture, extreme temperatures, and direct sunlight.
• Do not attempt to modify the firmware or hardware unless you are an experienced user and understand the risks involved.
• Disconnect power from the aircraft before performing any maintenance or adjustments.

Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизде бар экенин текшериңиз:

• 1x KK 2.1.5 Flight Control Board
• Connection Cables (various types for receiver and ESC connections)
• Protective Case (for the flight board)

Сүрөт: The KK 2.1.5 Flight Control Board alongside its accompanying connection cables.

Орнотуу жана орнотуу

Follow these steps for proper installation of the KK 2.1.5 Flight Control Board into your aircraft.

1. Mounting the Flight Board

• Mount the flight control board securely to the center of your aircraft frame using vibration-dampening foam or standoffs.
• Ensure the board's orientation matches the direction indicated in the firmware settings (usually an arrow pointing forward).

Сүрөт: Мурункуample of the KK 2.1.5 Flight Control Board integrated into a multi-rotor drone assembly, showing its central placement.

2. Ресиверди туташтыруу

• Connect your RC receiver to the designated input pins on the flight control board. The board supports 5 channels (Aileron, Elevator, Throttle, Rudder, Aux).
• Use the provided servo cables to make these connections. Ensure each channel is connected to its corresponding pin.

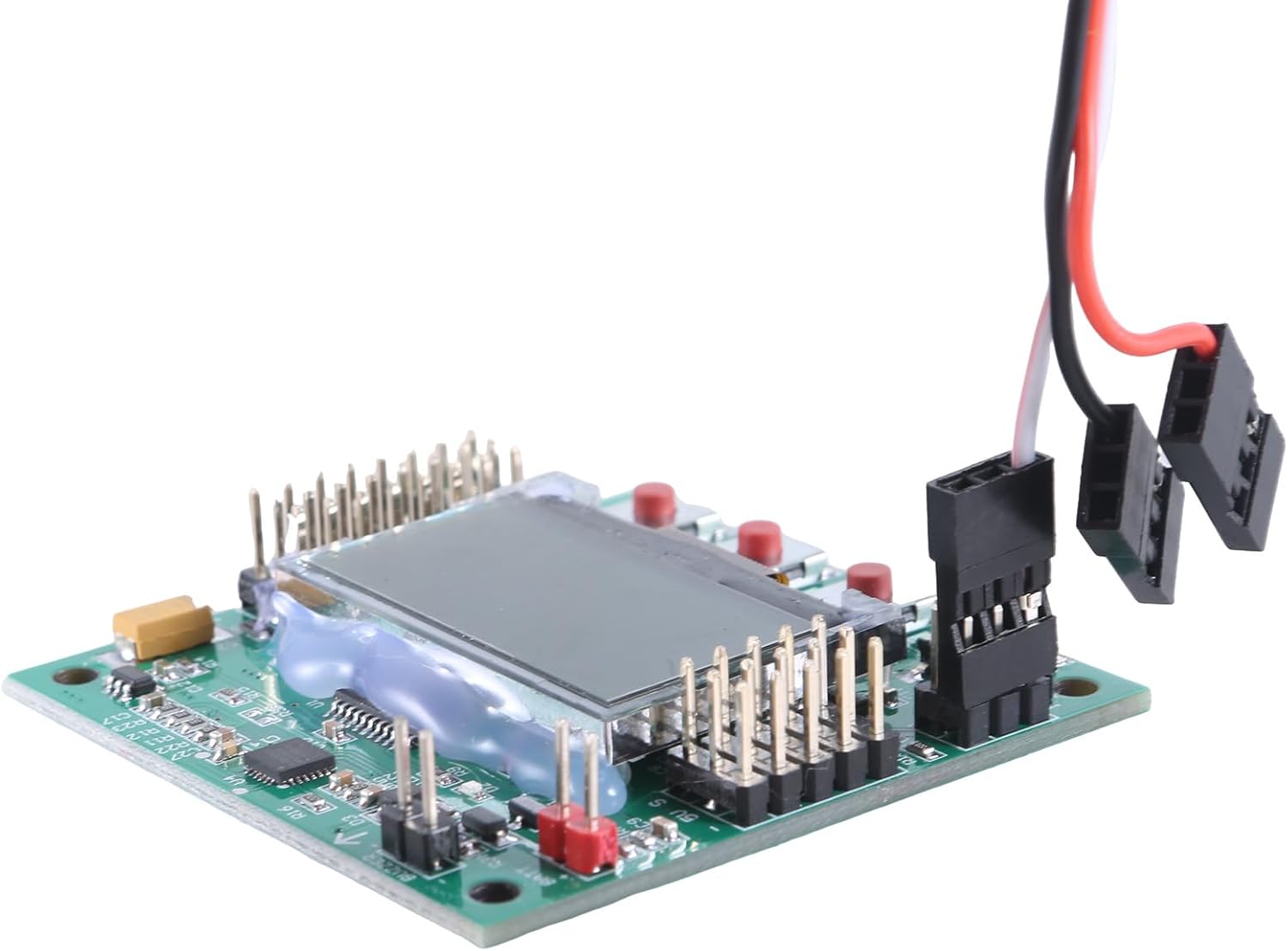

Сүрөт: The KK 2.1.5 Flight Control Board with several connection cables plugged into its pin headers, demonstrating typical wiring.

3. Connecting ESCs/Motors

• Connect your Electronic Speed Controllers (ESCs) to the output pins of the flight control board. The board has multiple outputs for motors.
• Refer to your aircraft's configuration (e.g., quadcopter, hexacopter) for the correct motor order and direction.
• The board sends signals at 1520us to the electrical control.

Сүрөт: Жакын план view of the KK 2.1.5 Flight Control Board, highlighting the connection point for a power cable or signal cable.

4. Электр камсыздоо

• The flight control board operates on an input voltage of 4.8-6.0V, typically supplied from the receiver or a dedicated BEC.
• Ensure your power source provides stable voltage бул диапазондо.

Operating the Flight Control Board

The KK 2.1.5 Flight Control Board features an integrated LCD screen and buttons for easy configuration and monitoring without needing a computer.

Сүрөт: Жогорудан төмөн карай так view of the KK 2.1.5 Flight Control Board, prominently displaying its LCD screen and control buttons for direct configuration.

Initial Power-Up and Calibration

• Upon first power-up, the LCD screen will display the firmware version (V119S1PRO).
• Navigate through the menu using the onboard buttons to perform sensor calibration (accelerometer and gyroscope). This is crucial for stable flight.
• Ensure the board is on a level surface during calibration.

Flight Modes and Settings

• The board supports self-balancing functions, which can be enabled or disabled via the menu.
• Adjust PID (Proportional-Integral-Derivative) settings for fine-tuning flight characteristics to match your aircraft and flying style.
• Configure motor layout (e.g., X-quad, +quad, V-tail) through the menu.

Техникалык тейлөө

Proper maintenance ensures the longevity and reliable performance of your KK 2.1.5 Flight Control Board.

• Тазалоо: Gently clean the board with a soft, dry brush or compressed air to remove dust and debris. Do not use liquids.
• Текшерүү: Periodically check all solder joints and connections for any signs of corrosion, looseness, or damage.
• Сактагыч: When not in use, store the flight control board in its protective case in a cool, dry place, away from static electricity.
• Программалык камсыздоонун жаңыртуулары: Өндүрүүчүнү текшериңиз website for any available firmware updates. Follow update instructions carefully to avoid bricking the board.

Проблемаларды чечүү

This section addresses common issues you might encounter with the KK 2.1.5 Flight Control Board.

Техникалык шарттар

Technical specifications for the KK 2.1.5 Flight Control Board:

• Гироскоп: InvenSense Inc.
• Акселерометр: Analog Devices Inc.
• Self-balancing function: Ооба
• Киргизүү тtage: 4.8-6.0V (from receiver)
• Кабыл алуучу каналдар: 1520us (5 channels in total)
• Signal sent to electrical control: 1520ус
• Микропрограмма версиясы: V119S1PRO
• Материал: PCB

Кепилдик жана колдоо

Кепилдик жөнүндө маалымат жана техникалык колдоо алуу үчүн, өндүрүүчүнүн расмий өкүлүнө кайрылыңыз webсайтка же кардарларды тейлөөгө кайрылыңыз. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.

Manufacturer: Ldabrye
