Orion Motor Tech PUL-FI21-00 Pneumatic Diesel Injector Puller Set User Manual

1. Коопсуздук маалыматы

Always read and understand all safety warnings and instructions before using this product. Failure to follow these instructions may result in serious injury or property damage.

• Жеке коргонуу каражаттары (ЖКК): Always wear appropriate eye protection (safety glasses), hand protection (heavy-duty gloves), and hearing protection when operating pneumatic tools.
• Иш чөйрөсү: Ensure your work area is clean, well-lit, and free from obstructions. Keep children and bystanders away.
• Аба менен камсыздоо: Use a clean, dry, regulated air supply within the specified pressure range (5-8 bar / 73-116 psi). Do not exceed the maximum operating pressure.
• Курал абалы: Inspect the tool and all accessories for damage or wear before each use. Do not use damaged equipment.
• Коопсуз туташуу: Ensure all connections (adapters, air hose, air supply) are secure and leak-free before operation.
• Унаа даярдоо: Ensure the vehicle is stable, the engine is cool, and appropriate safety measures (e.g., disconnecting battery, relieving fuel pressure) are taken before working on injectors.
• Туура колдонуу: Use the tool only for its intended purpose of removing diesel injectors. Do not modify the tool or use it for applications for which it was not designed.

2. Продукт бүтүп калдыview

The Orion Motor Tech 24-piece pneumatic injector puller kit is designed for the efficient and damage-free removal of seized diesel injectors from various engines. The kit utilizes pneumatic vibration to loosen stubborn injectors, reducing the risk of damage to surrounding components.

2.1. Комплект Мазмуну

комплект төмөнкү компоненттерди камтыйт:

• 1 x Pneumatic Hammer
• 1 x Air Intake Hose
• 19 x Adapters (various sizes)
• 1 x 1/4" Pneumatic Connector (EU Standard)
• 1 x 1/4" Pneumatic Connector (US Standard)
• 1 жуп Мээлей

Figure 1: Complete 24-piece pneumatic injector puller kit contents.

2.2. Негизги өзгөчөлүктөрү

• Efficient Pneumatic Hammer: Delivers powerful vibrations to loosen seized injectors without damaging surrounding parts.
• Wide Adapter Compatibility: Includes 19 adapters to fit a broad range of diesel injectors.
• Туруктуу курулуш: Crafted from robust AISI 1045 steel with a black oxide finish for extended lifespan.
• Колдонуучуга ыңгайлуу дизайн: Clear size markings on adapters and organized storage case for quick identification.

Figure 2: The 19 included adapters for various injector sizes.

Figure 3: The pneumatic hammer, highlighting its dimensions and working pressure.

3. Орнотуу

Before beginning, ensure the engine is cool and all necessary safety precautions are in place.

1. Identify Correct Adapter: Select the appropriate adapter from the 19 provided that matches the diesel injector you intend to remove. The adapters are clearly marked with their sizes.
2. Attach Adapter to Injector: Securely thread the chosen adapter onto the top of the injector. Ensure a snug fit to prevent slippage during operation.
3. Connect Pneumatic Hammer: Attach the pneumatic hammer to the adapter.
4. Аба түтүгүн туташтыруу: Connect one end of the air intake hose to the pneumatic hammer. Attach the appropriate EU or US pneumatic connector to the other end of the air hose.
5. Аба менен камсыздоого туташуу: Connect the air hose to a regulated air compressor capable of providing 5-8 bar (73-116 psi) of pressure. Ensure the air supply is clean and dry.

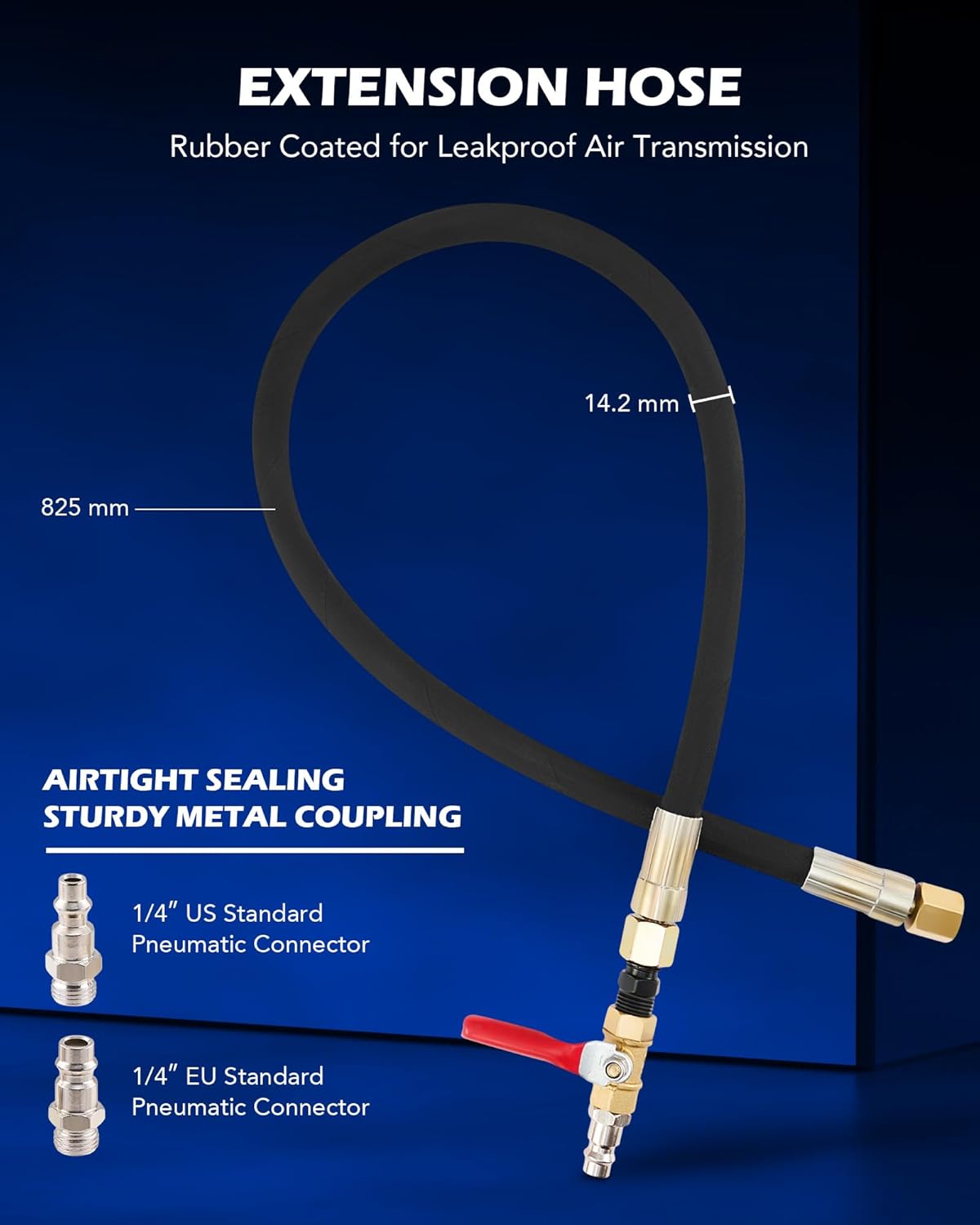

Figure 4: The air extension hose with both EU and US standard connectors.

4. Иштөө нускамалары

Once the tool is properly set up and connected to the air supply, proceed with the injector removal:

1. Activate Air Supply: Slowly open the valve on the air hose to allow compressed air to flow into the pneumatic hammer.
2. Apply Vibration: The pneumatic hammer will begin to vibrate, transmitting force directly to the seized injector. Maintain a firm grip on the tool.
3. Monitor Injector: Observe the injector as it vibrates. The vibrations will gradually loosen the injector from its seating. This process is typically quick, often taking only a few seconds.
4. Remove Injector: Once the injector is sufficiently loosened, it can be carefully pulled out of its bore. Avoid excessive force to prevent damage.
5. Deactivate Air Supply: Close the air supply valve and disconnect the air hose from the tool.

Маанилүү: The pneumatic operation is designed to be more secure and controllable than manual methods, minimizing abrasion on surrounding parts. Avoid using excessive air pressure beyond the recommended range.

5-сүрөт: Advantages of pneumatic operation over manual methods.

4.1. Окуу видеолору

For a visual guide on the operation of pneumatic injector pullers, please refer to the following videos:

5. Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your injector puller set.

• Тазалоо: After each use, clean all components, especially adapters and the pneumatic hammer, to remove any fuel, oil, or debris. Use a clean cloth and appropriate cleaning agents.
• Майлоо: Periodically apply a small amount of pneumatic tool oil to the air inlet of the pneumatic hammer to maintain internal components.
• Текшерүү: Regularly inspect all parts for signs of wear, corrosion, or damage. Pay close attention to threads on adapters and the integrity of the air hose.
• Сактагыч: Store the kit in its original durable case in a dry, clean environment, away from direct sunlight and extreme temperatures. Ensure all components are dry before storage.

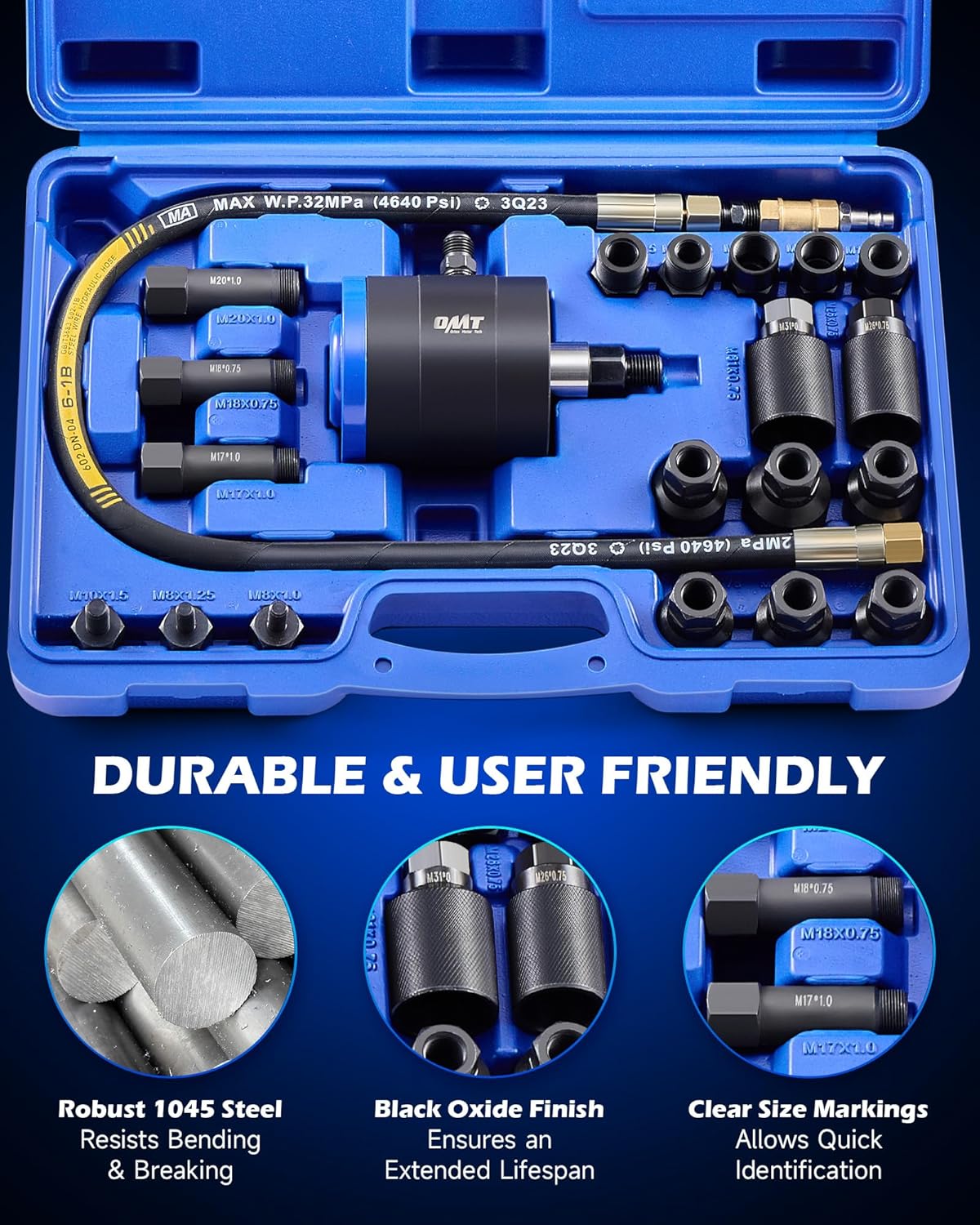

Figure 6: Durable and user-friendly design for easy maintenance and organization.

6. Кыйынчылыктарды

Эгерде сиз операция учурунда көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү жана чечимдерди караңыз:

7. Техникалык шарттар

8. Кепилдик жана колдоо

Orion Motor Tech products are manufactured to high-quality standards. For warranty information, technical support, or replacement parts, please contact Orion Motor Tech customer service through their official webпродукт сатылып алынган сайт же сатуучу.

Сураныч, кепилдик дооматтар үчүн сатып алуу далилиңизди сактап коюңуз.
