LUMI Flex Mount PLB-M06 Motorized Swing TV Wall Mount

1. Киришүү

The LUMI Flex Mount PLB-M06 is a motorized swing TV wall mount designed to provide optimal viewing angles for televisions ranging from 32 to 75 inches. This mount offers convenience and flexibility, allowing you to adjust your TV's position with a simple press of a button on the included remote control. Its robust design supports TVs up to 50kg (110lbs) and features a quiet motorized mechanism for smooth, precise movement up to 170 degrees.

Key features include a programmable position memory function, a collision avoidance system for safety, and integrated cable management to maintain a tidy appearance. The slim design ensures the TV sits just 56mm from the wall when retracted.

Сүрөт: The LUMI Flex Mount PLB-M06 allows for multiple viewing positions in a room, controlled by a remote.

2. Коопсуздук маалыматы

Please read all instructions carefully before installation and use. Failure to follow these instructions may result in property damage, serious injury, or death.

• Салмак сыйымдуулугу: Do not exceed the maximum weight capacity of 50kg (110lbs). This mount is designed for TVs between 32 and 75 inches.
• Дубалдын түзүлүшү: Ensure the mounting surface can safely support the combined weight of the mount and the television. Professional installation is highly recommended.
• Күч: Connect the mount to a grounded power outlet. Do not use damaged power cords or adapters.
• Балдар: Keep children away from the motorized mount during operation. The collision avoidance system is a safety feature, but direct supervision is always advised.
• Кыймылдуу бөлүктөр: Keep hands and objects clear of moving parts during operation.

3. Пакеттин мазмуну

Орнотууну улантуудан мурун, бардык компоненттердин бар экенин жана бузулбаганын текшериңиз. Эгерде кандайдыр бир тетиктер жок болсо же бузулган болсо, кардарларды колдоо кызматына кайрылыңыз.

• Motorized TV Wall Mount Assembly
• Сыналгы кронштейнинин рычагдары (2x)
• Hardware Kit (screws, anchors, washers, spacers for various TV models)
• Алыстан башкаруу
• Кубаттуу адаптер жана кабель
• Кабель башкаруу байланыштары
• Instruction Manual

4. Орнотуу жана орнотуу

Installation requires basic tools (drill, stud finder, level, screwdriver). It is recommended to have at least two people for safe installation.

1. Дубалды даярдоо: Locate suitable wall studs or use appropriate wall anchors for concrete/brick walls. Mark the desired mounting height.
2. Дубал плитасын орнотуу: Secure the main wall plate of the motorized mount to the wall using the provided hardware. Ensure it is level and firmly attached.
3. Attaching TV Brackets: Attach the TV bracket arms to the back of your television using the appropriate screws and spacers from the hardware kit. Ensure the brackets are centered and securely fastened to the VESA mounting holes on your TV.
4. Телевизорду орнотуу: Carefully lift the TV with the attached brackets and hook them onto the wall mount assembly. Secure the TV to the mount using the reinforced TV holders.

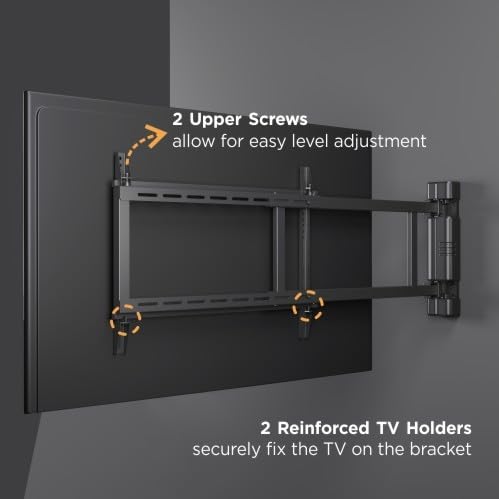

Сүрөт: The mount features two upper screws for easy level adjustment and reinforced TV holders for secure attachment.

5. Кубат туташуу: Connect the power adapter to the mount and plug it into a power outlet.
6. Кабелдик башкаруу: Use the integrated cable management system and provided ties to route and secure all TV and power cables along the mount arms for a clean and organized look.

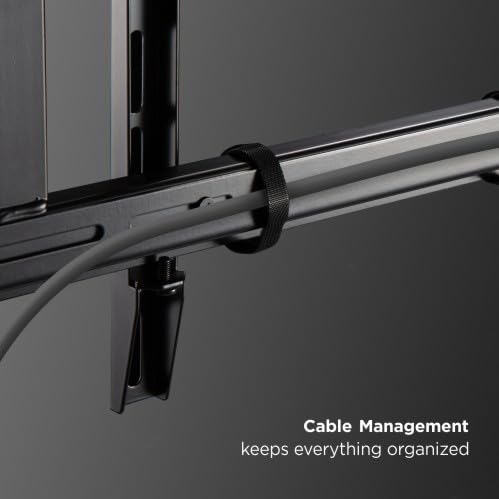

Сүрөт: Integrated cable management keeps cables organized and out of sight.

5. Иштөө нускамалары

The LUMI Flex Mount PLB-M06 is operated using the included remote control.

• Күйгүзүү/өчүрүү: Press the power button on the remote to activate or deactivate the mount.
• Позицияны тууралоо: Use the directional buttons (left/right) on the remote to swing the TV to your desired viewing angle. The mount can swing up to 170 degrees.
• Programmable Memory Positions: The mount features a programmable memory function. To set a position:
1. Move the TV to the desired position using the directional buttons.
2. Press and hold one of the memory preset buttons (e.g., M1, M2, M3) until you hear a beep or see an indicator light flash, confirming the position is saved.
3. To recall a saved position, simply press the corresponding memory preset button.
• Collision Avoidance System: The mount is equipped with a collision avoidance system that automatically stops movement if an obstruction is detected. If this occurs, remove the obstruction and resume operation.

6. Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө сыналгы монтажыңыздын узак мөөнөттүү жана коопсуз иштешин камсыз кылат.

• Тазалоо: монтажды жумшак, кургак чүпүрөк менен сүртүңүз. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
• Мезгилдүү текшерүүлөр: Periodically check all screws and bolts to ensure they remain tight and secure. Re-tighten if necessary.
• Кабелдик текшерүү: Inspect cables for any signs of wear or damage. Replace if necessary.

7. Кыйынчылыктарды

If you encounter issues with your LUMI Flex Mount PLB-M06, refer to the following common problems and solutions:

• Mount Not Moving:
• Ensure the power adapter is securely plugged into both the mount and a working power outlet.
• Алыстан башкаруу пультунун батареяларын алмаштыруу керекпи же жокпу, текшериңиз.
• Verify there are no obstructions triggering the collision avoidance system.
• Алыстан башкаруу жооп бербейт:
• Пульттагы батарейкаларды алмаштырыңыз.
• Ensure there is a clear line of sight between the remote and the mount's receiver.
• Телевизордун деңгээли:
• Adjust the two upper screws on the TV bracket arms as shown in the installation section to fine-tune the level.
• Ensure the wall plate is perfectly level during installation.

Эгер көйгөйлөр чечилбесе, кардарларды колдоо кызматына кайрылыңыз.

8. Техникалык шарттар

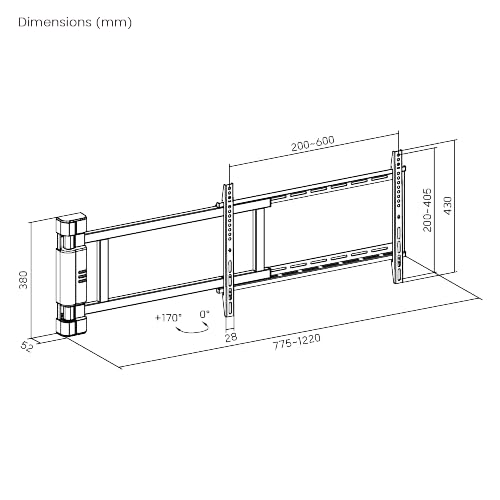

Сүрөт: Dimensional drawing of the PLB-M06 mount.

9. Кепилдик маалыматы

This LUMI Flex Mount PLB-M06 comes with a 3 жылдык кепилдик from the date of purchase. The warranty covers manufacturing defects and material faults under normal use. It does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications. Please retain your proof of purchase for warranty claims.

10. Колдоо жана байланыш маалыматы

For technical assistance, warranty claims, or any questions regarding your LUMI Flex Mount PLB-M06, please contact:

Өндүрүүчү / Импорттоочу: ARIHANT INFOMATICS

Байланыш номери: 8108164916

Please have your model number (PLB-M06) and proof of purchase ready when contacting support.
