Redkey W13 Cordless Wet Dry Vacuum Cleaner

Introduction

Welcome to the Redkey W13 Cordless Wet Dry Vacuum Cleaner user manual. This guide provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before first use and retain it for future reference.

Маанилүү коопсуздук нускамалары

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using your appliance. This includes:

• Шайманды колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
• Бул колдонмодо сүрөттөлгөндөй гана колдонуңуз.
• Шайманды сууга же башка суюктуктарга батырбаңыз.
• Чачты, кенен кийимдерди, манжаларды жана дененин бардык бөлүктөрүн тешиктерден жана кыймылдуу бөлүктөрдөн алыс кармаңыз.
• Use only Redkey recommended attachments and replacement parts.
• Тез күйүүчү же тез күйүүчү суюктуктарды, же күйүп жаткан же түтүн чыгарып жаткан нерселерди чогултуу үчүн колдонбоңуз.
• Ensure the charging base is placed on a flat, stable surface away from heat sources.
• Бул шайман тиричиликте гана колдонуу үчүн.

Пакеттин мазмуну

Carefully unpack your Redkey W13 and check that all items are present and in good condition. The package should include:

• Redkey W13 Main Unit
• Заряддоо базасы
• Кубаттуу адаптер
• Щетка ролиги (алдын ала орнотулган)
• Spare Brush Roll (2 included)
• HEPA чыпкасы (алдын ала орнотулган)
• Запастык HEPA чыпкасы
• Тазалоо куралы
• Өлчөөчү чөйчөк
• User Manual

Image: Redkey W13 Wet Dry Vacuum Cleaner with its charging base, two spare brush rolls, a cleaning brush, and a spare filter.

Продукт бүттүview

The Redkey W13 is a versatile cordless wet dry vacuum cleaner designed for efficient cleaning of hard floors. It combines powerful suction with a washing and mopping function, featuring intelligent self-cleaning and self-drying capabilities.

Негизги өзгөчөлүктөрү:

• Күчтүү соргуч: Equipped with 17,500 Pa suction power for effective removal of dirt, dust, debris, hair, liquids, and stains.
• Enhanced Edge Cleaning: The brush design allows for thorough cleaning along baseboards and in corners, reaching within 1cm of edges.
• Intelligent Self-Cleaning & Drying: Automatic brush cleaning and hot air drying prevent mold and unpleasant odors.
• Узак иштөө убактысы: Up to 45 minutes of continuous cleaning on a single charge, covering areas up to 200m².
• Эки суу резервуар системасы: Separate tanks for clean water (0.7L) and dirty water (0.9L) ensure cleaning with fresh water.
• Санариптик дисплей: Provides intuitive information on battery level, cleaning modes, and alerts.
• Ergonomic Ring Handle: Designed for comfortable and easy maneuverability.

Image: The Redkey W13 demonstrating its 17,500 Pa suction power on a hard floor, effectively picking up debris.

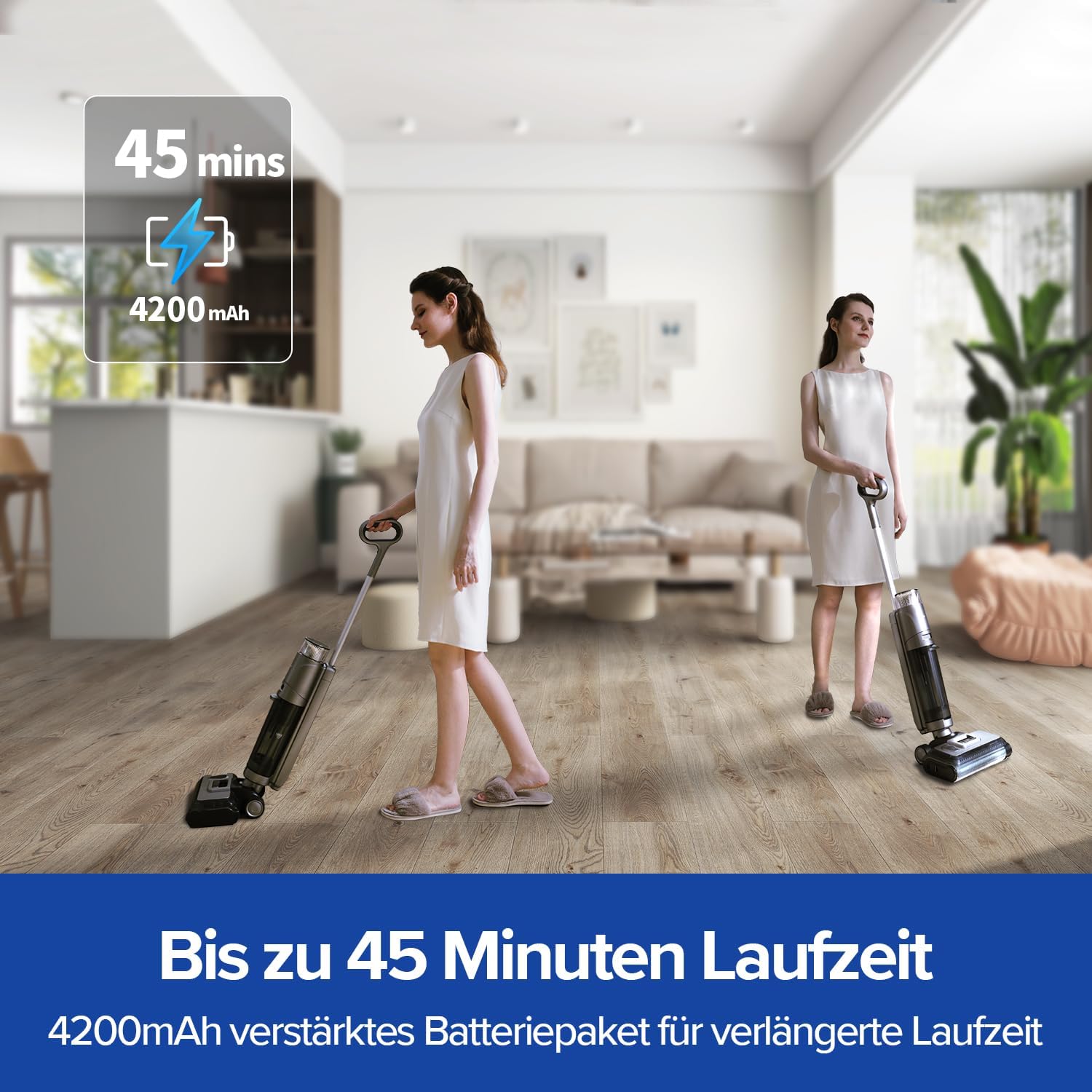

Image: Two individuals using the Redkey W13 in a living room, highlighting its 45-minute battery life.

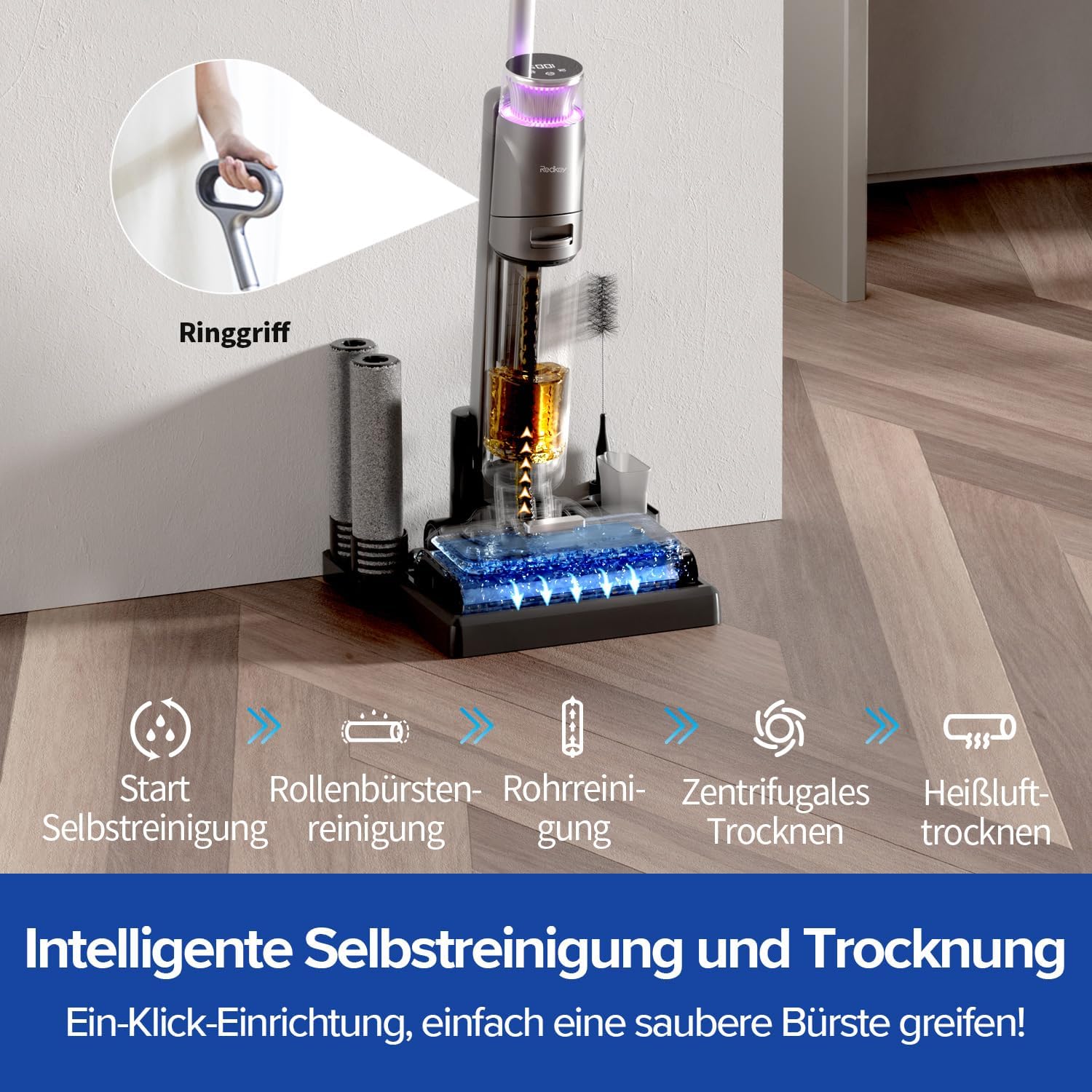

Image: Diagram illustrating the intelligent self-cleaning and drying process of the Redkey W13, including brush cleaning and hot air drying.

Image: The Redkey W13 cleaning close to a wall, demonstrating its less than 1cm edge cleaning capability.

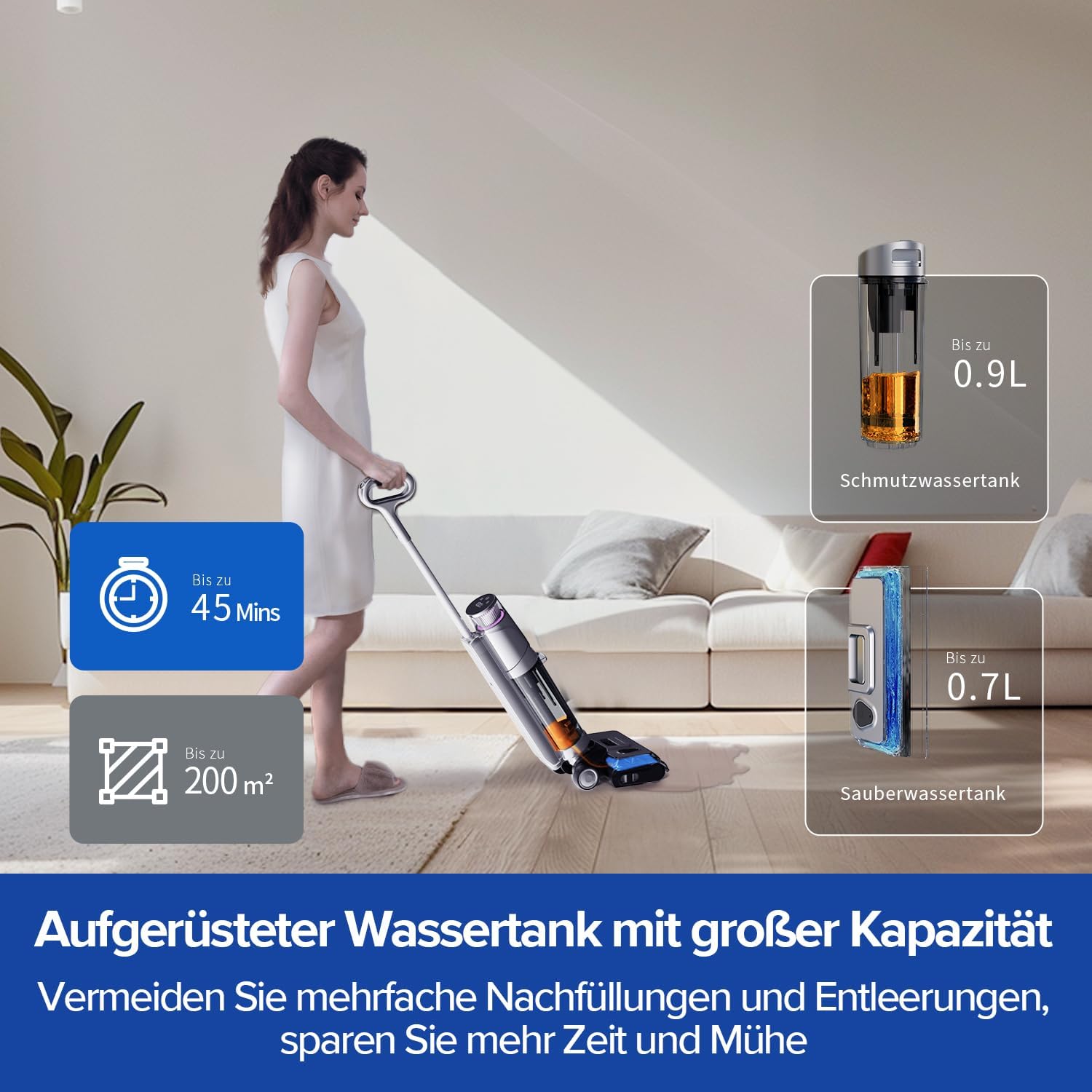

Image: The Redkey W13 in use, with callouts showing the 0.7L clean water tank and 0.9L dirty water tank capacities.

Image: A collage of different types of messes (dirt, liquids, food particles) that the Redkey W13 can clean, demonstrating its versatility.

Жайгашуу

1. Ассамблея:
   • Туткасын негизги блокко бекем орнотулганга чейин киргизиңиз.
   • Ensure the clean water tank and dirty water tank are correctly seated in their compartments.
2. Алгачкы заряддоо:
   • Негизги блокту заряддоочу негизге коюңуз.
   • Кубат адаптерин кубаттоочу базага туташтырып, аны розеткага сайыңыз.
   • The digital display will indicate charging status. Fully charge the device before first use (approximately 4-5 hours).

Иштөө нускамалары

1. Таза суу резервуарын толтуруу:
   • Негизги блоктон таза суу сактагычты алып салыңыз.
   • Open the tank cap and fill with clean tap water. You may add a small amount of non-foaming floor cleaning solution if desired. Do not exceed the MAX fill line.
   • Капкагын бекем жаап, резервуарды негизги блокко кайра салыңыз.
2. Вакуумду баштоо:
   • Press the Power button on the handle to turn on the device.
   • The vacuum will start in standard cleaning mode.
   • To switch between cleaning modes (e.g., Standard, MAX), press the Mode button. The digital display will show the current mode.
   • Tilt the vacuum back to engage the brush roll and begin cleaning.
3. Кир суу резервуарын бошотуу:
   • When the dirty water tank is full, the device will alert you.
   • Кир суу резервуарын негизги блоктон чыгарыңыз.
   • Carefully open the tank and dispose of the dirty water. Remove any solid debris from the filter basket.
   • Rinse the tank and filter basket with clean water.
   • Close the tank securely and reinsert it into the main unit.

Техникалык тейлөө

Regular maintenance ensures optimal performance and extends the lifespan of your Redkey W13.

1. Self-Cleaning Function:

Ар бир колдонуудан кийин өзүн-өзү тазалоо циклин иштетүү сунушталат:

• Таза суу сактагычта жетиштүү суу бар экенин текшериңиз.
• Place the vacuum on its charging base.
• Press the Self-Clean button (usually indicated by a water droplet icon) on the handle or base.
• The device will automatically clean the brush roll and internal tubing.
• After cleaning, the hot air drying process will begin, drying the brush roll in approximately 2 hours to prevent odors and bacterial growth.

Image: Visual representation of the Redkey W13's self-cleaning and hot air drying cycle.

2. Суу резервуарын тазалоо:

• Таза суу резервуары: Rinse regularly with fresh water.
• Кир суу багы: Empty and rinse thoroughly after each use. Use the provided cleaning tool to remove any stubborn residue.

3. Brush Roll Cleaning and Replacement:

• To remove the brush roll, open the brush cover on the front of the cleaning head.
• Lift out the brush roll. Rinse it under running water until clean.
• Щетка ролигин кайра салуудан мурун толугу менен кургатыңыз.
• Replace the brush roll every 3-6 months, or sooner if wear is visible, using the spare brush rolls provided.

4. Фильтрди тейлөө:

• The HEPA filter is located in the dirty water tank assembly.
• Remove the filter and tap it gently to dislodge dust and debris.
• If heavily soiled, rinse the filter under running water. Ensure it is completely dry before reinserting to prevent damage to the motor.
• Replace the filter every 3-6 months, or as needed, using the spare filter provided.

Проблемаларды чечүү

If you encounter issues with your Redkey W13, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Redkey customer support for further assistance.

Техникалык шарттар

Кепилдик жана колдоо

Redkey products are manufactured to the highest quality standards. For warranty information, technical support, or to purchase replacement parts, please visit the official Redkey webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.

Кошумча жардам алуу үчүн, сиз иш сапары менен болот Redkey Store on Amazon.
