PEAKMETER PM8215 Digital Mini Multimeter User Manual

1. Киришүү

The PEAKMETER PM8215 is a compact, handheld digital multimeter designed for measuring various electrical parameters. This instrument offers high stability and accuracy, featuring a 4000-count display. It is suitable for a wide range of users, from hobbyists to professionals, for tasks requiring AC/DC voltage, AC/DC current, resistance, frequency, and capacitance measurements, along with continuity and diode testing.

2. Коопсуздук маалыматы

Always read and understand all safety instructions before operating the multimeter.

This device complies with safety standards EN61010-1, EN61010-2-033, EN61326, and is rated for CAT. III 600V.
Колдонбоңуз томtagмультиметр үчүн көрсөтүлгөн максималдуу чектен ашып кеткен ток же ток.
Токтогуч чынжырлар менен иштөөдө өтө этият болуңуз. Жогорку вольтtages can cause severe injury or death.
Ensure the test leads are in good condition, without any damage to the insulation.
Do not operate the multimeter if it appears damaged or if the casing ачык.
Батареянын аз көрсөткүчү так көрсөткүчтөрдү камсыз кылуу үчүн дароо батареяны алмаштырыңыз.
Функцияларды өзгөртүүдөн мурун ар дайым сыноо өткөргүчтөрүн чынжырдан ажыратыңыз.

3. Продукт бүтүп калдыview

3.1 Негизги өзгөчөлүктөрү

Дисплей: 4000 counts digital display.
Өлчөө функциялары: AC/DC Voltage, AC/DC Current, Resistance, Frequency, Capacitance.
Атайын функциялар: Buzzer, Continuity Test, Diode Test, Low Battery Indication.
Иштөө режимдери: Auto Range, Auto Power Off.
Көчүрүү мүмкүнчүлүгү: Mini pocket design, lightweight (approx. 75g), and ultra-thin (12mm thickness).
Коопсуздук: Equipped with a 400mA/250V fuse for protection.

3.2 Физикалык мүнөздөмөлөр

PEAKMETER PM8215 Multimeter in a pocket — **1-сүрөт:** The PM8215 multimeter's compact design allows it to fit easily into a pocket, highlighting its portability.

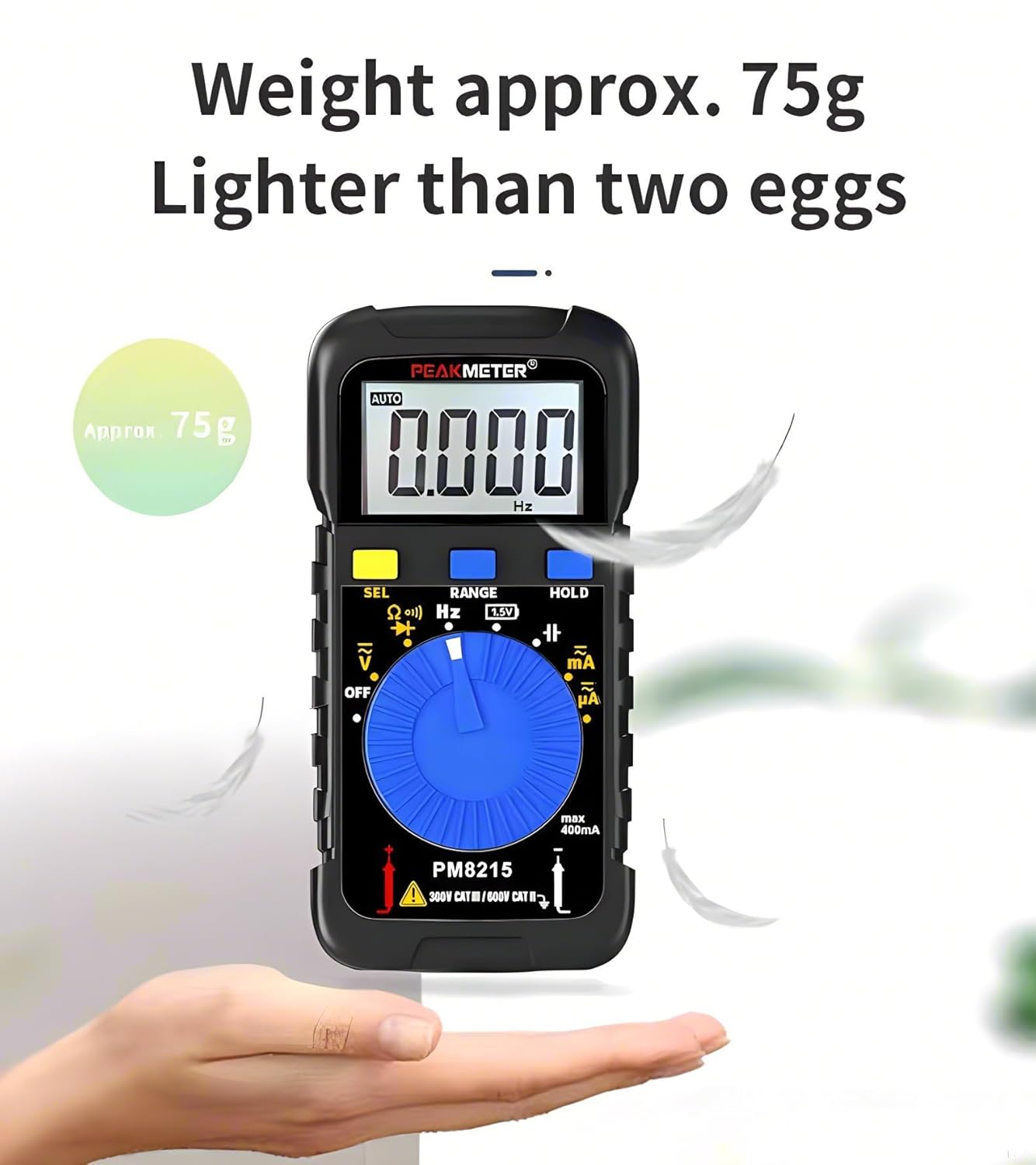

PEAKMETER PM8215 Multimeter held in hand, showing its light weight — **2-сүрөт:** The multimeter is shown held in a hand, emphasizing its light weight of approximately 75g, making it easy to carry.

PEAKMETER PM8215 Multimeter side view showing 12mm thickness — **3-сүрөт:** А тарап view of the PM8215 multimeter illustrating its ultra-thin 12mm profile, comparable to a smartphone.

PEAKMETER PM8215 Multimeter front panel with HD LCD and rotary switch — **4-сүрөт:** The front panel of the PM8215, featuring an HD LCD display, a sector knob switch for function selection, and its ultra-thin design.

PEAKMETER PM8215 Multimeter dimensions: 100mm x 50mm x 12mm — **5-сүрөт:** Detailed dimensions of the PM8215 multimeter, showing its compact size of 100mm length, 50mm width, and 12mm thickness.

4. Орнотуу

4.1 Батареяны орнотуу

The PM8215 multimeter is powered by one 3.0V CR2032 button battery.

Мультиметр өчүрүлгөнүн текшериңиз.
Аппараттын артындагы батарея бөлүкчөсүн табыңыз.
Use a small screwdriver or coin to open the battery cover.
Insert the CR2032 battery, observing the correct polarity (+/-).
Батареянын капкагын коопсуз жабыңыз.

Эскертүү: Replace the battery when the low battery indicator appears on the display to maintain measurement accuracy.

5. Иштөө нускамалары

5.1 Күйгүзүү/өчүрүү

To power on the multimeter, rotate the central selector knob from the 'OFF' position to any desired measurement function. To power off, rotate the knob back to the 'OFF' position.

5.2 Auto Range Function

The PM8215 features an auto-ranging function, which automatically selects the appropriate measurement range. This simplifies operation as you do not need to manually select the range for most measurements.

5.3 Өлчөө функциялары

Connect the test leads to the appropriate input jacks and the circuit under test. Select the desired function using the rotary switch.

DC Voltage (V–): Rotate the knob to the 'V–' position. Connect the red test lead to the positive side and the black test lead to the negative side of the DC voltage булагы.
AC Voltage (V∼): Rotate the knob to the 'V∼' position. Connect the test leads across the AC voltage булагы.
DC Current (mA/µA–): Rotate the knob to the 'mA/µA–' position. Use the 'SEL' button to switch between mA and µA. Connect the multimeter in series with the circuit.
AC Current (mA/µA∼): Rotate the knob to the 'mA/µA∼' position. Use the 'SEL' button to switch between mA and µA. Connect the multimeter in series with the circuit.
Каршылык (Ω): Rotate the knob to the 'Ω' position. Ensure the circuit is de-energized before measuring resistance. Connect the test leads across the component.
Жыштык (Гц): Rotate the knob to the 'Hz' position. Connect the test leads across the signal source.
Сыйымдуулук (F): Rotate the knob to the 'F' position. Ensure the capacitor is discharged before measurement. Connect the test leads across the capacitor.
Diode Test (→|): Rotate the knob to the '→|' position. Connect the red lead to the anode and the black lead to the cathode of the diode. The display will show the forward voltagтүшүп калсын. Ажыраган чынжырды текшерүү үчүн зымдарды оодарыңыз.
Continuity Test (♫): Rotate the knob to the '♫' position. If the resistance between the test leads is below a certain threshold (typically 50Ω), the buzzer will sound, indicating continuity.

5.4 Функция баскычтары

SEL (Тандоо): Used to toggle between different measurement types within a single rotary switch position (e.g., AC/DC current, or diode/continuity).
RANGE: Allows manual selection of measurement ranges, overriding the auto-ranging function. Press repeatedly to cycle through available ranges.
КОЛДО: Дисплейдеги учурдагы окууну токтотот. Чыгаруу үчүн кайра басыңыз.

6. Техникалык тейлөө

6.1 Тазалоо

Мультиметрди сүртүңүз casing жарнама мененamp кездеме жана жумшак жуугуч каражат. Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонбоңуз. Колдонуудан мурун түзмөк толугу менен кургак экенин текшериңиз.

6.2 Батареяны алмаштыруу

Refer to Section 4.1 for instructions on replacing the CR2032 button battery.

6.3 Сактагычты алмаштыруу

The multimeter is equipped with a 400mA/250V fuse. If the current measurement function stops working, the fuse may need replacement. Fuse replacement should only be performed by qualified personnel. Open the casing carefully, replace the fuse with one of identical specifications, and ensure the casing is properly sealed before reuse.

7. Кыйынчылыктарды

Дисплей жок: Check if the multimeter is turned ON. Verify battery installation and replace if necessary.
Туура эмес окуулар: Ensure test leads are properly connected and not damaged. Verify the correct function is selected for the measurement. Check battery level.
Учурдагы өлчөө иштебей жатат: The fuse may be blown. Refer to Section 6.3 for fuse replacement.
Buzzer Not Sounding in Continuity Test: The resistance of the circuit may be too high, or the function is not correctly selected.

8. Техникалык шарттар

PEAKMETER PM8215 Technical Specifications
Спецификация	Диапазон	Тактык
DC Voltage	4V/40V/400V/600V	±(1.0%+3)
AC Voltage	4V/40V/400V/600V	±(2.0%+5)
Туруктуу ток	400μA/40mA/400mA	±(2.0%+5)
AC тогу	400μA/40mA/400mA	±(2.0%+5)
Каршылык	400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ	±(2.0%+5)
Жыштык	5Hz/50Hz/500Hz/5kHz/50kHz/100kHz	±(0.5%+5)
Сыйымдуулук	50nF/500nF/5uF/100uF	±(5.0%+5)
Өзгөчөлүктөрү
Дисплей	4000 эсеп
Auto колому	√
Батареянын төмөн көрсөткүчү	√
Buzzer	√
Диод сыноо	√
Авто өчүрүү	√
Генерал
Электр камсыздоо	1*3.0V CR2032 Button Battery
Салмагы	75g (Storage box not included)
Өлчөмү	100мм50мм12мм
Коопсуздук рейтинги	EN61010-1, EN61010-2-033, EN61326, CAT. III 600V

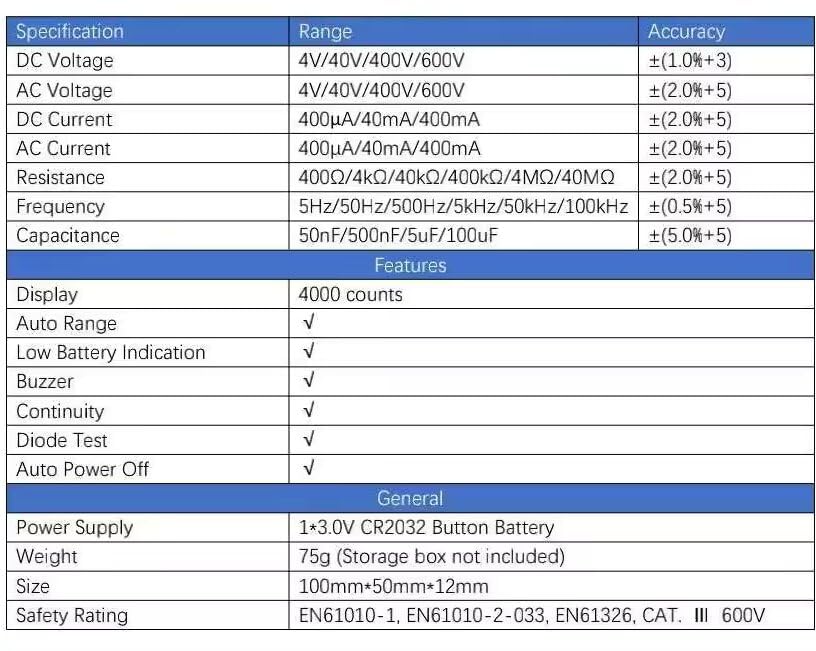

PEAKMETER PM8215 Multimeter specification table — **6-сүрөт:** A visual representation of the detailed technical specifications for the PEAKMETER PM8215 Digital Mini Multimeter.

9. Кепилдик жана колдоо

9.1 Кепилдик маалыматы

The PEAKMETER PM8215 Digital Mini Multimeter comes with a 1 жылдык кепилдик сатып алынган күндөн тартып. Бул кепилдик өндүрүштөгү кемчиликтерди камтыйт жана продукттун белгиленген иштешине жооп берерин камсыздайт. Кепилдик дооматтары үчүн сатып алгандыгыңызды тастыктаган документти сактап коюңуз.

9.2 Кардарларды колдоо

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact your retailer or the manufacturer directly. Refer to the product packaging or the manufacturer's official webбайланыш маалыматы үчүн сайт.
