BLACK+DECKER BEMW461BH-GB 1400W Electric Lawn Mower Instruction Manual

1. Киришүү

This manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your BLACK+DECKER BEMW461BH-GB 1400W Electric Lawn Mower. Please read these instructions carefully before using the product and retain them for future reference.

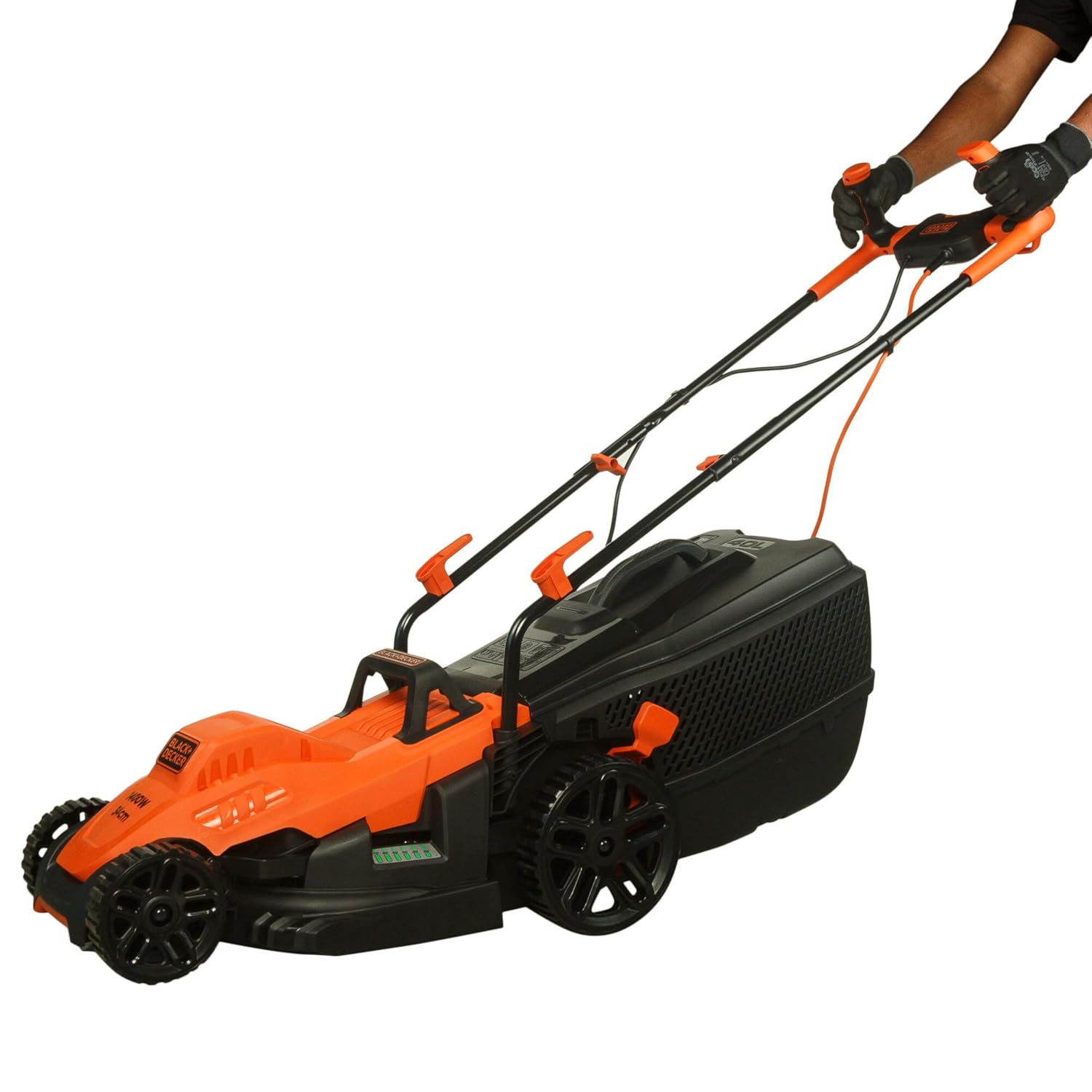

Figure 1: BLACK+DECKER BEMW461BH-GB Electric Lawn Mower

The BLACK+DECKER BEMW461BH-GB is a 1400W electric lawn mower designed for efficient grass cutting in small to medium-sized gardens. It features a 13-inch (33cm) winged blade, a 40L grassbox capacity, and a 12m cable length for extended reach.

2. Коопсуздук маалыматы

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury when using this appliance. Familiarize yourself with the controls and proper use of the equipment.

Жалпы коопсуздук эскертүүлөрү:

• Шайманды иштетүүдөн мурун бардык көрсөтмөлөрдү окуп чыгыңыз.
• Балдарды жана жанындагы адамдарды операция аймагынан алыс кармаңыз.
• Көздү коргоочу каражаттарды жана бышык бут кийимди кошо алганда, тиешелүү жеке коргонуу каражаттарын кийиңиз.
• Чөп чапкычты нымдуу же жамгырлуу аба ырайында иштетпеңиз.
• Чөп чабыла турган жерди текшерип, бычак ыргытып жибериши мүмкүн болгон нерселерди алып салыңыз.
• Always disconnect the power supply before cleaning, adjusting, or servicing the mower.
• Колдонуудан мурун, бардык коргоочулар жана коопсуздук түзүлүштөрү ордунда экенин жана туура иштеп жатканын текшериңиз.

3. Пакеттин мазмуну

Your BLACK+DECKER BEMW461BH-GB Electric Lawn Mower package includes:

• 1 x Electric Lawn Mower unit
• 1 x Grass Collection Box (40 litres capacity)
• Instruction Manual

4. Ассамблея

Before first use, some assembly is required. Refer to the diagram below for component identification.

Figure 2: Labeled Components of the Lawn Mower

4.1. Туткасы Ассамблея

1. Attach the lower handle to the mower body using the provided handle knobs. Ensure they are securely tightened.
2. Connect the upper handle (bike handle) to the lower handle. Align the holes and secure with the remaining handle knobs.
3. Ensure all cables are routed correctly and not pinched during assembly.

4.2. Grass Collection Box Assembly

Assemble the two halves of the grass collection box if they are separate. Ensure the handle is firmly attached. Once assembled, hook the grass collection box onto the rear of the mower, ensuring it is seated correctly under the rear flap.

5. Иштөө нускамалары

5.1. Power Connection

Connect the 12-meter power cable to a suitable outdoor power outlet. Ensure the cable is positioned to avoid accidental cutting during operation.

5.2. Кесүү бийиктигин тууралоо

The mower features an easy-adjust height mechanism. To change the cutting height:

1. Чөп чапкычтын өчүрүлгөнүн жана электр тармагынан ажыратылганын текшериңиз.
2. Чөп чапкычтын палубасынын капталынан бийиктикти жөндөө рычагын табыңыз.
3. Move the lever to select one of the available cutting height settings. The mower offers 4 cutting height settings for optimal lawn care.

Figure 3: Cutting Height Adjustment Lever

Figure 4: Height Adjustment Chart

5.3. Чөп чапкычты иштетүү жана токтотуу

To start the mower, press the power button and hold the comfort grip handle. To stop, release the comfort grip handle.

Figure 5: Handle Controls (Power Button and Comfort Grip)

5.4. Чабыктын техникасы

For best results, mow in straight, overlapping lines. Avoid mowing wet grass, as it can clog the mower and reduce cutting efficiency. The 40L collection box helps collect more grass, reducing emptying frequency. An intuitive bag full indicator will signal when the grass box needs emptying.

Figure 6: Operating the Lawn Mower

Figure 7: Emptying the Grass Collection Box

5.5. Suitable Grass Types

The BLACK+DECKER BEMW461BH-GB is suitable for various grass types. Refer to the chart below for guidance.

Figure 8: Grass Types Suitable for Trimming

Эскертүү: The mower is not suitable for grass clumps, weeds, or brown/tangled grass.

6. Техникалык тейлөө

Regular maintenance ensures optimal performance and extends the life of your lawn mower. Always disconnect the power supply before performing any maintenance.

6.1. Тазалоо

• After each use, clean the underside of the mower deck to remove grass clippings.
• Жарнама менен сыртын сүртүңүзamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
• Ensure the grass collection box is clean and free of debris.

6.2. Blade Care

Periodically inspect the blade for sharpness and damage. A blunt or damaged blade can affect cutting performance. For blade replacement or sharpening, it is recommended to contact an authorized BLACK+DECKER service center.

6.3. Сактоо

Store the mower in a dry, secure location, away from children and pets. The handle can be folded for compact storage.

7. Кыйынчылыктарды

If your appliance does not operate properly, refer to the troubleshooting guide below. Always disconnect the power supply before inspecting the mower.

9-сүрөт: Мүчүлүштүктөрдү аныктоо диаграммасы

If the issue persists after following these steps, please contact an authorized BLACK+DECKER service center.

8. Техникалык шарттар

9. Кепилдик жана колдоо

BLACK+DECKER provides comprehensive support for its products. Your lawn mower comes with a 1-year manufacturer warranty.

Figure 10: BLACK+DECKER Total Care Support

Байланыш маалыматы:

• Телефон: 1800-203-0644 (Дүйшөмбү-Ишемби, 09:00 - 06:00 IST убактысы боюнча, мамлекеттик майрамдардан тышкары)
• Электрондук почта: SBD-CUSTOMERCOMMUNICATIONS@SBDINC.COM
• WhatsApp: Scan QR code or click here to contact us
• Кызмат тармагы: 500дөн ашык ыйгарым укуктуу тейлөө борборлору.

For warranty claims, original parts, or further information, please reach out to the BLACK+DECKER support team.
