Park Tool FCT-1 Bicycle Suspension Fork Cap Removal Tool Instruction Manual

Introduction

The Park Tool FCT-1 is a specialized tool designed for the safe and efficient removal of bicycle suspension fork caps. These caps can often become overtightened, making manual removal difficult and risking damage to the fork components. The FCT-1 provides a precise fit to prevent such issues.

This manual provides essential information on the proper use, compatibility, and care of your FCT-1 tool.

Негизги өзгөчөлүктөрү

• Ар тараптуу дизайн: Engineered for easy and damage-free removal of bicycle suspension fork caps.
• Multi-sided Fit: Features six distinct sides, each corresponding to popular fork cap designs for a snug and secure engagement.
• Кеңири шайкештик: Compatible with select suspension top caps from leading manufacturers including FOX, RockShox, DVO, Marzocchi, and Öhlins.
• Туруктуу курулуш: Built to withstand the demands of bicycle maintenance.

Иштөө нускамалары

Always ensure the tool is clean and free of debris before use. Identify the correct side of the FCT-1 tool that matches your suspension fork cap for a secure fit. Avoid using excessive force, as this can damage the fork cap or the tool.

Identifying the Correct Fit

The FCT-1 features multiple interfaces to accommodate various fork cap designs. Carefully match the tool's profile to your fork cap to ensure a precise, non-slipping engagement. A snug fit is crucial for preventing damage during removal.

Figure 1: The Park Tool FCT-1 displaying its six distinct interfaces, each designed for specific suspension fork cap patterns.

Fork Cap Removal Procedure

1. Prepare the Fork: Ensure the bicycle is stable, preferably in a repair stand. Clean the area around the fork cap to prevent dirt from entering the fork internals.
2. Туура тарапты тандаңыз: Examine your fork cap and identify the corresponding side on the FCT-1 tool that provides the tightest, most secure fit.
3. Engage the Tool: Place the selected side of the FCT-1 firmly onto the fork cap. Apply gentle downward pressure to ensure full engagement.
4. Rotate to Loosen: While maintaining firm engagement, slowly rotate the FCT-1 counter-clockwise to loosen the fork cap. If the cap is very tight, apply steady, increasinкүтүүсүз соккуларга караганда басым.
5. Капкакты алып салуу: Once loosened, you can typically unscrew the cap by hand.

Visual Guide to Usage

Figure 2: Engaging the FCT-1 tool with a suspension fork cap, demonstrating the initial placement.

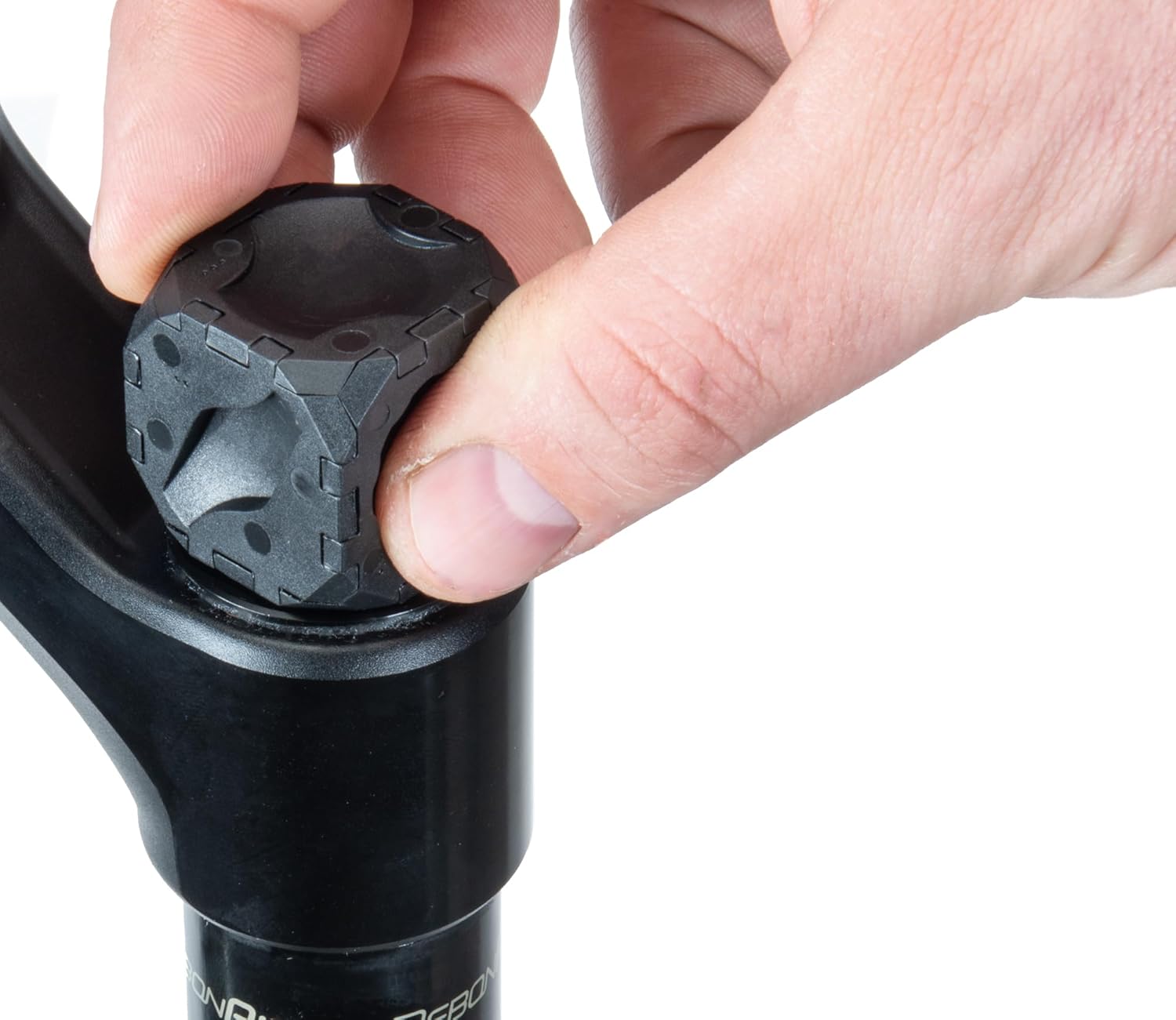

Figure 3: Applying rotational force with the FCT-1 to loosen the fork cap, ensuring a firm grip.

Figure 4: The FCT-1 tool correctly engaged with a FOX suspension fork cap, ready for removal.

Figure 5: The FCT-1 tool engaged with a RockShox suspension fork cap, illustrating its broad compatibility.

Figure 6: The FCT-1 tool also fits certain fork bottom caps, expanding its utility.

Расмий продукт бүттүview Video

Техникалык тейлөө

The FCT-1 tool requires minimal maintenance. After each use, wipe the tool clean with a dry cloth to remove any grease, dirt, or debris. Store the tool in a dry place to prevent corrosion and ensure its longevity.

Проблемаларды чечүү

If you encounter difficulty removing a fork cap, ensure you are using the correct side of the FCT-1 tool that provides a snug fit. Double-check that the tool is fully engaged with the cap before applying force. If the cap remains stuck, consult a professional bicycle mechanic. Do not use excessive force, as this can strip the cap or damage the fork.

Техникалык шарттар

Кепилдик жана колдоо

For warranty information or technical support, please refer to the official Park Tool website or contact their customer service directly. Always follow manufacturer recommendations for fork cap installation and torque specifications.

расмий сапар Park Tool Store көбүрөөк өнүмдөр жана маалымат үчүн.
