1. Киришүү
This manual provides essential information for the safe and efficient operation of your Generic RGBW 4in1 LED Moving Head Light. Please read this manual thoroughly before installation, operation, or maintenance to ensure proper use and to prevent damage to the unit or injury to personnel.
1.1 Коопсуздук маалыматы
- Электр тогуна урунуу коркунучун болтурбоо үчүн ар дайым түзүлүштү жерге туташтырылган чынжырга туташтырыңыз.
- электр менен жабдууну камсыз кылуу voltage томуна дал келетtagбирдикте көрсөтүлгөн.
- корпусту ачпаңыз; ичинде колдонуучу тейлей турган бөлүктөр жок. Бардык тейлөөлөрдү квалификациялуу кызматкерлерге тапшырыңыз.
- Жарык булагына түздөн-түз көз тийбеңиз.
- Ашыкча ысып кетүүнүн алдын алуу үчүн аппараттын айланасында жетиштүү желдетүүнү камсыз кылыңыз.
- Mount the unit securely using appropriate clampс жана коопсуздук кабелдери.
2. Продукт бүтүп калдыview
The Generic RGBW 4in1 LED Moving Head Light is a versatile stage lighting fixture designed for dynamic visual effects. It features powerful RGBW LEDs, flexible movement, and multiple control modes.
2.1 Негизги өзгөчөлүктөрү
- High Efficiency Optical Lens for 20% Increased Brightness.
- Powerful 7x8W RGBW LEDs with a Broad Spectrum of Colors.
- Extensive Lighting Range up to 17 feet with a 36-Degree Beam Angle.
- Flexible Movement with 540° X-Axis (Pan) and 180° Y-Axis (Tilt) Rotation.
- Over 50,000 Hours of LED Lifespan.
2.2 Компоненттер
The image below illustrates the main components of the moving head light, including the LED head, base, and control panel.
Сүрөт 1: Алдыңкы view of the RGBW 4in1 LED Moving Head Light, showing the LED array and control panel.
3. Орнотуу нускамалары
3.1 Пакеттен чыгаруу
Carefully remove the fixture from its packaging. Inspect the unit for any damage that may have occurred during transit. If damage is found, contact your supplier immediately.
3.2 Монтаждоо
The fixture can be mounted in various positions (e.g., truss, floor) using the included mounting bracket. Ensure the mounting surface or structure can support the weight of the fixture. Always use a safety cable as a secondary attachment.
Figure 2: Illustration of the mounting bracket and design for secure installation.
3.3 Кубат туташтыруу
Connect the provided power cable to the power input on the rear of the unit and then to a suitable AC power outlet. Ensure the power source is stable and within the specified voltage диапазону.
3.4 DMX туташуу
For DMX control, connect a DMX cable from your DMX controller's output to the DMX IN port on the fixture. If linking multiple fixtures, connect from the DMX OUT of the first fixture to the DMX IN of the next, and so on. The fixture supports 540 degrees of pan (X-axis) and 180 degrees of tilt (Y-axis) movement.
Figure 3: Diagram showing the 540-degree X-axis (Pan) and 180-degree Y-axis (Tilt) movement capabilities.
4. Иштөө режимдери
The fixture offers four primary control modes: DMX512, Auto, Sound Activated, and Master-Slave. These modes are selected via the control panel.
Figure 4: ашыкview of the control panel and rear input/output connections, illustrating the four control modes.
4.1 DMX512 режими
This mode allows professional control over all functions of the fixture using an external DMX controller. Set the DMX address using the control panel to match your DMX system configuration.
4.2 Авто режим
In Auto Mode, the fixture runs through pre-programmed light shows automatically. Various auto programs may be available for selection via the control panel.
4.3 Үн иштетилген режим
The fixture's internal microphone detects ambient sound, and the light show synchronizes with the beat of the music. Sensitivity can often be adjusted.
4.4 Master-Slave Mode
Connect multiple fixtures via DMX cables. Set one fixture as the 'Master' and the others as 'Slave'. The slave units will mimic the master unit's movements and light patterns, ideal for synchronized shows without a DMX controller.
5. Башкаруу панели
The control panel, located on the front of the base, features a digital display and four buttons for navigation and setting adjustments.
5.1 Санарип дисплей
The 4-digit digital display shows the current mode, DMX address, or parameter values. Refer to Figure 4 for its location.
5.2 Баскыч функциялары
- MODE/ESC: Press to cycle through main menus or exit the current menu/setting without saving changes.
- Өйдө: Increases the value of a selected parameter or navigates upwards through menu options.
- ТӨМӨН: Decreases the value of a selected parameter or navigates downwards through menu options.
- КИРҮҮ: Confirms a selection, saves a setting, or enters a submenu.
6. Техникалык тейлөө
6.1 Тазалоо
Regular cleaning of the optical lenses and the exterior housing is recommended to maintain optimal light output and appearance. Use a soft, lint-free cloth and a mild glass cleaner. Ensure the unit is powered off and disconnected before cleaning.
6.2 Муздатуу системасы
The fixture is equipped with a built-in cooling fan to ensure efficient operation and longevity of the LEDs. Periodically check that the fan vents are clear of dust and debris to prevent overheating.
5-сүрөт: View of the cooling fan and overall dimensions of the fixture (295mm height, 225mm width).
6.3 Сактоо
Колдонулбаган учурда, арматураны кургак, чаңы жок чөйрөдө, эң жакшысы баштапкы таңгагында же коргоочу кутусунда сактаңыз.
7. Кыйынчылыктарды
This section addresses common issues you might encounter with your moving head light.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Күч жок | Электр кабели ажыратылган, розетка бузулган, сактагыч күйгөн. | Check power cable connection, test outlet, replace fuse (if accessible and safe to do so). |
| Light not responding to DMX | Incorrect DMX address, faulty DMX cable, DMX controller issue. | Verify DMX address, check DMX cable connections, test with another DMX controller. |
| Movement erratic or stuck | Obstruction, internal error. | Ensure no physical obstructions. Power cycle the unit. If problem persists, contact support. |
| Ашыкча ысып кетүү | Blocked ventilation, insufficient airflow. | Clear all vents. Ensure adequate space around the fixture for air circulation. |
8. Техникалык шарттар
Below are the detailed specifications for the Generic RGBW 4in1 LED Moving Head Light.
| Спецификация | Деталь |
|---|---|
| Бренд | Жалпы |
| Модель номери | Баш жарык |
| Жарык булагы | 7x8W RGBW диоддору |
| Beam Angle | 36 градус |
| Pan Movement (X-Axis) | 540° |
| Tilt Movement (Y-Axis) | 180° |
| Башкаруу режимдери | DMX512, Auto, Sound Activated, Master-Slave |
| Материал | Металл |
| Power Source | AC/DC |
| Ички/тышкы колдонуу | Сыртта |
| Продукциянын өлчөмдөрү | 9.84 x 7.08 x 7.08 дюйм (25 x 18 x 18 см) |
| LED өмүрү | 50,000 XNUMX сааттан ашык |
9. Пакеттин мазмуну
The following items are typically included with your Generic RGBW 4in1 LED Moving Head Light:

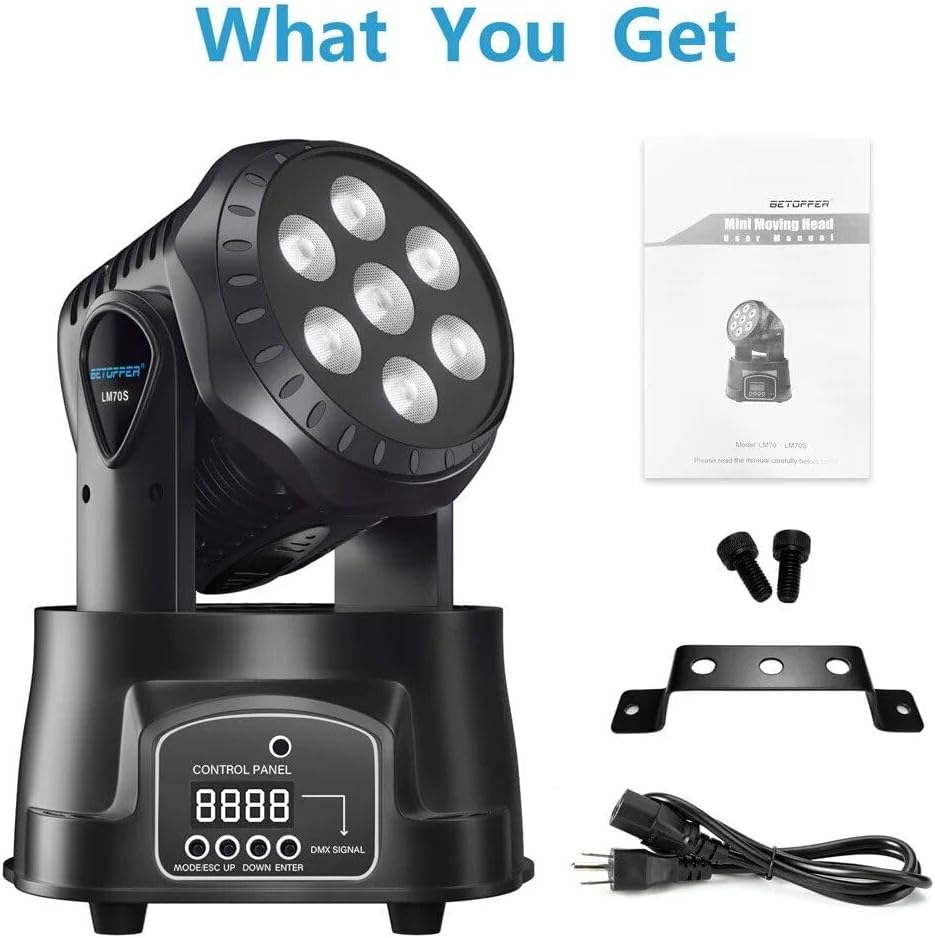

Figure 6: Image showing the moving head light, user manual, mounting bracket, screws, and power cable.
- 1 x RGBW 4in1 LED Moving Head Light
- 1 x Кубат кабели
- 1 х Монтаждык кашаа
- 2 x Монтаждоо бурамалар
- 1 x User Manual
10. Кепилдик жана колдоо
Кепилдик жөнүндө маалымат же техникалык колдоо алуу үчүн, сатып алуу учурунда берилген документтерди караңыз же сатуучуга түз кайрылыңыз. Сатып алуунун далили катары сатып алуу дүмүрчөгүңүздү сактап коюңуз.
