Generic 2-Key Mechanical Gaming Keyboard User Manual

Introduction

Thank you for choosing the Generic 2-Key Mechanical Gaming Keyboard. This compact, programmable keyboard is designed for efficiency and customization, offering a streamlined experience for various tasks, including gaming and productivity. This manual provides essential information for setup, operation, maintenance, and troubleshooting to ensure optimal performance of your device.

Продукт бүттүview

The Generic 2-Key Mechanical Gaming Keyboard features two customizable mechanical keys with a hot-swappable design, allowing for easy switch replacement. It connects via a Type-C USB interface, ensuring broad compatibility and reliable performance.

Негизги өзгөчөлүктөрү:

• Two Programmable Mechanical Keys: Customize functions for enhanced workflow or gaming.
• Ыкчам алмаштыруучу которгучтар: Механикалык өчүргүчтөрдү ширетпестен оңой алмаштырыңыз.
• Компакт дизайн: Small footprint for portability and space-saving.
• Туруктуу курулуш: Made with high-quality ABS material.
• Зымдуу USB туташуусу: Reliable Type-C interface.

Пакеттин мазмуну:

• 1 x 2-Key Mechanical Keyboard
• 1 x USB Type-C Connection Cable (approx. 1.5m)

Image: The 2-key mechanical keyboard connected to a laptop via its USB cable, demonstrating its compact size and connectivity.

Жайгашуу

Setting up your 2-Key Mechanical Gaming Keyboard is a straightforward process. It is designed for plug-and-play functionality.

Баскычтопту туташтыруу:

1. Locate the USB Type-C port on the back of your 2-key keyboard.
2. Connect one end of the provided USB Type-C cable to the keyboard's port.
3. Connect the other end of the USB cable to an available USB port on your computer (laptop or PC).
4. The keyboard should be automatically recognized by your operating system (Windows compatible). No additional drivers are typically required for basic functionality.

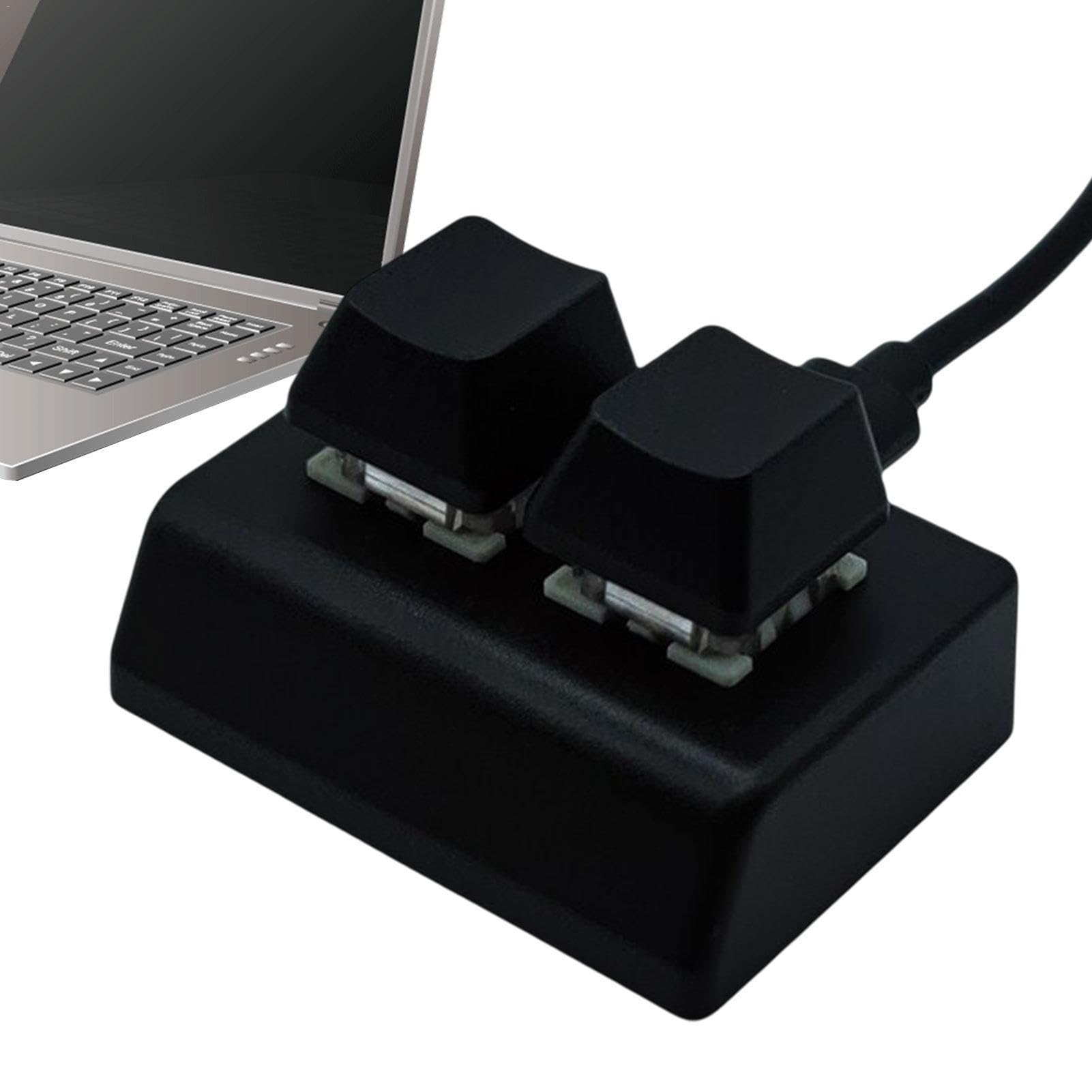

Image: The 2-key mechanical keyboard positioned next to a laptop, illustrating its compact size and readiness for use.

Иштөө нускамалары

The 2-Key Mechanical Gaming Keyboard offers both default functions and extensive customization options.

Default Functionality:

Out of the box, the keyboard's two keys are typically pre-programmed for common actions:

• Ачкыч 1: Copy (Ctrl+C or Cmd+C)
• Ачкыч 2: Paste (Ctrl+V or Cmd+V)

These default settings allow for immediate use in various applications, providing quick access to essential commands.

Customization and Programming:

The true power of this keyboard lies in its programmability. You can assign a wide range of functions to each key, including:

• Single key presses (e.g., 'A', 'Enter')
• Keyboard shortcuts (e.g., Cut, Undo, Select All, Pause, Forward, Backward)
• Macro sequences

The programming instructions are saved directly onto the device. This means that once programmed, the custom functions will remain active even when the keyboard is connected to a different computer, without needing to reset or re-program.

Note: Specific software or a web-based tool is usually required for programming custom key functions. Please refer to the manufacturer's website or included documentation for detailed instructions on how to access and use the programming utility.

Image: A user operating the 2-key mechanical keyboard, demonstrating its integration into a typical computer setup.

Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your 2-Key Mechanical Gaming Keyboard.

Тазалоо:

• Тазалоодон мурун клавиатураны компьютерден ажыратыңыз.
• Use a soft, dry cloth to wipe down the ABS casing.
• өжөр кир үчүн, бир аз гamp cloth with mild soap can be used, ensuring no liquid enters the keyboard's internal components.
• Use compressed air to remove dust and debris from around and under the keycaps.

Switch Replacement (Hot-Swappable):

The keyboard features hot-swappable mechanical switches, allowing you to easily replace them without soldering. If a switch becomes faulty or you wish to try a different switch type:

1. Gently pull off the keycap using a keycap puller (not included, but commonly available).
2. Use a switch puller (not included) to carefully extract the mechanical switch from its socket.
3. Align the pins of the new mechanical switch with the holes in the socket.
4. Жаңы которгучту чыкылдаган үн чыкканча бекем басыңыз. Анын туура орнотулганын жана ийилбегенин текшериңиз.
5. Баскычтын капкагын кайра бекитиңиз.

Проблемаларды чечүү

If you encounter issues with your 2-Key Mechanical Gaming Keyboard, try the following troubleshooting steps:

Баскычтоп жооп бербейт:

• USB туташуусун текшерүү: Ensure the USB Type-C cable is securely connected to both the keyboard and your computer. Try unplugging and re-plugging it.
• Башка USB портун колдонуп көрүңүз: Connect the keyboard to another USB port on your computer to rule out a faulty port.
• Try a Different Computer: If possible, test the keyboard on another computer to determine if the issue is with the keyboard or your original computer's setup.
• Компьютерди кайра иштетүү: Жөнөкөй кайра күйгүзүү көбүнчө туташуу маселелерин чечет.

Keys Not Performing Programmed Function:

• Verify Programming: Re-check your programming settings using the customization software/tool to ensure the desired functions are correctly assigned and saved.
• Программалык камсыздоо карама-каршылыктар: Ensure no other software or background processes are interfering with the keyboard's input.

Physical Damage or Loose Switches:

• Inspect Switches: If a key feels loose or unresponsive, carefully remove the keycap and check if the mechanical switch is properly seated or if its pins are bent. Replace if necessary, utilizing the hot-swappable feature.

Техникалык шарттар

Image: A visual representation of the keyboard's dimensions, showing its length, width, and height.

Кепилдик жана колдоо

Information regarding specific warranty terms and customer support for the Generic 2-Key Mechanical Gaming Keyboard (Model WVE6DN6R3S4B4V1HCR) is not available in the provided product details. For warranty claims, technical assistance, or further inquiries, please refer to the retailer where the product was purchased or contact the manufacturer directly if contact information is provided with the product packaging.
