Introduction
Thank you for choosing the Attoe Wireless Gaming Mouse. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your new mouse. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.
This gaming mouse features a transparent body with RGB lighting, tri-mode connectivity (2.4GHz wireless, Bluetooth, and wired USB-C), a magnetic charging base, and a digital display for battery level. Its ergonomic design ensures comfort during extended use.
Пакеттин мазмуну
- Wireless Жылнаама'дан Mouse
- Заряддоо базасы
- Колдонуучунун колдонмосу (бул документ)
- TYPE-C кабели
- USB кабыл алгыч
Продукт бүттүview
Familiarize yourself with the components of your Attoe Wireless Gaming Mouse.
Image: The Attoe Wireless Gaming Mouse in black, showcasing its transparent design with RGB lighting, alongside its magnetic charging base and a small USB receiver.
Image: A detailed diagram illustrating the various buttons and features of the Attoe Wireless Gaming Mouse, including the left/right buttons, scroll wheel, DPI button, forward/back buttons, USB receiver slot, light switch, mode switch, charging port, and digital display.
Негизги компоненттер:
- Сол баскыч: Стандарттык сол чыкылдатуу функциясы.
- Оң баскыч: Стандарттык оң баскычты чыкылдатуу функциясы.
- Scroll Button (Scroll Wheel): Вертикалдуу сыдыруу жана ортону басуу үчүн.
- DPI баскычы: Чычкандын сезгичтигин (DPI деңгээлдерин) тууралайт.
- Алга баскычы: Алга карай жылдырат web браузерлер же тиркемелер.
- Артка баскычы: Артка карай багыт алат web браузерлер же тиркемелер.
- USB кабыл алгыч: For 2.4GHz wireless connection.
- Light Switch (Shell bottom): Controls RGB lighting effects.
- Receive Bin: Storage compartment for the USB receiver.
- Режимдерди которуштуруу: Toggles between 2.4GHz, Bluetooth, and Wired modes.
- Кубаттоо порту (C түрү): Зымдуу туташуу жана кубаттоо үчүн.
- Санариптик дисплей: Учурдагы батареянын деңгээлин көрсөтөт.
Жайгашуу
Чычканды заряддоо:
Before first use, it is recommended to fully charge the mouse. The mouse comes with a 500mAh rechargeable battery.
- Connect the provided TYPE-C cable to the charging port (11) on the front of the mouse.
- Connect the other end of the TYPE-C cable to a USB power source (e.g., computer USB port, USB wall adapter).
- Alternatively, place the mouse onto the magnetic charging base. Ensure the charging contacts align. The charging base will illuminate to indicate charging.
- The digital display on the mouse will show the current battery level, allowing you to monitor charging progress. A 10-minute charge can provide up to 5 hours of use.
Image: The Attoe Wireless Gaming Mouse being charged via its Type-C cable, illustrating the connection point and the charging base.
Чычканды туташтыруу:
The Attoe Wireless Gaming Mouse supports three connection modes: 2.4GHz Wireless, Bluetooth, and Wired USB-C.
2.4 ГГц зымсыз режими:
- Locate the USB receiver (7) stored in the receive bin (9) at the bottom of the mouse.
- USB ресиверди компьютериңиздеги жеткиликтүү USB портуна сайыңыз.
- Slide the Modes Switch (10) at the bottom of the mouse to the 2.4GHz wireless mode icon.
- The mouse should automatically connect to your computer. No drivers are typically required.
Image: The Attoe Wireless Gaming Mouse with its USB receiver plugged into a laptop, demonstrating the 2.4GHz wireless connection setup.
Bluetooth режими:
- Slide the Modes Switch (10) at the bottom of the mouse to the Bluetooth mode icon.
- The mouse will enter pairing mode, and its RGB lights may flash to indicate this.
- Компьютериңизде же түзмөгүңүздө Bluetooth жөндөөлөрүн ачыңыз.
- Издөө new devices and select "Attoe Gaming Mouse" (or similar name) from the list.
- Жупташтыруу процессин аяктоо үчүн экрандагы көрсөтмөлөрдү аткарыңыз.
Зымдуу USB-C режими:
- Connect the provided TYPE-C cable to the charging port (11) on the front of the mouse.
- Connect the other end of the TYPE-C cable to a USB port on your computer.
- Slide the Modes Switch (10) at the bottom of the mouse to the Wired mode icon.
- Чычкан зымдуу чычкан катары иштейт жана бир эле учурда заряддалат.
Иштөө нускамалары
DPI жөндөө:
The mouse features 5 adjustable DPI levels (1200-1600-2000-2400-4000) to suit various tasks from precise aiming to rapid movements.
- Press the DPI Button (4) located on the top of the mouse, behind the scroll wheel, to cycle through the DPI settings.
- Each press will switch to the next DPI level. The change in sensitivity will be noticeable immediately.

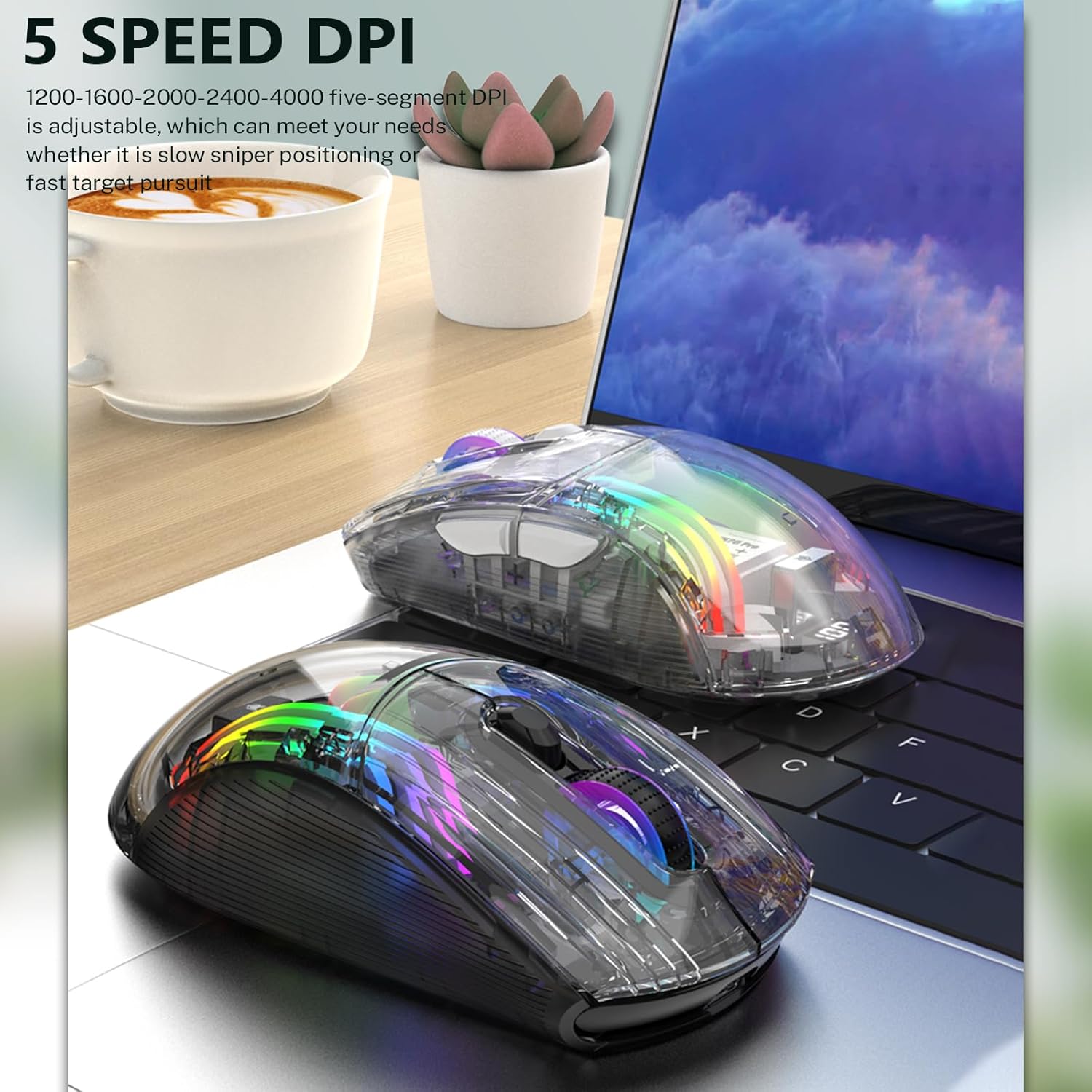

Image: Two Attoe Wireless Gaming Mice on a desk, illustrating the concept of 5-speed DPI adjustment for different user needs.
RGB жарыкты башкаруу:
The mouse features vibrant RGB backlighting with various effects.
- Locate the Light Switch (8) on the bottom of the mouse.
- Press this button to cycle through different RGB lighting modes and effects.
- Press and hold the button to turn the lighting off.
Image: The Attoe Wireless Gaming Mouse displaying its RGB lighting and digital battery display, highlighting its transparent design.

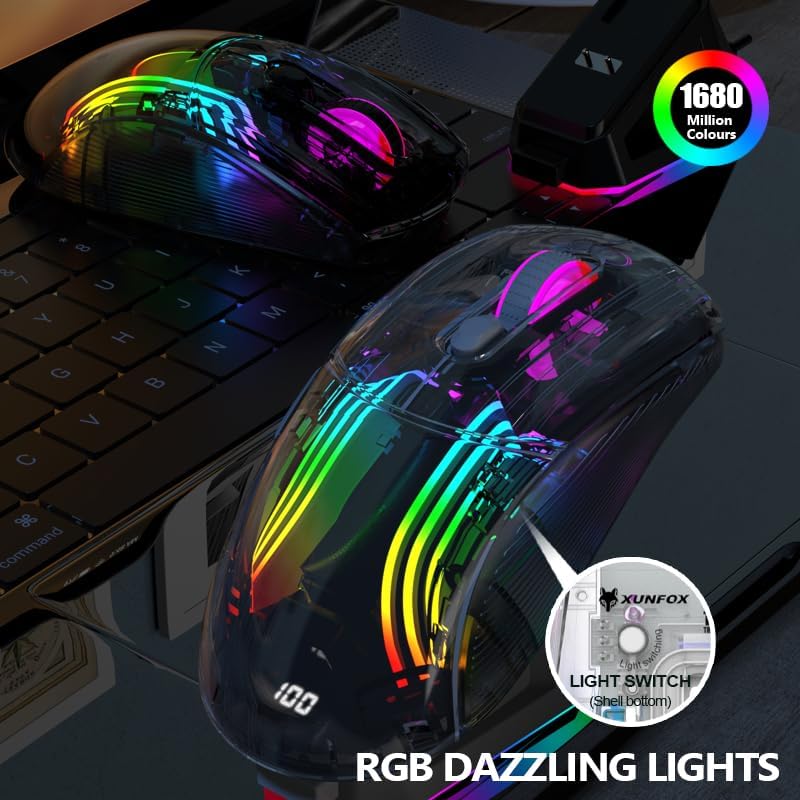

Image: The Attoe Wireless Gaming Mouse showcasing its dazzling RGB lights, with an inset diagram pointing to the light switch on the bottom of the mouse.
Унчукпай баскычтар:
The mouse is designed with silent click buttons to minimize noise during use, ideal for quiet environments.

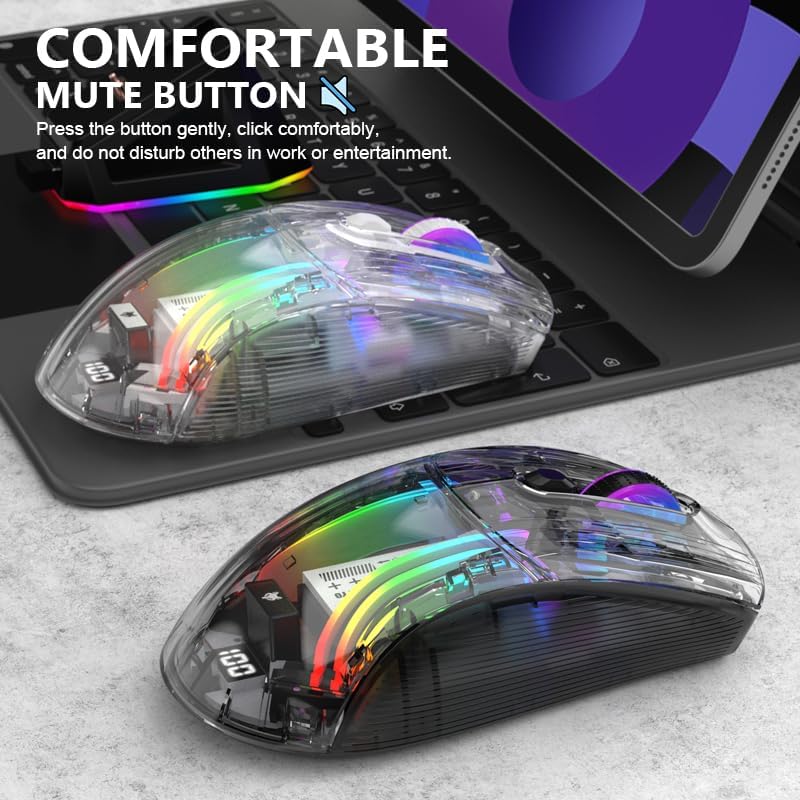

Image: The Attoe Wireless Gaming Mouse on a keyboard, emphasizing its comfortable and mute button design for quiet operation.
Image: A user sleeping peacefully while the Attoe Wireless Gaming Mouse is in use, illustrating its quiet click feature.
Эргономикалык дизайн:
The mouse is ergonomically designed to provide a comfortable grip and reduce fatigue during long gaming sessions or work hours.
Image: A hand gripping the Attoe Wireless Gaming Mouse, demonstrating its ergonomic shape designed for comfort.
Техникалык тейлөө
Тазалоо:
- Чычканды тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз.
- өжөр кир үчүн, бир аз гampчүпүрөктү суу же жумшак, абразивдүү тазалагыч менен жууп салыңыз.
- Avoid using harsh chemicals, solvents, or abrasive materials, as these can damage the mouse's surface and internal components.
- Ensure no liquid enters the mouse's interior, especially around the charging port and buttons.
Сактагыч:
- Узак мөөнөткө колдонулбаганда, чычканды күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз.
- If storing for a long time, ensure the battery is partially charged (around 50%) to preserve battery health.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Чычкан жооп бербей жатат (Зымсыз) | Батарея аз; USB кабыл алгыч туташкан эмес; Туура эмес режим тандалып алынган; Тоскоолдук. | Charge the mouse. Ensure USB receiver is securely plugged in. Check if the mode switch is set to 2.4GHz or Bluetooth. Move closer to the receiver or reduce interference sources. |
| Чычкан жооп бербей жатат (Bluetooth) | Жупташтырылган эмес; Түзмөктө Bluetooth өчүк; Батареянын кубаты аз. | Ensure mouse is in Bluetooth pairing mode and re-pair. Turn on Bluetooth on your device. Charge the mouse. |
| Чычкан жооп бербей жатат (зымдуу) | Cable not connected properly; Incorrect mode selected. | Ensure Type-C cable is securely connected to both mouse and computer. Check if the mode switch is set to Wired mode. Try a different USB port or cable. |
| RGB жарыктары иштебейт | Lights turned off; Low battery; Malfunction. | Press the Light Switch (8) to cycle through modes or turn on. Charge the mouse. If problem persists, contact support. |
| DPI өзгөрбөйт | DPI баскычынын иштебей калышы. | Ensure you are pressing the correct button (4). If still unresponsive, contact support. |
| Заряддоо маселелери | Cable/base not connected; Faulty cable/base/port. | Ensure cable is fully inserted or mouse is correctly placed on the charging base. Try a different USB port, cable, or power source. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | B0DCNQMYTR |
| Байланыш | Tri-Mode: 2.4GHz Wireless, Bluetooth 5.0, USB-C Wired |
| DPI деңгээли | 1200 / 1600 / 2000 / 2400 / 4000 (Adjustable) |
| Buttons | 7 Buttons (Left, Right, Scroll, DPI, Forward, Back, Light Switch) |
| Батарея сыйымдуулугу | 500mAh кайра заряддалуучу |
| Заряддоо | USB-C Cable, Magnetic Charging Base |
| Операциялык аралык | Up to 33 feet (15 meters) for wireless modes |
| Жарыктандыруу | RGB Backlight with various effects |
| Өзгөчөлүктөр | Transparent Body, Digital Battery Display, Silent Clicks, Ergonomic Design |
| Продукциянын өлчөмдөрү | 5 x 2.5 x 0.04 дюйм |
| Элемент Салмагы | 9.2 унция |
| Өндүрүүчү | Attoe |
Кепилдик жана колдоо
Attoe products are designed and manufactured to the highest quality standards. For information regarding warranty coverage and customer support, please refer to the warranty card included in your product packaging or visit the official Attoe webсайт.
For technical assistance or inquiries, please contact Attoe customer service through the contact information provided on the product packaging or the official brand store:
