Klutch Dual-Voltage Stick Welder with Inverter Technology, 120/230 Volts, 160 Amp Макс.

Introduction

This manual provides essential information for the safe and effective operation, setup, and maintenance of your Klutch Dual-Voltage Stick Welder. Please read this manual thoroughly before using the welder to ensure proper function and to prevent injury or damage.

The Klutch 120/230V Dual-Voltage 160 Amp DC Stick Welder features inverter technology, making it lightweight and efficient. It requires less input power while delivering consistent output, suitable for various welding tasks.

Коопсуздук маалыматы

WARNING: Read and understand all safety warnings and instructions before operating this equipment. Failure to follow the warnings and instructions may result in electric shock, fire, serious injury, or death.

Сүрөт: Арткы view of the Klutch welder displaying various safety warning labels, including warnings for electric shock, fire hazard, fumes and gases, hot materials, arc rays, and magnetic fields.

Electric Shock Can Kill

• Ток өтүүчү электр бөлүктөрүнө тийбеңиз.
• Wear dry insulating gloves and clothing.
• Өзүңүздү жумуштан жана жерден изоляциялаңыз.
• Иштин сапатын камсыз кылууamp ал иштетилген бөлүккө бекем бекитилет.
• дда иштебегилеamp же нымдуу шарттар.

Өрт коркунучу

• Remove all flammable materials within 35 feet of the welding area.
• Keep fire extinguishers nearby.
• Do not weld on closed containers or pipes.

Arc Rays Can Injure Eyes and Burn Skin

• Wear a welding helmet with appropriate shade.
• Коргоочу кийимди кийиңиз.
• Protect bystanders with screens.

Продукт бүттүview жана компоненттер

The Klutch Dual-Voltage Stick Welder is designed for versatility and portability. Familiarize yourself with its key components:

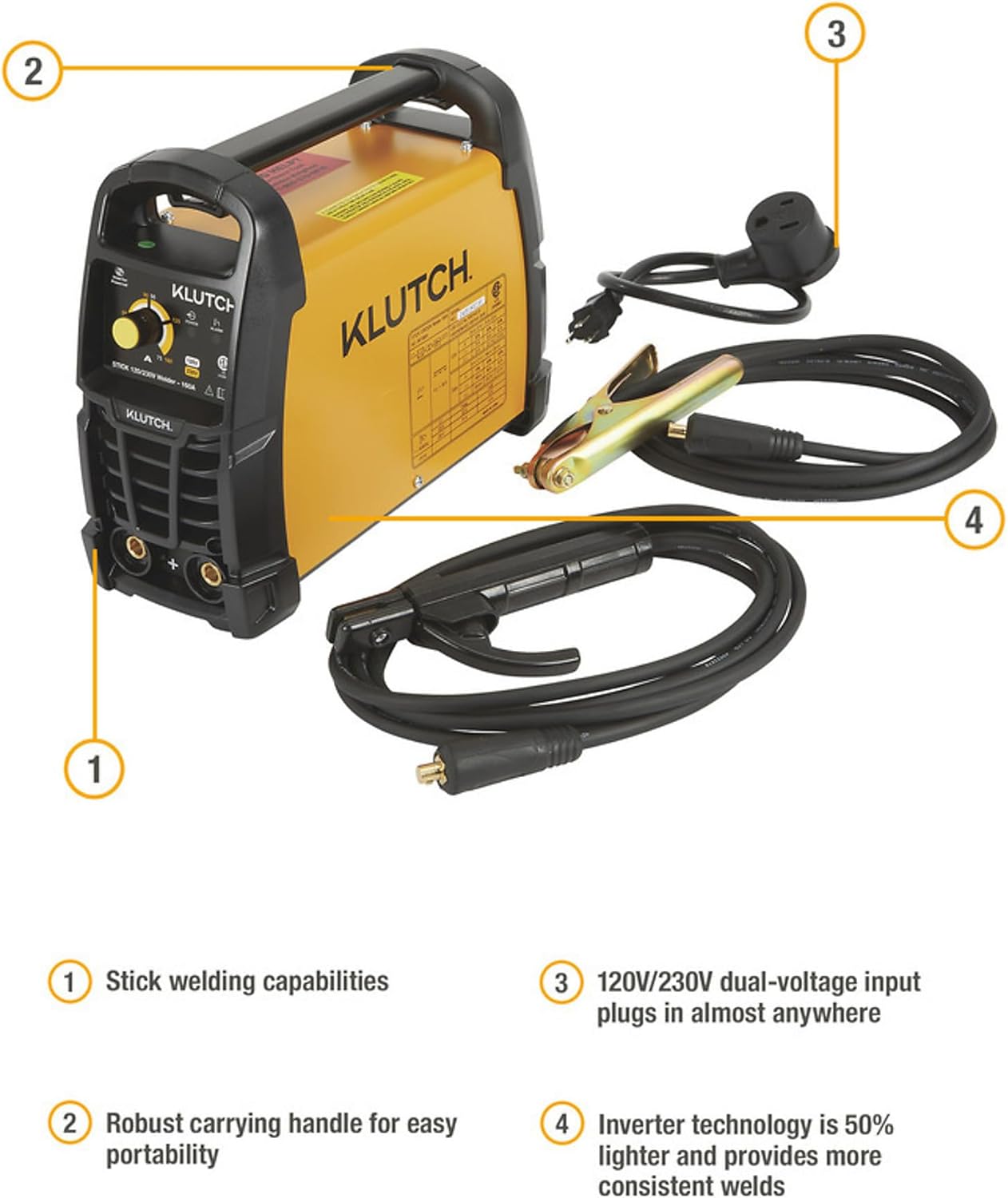

Сүрөт: үстүнкү view of the Klutch welder and its accessories, with numbered labels pointing to: (1) Stick welding capabilities, (2) Robust carrying handle for easy portability, (3) 120V/230V dual-voltage input plugs, and (4) Inverter technology.

• Welder Unit: The main power source, featuring inverter technology for lightweight design and efficient power delivery.
• Electrode Holder with Welding Cable: Used to hold the welding electrode and deliver current to the weld puddle.
• Жерге салуу Clamp with Grounding Cable: Электр схемасын толуктоо үчүн жумуш бөлүгүнө туташат.
• 120V Adaptor: Allows connection to standard 120V outlets.
• Ташуу туткасы: Integrated for easy transport of the unit.
• Башкаруу панели: Features controls for amperage adjustment and indicators for power and thermal protection.

Жайгашуу

Коопсуз жана натыйжалуу ширетүү үчүн туура орнотуу абдан маанилүү. Төмөнкү кадамдарды аткарыңыз:

1. Power Connection

Image: Front panel of the Klutch welder, emphasizing its dual-voltage power capabilities (120V/230V) with a clear dial for amperage selection.

Image: Close-up of the rear input panel of the Klutch welder, showing the 120V/230V input receptacle and the main power switch.

• The welder supports dual-voltage input (120V/230V).
• For 120V operation, use the provided adaptor to connect to a standard 120V outlet.
• For 230V operation, connect directly to a compatible 230V outlet. Ensure the outlet can supply the required ampэра (спецификацияларды караңыз).
• Always ensure the power source is off before plugging or unplugging the welder.

2. Кабелдик байланыштар

Image: The electrode holder and ground clamp, showing their respective cables and connectors, ready for attachment to the welder.

• Connect the electrode holder cable to the positive (+) terminal on the welder.
• Connect the grounding cable to the negative (-) terminal on the welder.
• Ensure connections are tight and secure to prevent arcing and overheating.
• Жерге туташтыруучу clamp firmly to the workpiece or a clean, bare metal part of the work table. The connection must be free of paint, rust, or other non-conductive materials.

Иштөө нускамалары

Once the welder is set up, you can begin operation. Always wear appropriate personal protective equipment (PPE) including a welding helmet, gloves, and protective clothing.

1. Powering On and Ampэрage Adjustment

• Turn on the main power switch located on the rear of the unit.
• The control panel on the front will illuminate.
• колдонуу amperage adjustment dial to set the desired welding current. The range is 20-160A for 240V input and 20-75A for 120V input.
• Refer to electrode manufacturer specifications for recommended amperage settings for different electrode types and material thicknesses.

2. Ширетүү процесси

• Insert the appropriate electrode into the electrode holder.
• Position the electrode at the starting point of your weld.
• Strike an arc by lightly scratching the electrode against the workpiece.
• Maintain a consistent arc length and travel speed for a smooth, uniform weld bead.
• The DC output provides a stable arc suitable for welding various materials including steel, stainless steel, cast iron, and hard surfacing up to 1/4 inch thick.

3. Инвертордук технологиянын артыкчылыктары

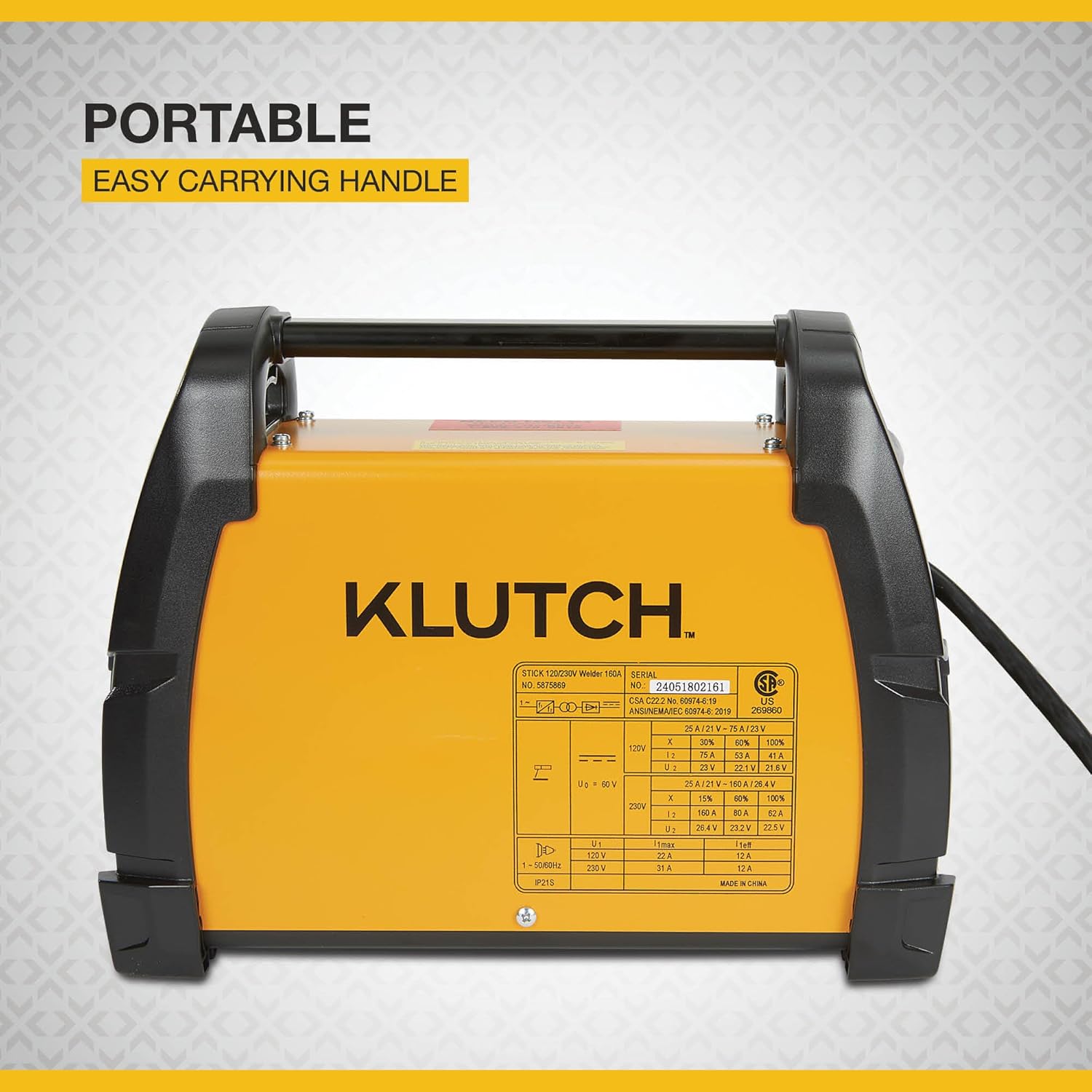

Сүрөт: каптал view of the Klutch welder, emphasizing its inverter technology which makes it up to 50% lighter than comparable models.

• The inverter technology makes the unit up to 50% lighter than traditional welders, enhancing portability.
• It also ensures consistent power output and a smooth DC weld arc.
• Built-in features like Arc Force and Anti-Stick improve welding performance and ease of use.

4. Duty Cycle

• The welder has a 15% duty cycle at 160A (240V input) and 40% duty cycle at 75A (120V input).
• Милдеттин цикли пайызды билдиретtage of a 10-minute period that the welder can operate at a given amperage without overheating. For example, a 15% duty cycle at 160A means it can weld for 1.5 minutes out of every 10 minutes at 160A.
• If the thermal protection light illuminates, stop welding and allow the unit to cool down.

Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө ширетүүчүнүн узак мөөнөттүү жана оптималдуу иштешин камсыздайт.

• Тазалоо: Periodically clean the welder's exterior with a dry cloth. Use compressed air to blow out dust and debris from cooling vents. Ensure the unit is unplugged before cleaning.
• Кабелдик текшерүү: Regularly inspect welding cables, electrode holder, and ground clamp for signs of wear, cuts, or damage. Replace damaged components immediately.
• Туташуу текшерүүлөрү: Ensure all electrical connections are tight and free of corrosion.
• Сактагыч: Ширеткичти таза, кургак жерде, ашыкча чаңдан жана нымдуулуктан алыс сактаңыз.

Проблемаларды чечүү

Бул бөлүмдө сиз кабылышы мүмкүн болгон жалпы маселелерди чечүү жолдору каралган.

Техникалык шарттар

Key technical specifications for the Klutch Dual-Voltage Stick Welder:

Сүрөт: Жогорку view of the Klutch welder, displaying a label with detailed electrical specifications and duty cycle information for both 120V and 230V inputs.

Кепилдик жана колдоо

For warranty information, technical support, or service inquiries, please contact the manufacturer, Klutch, or the authorized seller from whom you purchased the product. Keep your purchase receipt as proof of purchase.

This product may be eligible for extended protection plans offered by third-party providers. Please refer to your purchase documentation for details on available protection plans.
