SUP20S/T Fiber Laser Welding Head User Manual

1. Киришүү

This manual provides essential information for the safe and efficient operation, setup, and maintenance of the DMK SUP20S/T Fiber Laser Welding Head. Designed for precision welding tasks, this handheld laser welding head offers multiple functions including continuous welding, spot welding, and integrated manual/automatic modes.

Its ergonomic and lightweight design ensures ease of use and control, enhancing productivity and weld quality. Please read this manual thoroughly before operating the device.

2. Коопсуздук маалыматы

Operating laser equipment requires strict adherence to safety protocols to prevent injury. The SUP20S handheld laser welding gun incorporates a self-developed safety detection system with real-time temperature monitoring to ensure safe operation.

• Always wear appropriate personal protective equipment (PPE), including laser safety glasses, gloves, and protective clothing, when operating the welding head.
• Жумуш аймагы жакшы желдетилип, күйүүчү материалдардан таза болушун камсыз кылыңыз.
• Never look directly into the laser beam or allow it to strike reflective surfaces.
• Verify all connections are secure before powering on the laser system.
• Familiarize yourself with the emergency stop procedures of your laser welding machine.
• Do not attempt to disassemble or repair the welding head beyond the scope described in this manual. Refer to qualified service personnel for complex repairs.

3. Продукт бүтүп калдыview жана компоненттер

The DMK SUP20S/T Fiber Laser Welding Head is designed for ergonomic handling and efficient performance. Below is an overview анын негизги компоненттеринин бири.

Figure 3.1: Labeled diagram of the SUP20S Handheld Laser Welding Gun, showing the Copper Nozzle, Scale Tube, Wire Feeding Bracket, ON/OFF Switch Button, and QBII Protective Cover.

Негизги компоненттерге төмөнкүлөр кирет:

• Жез сопло: Directs the shielding gas and provides a stable contact point for welding.
• Scale Tube: Aids in precise positioning and measurement during welding.
• Wire Feeding Bracket: Supports the welding wire feed mechanism (if applicable to your setup).
• ON/OFF Switch Button: Controls the laser emission during operation.
• QBH Protective Cover: Protects the QBH fiber optic connector, ensuring secure and clean connection to the laser source.

3.2-сүрөт: Жалпысынан view of the DMK SUP20S Handheld Laser Welding Head, highlighting its compact and ergonomic design.

4. Техникалык шарттар

The following table details the technical specifications of the SUP20S Laser Welding Head:

Figure 4.1: Dimensions and a summary of key specifications for the SUP20S Handheld Laser Welding Gun.

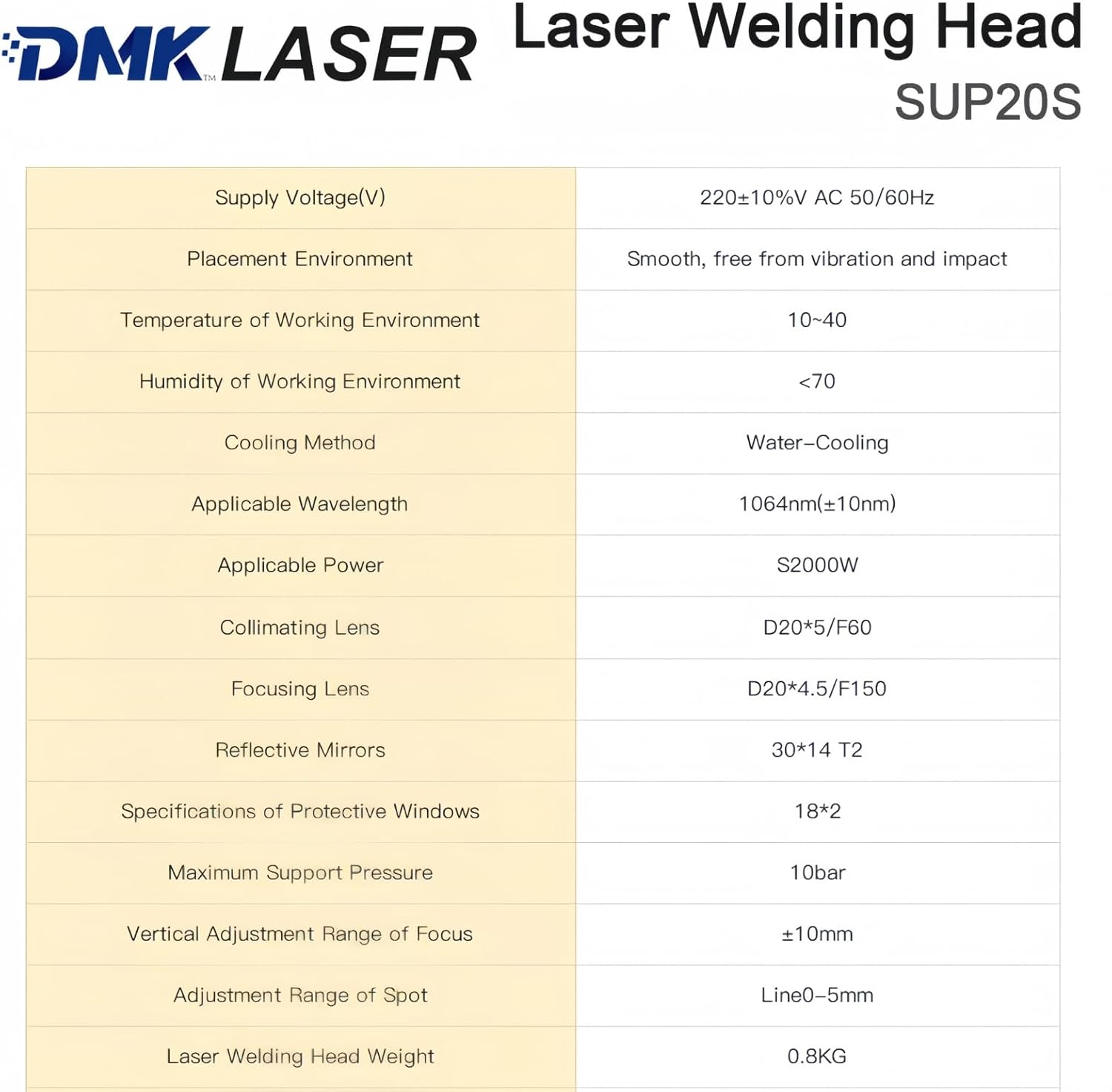

Figure 4.2: Comprehensive technical specifications for the DMK Laser Welding Head SUP20S, including environmental conditions and optical components.

5. Орнотуу

Proper setup is crucial for optimal performance and safety. The SUP20S/T welding head is designed for integration with compatible fiber laser welding machines.

• Connection to Laser Source: Connect the QBH fiber optic cable from your laser welding machine to the QBH connector on the welding head. Ensure the connection is clean and secure. The collimating lenses are integrated with the QBH for easy field replacement.
• Газ менен камсыздоо: Connect the appropriate shielding gas supply (e.g., Argon, Nitrogen) to the gas inlet on the welding head. Ensure the gas pressure is within the recommended range (Max 15 Bar).
• Муздатуу системасы: Verify that your laser welding machine's water-cooling system is properly connected and functioning, as the welding head relies on water-cooling for temperature management.
• Электр байланыштары: Ensure all electrical connections for control signals and power (if applicable) are correctly made according to your laser welding machine's manual.
• Соплолорду орнотуу: Attach the appropriate copper nozzle for your welding application.

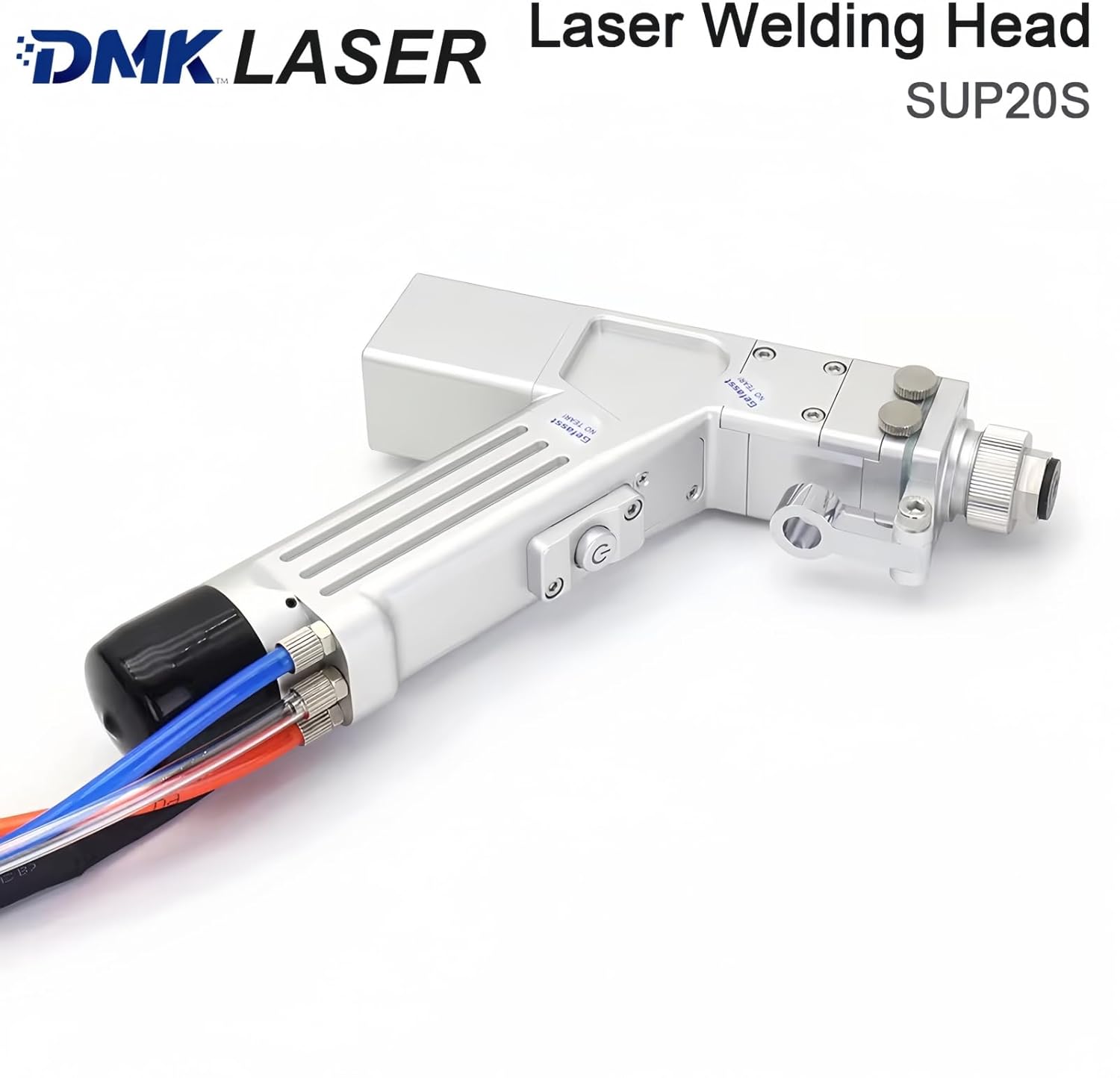

5.1-сүрөт: Арткы view of the DMK Laser Welding Head SUP20S, illustrating the various cable connections for power, control, and fiber optic input.

6. Иштөө нускамалары

The SUP20S/T welding head supports various welding modes for versatile applications.

• Күйгүзүү: Ensure all safety checks are complete and the laser welding machine is powered on.
• Режим тандоо: The system supports handheld continuous welding, spot welding, and integrated manual/automatic modes. Select the desired mode via the control interface of your main laser welding machine.
• Параметрди тууралоо: Adjust laser power, pulse width, welding speed, and gas flow according to the material and thickness being welded. The light spot adjustment range is 0-5mm.
• Сырсөздү текшерүү: If enabled, perform password authentication as required by your system for secure operation.
• Welding Operation: Position the welding head at the desired welding point. Press the ON/OFF switch button to initiate the laser. Maintain a consistent distance and angle for optimal weld quality.
• Мониторинг: The system provides real-time monitoring of all interfaces, which is convenient for on-site maintenance and remote technical support.

Figure 6.1: An operator demonstrating the use of the SUP20S Handheld Laser Welding Gun, showing the emitted laser beam during operation.

7. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your welding head.

• Линзаны алмаштыруу: The focusing and protective lenses feature a pull-out design for easy replacement. Regularly inspect these lenses for dust, debris, or damage and replace them as needed to maintain weld quality and prevent laser power loss.
• Motor Maintenance Window: The welding head includes a motor maintenance window for easy centering. Refer to your main laser welding machine's manual for specific procedures related to motor maintenance and alignment.
• Nozzle Cleaning/Replacement: Clean the copper nozzle regularly to prevent spatter buildup. Replace the nozzle if it becomes worn or damaged.
• Жалпы тазалоо: Keep the exterior of the welding head clean and free from dust and contaminants. The SUP20S welding gun has excellent dustproof and anti-interference performance, but regular cleaning is still recommended.
• Сактагыч: When not in use, store the welding head in a clean, dry environment, protected from dust and physical damage.

Figure 7.1: The SUP20S Welding Gun is designed with excellent dustproof and anti-interference performance to ensure high work efficiency and reduce maintenance frequency.

8. Кыйынчылыктарды

This section provides general guidance for common issues. For detailed troubleshooting or complex problems, always refer to the comprehensive manual of your main fiber laser welding machine or contact technical support.

• Лазердик чыгаруу жок:
  • Check all fiber optic and electrical connections.
  • Verify the laser source is powered on and functioning correctly.
  • Ensure safety interlocks are engaged and no error codes are displayed on the main machine.
  • Check for any obstructions or damage to the protective or focusing lenses.
• Ширетүүнүн сапаты начар:
  • Inspect the copper nozzle for spatter buildup or damage.
  • Verify shielding gas flow and purity.
  • Check the condition of the focusing and protective lenses; replace if dirty or damaged.
  • Adjust welding parameters (power, speed, focus) according to material specifications.
• Ашыкча ысып кетүү:
  • Ensure the water-cooling system is operating effectively and coolant levels are adequate.
  • Check for any blockages in the cooling lines.
  • The SUP20S has real-time temperature monitoring; if an alarm triggers, cease operation and investigate the cause.

For issues requiring in-depth diagnostics, leverage the real-time monitoring capabilities of the system for convenient on-site maintenance or remote technical support.

9. Кепилдик жана колдоо

For specific warranty terms and conditions related to your DMK SUP20S/T Fiber Laser Welding Head, please refer to the documentation provided at the time of purchase or contact the seller directly. The product is sold by DMK Laser.

For technical support, spare parts, or service inquiries, please contact DMK Laser through their official channels. Real-time monitoring features of the welding head facilitate remote technical assistance.

Сатуучу маалымат: DMK Laser (Seller ID: A7N8YHNANDA33)
