Kangmusi Retractable Side Awning

Продукт бүттүview

This manual provides essential information for the safe and effective installation, operation, and maintenance of your Kangmusi Retractable Side Awning. Please read this manual thoroughly before assembly and use, and retain it for future reference.

The Kangmusi Retractable Side Awning is designed to provide privacy and protection from wind and sun on balconies, terraces, and in gardens. It features a durable polyester fabric with a PU coating and a robust steel and aluminum frame.

Коопсуздук нускамалары

• Ensure all components are present and undamaged before beginning assembly. Do not attempt to assemble if parts are missing or damaged.
• Always install the awning on a stable and level surface. The main post must be securely fastened to a wall, and the receiving post to the ground, using the provided mounting hardware.
• Do not use the awning in strong winds or severe weather conditions. Retract the awning immediately to prevent damage.
• Keep children and pets away from the awning during extension and retraction to prevent injury.
• Do not hang objects from the awning or apply excessive force to the fabric or frame.
• Бардык бекиткичтерди жана туташтыргычтарды бекем жана коопсуз абалда кармап туруу үчүн үзгүлтүксүз текшерип туруңуз.

Компоненттердин тизмеси

Чогултуудан мурун, төмөнкү компоненттердин бардыгы пакетте бар экенин текшериңиз:

• Main Awning Post (with integrated fabric roll)
• Receiving Post (for handle attachment)
• Retractable Awning Fabric (Polyester with PU coating)
• Handle (for extending/retracting)
• Mounting Hardware (screws, anchors, brackets for wall and ground attachment)

Figure 1: Main Awning Post (retracted view). This image shows the side profile of the main post where the awning fabric is stored when retracted.

Орнотуу жана орнотуу

Follow these steps for proper installation of your side awning:

1. Жайгашкан жерди тандоо: Select a suitable location for your awning. The main post should be mounted securely to a sturdy wall or vertical surface, and the receiving post to a solid ground surface. Ensure the path for the awning extension is clear.
2. Mount Main Post: Position the main awning post against the wall at the desired height. Mark the drilling points for the mounting brackets. Drill pilot holes and secure the main post firmly to the wall using the appropriate screws and anchors provided.
3. Position Receiving Post: Extend the awning fabric slightly to determine the exact position for the receiving post. The receiving post should be placed directly opposite the main post, ensuring the fabric will be taut when fully extended. Mark the drilling points for the receiving post's base on the ground.
4. Mount Receiving Post: Drill pilot holes into the ground and secure the receiving post's base firmly using the provided ground anchors or screws. Ensure the post is vertical and stable.
5. Тиркетүү туткасы: Attach the handle to the end of the awning fabric. This handle will be used to pull the awning out and secure it to the receiving post.
6. Test Extension: Gently pull the awning fabric out towards the receiving post. The fabric should extend smoothly. Once fully extended, the handle should fit securely into the slot on the receiving post.

Figure 2: Fully Extended Awning. This image illustrates the awning in its fully extended position, providing privacy and shade.

Сүрөт 3: Алдыңкы View of Extended Awning. A direct front view showing the full surface of the beige awning fabric when extended.

Иштөө нускамалары

The Kangmusi Retractable Side Awning is designed for easy operation:

1. Узартуу үчүн: Grasp the handle firmly. Gently pull the awning fabric horizontally away from the main post towards the receiving post. Guide the handle into the designated slot on the receiving post until it clicks securely into place. Ensure the fabric is taut.
2. Баш тартуу үчүн: Gently lift the handle from the slot on the receiving post. The awning will automatically retract back into the main post due to its spring-loaded mechanism. Guide the handle back towards the main post to ensure a smooth and controlled retraction. Do not release the handle abruptly.

Figure 4: Awning Extension and Retraction. This diagram illustrates the movement of the awning from a retracted to an extended position.

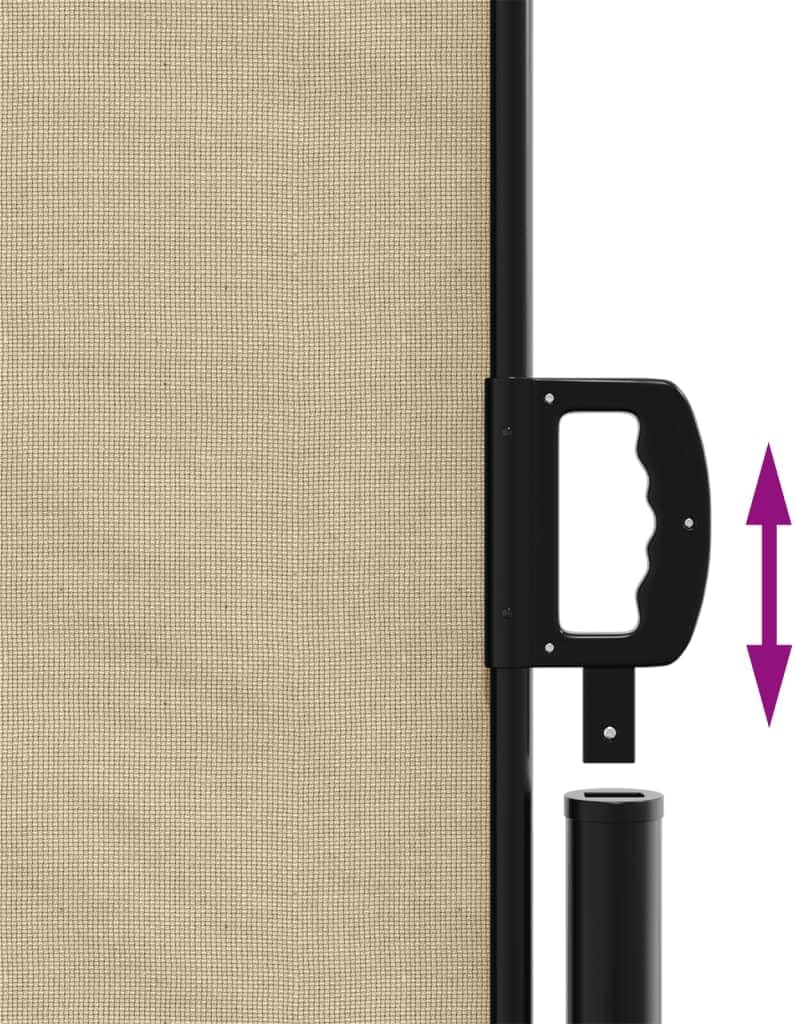

Figure 5: Handle Engagement. A detailed view of the handle and how it connects to the receiving post for secure locking.

Техникалык тейлөө

Proper maintenance will extend the life of your awning:

• Тазалоочу кездеме: The polyester fabric with PU coating is water-resistant. Clean the fabric with a soft brush or cloth and mild soapy water. Rinse thoroughly with clean water and allow it to air dry completely before retracting. Do not use harsh chemicals or abrasive cleaners.
• Тазалоо алкагы: Wipe the steel and aluminum frame with a damp чаңды жана кирди тазалоо үчүн кездеме.
• Текшерүү: Periodically check all screws, bolts, and mounting points for tightness. Tighten any loose fasteners. Inspect the fabric for any tears or damage.
• Кышкы сактоо: In areas with harsh winters, it is recommended to retract the awning and, if possible, cover it or store it indoors to protect it from extreme weather conditions.

Figure 6: Fabric Texture Detail. A close-up view of the durable polyester fabric with its protective PU coating.

Проблемаларды чечүү

Техникалык шарттар

• Түсү: Беж
• Кездеме материалы: Polyester with PU coating
• Рамка материалы: Болот жана алюминий
• Өлчөмдөрү (Ж х Ч): 160 x 600 см (болжол менен 63 x 236 дюйм)
• Ассамблея талап кылынат: Ооба
• Монтаждоочу аппаратура: камтылган
• Модель номери: kangmusi4004525
• ASIN: B0DFH2VRH7
• Өндүрүүчү: vidaXL

Кепилдик жана колдоо

This product is manufactured by vidaXL. For specific warranty information or technical support, please refer to the documentation included with your purchase or contact the seller directly. Keep your proof of purchase for any warranty claims.

For general inquiries or assistance, please contact the retailer or seller from whom you purchased this product.
