INKBIRD 1500FT Wireless Meat Thermometer

Introduction

The INKBIRD IRF-4S Wireless Meat Thermometer is designed to provide accurate temperature monitoring for grilling, smoking, and other cooking applications. With its extended wireless range and multiple probes, you can monitor your food and oven temperatures from a distance, ensuring perfectly cooked results every time. This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your device.

Figure 1: INKBIRD IRF-4S Wireless Meat Thermometer components.

Негизги өзгөчөлүктөрү

• 1500 Feet Remote Range: Enjoy freedom of movement while monitoring your cook with a super strong and stable wireless signal.
• 4 Probes Included: Comes with 3 meat probes and 1 oven probe, allowing simultaneous monitoring of different foods or oven temperature.
• Wide Temperature Range & High Accuracy: Measures temperatures from 32°F - 572°F (0°C - 300°C) for short-time measurements and 32°F - 482°F (0°C - 250°C) for continuous monitoring, with an accuracy of ±1.8°F (±1°C).
• Кайра заряддалуучу батарея: Built-in 1000mAh lithium battery provides up to 60 hours of use on a single charge.
• IPX5 Чачырабай турган: Designed to withstand splashes, making it suitable for outdoor grilling in various weather conditions.
• Preset Temperature Alarms & Timer: Features 10 types of meat and 5 levels of taste presets, customizable temperature alarms, and a built-in 99-hour countdown timer.
• Backlit LCD & Multiple Placement Options: Orange backlit display for clear visibility in low light, with magnetic back, wall mount, and tabletop stand options for convenient placement.

2-сүрөт: Негизги кошумчаtages of the INKBIRD IRF-4S.

Figure 3: Stable signal transmission for remote monitoring.

Figure 4: USB Type-C charging for extended battery life.

Figure 5: Durability and versatile placement options.

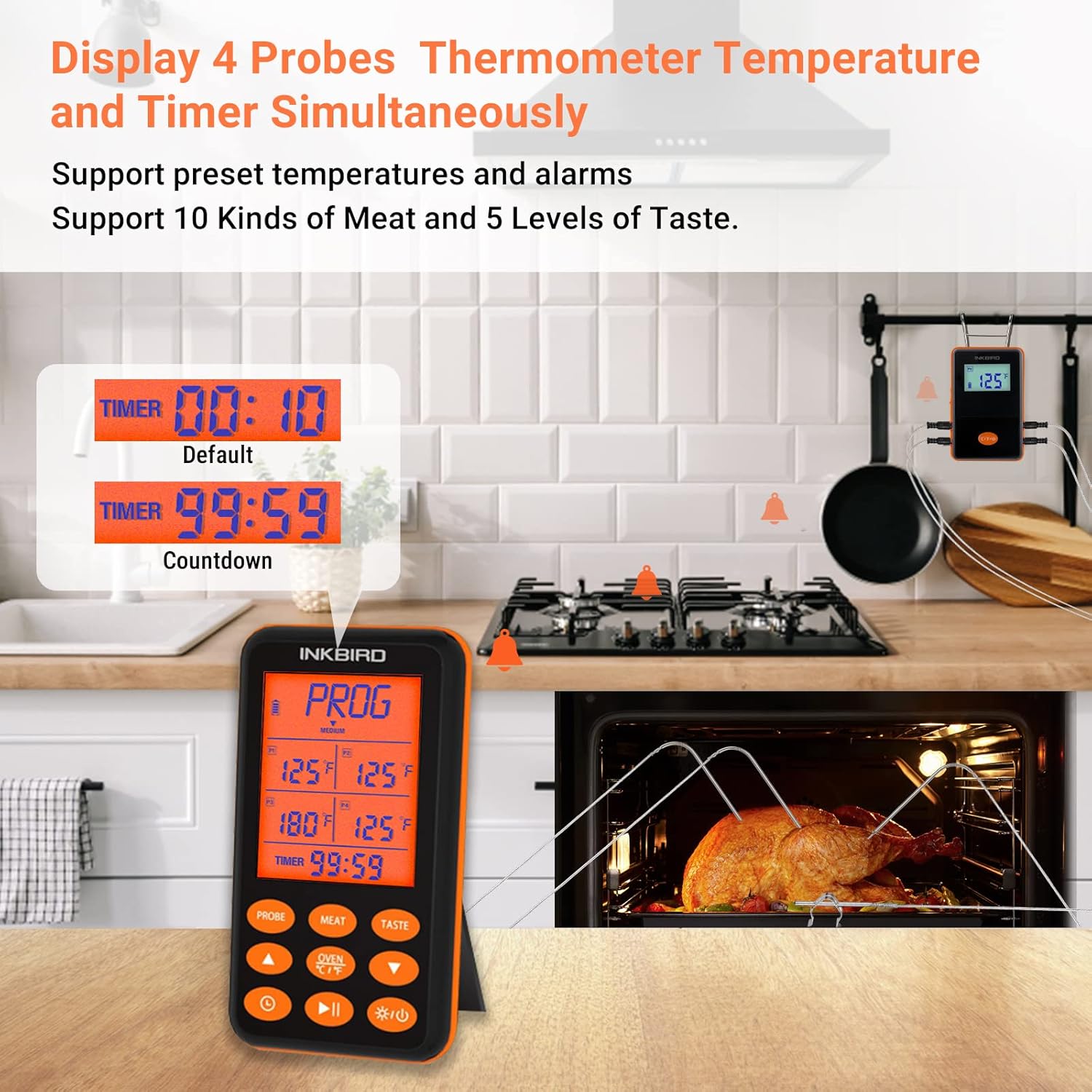

Figure 6: Simultaneous display of four probe temperatures and timer.

Жайгашуу

1. Кутудан чыгаруу жана баштапкы төлөм

Upon unboxing, ensure all components are present: the receiver unit, transmitter unit, 3 meat probes, 1 oven probe, and a USB charging cable. It is recommended to fully charge both the receiver and transmitter before first use. Connect the USB cable to a standard USB power adapter (not included) and plug it into the charging port on each unit. The battery indicator on the display will show charging progress.

2. Зонд байланышы

Carefully insert the probe connectors into the corresponding ports on the transmitter unit. Ensure they are firmly inserted until you hear a click sound. This ensures a secure connection and proper temperature readings. If a probe is not firmly inserted, the display may show "ER", "---", "LLL", or "HHH".

Иштөө нускамалары

1. Күйгүзүү/өчүрүү

Press and hold the power button on both the receiver and transmitter units to turn them on or off. The units will automatically connect to each other once powered on.

2. Setting Temperature Alarms

1. Press the "PROBE" button to select the desired probe (P1, P2, P3, P4).
2. Press the "MEAT" button to cycle through preset meat types (Beef, Veal, Lamb, Pork, Oven, Chicken, etc.) or press "PROG" to set a custom temperature.
3. Use the Up/Down arrow buttons to adjust the target temperature for the selected probe.
4. Press the "TASTE" button to select the desired doneness level (e.g., Well, Medium, Rare) for preset meat types.
5. The alarm will sound and flash when the target temperature is reached.

3. Таймерди колдонуу

The IRF-4S includes a countdown timer. Press the "TIMER" button to activate the timer function. Use the Up/Down arrow buttons to set the desired time (up to 99 hours and 59 minutes). Press the Play/Pause button to start or pause the timer. An alarm will sound when the timer reaches zero.

4. Температура бирдигин тандоо

To switch between Celsius (°C) and Fahrenheit (°F), press the "C/°F" button on the receiver unit.

Техникалык тейлөө

1. Cleaning Probes

After each use, clean the probe tips with warm soapy water. Wipe them thoroughly with a damp cloth and dry completely. Do not immerse the probe connectors or the main units in water. The probes are waterproof, but the main units are only splashproof (IPX5).

2. Батареяга кам көрүү

The units feature rechargeable lithium batteries. Recharge them when the battery indicator is low. For long-term storage, ensure the batteries are partially charged (around 50%) to prolong their lifespan. Avoid storing in extreme temperatures.

3. Сактоо

Store the thermometer and probes in a clean, dry place when not in use. Keep them away from direct sunlight and extreme temperatures.

Проблемаларды чечүү

Техникалык шарттар

Кепилдик жана колдоо

For detailed warranty information and customer support, please refer to the official Inkbird website or contact their customer service directly. A digital version of the user manual is also available for download:

Колдонуучунун колдонмосун жүктөп алуу (PDF)

Кошумча жардам алуу үчүн, сураныч, баш багыңыз Inkbird Store on Amazon.
