FIONESO Small Bathroom Wall Cabinet (Model GGX003) Instruction Manual

Introduction

Thank you for choosing the FIONESO Small Bathroom Wall Cabinet. This versatile and stylish cabinet, featuring classic barn doors and an adjustable shelf, is designed to provide efficient storage in various spaces such as bathrooms, laundry rooms, and kitchens. This manual will guide you through the assembly process, explain its features, and provide essential maintenance and safety information to ensure long-lasting use and satisfaction.

The FIONESO Small Bathroom Wall Cabinet, shown installed above a toilet, featuring its barn doors and open shelf.

Коопсуздук маалыматы

Please read all safety warnings before assembly and use.

• Always ensure the cabinet is securely mounted to the wall using appropriate hardware for your wall type. Improper installation can lead to injury or damage.
• Do not overload the shelves. Exceeding weight limits can cause the cabinet to tip or shelves to collapse.
• Be cautious when adjusting the shelves to avoid pinching fingers or dropping components.
• Муунтуп алуу коркунучун алдын алуу үчүн майда тетиктерди жана чогултуучу жабдууларды балдардан жана үй жаныбарларынан алыс кармаңыз.
• Бардык бекиткичтердин бекем жана коопсуз экенине ынануу үчүн аларды үзгүлтүксүз текшерип туруңуз.

Пакеттин мазмуну

Before beginning assembly, verify that all parts and hardware listed below are present and undamaged. If any items are missing or damaged, please contact customer support.

Component Panels:

1. Жогорку панель
2. Төмөнкү панель
3. Жөнгө салынуучу текче
4. Back Panel (Upper)
5. Back Panel (Lower)
6. Каптал панели (сол)
7. Каптал панели (оң)
8. Left Barn Door
9. Right Barn Door
10. Артка колдоо тилкеси

Аппараттык камсыздоо:

• Cam Locks and Screws
• Wood Dowels
• Илниктер жана буроолор
• Эшик туткалары
• Магниттик кармагычтар
• Shelf Pins
• Дубал анкерлери жана бурамалар

Монтаждоо көрсөтмөлөрү

Follow these step-by-step instructions carefully. It is recommended to assemble the cabinet on a soft, clean surface to prevent scratches.

Видеону чогултуу боюнча колдонмо:

Кадамдык Ассамблея:

1. Каптал панелдерди даярдоо: Attach cam lock screws and wood dowels to the designated holes on the side panels (Left and Right). Ensure they are securely fastened.
2. Рамканы чогултуу: Connect the top and bottom panels to the side panels using the cam locks and dowels. Tighten the cam locks to secure the connections.
3. Арткы панелдерди орнотуу: Slide the upper and lower back panels into the grooves on the assembled frame. Secure them with small screws as indicated in the diagram.
4. Attach Back Support Bar: Fasten the back support bar to the top rear of the cabinet frame using screws. This enhances stability for wall mounting.
5. Эшиктерди даярдоо: Attach hinges to the left and right barn doors. Ensure the hinges are aligned correctly for smooth operation.
6. Тоо эшиктери: Attach the prepared doors to the cabinet frame using the hinges. Adjust as necessary to ensure proper alignment and closure.
7. Install Door Knobs and Magnetic Catches: Screw the door knobs onto the front of each door. Install the magnetic catches on the inside of the cabinet frame and doors to ensure they close securely.
8. Жөнгө салынуучу текчени киргизүү: Place the shelf pins into the desired height holes inside the cabinet. Carefully place the adjustable shelf onto the pins.

Detailed dimensions of the cabinet, including internal shelf spacing and overall size.

Illustration of the adjustable shelf feature, allowing customization of storage space.

Иштөө нускамалары

Жөнгө салынуучу текче:

The cabinet features an adjustable shelf that can be positioned at three different heights. To adjust, simply remove the shelf, reposition the shelf pins to the desired holes, and then place the shelf back onto the pins. This allows you to customize the storage space to accommodate items of various sizes.

Сарай эшиктери:

The barn doors slide smoothly along a track to open and close, providing access to the enclosed storage area. The doors are equipped with magnetic catches to ensure they remain securely closed when not in use, protecting your items from dust and moisture.

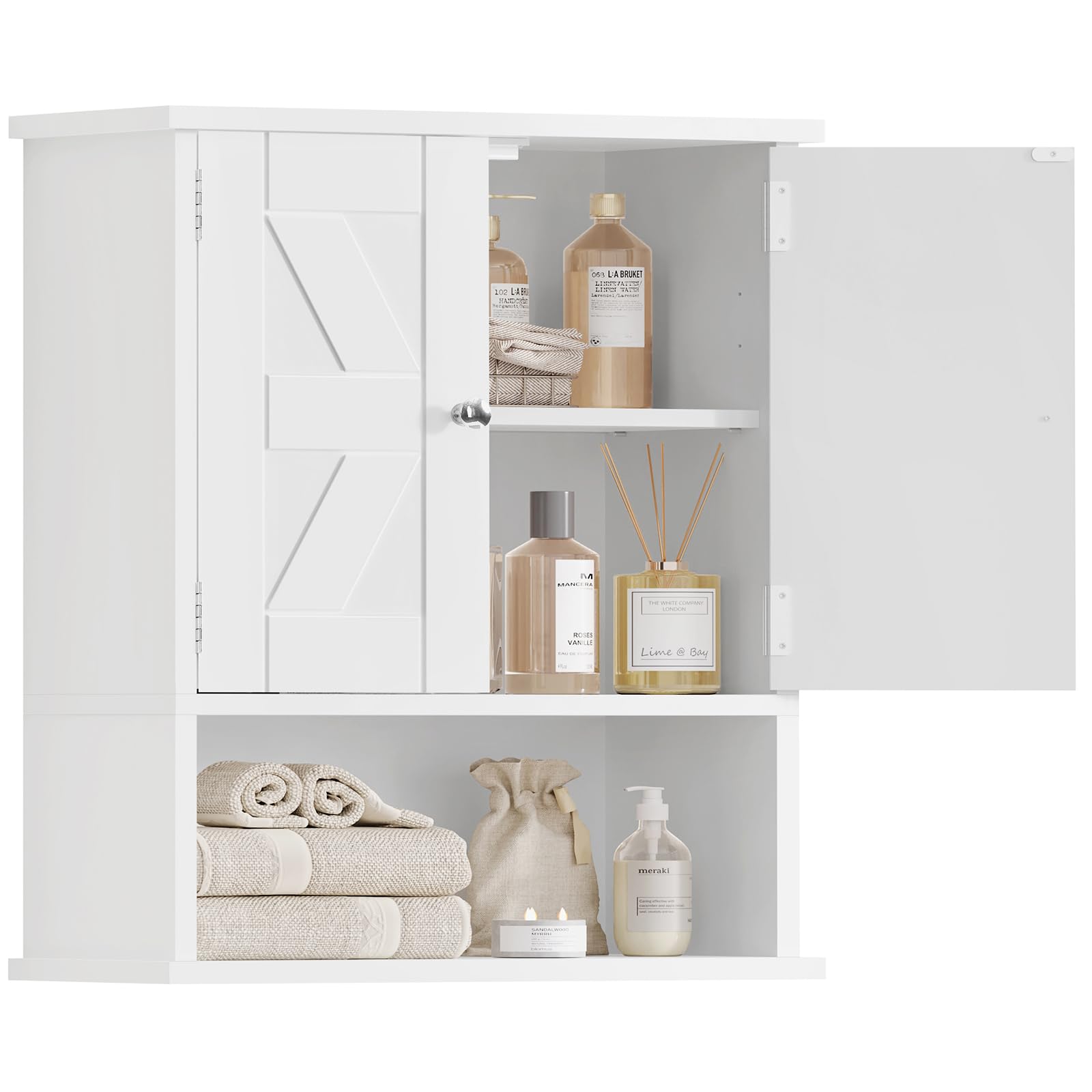

The cabinet with its barn doors open, revealing the spacious interior and adjustable shelf.

Ачык текче:

The lower open shelf provides convenient access for frequently used items or decorative displays. This area is ideal for toiletries, small towels, or ornamental pieces.

А деталдуу view of the cabinet's open shelf, suitable for daily essentials or decorative items.

Техникалык тейлөө

• Тазалоо: Шкафтын беттерин жумшак менен сүртүңүз, гamp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонуудан алыс болуңуз, анткени алар финишке зыян келтириши мүмкүн.
• Чаңдандыруу: Чаң топтолуп калбашы үчүн, шкафты дайыма кургак, жумшак чүпүрөк менен сүртүп туруңуз.
• Нымдуулук: Although made with waterproof materials, it is best to wipe away any standing water or excessive moisture immediately to maintain its appearance and longevity.
• Аппараттык камсыздоону текшерүү: Periodically inspect all screws, hinges, and magnetic catches to ensure they are tight. Retighten if necessary.

Проблемаларды чечүү

• Эшиктер туура жабылбайт: Check if the magnetic catches are aligned. Ensure hinges are securely fastened and not bent.
• Кабинет солкулдайт: Verify that all assembly screws are tightened. Ensure the cabinet is securely mounted to the wall using appropriate anchors.
• Shelf not level: Check that the shelf pins are inserted completely and evenly into the corresponding holes on both sides.

Техникалык шарттар

Кепилдик жана колдоо

FIONESO stands by its products with a 100% satisfaction guarantee. If you are not completely satisfied with your purchase, please contact us within 24 hours for a hassle-free replacement or refund; no returns necessary. For any questions, issues, or assistance with assembly, please refer to the contact information provided with your purchase or visit the official FIONESO store on Amazon: FIONESO Store.
