Rimoody 7-Inch 1-DIN Carplay Autoradio with Android Auto (Model 7039B)

1. Киришүү

This manual provides detailed instructions for the installation, operation, and maintenance of your Rimoody 7-inch 1-DIN Carplay Autoradio, Model 7039B. Please read this manual thoroughly before using the product to ensure proper function and safety.

Продукт өзгөчөлүктөрү:

• 7 дюймдук HD сенсордук экран: Full-capacity high-definition touch screen for intuitive control.
• Carplay жана Android Auto: Seamless integration with Apple Carplay and Android Auto via USB for navigation, music, calls, and more.
• Mirror шилтемеси: Supports screen mirroring for iOS (version 13.4 and above) and Android (version 10.1 and above) devices via USB.
• Bluetooth байланышы: Hands-free calling and wireless audio streaming.
• FM радиосу: High-quality stereo FM radio with automatic, semi-automatic, and precise channel tuning, 18 preset stations.
• Аудио эквалайзер (эквалайзер): Customizable sound settings for optimal audio experience.
• AUX/USB Input: External audio input for MP3 players, GPS, mobile phones, and USB 2.0 high-speed interface for U disk/mobile hard drive playback and mobile phone charging.
• Рулдун башкаруу элементтери: Ыңгайлуу иштөө үчүн рулдун учурдагы башкаруу элементтери менен шайкеш келет.
• Арткы камераны колдоо: Automatic display of AHD high-definition reversing camera image when reversing.

2. Кутуда эмне бар

Таңгактан чыгаргандан кийин, төмөндө көрсөтүлгөн нерселердин бардыгы бар экенин жана жакшы абалда экендигин текшериңиз:

• Rimoody Car Player (Main Unit)
• Электр кабели
• Steering Wheel Control (Remote)
• User Manual
• Microphone (if included in specific package)
• Rear Camera (if included in specific package)

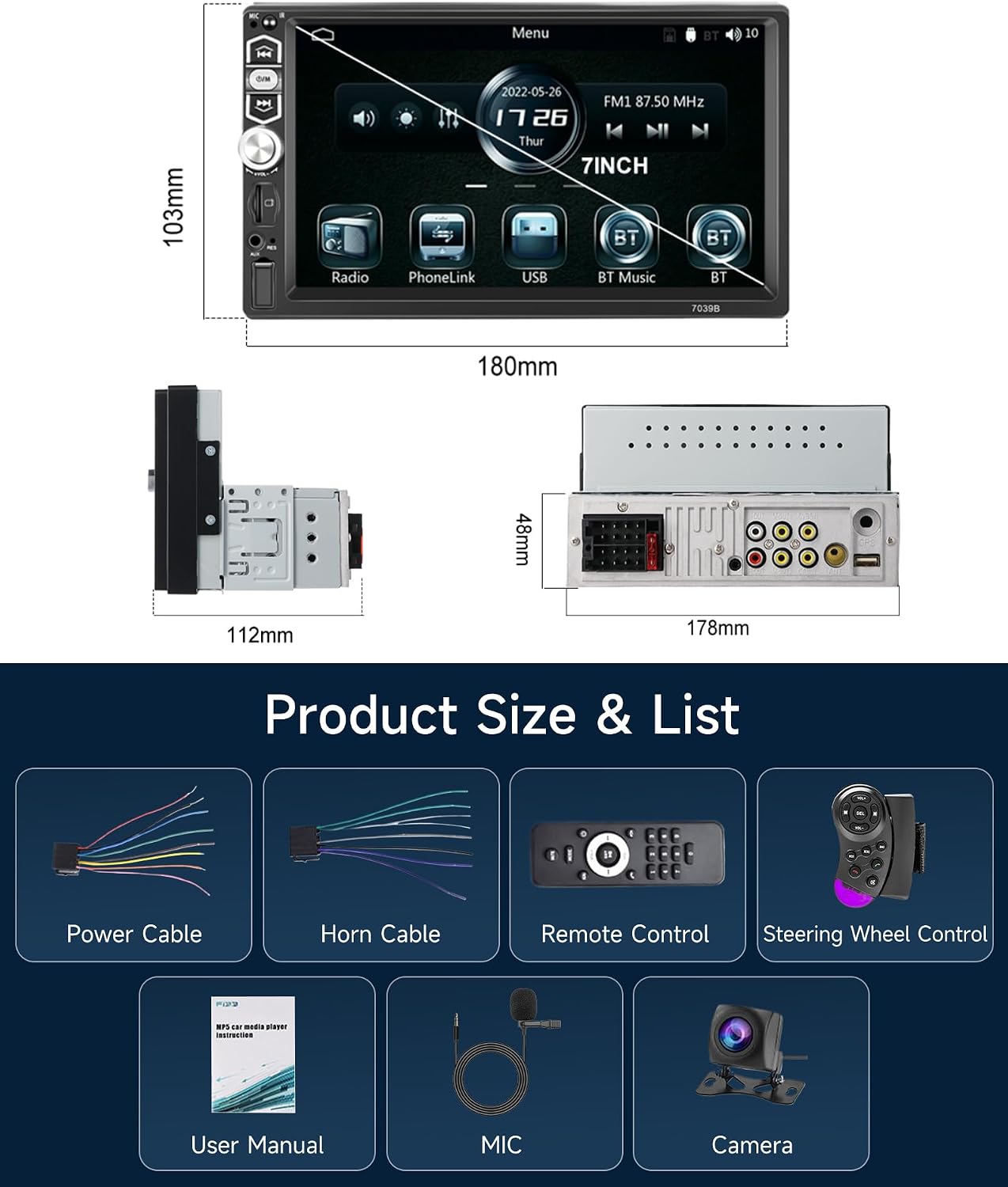

Image: Product size and list. This image displays the front panel dimensions (180mm width, 103mm height) and side profile dimensions (112mm depth) of the car radio. It also lists the components included in the package: power cable, horn cable, remote control, steering wheel control, user manual, microphone, and camera.

3. Орнотуу жана орнотуу

Before installation, ensure your vehicle's battery is disconnected to prevent electrical shorts. Professional installation is recommended.

3.1 Электр өткөргүч схемасы

Зымдардын туура туташуусу үчүн төмөнкү диаграмманы караңыз. Туура эмес зымдар агрегаттын же унааңыздын электр системасына зыян келтириши мүмкүн.

Image: Detailed wiring diagram for the Rimoody 1-DIN Carplay Autoradio. It illustrates the connections for the power harness (A and B), rear audio output (RCA), video output, CVBS input, reversing video input, and GPS antenna. Specific pins for power, ground, brake, key, battery, illumination, and ignition switch are labeled, along with speaker connections.

• Power Harness (A): Connect A1 (Back in), A2 (Brake), A3 (Key 1), A4 (Battery+), A5 (Antenna), A6 (ILL), A7 (Ignition Switch), A8 (Ground) to the corresponding vehicle wires.
• Speaker Harness (B): Connect B1-B8 for Right Rear Speaker+, Right Rear Speaker-, Right Front Speaker+, Right Front Speaker-, Left Front Speaker+, Left Front Speaker-, Left Rear Speaker+, Left Rear Speaker-.
• RCA/Video Connections:
  • 1. Арткы MIC IN (3.5MM)
  • 2. Сол жактагы аудио чыгыш
  • 3. Видео чыгышы 1
  • 4. CVBS киргизүү
  • 5. Оң аудио чыгышы
  • 6. Видео чыгышы 2
  • 7. Видео киргизүүнү тескери буруу
  • 8. Радио антенна

3.2 Физикалык орнотуу

The unit is a standard 1-DIN size. Ensure your vehicle's dashboard opening is compatible. Secure the unit using the provided mounting hardware.

4. Иштөө нускамалары

4.1 Негизги операция

• Күйгүзүү/өчүрүү: Алдыңкы панелдеги же алыстан башкаруу пультундагы кубат баскычын басыңыз.
• Үндү көзөмөлдөө: Use the rotary knob or VOL+/- buttons on the remote/steering wheel control.
• Сенсордук экран: Navigate menus and select functions by touching the icons on the 7-inch display.

4.2 Carplay жана Android Auto

Connect your iPhone or Android smartphone via a USB cable to the unit's USB port. The system will automatically launch Carplay or Android Auto, allowing access to navigation, music, messages, and other compatible apps directly on the car radio screen.

Image: Carplay and Android Auto functionality. This image displays the car radio screen showing the Carplay interface with various app icons like Phone, Music, Maps, and Messages. Below it, the Android Auto interface is shown, also with navigation, music, and communication apps. Both are indicated to connect via USB.

4.3 Күзгү шилтемеси (iOS/Android)

To mirror your smartphone screen, connect your device using its original USB cable. Ensure your phone's operating system is iOS 13.4 or higher, or Android 10.1 or higher. Follow the on-screen prompts to establish the connection. This feature allows your phone's display to be replicated on the autoradio screen.

Image: Mirror Link feature. This image shows the car radio displaying a mirrored smartphone screen, with separate sections indicating "For iOS" and "For Android" connections via USB. The mirrored content appears to be a navigation app or a general smartphone home screen.

4.4 Bluetooth функциясы

Pair your smartphone with the autoradio via Bluetooth for hands-free calling and wireless music playback.

1. Go to the Bluetooth menu on the autoradio.
2. Смартфонуңузда Bluetooth'ду иштетип, жеткиликтүү түзмөктөрдү издеңиз.
3. Select "Rimoody" or a similar device name from your phone's list and confirm pairing.
4. Туташкандан кийин, сиз чалууларды жасап/кабыл алып, зымсыз аудио агымын өткөрө аласыз.

Image: Vocal Function features. This composite image shows four distinct functions: Bluetooth connectivity with a phone pairing screen, FM Radio interface displaying frequency tuning, EQ Adjust with a graphic equalizer for sound customization, and Colorful Light options for changing button illumination colors.

4.5 FM радиосу

Access the FM Radio function from the main menu. You can scan for stations automatically, semi-automatically, or manually tune to a specific frequency. Save your favorite stations to the 18 available presets.

4.6 Аудио эквалайзер (EQ)

Adjust the audio output to your preference using the built-in equalizer. Select from preset EQ modes (e.g., Jazz, Classic, Rock, Pop) or customize individual frequency bands.

4.7 AUX/USB Media Playback

Connect external audio devices via the AUX input or USB storage devices (U disk, mobile hard drive) to the USB 2.0 port. The unit supports various audio and video formats. The USB port also provides high-current output for charging mobile phones.

4.8 Арткы камеранын дисплейи

If a compatible AHD rear camera is connected, the display will automatically switch to the camera view when the vehicle is put into reverse gear. This assists with safe parking and maneuvering.

Image: HD Reversing Camera and Steering Wheel Control (SWC). This image shows a car's rear view with parking guidelines overlaid on the screen, indicating the rear camera functionality. A steering wheel control remote is also depicted, highlighting its use for managing car radio functions.

4.9 Рулдун башкаруу каражаттары (SWC)

The unit supports connection to your vehicle's existing steering wheel controls. This allows you to manage functions like volume, track skipping, and mode selection without taking your hands off the steering wheel. Refer to the wiring diagram and your vehicle's manual for proper connection and configuration.

5. Техникалык тейлөө

• Экранды тазалоо: Сенсордук экранды тазалоо үчүн жумшак, мамыксыз чүпүрөктү колдонуңуз. Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонбоңуз.
• Жалпы тазалоо: Түзмөктүн сыртын жарнама менен сүртүңүзamp cloth. Avoid getting moisture into openings.
• Программалык камсыздоо жаңыртуулары: Өндүрүүчүнү текшериңиз website periodically for any available software or firmware updates to ensure optimal performance and compatibility.

6. Кыйынчылыктарды

7. Техникалык шарттар

8. Кепилдик маалыматы

This Rimoody product comes with a 2 жылдык өндүрүүчүнүн кепилдиги сатып алынган күндөн тартып. Бул кепилдик нормалдуу колдонуудагы материалдардагы жана жасалгадагы кемчиликтерди камтыйт. Бул туура эмес колдонуудан, кырсыктан, уруксатсыз өзгөртүүдөн же туура эмес орнотуудан келип чыккан зыянды камтыбайт.

Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.

9. Техникалык колдоо

For technical assistance, troubleshooting, or warranty inquiries, please contact Rimoody customer support. You can typically find contact information on the seller's page where you purchased the product or on the official Rimoody webсайт.

Refer to the "Sold by Rimoody US" or "Contact Seller" options on the product's purchase platform for direct support.

Image: Customer support guide. This image illustrates how to access 24/7 technical support by first locating the "Sold by Rimoody US" link on the product page and then clicking "Contact Seller" to ask a question.
