COFaR 5 Tier Metal Farmhouse Storage Cabinet Instruction Manual

Introduction

This manual provides instructions for the assembly, operation, and maintenance of your COFaR 5 Tier Metal Farmhouse Storage Cabinet. Please read all instructions carefully before assembly and use to ensure safe and proper functionality.

Image: The COFaR 5 Tier Metal Farmhouse Storage Cabinet, showcasing its design in a living room environment.

Коопсуздук маалыматы

ЭСКЕРТҮҮ: Бул коопсуздук нускамаларын аткарбоо жаракатка же буюмдун бузулушуна алып келиши мүмкүн.

• Always secure the cabinet to the wall using the provided anti-tip mechanism and appropriate hardware to prevent tipping.
• Do not attempt to move the cabinet when it is fully loaded. Empty the cabinet before relocating.
• Ensure all parts are correctly assembled and fasteners are tightened before use.
• Чогуу учурунда муунуп калуу коркунучун болтурбоо үчүн кичинекей бөлүктөрүн балдардан алыс кармаңыз.
• Do not overload shelves. Refer to the specifications for maximum weight capacity per shelf.

Image: Illustration demonstrating the importance of using the anti-tipping kit to secure the cabinet to a wall, preventing accidental falls.

Пакеттин мазмуну

Монтаждоону баштоодон мурун, төмөндө келтирилген компоненттердин бардыгы бар экенин жана бузулбаганын текшериңиз. Эгерде кандайдыр бир бөлүктөрү жок же бузулуп калса, кардарларды колдоо менен байланышыңыз.

• Шкаф панелдери (үстүңкү, астыңкы, капталдары, арткы бети)
• Сарай эшиктери (2)
• Жөнгө салынуучу текчелер (4)
• Tapered Legs (4)
• Golden Handles (2)
• Assembly Hardware (screws, bolts, shelf pins, anti-tip kit)
• Instruction Manual

Орнотуу жана чогултуу

Assembly typically requires two people and takes approximately 1 hour. A screwdriver is included in the hardware packet. Follow the included installation instructions carefully.

1. Компоненттерди таңгактан чыгаруу: Бардык бөлүктөрүн таңгактан этияттык менен алып салыңыз. Чийилип калбашы үчүн, аларды жумшак, таза бетке коюңуз.
2. Рамканы чогултуу: Attach the side panels to the bottom panel, then secure the top panel. Ensure all connections are tight.
3. Арткы панелдерди орнотуу: Slide or screw the back panels into place.
4. Буттарды бекитүү: Secure the tapered legs to the bottom of the cabinet. Adjust the leveling feet as needed to ensure stability on uneven surfaces.
5. Эшиктерди орнотуу: Attach the barn doors to the cabinet frame using the provided hinges. Ensure doors open and close smoothly.
6. Туткаларды бекитүү: Secure the golden handles to the barn doors.
7. Insert Shelf Pins: Place the shelf pins into the desired holes on the side panels for your adjustable shelves.
8. Текчелер: Carefully place the adjustable shelves onto the installed shelf pins.
9. Anti-Tip Kit менен коопсуздандырыңыз: Attach the anti-tip mechanism to the top rear of the cabinet and secure it to a wall stud using appropriate wall anchors. This step is crucial for safety.

Video: An official COFaR video demonstrating the assembly and features of the 71" Metal Cabinet in White.

Иштөө нускамалары

The COFaR storage cabinet is designed for versatile use across various rooms.

• Текчелерди жөндөө: The cabinet features 4 adjustable shelves. To adjust a shelf, remove all items from the shelf. Lift the shelf slightly, remove the shelf pins from their current holes, and reinsert them into the desired new holes. Carefully place the shelf back onto the pins, ensuring it is level and secure.
• Эшиктин иштөөсү: The barn doors are equipped with magnetic closures to keep them securely shut. Gently pull the golden handles to open the doors and push them firmly to close.
• Түздөө: The tapered legs include adjustable feet. If the cabinet wobbles, rotate the feet clockwise or counter-clockwise until the cabinet is stable and level.

Сүрөт: деталдуу view of the cabinet's adjustable tapered legs, golden handles, and the mechanism for adjusting shelf height.

Техникалык тейлөө

To ensure the longevity and appearance of your COFaR metal storage cabinet, follow these maintenance guidelines:

• Тазалоо: Wipe the cabinet surface with a soft, damp cloth. For stubborn marks, use a mild soap solution and dry immediately with a clean cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the special coating.
• Текшерүү: Мезгил-мезгили менен бардык бекиткичтерди жана байланыштарды текшерип туруңуз, алар бекем бойдон калууда. Керек болсо кайра тартыңыз.
• Эшик тегиздөө: If doors become misaligned, adjust the hinges as needed to restore proper closure.
• Экологиялык шарттар: While the cabinet features an anti-oxidation coating, avoid prolonged exposure to excessive moisture or direct sunlight to maintain its finish.

Image: An infographic detailing the 4-step craftsmanship process, including the high-quality stainless steel frame, anti-oxidation coating, powder coating, and oil-resistant coating, highlighting the cabinet's durability and ease of maintenance.

Проблемаларды чечүү

Техникалык шарттар

• Модел: Металл шкафы
• Өлчөмдөрү (D x W x Y): 15.75" x 31.5" x 70.86"
• Материал: Жогорку сапаттагы болот
• Түсү: Ак
• Текчелердин саны: 4 (жөндөлүүчү)
• Жалпы Салмагы: 600 Pounds (approximate, distributed evenly)
• Weight per Shelf: 120 Pounds (maximum)
• Өзгөчөлүктөрү: 2 Barn Doors, Golden Handles, Tapered Legs with Adjustable Feet, Anti-Tip Mechanism, 4-Layer Coating (Anti-Oxidation, Powder, Oil-Resistant)
• Ассамблея талап кылынат: Ооба

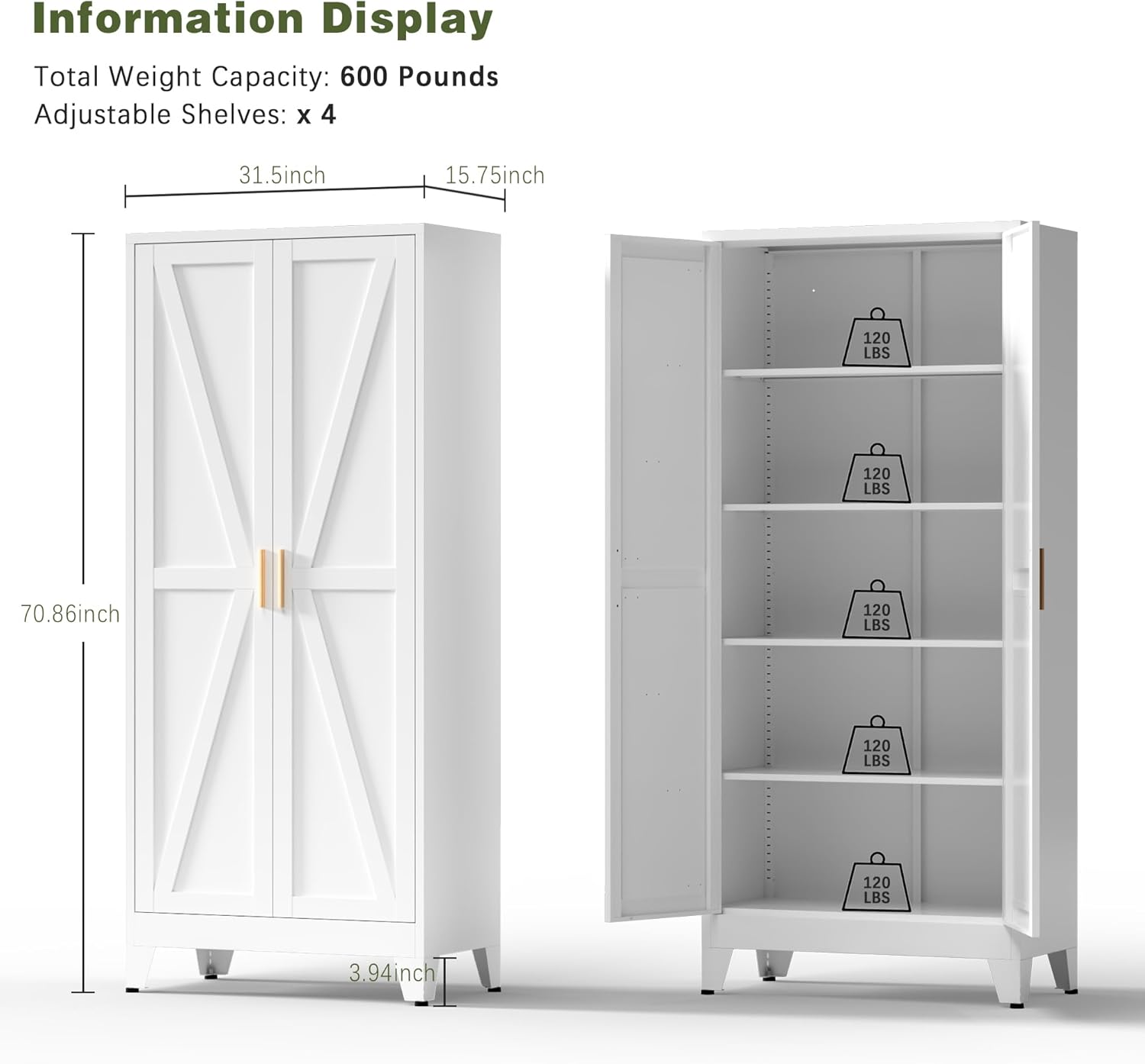

Image: A diagram illustrating the precise dimensions (height, width, depth) and the weight capacity per shelf (120 lbs) and total weight capacity (600 lbs) of the cabinet.

Кепилдик жана колдоо

COFaR products are crafted with quality and durability in mind. For specific warranty details, please refer to the documentation included with your purchase or contact COFaR customer support directly. The package includes installation instructions and online service support to ensure you can complete the assembly and resolve any issues with ease.

For assistance, please visit the official COFaR store or contact their customer service department.
