VEVOR 5-Step Outdoor Stair Handrail

Introduction

This manual provides comprehensive instructions for the safe and proper installation, operation, and maintenance of your VEVOR 5-Step Outdoor Stair Handrail. Please read this manual thoroughly before installation and retain it for future reference. This handrail is designed to provide stable support for outdoor steps, enhancing safety and accessibility.

Коопсуздук нускамалары

• Орнотуу учурунда ар дайым тиешелүү жеке коргонуу шаймандарын (ЖКК) кийиңиз, анын ичинде коргоочу көз айнек жана кол каптар.
• Ensure the installation surface is solid and capable of supporting the handrail's weight and intended load.
• Чогултууну баштоодон мурун, бардык компоненттердин бар экендигин жана бузулбагандыгын текшериңиз.
• Do not overtighten screws or bolts, as this may strip threads or damage components.
• Regularly inspect the handrail for any signs of wear, damage, or loose fasteners.
• Consult local building codes and regulations for handrail installation requirements in your area.

Пакеттин мазмуну

The VEVOR 5-Step Outdoor Stair Handrail kit includes the following components:

• 1 x Stair Handrail (Main assembly)
• Installation Hardware (Screws, nuts, expansion bolts, metal anchors)
• User Manual

Image: All components included in the VEVOR 5-Step Outdoor Stair Handrail kit, laid out for inspection.

Техникалык шарттар

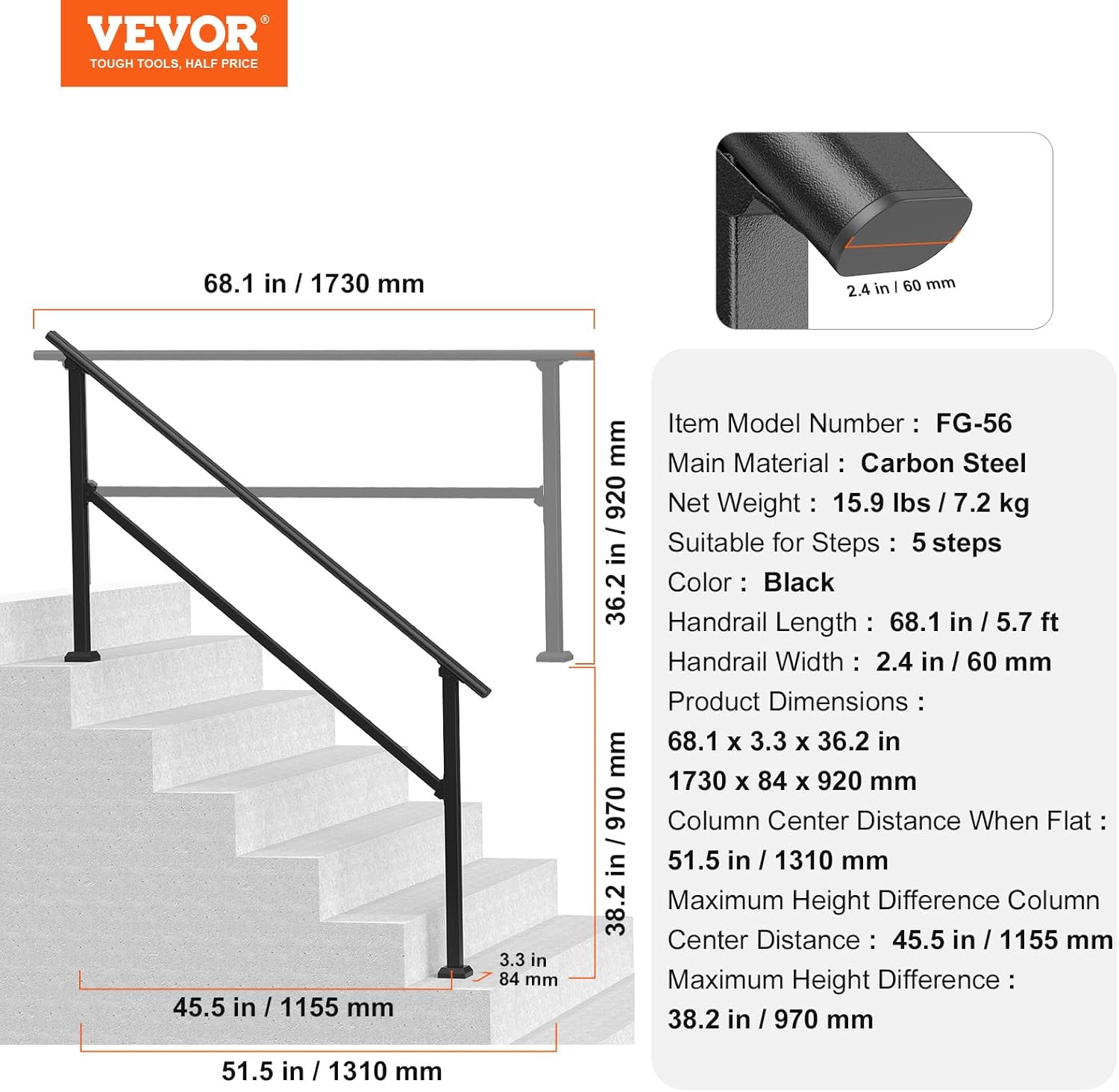

Image: Technical drawing showing the dimensions and key specifications of the VEVOR 5-Step Outdoor Stair Handrail.

Орнотуу боюнча колдонмо

Follow these steps for proper installation of your VEVOR 5-Step Outdoor Stair Handrail.

Step 1: Measure and Select the Correct Handrail Size

Before installation, accurately measure the distance from the edge of your top landing to the edge of the first step. Round this measurement up to the nearest foot to determine the appropriate handrail size. Ensure there is enough clear space for the entire railing system without obstructions like walls or doors.

Video: This video demonstrates how to measure your stairs to select the correct handrail size, considering various step configurations and potential obstructions.

Video: A guide on how to accurately measure for your handrail to ensure a perfect fit.

Step 2: Assemble the Handrail Components

Begin by attaching the brackets to the handrail posts. Ensure the base plate covers are slid over the posts before securing the brackets. The upper post has lower bracket positions, and vice-versa.

Video: This video provides a step-by-step guide on how to install the handrails for outdoor steps, covering assembly and mounting.

Сүрөт: Жакын план view of the handrail posts and brackets, illustrating the assembly process.

Step 3: Position and Mark Holes

Once loosely assembled, position the entire handrail system on your stairs. Mark the positions for drilling, ensuring the posts are at least 1.5 inches from the edges of the steps.

Image: A handrail post positioned on a step, with a pencil marking the drill hole locations.

Step 4: Drill Holes and Install Anchors

For concrete flooring, drill holes at least 3.25 inches deep. For wood flooring, pre-drill smaller pilot holes. Insert the appropriate anchors (expansion bolts for concrete, lag screws for wood) into the drilled holes.

Image: Illustration of drilling holes and inserting anchors into a concrete surface for handrail installation.

Step 5: Secure the Base Plate and Tighten

Secure the base plate with washers and nuts (for concrete) or lag screws (for wood). Once the railing is in place and the angle is adjusted, use the self-drilling screws to lock the metal into the brackets and tighten all fasteners.

Image: A handrail base plate being secured to a step with fasteners.

Иштөө нускамалары

The VEVOR 5-Step Outdoor Stair Handrail is designed to provide stable support for individuals using outdoor steps.

• Always maintain a firm grip on the handrail when ascending or descending stairs.
• Ensure the handrail is free from ice, snow, or debris to prevent slips.
• Do not use the handrail for purposes other than its intended use (e.g., hanging heavy objects).

Image: A person demonstrating safe use of the VEVOR 5-Step Outdoor Stair Handrail on outdoor steps.

Техникалык тейлөө

Regular maintenance will ensure the longevity and safety of your handrail.

• Тазалоо: Clean the handrail periodically with a mild soap and water solution. Avoid abrasive cleaners that could damage the powder-coated finish.
• Текшерүү: Annually inspect all fasteners (screws, nuts, bolts) to ensure they are tight. Check for any signs of rust, corrosion, or structural damage. Address any issues promptly.
• Ремонттор: If any part of the handrail becomes damaged, contact VEVOR customer support for replacement parts or professional repair advice.

Проблемаларды чечүү

Issue: Handrail feels loose after installation.

Чечим: Re-check all fasteners. Ensure all screws, nuts, and expansion bolts are tightened securely. If installed on wood, ensure lag screws are fully engaged. If the issue persists, the mounting surface may not be adequate.

Issue: Rust or corrosion appears on the handrail.

Чечим: The handrail has a powder-coated finish for rust resistance. If rust appears, clean the affected area thoroughly, sand lightly to remove rust, and apply a rust-inhibiting primer followed by an outdoor-grade paint matching the original finish.

Issue: Handrail does not align correctly with steps.

Чечим: The handrail features an adjustable angle (30 to 40 degrees). Loosen the adjustment screws, reposition the handrail to match the stair angle, and then re-tighten the screws. Ensure the correct handrail size was selected based on initial measurements.

Кепилдик жана колдоо

VEVOR products come with a standard warranty. For specific warranty details, product support, or to order replacement parts, please visit the official VEVOR webсайтка же кардарларды тейлөөгө кайрылыңыз.

Өндүрүүчүнүн Байланыш маалыматы: VEVOR

Webсайт: www.vevor.com
