Zorki-1 Rangefinder Камера Колдонуучунун колдонмосу

Introduction

The Zorki-1 is a Soviet-era rangefinder camera, produced by the Krasnogorsk Mechanical Plant (KMZ) between 1948 and 1956. This manual provides essential information for the operation and maintenance of your Zorki-1 camera, specifically models manufactured approximately between 1949 and 1950. It is designed for use with 35mm film and features an M39×1 threaded lens connection.

Сүрөт 1: Алдыңкы view of the Zorki-1 camera with the Industar-22 lens and an attached shutter release cable.

Жайгашуу

1. Объективди бекитүү

The Zorki-1 uses an M39×1 threaded lens connection. To attach the lens, align the threads of the lens with the camera body's lens mount. Gently screw the lens clockwise until it is securely fastened. Do not overtighten.

Figure 2: Zorki-1 camera body with the lens detached, illustrating the M39 lens mount.

2. Loading 35mm Film

1. Ensure the camera is in a dimly lit area or under a changing bag to prevent film exposure.
2. Remove the bottom plate of the camera by rotating the locking key (if present) or unscrewing the retaining knobs.

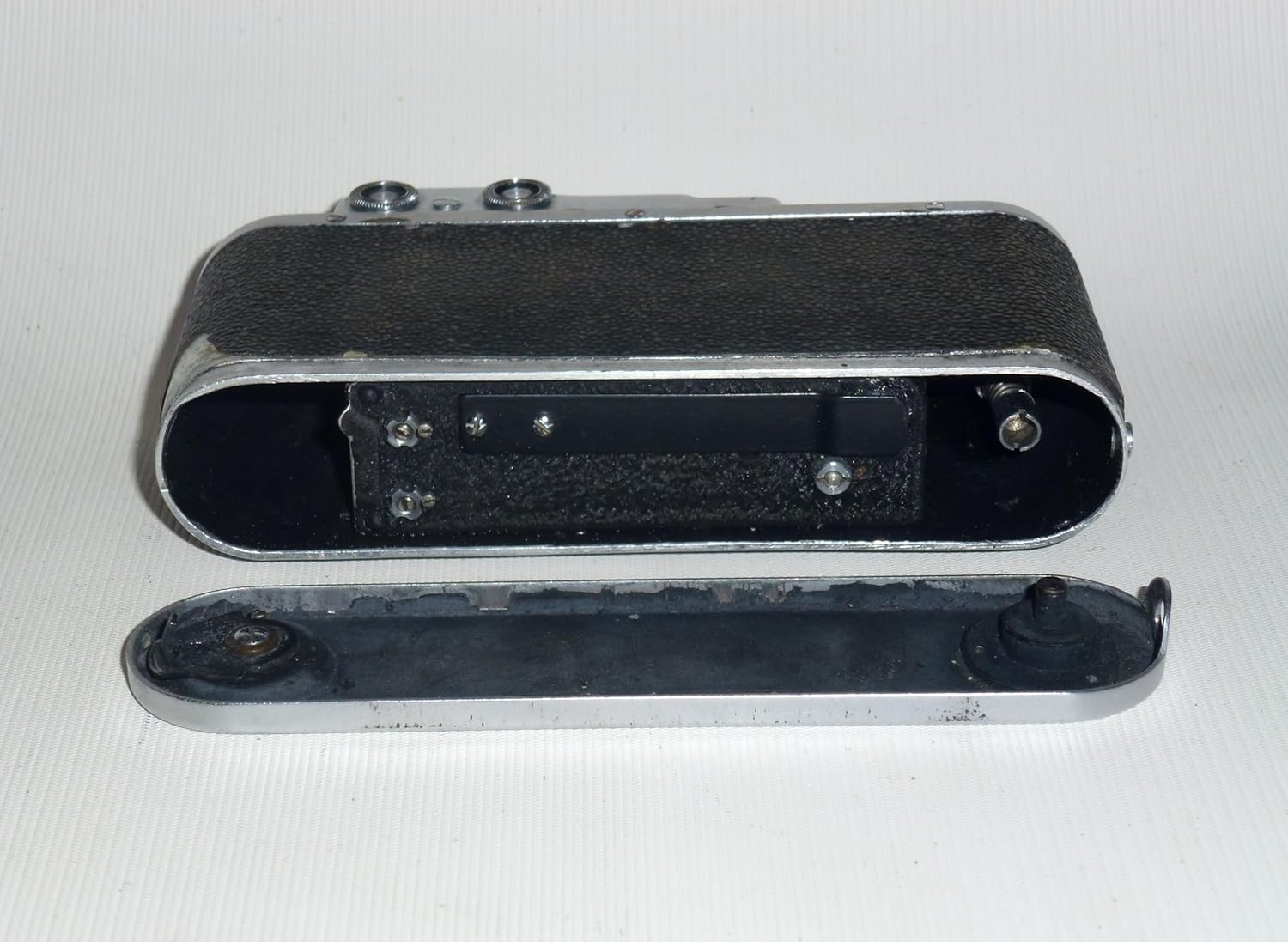

Figure 3: Zorki-1 camera with the bottom plate removed, showing the film chamber.
3. Insert the 35mm film cassette into the left chamber of the camera.
4. Pull out the film leader and insert it into the take-up spool on the right side. Ensure the film perforations engage with the sprockets.
5. Advance the film by turning the film advance knob a few times to ensure it is properly spooled.
6. Replace the bottom plate and secure it.
7. Advance the film two frames (dry shots) to bring fresh film into position for the first exposure.

3. Attaching the Shutter Release Cable

If using an external shutter release cable, screw its threaded end into the shutter release button on the camera's top plate. This allows for smoother shutter release, reducing camera shake, especially during longer exposures.

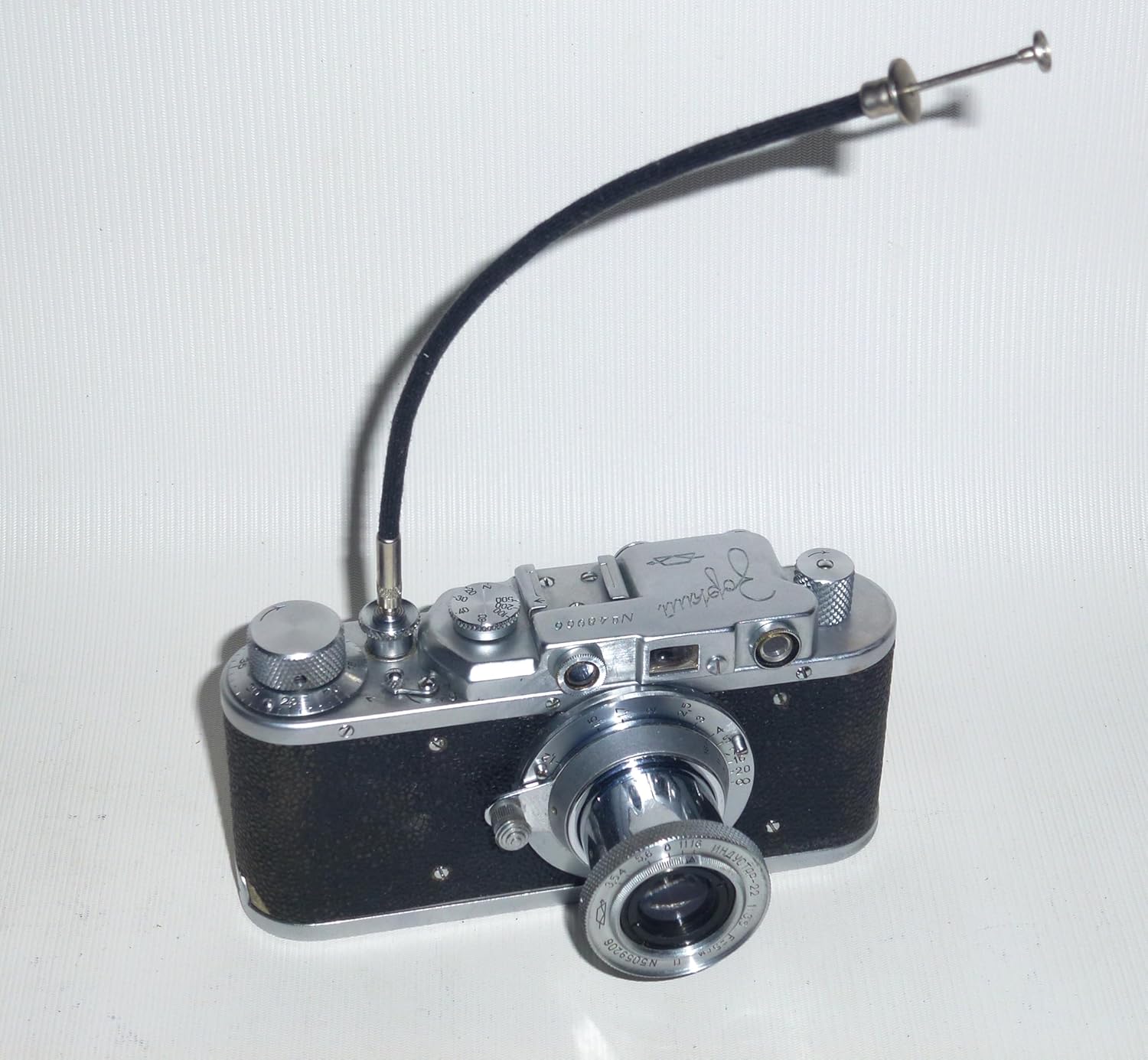

Figure 4: Zorki-1 camera with an attached shutter release cable.

Камераны иштетүү

1. Жапкычтын ылдамдыгын орнотуу

The Zorki-1 offers shutter speeds from 1/500 seconds down to 'B' (Bulb). The shutter speed dial is located on the top plate of the camera. To set the shutter speed, lift and rotate the dial to align the desired speed with the index mark. Маанилүү: Always set the shutter speed кийин winding the shutter. Changing the shutter speed before winding can damage the mechanism.

5-сүрөт: Жогорку view of the Zorki-1, highlighting the shutter speed dial.

2. Setting Aperture (f-stop)

The Industar-22 lens has an aperture range of f/3.5 to f/16. The aperture ring is located on the front of the lens barrel. Rotate the ring to select the desired f-stop. A smaller f-number (e.g., f/3.5) indicates a wider aperture and shallower depth of field, while a larger f-number (e.g., f/16) indicates a narrower aperture and greater depth of field.

3. Focusing with the Rangefinder

The Zorki-1 is a rangefinder camera. To focus:

1. Look through the rangefinder eyepiece (the smaller window next to the viewтапкыч).
2. You will see two images, one superimposed over the other.
3. Rotate the focusing ring on the lens until the two images in the rangefinder patch merge into a single, clear image. At this point, your subject is in focus.

4. Taking a Photograph

1. Wind the film advance knob clockwise until it stops. This also cocks the shutter.
2. Set your desired shutter speed and aperture.
3. Frame your shot using the main viewтапкыч.
4. Focus on your subject using the rangefinder.
5. Gently press the shutter release button to take the photograph.

5. Rewinding the Film

Once all exposures on the film roll have been made:

1. Locate the film rewind release button (usually on the top plate, near the shutter release). Press and hold this button.
2. Rotate the film rewind knob (on the left side of the top plate) clockwise until you feel the tension release, indicating the film is fully rewound into its cassette.
3. Remove the bottom plate and carefully extract the film cassette.

Техникалык тейлөө

Proper care will ensure the longevity and optimal performance of your Zorki-1 camera.

• Линзаны тазалоо: Use a soft, lint-free microfiber cloth and a specialized lens cleaning solution. Gently wipe the lens surfaces in a circular motion. Avoid touching the lens with bare fingers. Ensure the lens is free of dust, scratches, and fungus.
• Камеранын корпусун тазалоо: Камеранын корпусун жумшак, кургак чүпүрөк менен сүртүңүз. өжөр кир үчүн, бир аз гamp cloth can be used, but avoid excessive moisture, especially around controls and openings.
• Сактагыч: Store the camera in a cool, dry place, away from direct sunlight and extreme temperatures. Use a desiccant packet if storing in humid environments.
• Колдонуу: Handle the camera with care. Avoid dropping it or subjecting it to strong impacts. Note that older models may show signs of wear, such as chips on the body covering, as seen in Figures 6 and 7.

6-сүрөт: Мисample of a chip on the camera body covering.

7-сүрөт: Башка view of a chip on the camera body.

Проблемаларды чечүү

• Жалюзи иштебей жатат: Ensure the film advance knob has been fully wound. The shutter must be cocked before it can be released.
• Тасма өнүкпөй жатат: Check that the film leader is properly engaged with the take-up spool and the sprockets. Ensure the bottom plate is securely fastened.
• Фокусталган маселелер: If the rangefinder images do not merge, ensure the lens is securely attached and that the focusing mechanism is operating smoothly. Clean the rangefinder windows if they appear dirty.
• Жарык агып чыгуулары: Inspect the camera body for any cracks or gaps, especially around the film door and bottom plate. Light seals may need replacement on older cameras.

Техникалык шарттар

Кепилдик жана колдоо

Шарап катарыtage photographic instrument, the Zorki-1 camera typically does not come with a manufacturer's warranty. For any operational issues or technical inquiries, it is recommended to consult with vintage camera repair specialists or online communities dedicated to classic film cameras. Information regarding specific repair services or parts availability may vary.
