GGM Gastro BTAMV Bakery Dough Rounder Instruction Manual

1. Киришүү

This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your GGM Gastro BTAMV Bakery Dough Rounder. Please read this manual thoroughly before operating the appliance and keep it for future reference. This machine is designed for rounding pizza and bread dough, capable of processing up to 3,000 pieces per hour.

2. Коопсуздук нускамалары

Маанилүү: Өрт, электр шок жана жаракат алуу коркунучун азайтуу үчүн электр шаймандарын колдонууда ар дайым негизги коопсуздук чараларын сактаңыз.

• Ensure the appliance is connected to a properly grounded electrical outlet with the specified voltage (380 V/3N/PE/50 Hz).
• Машинаны нымдуу кол менен же нымдуу шарттарда иштетпеңиз.
• Иштеп жатканда колдоруңузду, чачыңызды жана кенен кийимдериңизди кыймылдуу бөлүктөрдөн алыс кармаңыз.
• Always switch off and unplug the machine before cleaning, maintenance, or if it is not in use.
• Do not attempt to repair the machine yourself. Contact qualified service personnel for repairs.
• This appliance is designed for commercial use. Ensure all operators are trained in its safe use.
• The machine complies with CE marking directives and European food standards for hygiene and safety.

2.1-сүрөт: Main Power Switch. Always ensure the machine is switched off using this switch before any maintenance or cleaning.

3. Орнотуу жана орнотуу

3.1 Пакеттен чыгаруу

Carefully remove the dough rounder from its packaging. Inspect the machine for any signs of damage during transit. Report any damage to your supplier immediately.

3.2 Позициялоо

The GGM Gastro BTAMV is equipped with practical rollers for easy positioning. Place the machine on a stable, level surface in a well-ventilated area. Ensure there is sufficient space around the machine for safe operation and maintenance.

3.1-сүрөт: Dough Rounder in folded position. This compact configuration is ideal for transport or when the machine is not in use.

3.2-сүрөт: Dough Rounder in operational position. The machine is unfolded and ready for use, displaying its full length and components.

3.3 Электрдик туташуу

Connect the machine to a dedicated 380 V/3N/PE/50 Hz power supply. Ensure the electrical installation meets local regulations and safety standards. The machine has a powerful 1.10 kW motor.

4. Иштөө нускамалары

4.1 Операцияга чейинки текшерүүлөр

• Ensure the machine is clean and free from debris.
• Бардык коопсуздук коргоочуларынын ордунда экенин текшериңиз.
• Confirm the power cable is securely connected.

4.2 Күйгүзүү

Turn the main power switch (refer to Figure 2.1) to the 'ON' position. The control panel lights should illuminate.

4.1-сүрөт: Control Panel. Features include start/stop buttons and a dial for adjusting conveyor belt speed.

4.3 Dough Preparation

The machine is designed for dough with a water content of up to 80%. Prepare your dough in batches suitable for the machine's capacity.

4.4 Adjusting Dough Thickness and Speed

• Dough Thickness: The dough thickness can be easily regulated using the adjustment mechanism located near the rollers. Turn the handwheel (visible in Figure 4.1) to adjust the gap between the rollers.
• Конвейердин ылдамдыгы: Use the speed adjustment dial on the control panel (Figure 4.1) to set the desired speed for the conveyor belt. The height of the conveyor belt is also adjustable.

4.2-сүрөт: Dough Rounding Mechanism. This shows the rollers responsible for shaping the dough.

4.5 Иштетүү

1. Place a portion of prepared dough onto the input end of the conveyor belt.
2. The machine will automatically feed the dough through the rollers, shaping it into a round form.
3. The machine can process dough pieces weighing approximately 100 g to 2,000 g.
4. The maximum capacity is up to 3,000 pieces per hour, depending on dough consistency and desired size.

4.6 Өчүрүү

When finished, press the red 'STOP' button on the control panel, then turn the main power switch to the 'OFF' position and unplug the machine from the power supply.

5. Техникалык тейлөө жана тазалоо

Regular cleaning and maintenance are crucial for the longevity and hygienic operation of your dough rounder.

• Күнүмдүк тазалоо: After each use, switch off and unplug the machine. Use a damp cloth and mild detergent to clean all surfaces, especially those that come into contact with dough. The body is made of high-quality stainless steel for easy cleaning.
• Integrated Leak Protection: The machine features integrated leak protection. Regularly inspect for any signs of leaks and address them promptly.
• Текшерүү: Periodically check all moving parts, belts, and electrical connections for wear or damage.
• Do not use abrasive cleaners or harsh chemicals that could damage the stainless steel or other components.
• Ensure all parts are dry before re-connecting to power.

6. Кыйынчылыктарды

If you encounter issues with your GGM Gastro BTAMV dough rounder, refer to the following common problems and solutions:

• Машина күйбөйт:
  Мүмкүн болгон себеп: Power cable not connected, main switch off, or power outage.
  Чечим: Check power connection, ensure main switch is ON, verify power supply.
• Dough not rounding correctly:
  Мүмкүн болгон себеп: Incorrect dough consistency (too wet/dry), incorrect roller gap, or conveyor belt speed.
  Чечим: Adjust dough water content, adjust dough thickness setting, or modify conveyor belt speed.
• Иш учурунда адаттан тыш ызы-чуу:
  Мүмкүн болгон себеп: Foreign object, worn part, or motor issue.
  Чечим: Immediately switch off and unplug the machine. Inspect for foreign objects. If noise persists, contact service personnel.

For problems not listed here, or if solutions do not resolve the issue, contact GGM Gastro customer support or a qualified technician.

7. Техникалык шарттар

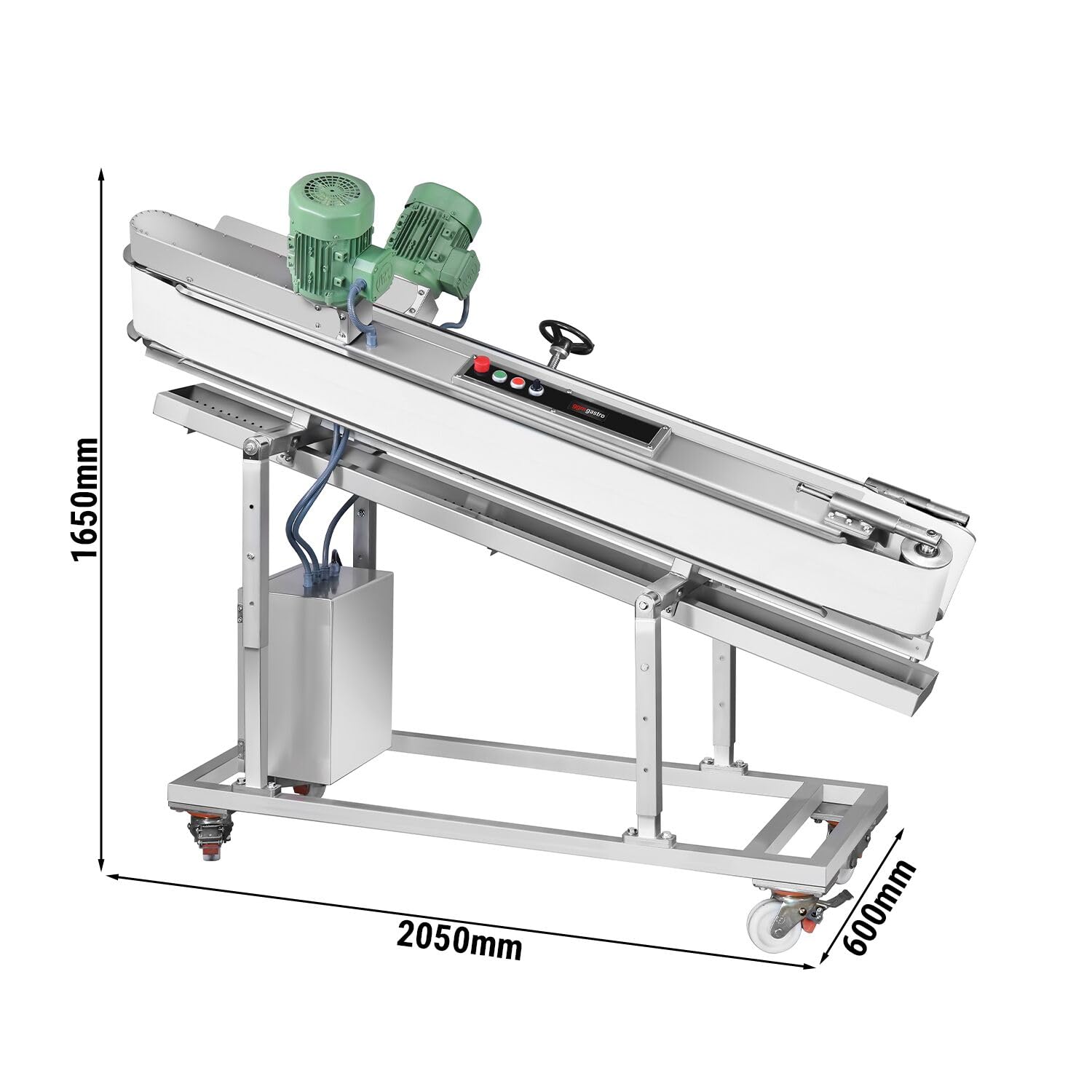

7.1-сүрөт: Product Dimensions. The diagram illustrates the overall length, width, and height of the machine.

8. Кепилдик жана колдоо

For warranty information, please refer to the terms and conditions provided at the time of purchase or contact your GGM Gastro dealer. For technical support, spare parts, or service inquiries, please contact GGM Gastro customer service or your authorized service provider. Always provide the model number (BTAMV) and serial number (if applicable) when contacting support.
