Dasan Dual Rain Shower System (Model DA-SS306S12C-BG) Instruction Manual

1. Продукт бүтүп калдыview

The Dasan Dual Rain Shower System provides a versatile showering experience with its combination of a ceiling-mounted rainfall showerhead, a wall-mounted showerhead, and a handheld shower. This system is designed for durability and ease of use, featuring a Brushed Gold finish.

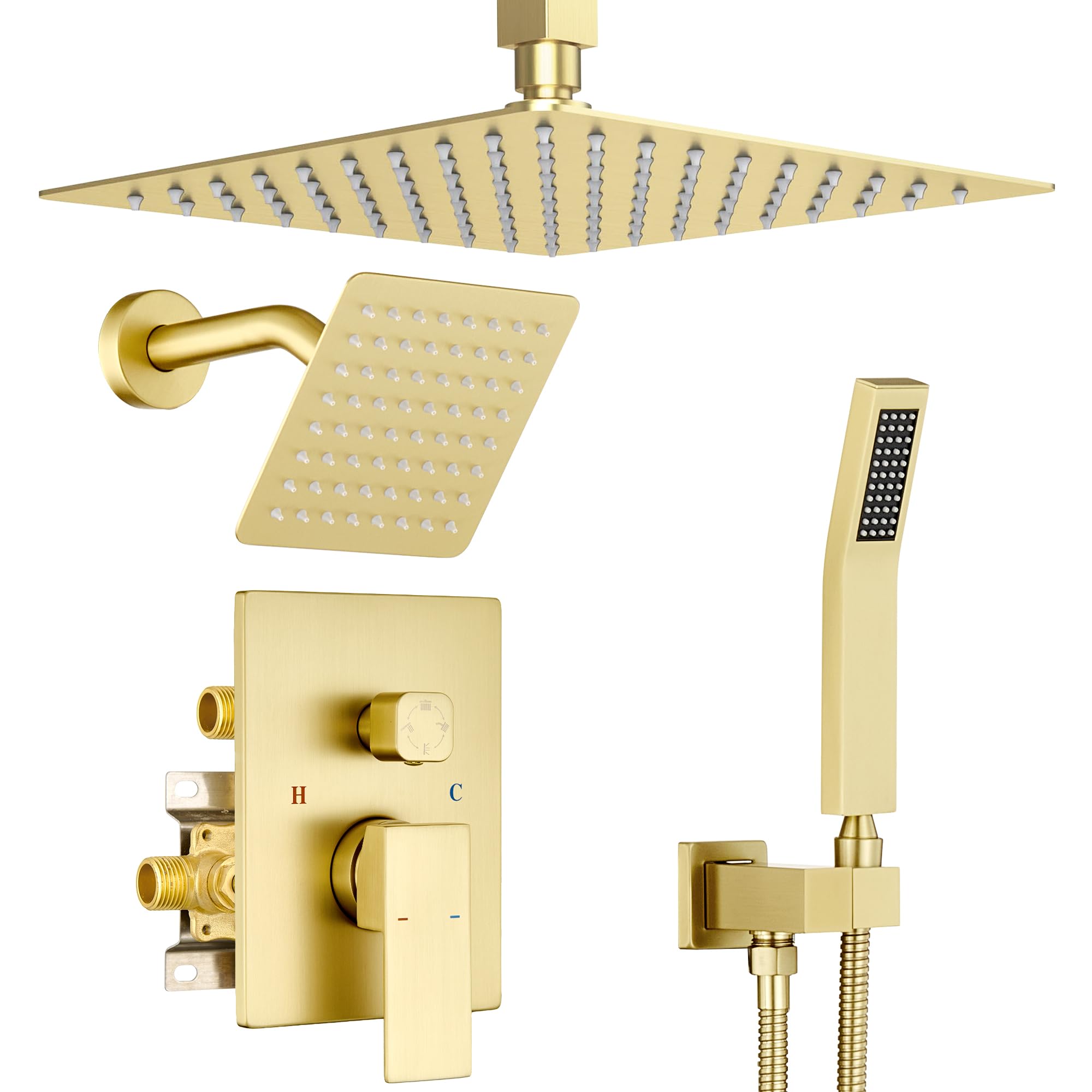

Image 1.1: Complete Dasan Dual Rain Shower System in Brushed Gold.

Негизги өзгөчөлүктөрү:

• Luxurious Dual Shower Heads: Includes a 12-inch overhead rainfall showerhead and a 6-inch wall-mounted showerhead, both offering 360° adjustability.
• High-Pressure Rain Shower Experience: Ultra-thin design ensures powerful rainfall even in low-pressure conditions. Air-injection technology provides a fuller, softer spray while conserving water.
• Versatile Handheld Shower: Features a 59-inch metal hose for easy cleaning of hard-to-reach areas and bathing children or pets. Silicone nozzles allow for effortless mineral deposit removal.
• Burn-Proof Water Hammer Prevention: An advanced pressure-balancing cartridge prevents sudden temperature changes and eliminates water hammer noise.
• Premium Craftsmanship & Easy Maintenance: Electroplated surface and glazed finish resist fingerprints and water stains, ensuring long-term aesthetic appeal.

Image 1.2: Visual representation of the 3-in-1 shower system components.

Image 1.3: Illustration of Air + H2O Mixed Pressurization for water saving.

2. Компоненттердин тизмеси

The Dasan Dual Rain Shower System includes the following components:

• 12-inch Shower Head
• 6-inch Shower Head
• Кол душ
• 59-inch Hose
• Shower Valve & Trim Kit

3. Орнотуу жана орнотуу

Professional installation is recommended for this shower system to ensure proper function and adherence to local plumbing codes. The system includes a pressure balancing rough-in valve for safe operation.

Image 3.1: The included pressure balancing rough-in valve with 1/2 inch NPT connector, cUPC certification, and water hammer prevention features.

The 40mm large size pressure balance cartridge controls temperature fluctuations, protecting against scalding and cold shocks. Built-in flow restrictors allow manual regulation of water pressure supply.

4. Иштөө нускамалары

Суунун температурасын тууралоо:

Use the main handle on the valve to adjust water temperature. Turn the handle left for hot water and right for cold water. The pressure-balancing cartridge will maintain a consistent temperature.

Switching Shower Modes:

The system allows switching between the 12-inch rainfall shower, 6-inch wall-mounted shower, and handheld spray using the knob on the valve. The markings on the knob indicate the active mode. This operation is designed to be simple and adjustable even in wet conditions.

Image 4.1: Shower valve demonstrating mode selection for 12-inch rain shower, 6-inch tilted rainfall, and handheld shower.

Using the Handheld Shower:

The handheld shower provides targeted water flow. It features an angle-adjustable design for user convenience and a 59-inch hose for extended reach.

Image 4.2: High pressure handheld shower with adjustable holder and metal construction.

Image 4.3: The 6-inch wall-mounted shower head, demonstrating its tilt and 360° angle adjustment capabilities.

5. Техникалык тейлөө

Cleaning the Shower Heads and Handheld:

The showerheads and handheld unit are equipped with silicone nozzles. To remove mineral deposits and maintain optimal spray performance, simply rub the nozzles with your finger or a soft cloth.

Caring for the Finish:

The electroplated and glazed Brushed Gold finish is designed to resist fingerprints and water stains. Clean the surfaces with a soft, damp кездеме жана жумшак самын. Абразивдүү тазалоочу каражаттардан, катуу химиялык заттардан же кыргыч губкалардан алыс болуңуз, анткени алар бетине зыян келтириши мүмкүн.

6. Кыйынчылыктарды

Төмөн суунун басымы:

If you experience low water pressure, ensure that the main water supply valve is fully open. Check for any blockages in the showerheads or handheld nozzles, and clean them as described in the Maintenance section. If the issue persists, consult a qualified plumber.

Water Temperature Fluctuations:

The integrated pressure-balancing cartridge is designed to prevent sudden temperature changes. If you experience significant fluctuations, ensure that the hot and cold water supply lines are correctly connected and that there are no issues with your home's water heater or pressure system. If problems continue, professional assistance may be required.

Water Hammer Noise:

The system includes a built-in check valve to eliminate water hammer noise. If you hear banging or knocking sounds in your pipes, it may indicate an issue with your plumbing system's air chambers or water pressure. Consult a plumber to diagnose and resolve water hammer issues.

7. Техникалык шарттар

8. Кепилдик жана колдоо

Өндүрүүчүнүн Кепилдиги:

The Dasan Dual Rain Shower System comes with a 10-Year Limited Warranty for residential use and a 5-Year Limited Warranty for commercial use. Please retain your proof of purchase for warranty claims.

Кардарларды колдоо:

For further assistance, technical support, or warranty inquiries, please visit the official Dasan Store or contact customer service through the retailer where the product was purchased.

зыярат кылыңыз Dasan Store көбүрөөк маалымат алуу үчүн.
