Introduction
Welcome to the Hidoes C8 Electric Bike user manual. This guide provides essential information for the safe operation, maintenance, and troubleshooting of your new electric bicycle. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.
Коопсуздук маалыматы
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to all local traffic laws and regulations. Perform pre-ride checks, including brake function, tire pressure, and battery charge, before each use.
- Тормоздоо: The C8 is equipped with dual front and rear disc brakes. Familiarize yourself with their operation and practice braking in a safe area.
- Шиналар: Ensure tires are properly inflated to the recommended pressure. The 20 x 4 inch fat tires provide enhanced stability and traction, but proper inflation is crucial for safety and performance.
- Көрүнүш: Use lights and reflective gear, especially when riding in low-light conditions.
- Салмак чеги: 330 фунттан (150 кг) ашпаңыз.
Продукт бүттүview
The Hidoes C8 Electric Bike features a robust design with powerful components for a versatile riding experience.
1-сүрөт: Жалпысынан view of the Hidoes C8 Electric Bike, showcasing its yellow frame, fat tires, and classic design.

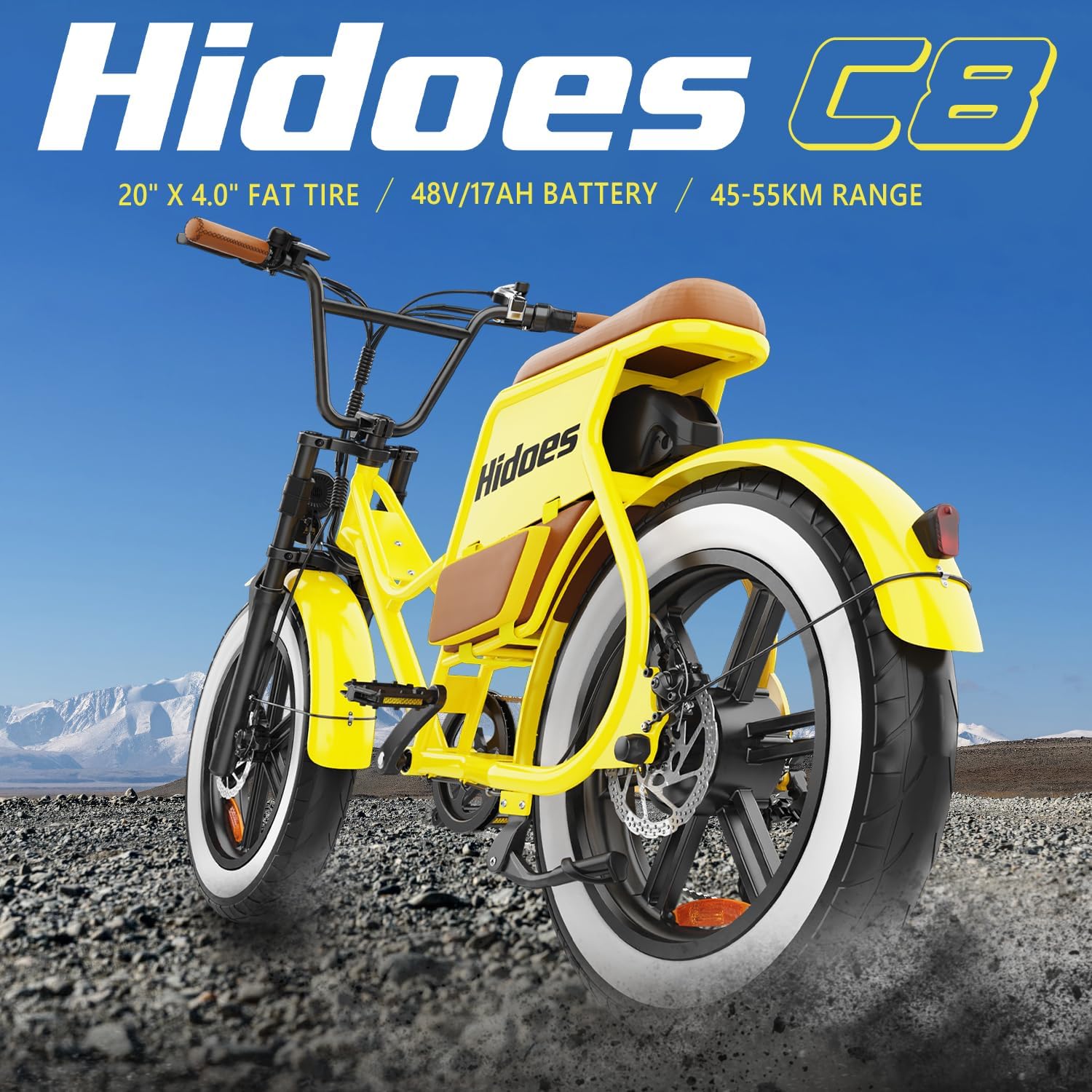

Figure 2: The Hidoes C8 highlighting its 20-inch fat tires and the 48V/17Ah battery, capable of 45-55km range.
3-сүрөт: Детальдуу view of the 750W integrated wheel motor, illustrating its power and climbing angle capabilities.
Figure 4: The removable 48V 17Ah battery with its integrated lock mechanism, ensuring security and ease of charging.

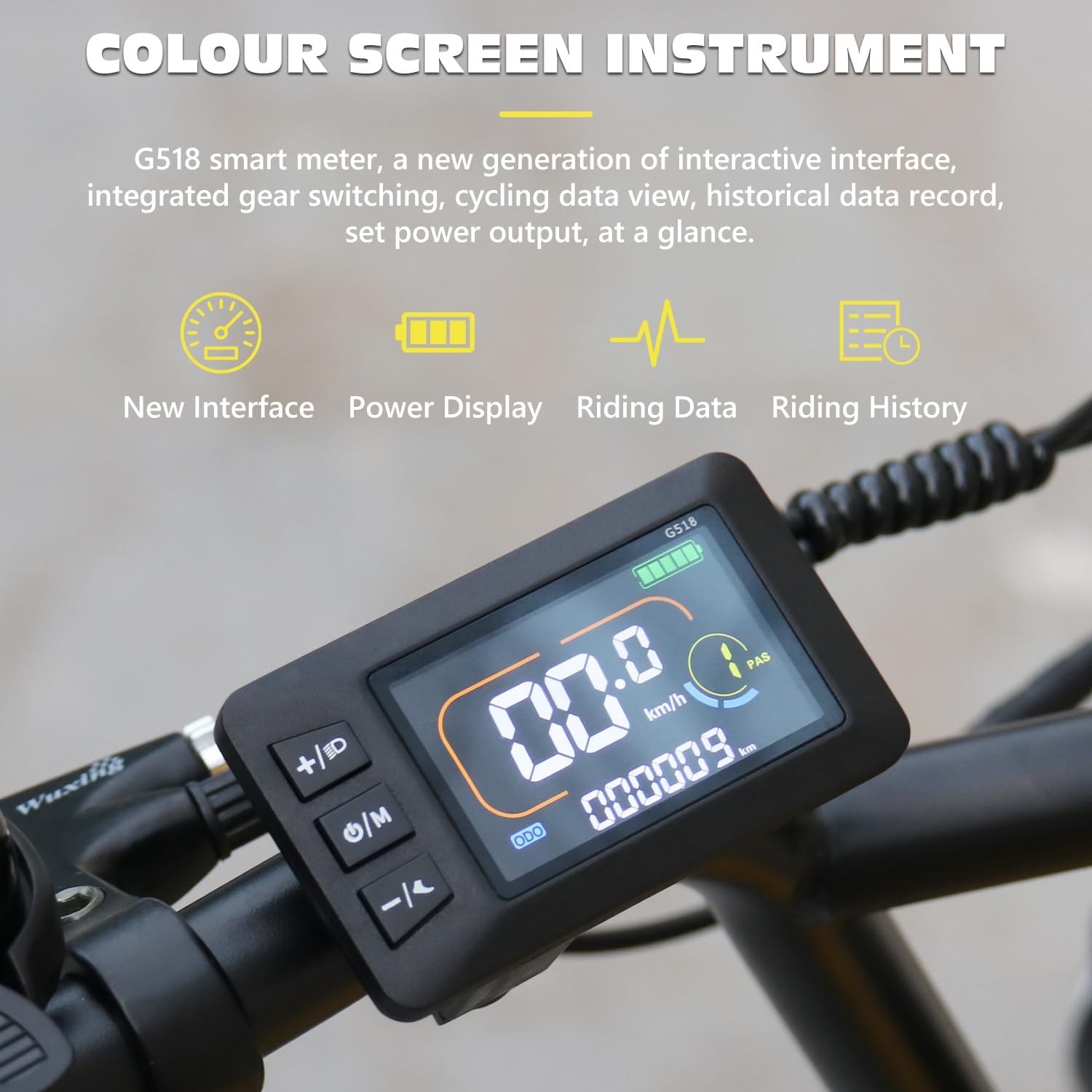

Figure 5: The G518 smart meter (LCD display) showing speed, mileage, battery level, and riding data.

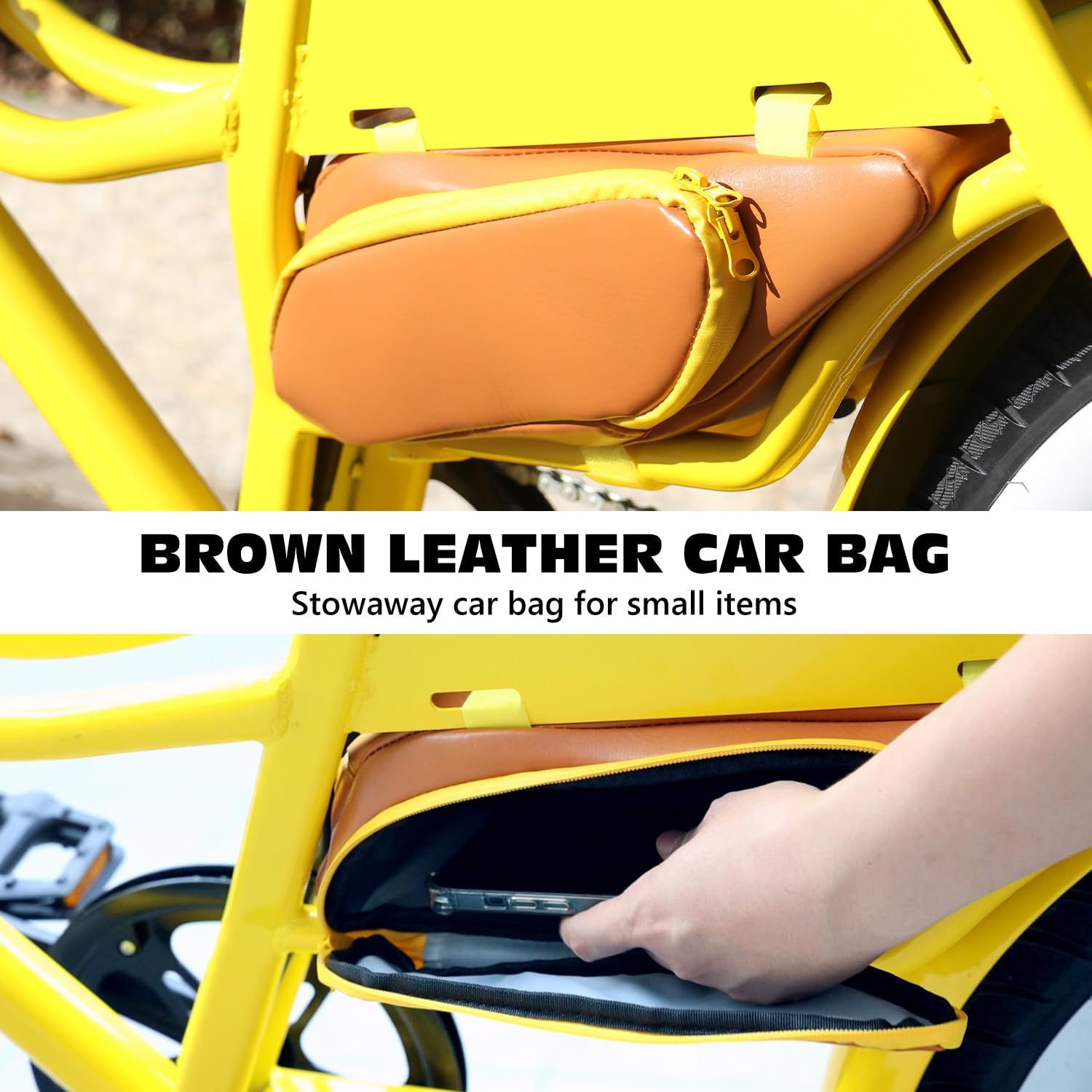

Figure 6: The integrated brown leather car bag, providing convenient storage for small items.

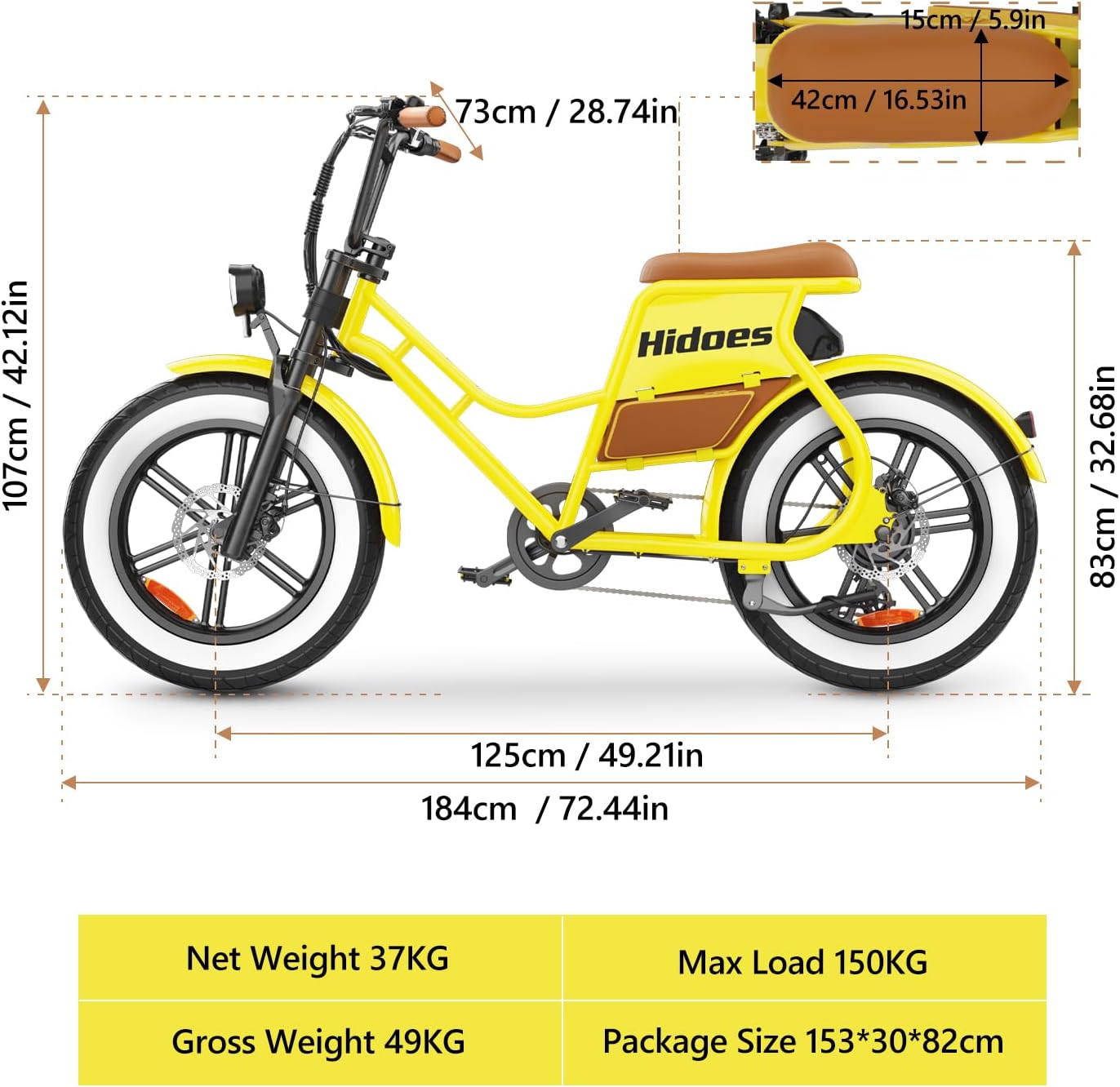

7-сүрөт: Өлчөмдүүview of the Hidoes C8 Electric Bike, including net weight and maximum load capacity.
Жайгашуу
The Hidoes C8 Electric Bike arrives approximately 85% assembled. Detailed instructions and necessary installation tools are included in the package to assist you with the final assembly steps. Please follow the provided assembly guide carefully to ensure all components are securely attached before your first ride.
- Бардык компоненттерди таңгактан чыгарып, таңгактоо тизмесинен текшериңиз.
- Attach the front wheel, handlebars, pedals, and seat post as per the assembly instructions.
- Ensure all bolts and quick releases are tightened to the recommended torque specifications.
- Баштапкы колдонуудан мурун батареяны толук заряддаңыз.
Иштөө нускамалары
The Hidoes C8 offers three distinct riding modes to suit various preferences and terrains:
- Таза электр режими: Engage the throttle for motor-only propulsion.
- Педаль менен жардам берүү режими (PAS): The motor provides assistance as you pedal, with adjustable levels of assistance. This mode offers the longest range.
- Велосипед режими: Ride as a traditional bicycle without any motor assistance.
The bike features a Shimano 7-speed transmission system, allowing you to adjust gears for different inclines and speeds. The factory speed limit is 28 MPH (45 km/h), though actual speed may vary based on rider weight and road conditions.
LCD Display (G518 Smart Meter)
The integrated LCD display provides real-time information:
- Учурдагы ылдамдык (км/саат же миль/саат)
- Жалпы пробег (одометр)
- Батареянын кубаты
- PAS деңгээл көрсөткүчү
- Riding Data and History
Use the gear up/down buttons on the handlebars to adjust the PAS level. The horn and light buttons are also conveniently located on the handlebars for easy access.
Батарея маалыматы
The Hidoes C8 is powered by a 48V 17Ah (816Wh) removable lithium-ion battery. This high-capacity battery provides a riding range of up to 55+ miles in Pedal-Assist Mode.
- Заряддоо: The battery can be charged on or off the bike. Connect the charger to a standard power outlet and then to the battery charging port. A full charge typically takes 6-8 hours.
- Алып салуу: To remove the battery, unlock it using the provided key and slide it out. This feature allows for convenient off-bike charging and helps prevent theft.
- Сактагыч: Store the battery in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, charge the battery to 50-70% every 2-3 months.
Техникалык тейлөө
Regular maintenance ensures the longevity and safe operation of your Hidoes C8 Electric Bike.
- Тазалоо: Велосипедди жарнама менен үзгүлтүксүз тазалаңызamp кездеме. Жогорку басымда түздөн-түз электрдик тетиктерди жуубаңыз.
- Тормоздор: Inspect brake pads and rotors for wear. Adjust brake cables as needed to ensure responsive braking.
- Шиналар: Check tire pressure before each ride. Inspect tires for cuts, punctures, or excessive wear.
- чынжыр: Тиштин жылмакай алмашуусун камсыз кылуу жана дат басып кетпеши үчүн чынжырды таза жана майлап туруңуз.
- бекиткичтер: Бардык болттордун жана бекиткичтердин бекемдигин мезгил-мезгили менен текшерип туруңуз, айрыкча алгачкы бир нече жолу жүргөндөн кийин.
- Электр компоненттери: Ensure all electrical connections are secure and free from corrosion. Do not attempt to open the motor or battery casing.
Проблемаларды чечүү
If you encounter issues with your Hidoes C8 Electric Bike, refer to the following common troubleshooting tips:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Велосипед күйбөй жатат | Батарея заряддалган эмес, батарейка туура орнотулган эмес, электр кабели бошоп кеткен. | Ensure battery is fully charged and securely inserted. Check all electrical connections. |
| Мотор жардам бербейт | PAS level too low, brake levers engaged, motor connection loose. | Increase PAS level on the display. Ensure brake levers are fully released. Check motor cable connection. |
| Батареянын кыска диапазону | Under-inflated tires, riding uphill frequently, heavy load, cold weather. | Maintain proper tire pressure. Use lower PAS levels or pedal more. Consider environmental factors. |
| Тормоздор чырылдап же натыйжасыз болуп жатат | Worn brake pads, dirty rotors, misaligned calipers. | Inspect and clean rotors. Replace worn brake pads. Adjust brake calipers if necessary. |
For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact Hidoes customer support.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | HD-C8 |
| Мотор күчү | 750W Brushless Toothed Motor |
| Батарея | 48V 17Ah (816Wh) Removable Lithium-ion |
| Максималдуу ылдамдык | 28 миль/саат (45 км/саат) |
| Айдоо аянты | 55+ Miles (PAS Mode) |
| Максималдуу жүктөө сыйымдуулугу | 330 фунт (150 кг) |
| Заряддоо убактысы | 6-8 саат |
| Transmission Gears | Shimano 7-Speeds |
| Тормоз системасы | Алдыңкы жана арткы диск тормоздору |
| Wheel Size | 20 x 4 дюймдук майлуу дөңгөлөктөр |
| Frame Material | Эритме болот |
| Суспензия түрү | Dual (Front & Under-seat) |
| Элемент Салмагы | 81.6 фунт (37 кг) |
| Камтылган компоненттер | Riding Bag |
Кепилдик жана колдоо
Hidoes provides a 2 жылдык өндүрүүчүнүн кепилдиги for the C8 Electric Bike. Specific warranty periods may apply to different bicycle parts (e.g., half or 1 year for certain components as per product information).
For any damage, failure, or support inquiries, please contact Hidoes customer service. When reaching out, please provide your order details and relevant photos or videos of the issue to facilitate a quicker resolution.
You can typically find contact information on the Hidoes official webсайт же сатып алуу платформасы аркылуу.
