VIVOHOME 84-Inch Motorized Projector Screen User Manual

1. Киришүү

Thank you for choosing the VIVOHOME 84-Inch Motorized Projector Screen. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new projector screen. Please read this manual thoroughly before use and retain it for future reference.

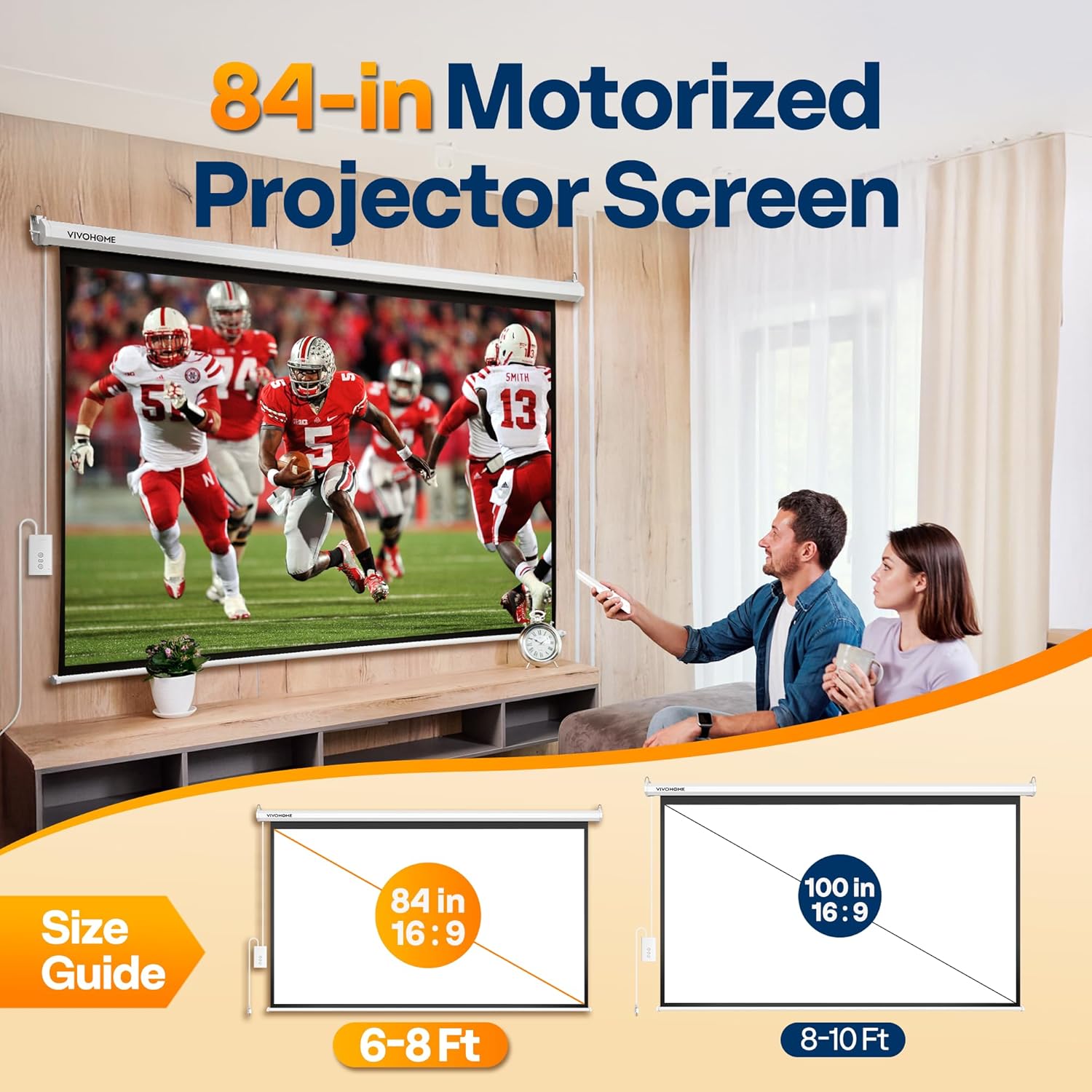

Figure 1: VIVOHOME 84-inch motorized projector screen in a home theater setting, illustrating its size and application.

2. Коопсуздук боюнча маанилүү маалымат

• Ensure the installation surface (wall or ceiling) is structurally sound and can support the weight of the screen (approximately 15.4 pounds).
• Use appropriate mounting hardware for your specific wall or ceiling type. Included plastic/metal expansion screws are for general use; consult a professional if unsure.
• Кокустан иштеп кетпеши үчүн, пультту балдардан алыс кармаңыз.
• Do not attempt to manually pull or push the screen surface while the motor is operating.
• Avoid exposing the screen to direct sunlight or extreme temperatures, as this may affect material integrity.
• A slight odor may be noticeable when first opening the package. This is normal and will dissipate after airing out the screen in a well-ventilated area.
• This product is certified to meet CE, GCC, UL, FCC, and ROHS safety and compliance standards.

3. Продукттун спецификациялары

Figure 2: Detailed dimensions of the 84-inch VIVOHOME projector screen.

4. Орнотуу жана орнотуу

The VIVOHOME motorized projector screen offers versatile installation options for both wall and ceiling mounting. Ensure you have sufficient space for the screen's overall dimensions (81.9"W x 51.2"H) and an optimal viewing distance of 6-8 feet.

4.1 Жайгашкан жерди тандоо

• Select a flat, stable wall or ceiling area.
• Verify that the chosen location is free from obstructions and has a power outlet nearby.
• Consider the projector's throw distance and the desired screen size for optimal image quality.

Figure 3: Сунушталат viewing distance for the 84-inch screen.

4.2 Монтаждоо параметрлери

The screen can be mounted horizontally or vertically. Included plastic/metal expansion screws are provided for installation. For ceiling mounting, optional ceiling chains (not included) can be used for suspended setups.

4-сүрөт: Мисamples of ceiling and wall mounting configurations.

1. Marking Points: Measure and mark the desired installation points on your wall or ceiling, ensuring they are level and spaced correctly for the screen's width.
2. Бургулоо тешиктери: Белгиленген жерлерде пилоттук тешиктерди бургула.
3. Якорлорду орнотуу: Insert the appropriate wall anchors (plastic/metal expansion screws) into the drilled holes.
4. Attaching the Screen: Securely attach the projector screen casing to the installed anchors.
5. Кубат туташуу: Plug the screen's power cord into a suitable electrical outlet.

5. Иштөө нускамалары

Your VIVOHOME motorized projector screen can be operated using either the included wireless remote control or the wired control panel.

5.1 Зымсыз Алыстан башкаруу

The wireless remote control allows you to operate the screen from a distance of up to 82 feet (25 meters). It features simple one-touch buttons for raising, lowering, and stopping the screen.

Figure 5: Wired and wireless remote controls.

• басыңыз UP button to retract the screen.
• басыңыз ылдый button to extend the screen.
• басыңыз ТОКТОТ button to halt the screen at any desired position.
• The remote can be wall-mounted for convenient fixed control.

5.2 Wired Control Panel

A wired control panel is integrated into the screen's power cable for direct operation, serving as a backup or primary control method.

• Locate the wired control panel attached to the power cord.
• Use the corresponding UP, DOWN, and STOP buttons on the panel to control the screen's movement.

The quiet motor operates at under 40 dB, ensuring a minimal disturbance during use.

Figure 6: The screen supports various high-definition formats for clear viewing.

6. Техникалык тейлөө

Proper maintenance will ensure the longevity and optimal performance of your VIVOHOME projector screen.

• Экранды тазалоо: The 3-layer water-proof PVC fabric is wipe-clean. Use a soft, damp cloth with mild soap and water to gently clean the screen surface. Avoid abrasive cleaners or harsh chemicals.
• Casing Care: Металл сasing protects the screen from deformation. Wipe it with a dry or slightly damp аны таза кармоо үчүн кездеме.
• Сактагыч: When not in use, retract the screen fully into its casing to protect it from dust and damage.
• Жыты: If a slight odor persists after initial airing, ensure the room is well-ventilated. The odor is harmless and will fade over time.

Figure 7: The screen's matte white finish is designed for easy cleaning and resistance to creases.

7. Кыйынчылыктарды

If you encounter issues with your projector screen, refer to the following common problems and solutions:

8. Кепилдик жана колдоо

VIVOHOME products are designed for quality and reliability. For specific warranty details, please refer to the warranty card included with your purchase or visit the official VIVOHOME website. If you require technical assistance, have questions about installation, or need to report a defect, please contact VIVOHOME customer support.

Көбүрөөк маалымат алуу үчүн, киргиле VIVOHOME Store.
