4DRC G2 Foam Remote Control Airplane User Manual

Introduction

Сатып алганыңыз үчүн рахматasing the 4DRC G2 Foam Remote Control Airplane. This manual provides essential information for the safe operation, setup, and maintenance of your new RC airplane. Please read it thoroughly before first use to ensure proper function and to maximize your flying experience.

Пакеттин мазмуну

Пакетиңизде бардык буюмдар бар экенин текшериңиз:

• RC Airplane (G2 Model)
• Алыстан башкаруу
• 3 x Rechargeable 3.7V 350 mAh Batteries
• USB заряддоо кабели
• Запастык пропеллер
• Продукт боюнча колдонмо (бул документ)

Жайгашуу

1. Charging the Aircraft Batteries

The 4DRC G2 airplane uses 3.7V 350 mAh rechargeable Lithium-Ion batteries. Ensure all batteries are fully charged before use.

1. Connect the provided USB charging cable to a USB power source (e.g., computer USB port, USB wall adapter).
2. Батареяны заряддоо кабелине туташтырыңыз.
3. Кубаттоочу түзүлүштөгү индикатор кубаттоо абалын көрсөтөт (белгилүү бир жарык үлгүлөрү үчүн кубаттоочу түзүлүштүн көрсөтмөлөрүн караңыз).
4. Once fully charged, disconnect the battery from the charger. Charging time is approximately 60-90 minutes per battery.

Абайлаңыз:

• Батареяларды ашыкча заряддабаңыз.
• Заряддоочу батареяларды кароосуз калтырбаңыз.
• Берилген заряддоо кабелин гана колдонуңуз.

2. Installing Aircraft Batteries

The aircraft is designed for easy battery installation.

1. Locate the battery compartment on the top of the aircraft.
2. Insert a fully charged 3.7V 350 mAh battery into the compartment.
3. Connect the battery plug to the aircraft's power connector.
4. Батарея уясынын капкагын бекем жабыңыз.

Figure 1: The 4DRC G2 airplane with a view of the battery compartment and propeller. Each battery provides approximately 15 minutes of flight time.

3. Алыстан башкаруунун батареяларын орнотуу

The remote control requires 3 C batteries (included).

1. Пульттун артындагы батарея бөлүкчөсүн ачыңыз.
2. Туура полярдуулукту (+/-) камсыз кылып, 3 C батарейкасын салыңыз.
3. Батарея уясынын капкагын жабыңыз.

4. Aircraft Assembly

The 4DRC G2 airplane comes pre-assembled. No additional assembly is required.

5. Pairing the Remote Control with the Aircraft

1. Place the aircraft on a flat surface.
2. Turn on the aircraft by connecting the battery. The aircraft's LED lights will flash.
3. Алыстан башкарууну күйгүзүңүз.
4. Push the throttle lever (left stick) all the way up, then all the way down. The remote will beep, and the aircraft's LED lights will become solid, indicating successful pairing.

Иштөө нускамалары

1. Учуу чөйрөсү

The 4DRC G2 is designed for outdoor use. Choose an open area free from obstacles, people, and animals. Avoid flying in strong winds or rain.

2. Негизги башкаруу элементтери

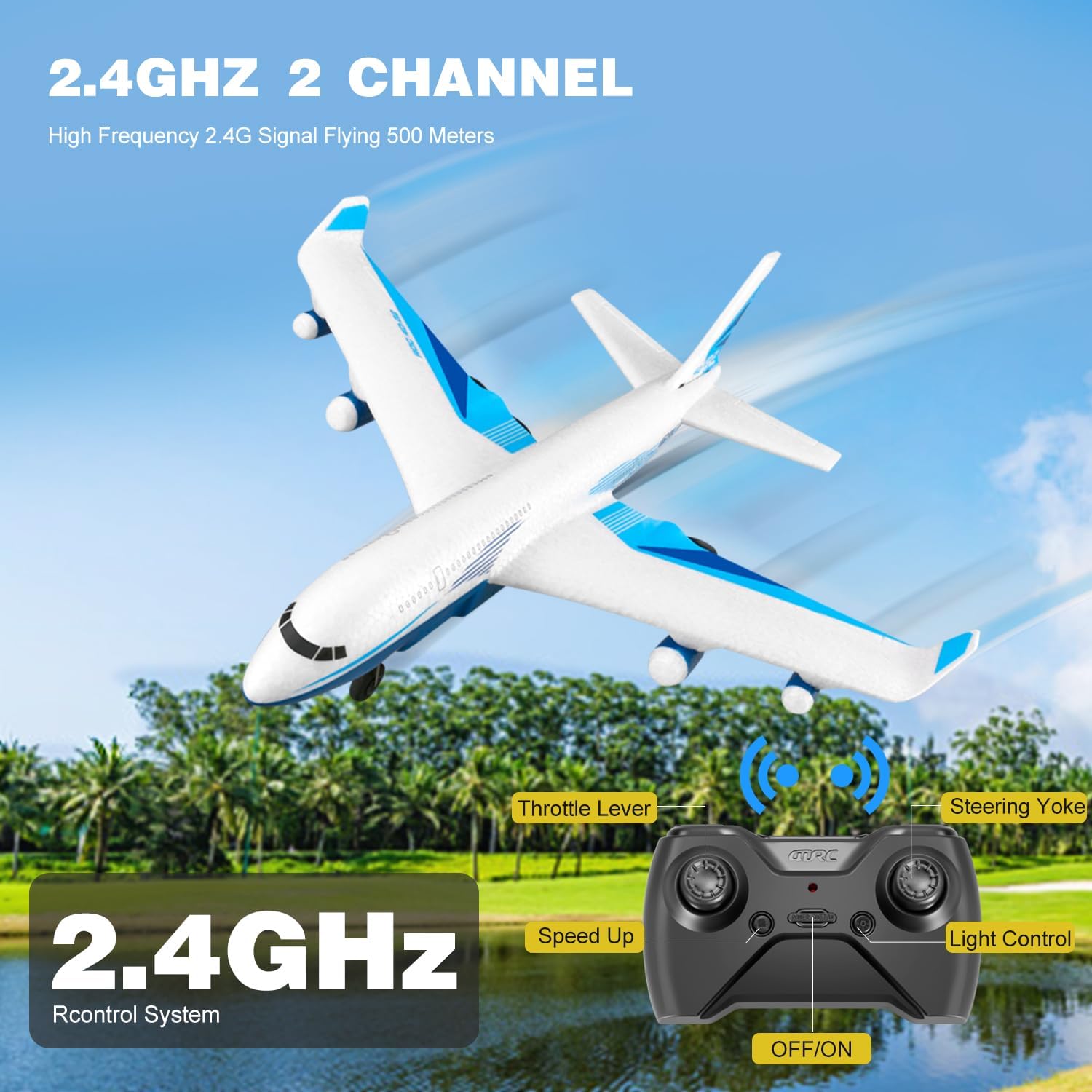

Figure 2: Remote control layout with labeled functions.

• Дроссель рычагы (сол таякча): Controls altitude. Push up to ascend, pull down to descend.
• Steering Yoke (Right Stick): Controls direction. Push left/right for turns, push up/down for pitch control.
• Ылдамдатуу баскычы: Adjusts flight speed. The aircraft offers multiple speed modes.
• Жарыкты башкаруу баскычы: LED чырактарын күйгүзөт/өчүрөт.
• Бир баскычтуу учуп-конуу баскычы: Автоматтык түрдө учуп же конууну баштайт.

3. Takeoff Procedures

• Кол менен учуп кетүү: Hold the aircraft and gently throw it forward into the wind while simultaneously pushing the throttle lever up.
• Glide Takeoff: For experienced users, the aircraft can be launched with a gentle forward toss and minimal throttle, allowing it to glide before engaging full power.
• Бир ачкычтуу учуу: After pairing, press the one-key takeoff button. The aircraft will automatically ascend to a stable height.

4. Учуу режимдери жана функциялары

• Diverse Flight Modes: The G2 supports various maneuvers including ascending, descending, turning left/right, and adjusting speed.
• 3-октуу гироскоп: Ensures stable and smooth flights, making it easier for beginners to control.
• 3 ылдамдык режими: Adjust the speed to match your skill level and flying conditions.
• 3D оодаруулар: Press the 3D flip button (refer to remote diagram if available) and move the right stick in a desired direction to perform acrobatic flips.
• LED жарыктары: Bright LEDs enhance visibility and add excitement during evening flights.

Figure 3: The 4DRC G2 airplane with its LED lights active, suitable for night flying.

Figure 4: Diagram demonstrating the 3D flip capability of the G2 airplane.

5. Landing Procedures

• Кол менен конуу: Gently reduce the throttle and guide the aircraft to a soft landing.
• Бир ачкыч конуу: Press the one-key landing button. The aircraft will automatically descend and land.

6. Видео демонстрация

Техникалык тейлөө

• Тазалоо: Wipe the aircraft with a soft, dry cloth after each use to remove dirt or debris. Avoid using water or harsh chemicals.
• Пропеллер текшерүү: Regularly check propellers for damage. Replace any bent or broken propellers with spares to ensure optimal flight performance.
• Батареяга кам көрүү: Store batteries in a cool, dry place. Do not store fully charged or fully depleted batteries for extended periods. Charge them to about 50% for long-term storage.
• EPP Foam: The aircraft is made of durable EPP foam, designed to withstand minor impacts. In case of damage, use appropriate foam-safe adhesive for repairs.

Проблемаларды чечүү

Техникалык шарттар

Кепилдик жана колдоо

This product is covered by a standard return policy. For specific warranty details, please refer to the purchase platform or contact the seller directly. For technical support or inquiries, please visit the official 4DRC webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.

You can find more information about 4DRC products and support at the Amazon'догу 4DRC дүкөнү.
