Mujocooker Folding Mobility Scooter

Introduction

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new Mujocooker Folding Mobility Scooter. Please read this manual thoroughly before using the scooter to ensure proper handling and to maximize its lifespan. This ultra-light, compact 3-wheel electric scooter is designed for adults and seniors, offering portability and ease of use for daily mobility and travel.

Image: The Mujocooker Folding Mobility Scooter, showcasing its compact design and integrated storage basket.

Коопсуздук маалыматы

Your safety is paramount. Adhere to all safety guidelines to prevent injury or damage to the scooter.

• Always operate the scooter on stable, level surfaces. Avoid steep inclines exceeding 10 degrees.
• Ensure the scooter is fully charged before extended use to prevent unexpected power loss.
• 220 lbs (100 кг) максималдуу салмак сыйымдуулугунан ашпаңыз.
• Use the headlight and rear reflector light during low-light conditions or at night for visibility.
• Be aware of your surroundings and maintain a safe distance from other vehicles and pedestrians.
• Regularly inspect the scooter for any signs of wear or damage, especially the wheels and frame.
• Keep hands and feet clear of moving parts during operation and folding.
• This scooter is equipped with an anti-rollover auxiliary wheel for enhanced stability.

Сүрөт: Жакын план view of the scooter's headlight and rear reflector light, essential for safe nighttime operation.

Жайгашуу

1. таңгактан чыгаруу

Carefully remove all components from the packaging. Verify that all parts are present and undamaged. The package should include the main scooter body, seat, and charger.

2. Ассамблея

The scooter is designed for quick assembly and disassembly for portability. It typically comes in two main pieces.

1. Отургучту бекитүү: Insert the seat post into the designated slot on the scooter frame. Ensure it clicks securely into place.
2. Unfold the Tiller: Gently lift the handlebar tiller until it locks into its upright position. Secure any locking mechanisms.
3. Рулдун бийиктигин тууралоо: Use the quick-release lever to adjust the handlebar height to your comfort, within the range of 35.4 to 44 inches. Secure the lever firmly.
4. Орундуктун бийиктигин тууралоо: Adjust the seat height between 24.8 to 28.7 inches for optimal riding posture. Ensure the seat is securely locked at your desired height.

Image: Illustration showing the adjustable handlebar and seat features, allowing users to customize their riding position for comfort and control.

3. Баштапкы заряддоо

Before first use, fully charge the scooter's 36V 8Ah lithium battery. Connect the charger to the scooter's charging port and then to a standard wall outlet. The charging indicator light will change when fully charged. A full charge provides a range of up to 12 miles.

Иштөө нускамалары

1. Controls Overview

• Кубат которгучу: Located on the handlebar, turn on/off the scooter.
• Муунткуч: Controls forward speed. Gradually apply for smooth acceleration.
• Тормоз рычагы: Activates the braking system. Apply gently for controlled stops.
• Батарея көрсөткүчү: Учурдагы батарея заряддын деңгээлин көрсөтөт.
• Фараны которгуч: Turns the front headlight on/off.

Image: Close-up of the scooter's handlebar, showing the controls including the power switch, throttle, and battery indicator.

2. Driving the Scooter

• Кубат которгучун күйгүзүңүз.
• Gently twist the throttle to begin moving. The scooter has a maximum forward speed of 9.3 MPH.
• To stop, release the throttle and gently apply the brake lever.
• The scooter can climb inclines up to 10 degrees. Approach inclines slowly and maintain a steady speed.
• The 36-inch turn radius allows for good maneuverability in tighter spaces.

3. Бүктөө жана сактоо

The scooter's folding design makes it highly portable and easy to store.

1. Скутердин өчүрүлгөнүн текшериңиз.
2. Remove the seat by disengaging its locking mechanism.
3. Fold down the tiller by releasing its locking mechanism and lowering it towards the scooter deck.
4. The scooter can be quickly disassembled into two pieces for easier transport and storage in standard vehicle trunks.

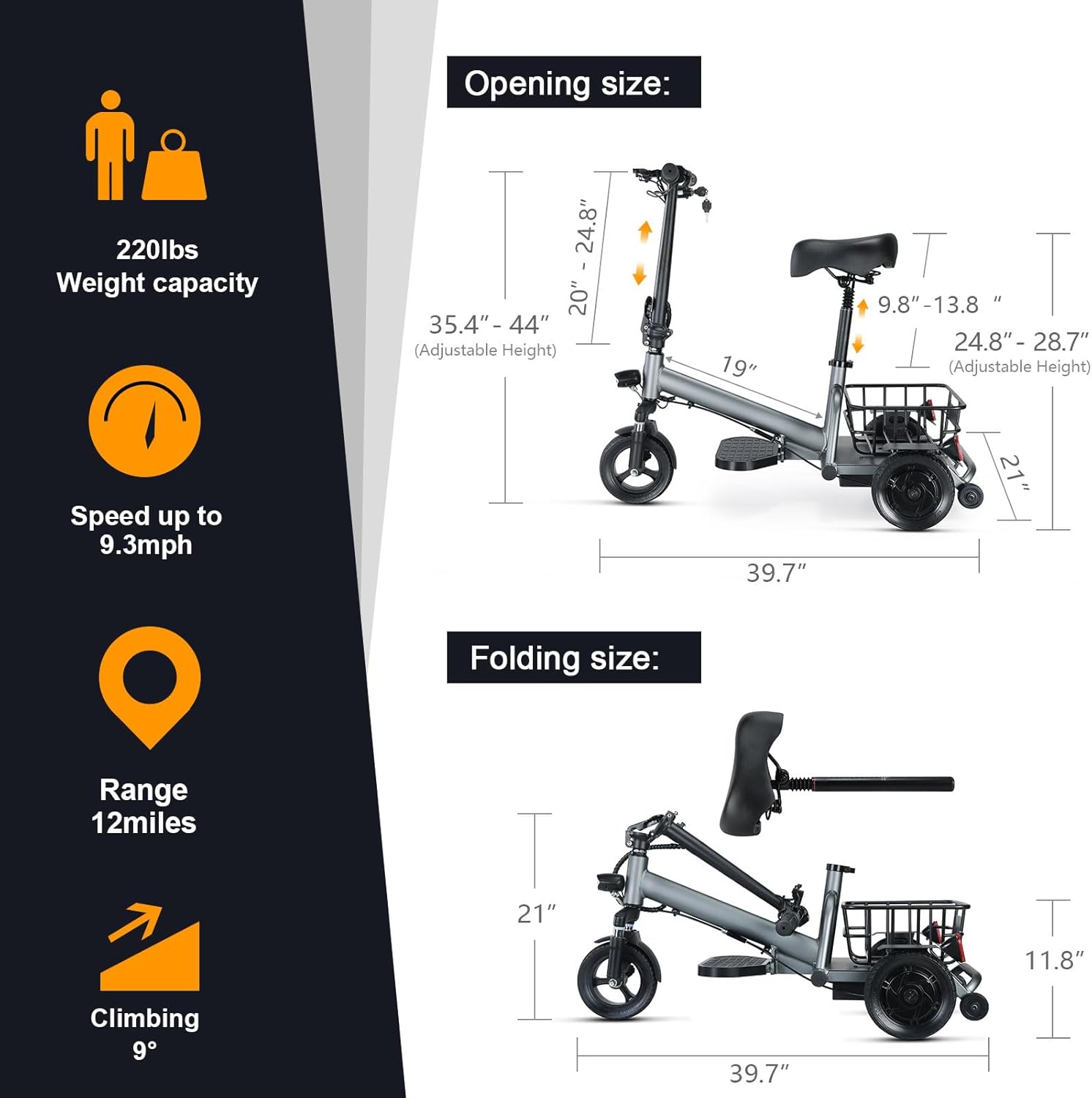

Image: Visual representation of the scooter's open and folded dimensions, highlighting its compact nature for travel and storage.

Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө скутериңиздин узак мөөнөттүү иштешин жана оптималдуу иштешин камсыз кылат.

• Батареяга кам көрүү:
  • Батареянын иштөө мөөнөтүн сактоо үчүн, көп колдонулбаса да, аны үзгүлтүксүз кубаттап туруңуз.
  • Заряддоодон мурун батарейканы толугу менен түгөтүп жибербеңиз.
  • Store the scooter in a cool, dry place when not in use, especially during long periods of inactivity.
• Тазалоо: Скутерди жарнама менен сүртүңүзamp кездеме. Катуу химиялык заттарды же абразивдүү тазалоочу каражаттарды колдонуудан алыс болуңуз. Электр компоненттерине түз суу чачпаңыз.
• Дөңгөлөктү текшерүү: The scooter uses solid wheels, eliminating the need for inflation. Periodically check the wheels for any debris or damage.
• Жалпы текшерүү: Regularly check all nuts, bolts, and fasteners to ensure they are tight. Inspect cables and connections for any signs of wear or fraying.
• The 300W brushless hub motor is designed for low noise and stable output, requiring minimal maintenance.

Проблемаларды чечүү

Жалпы маселелер жана алардын чечимдери үчүн бул бөлүмдү караңыз.

Техникалык шарттар

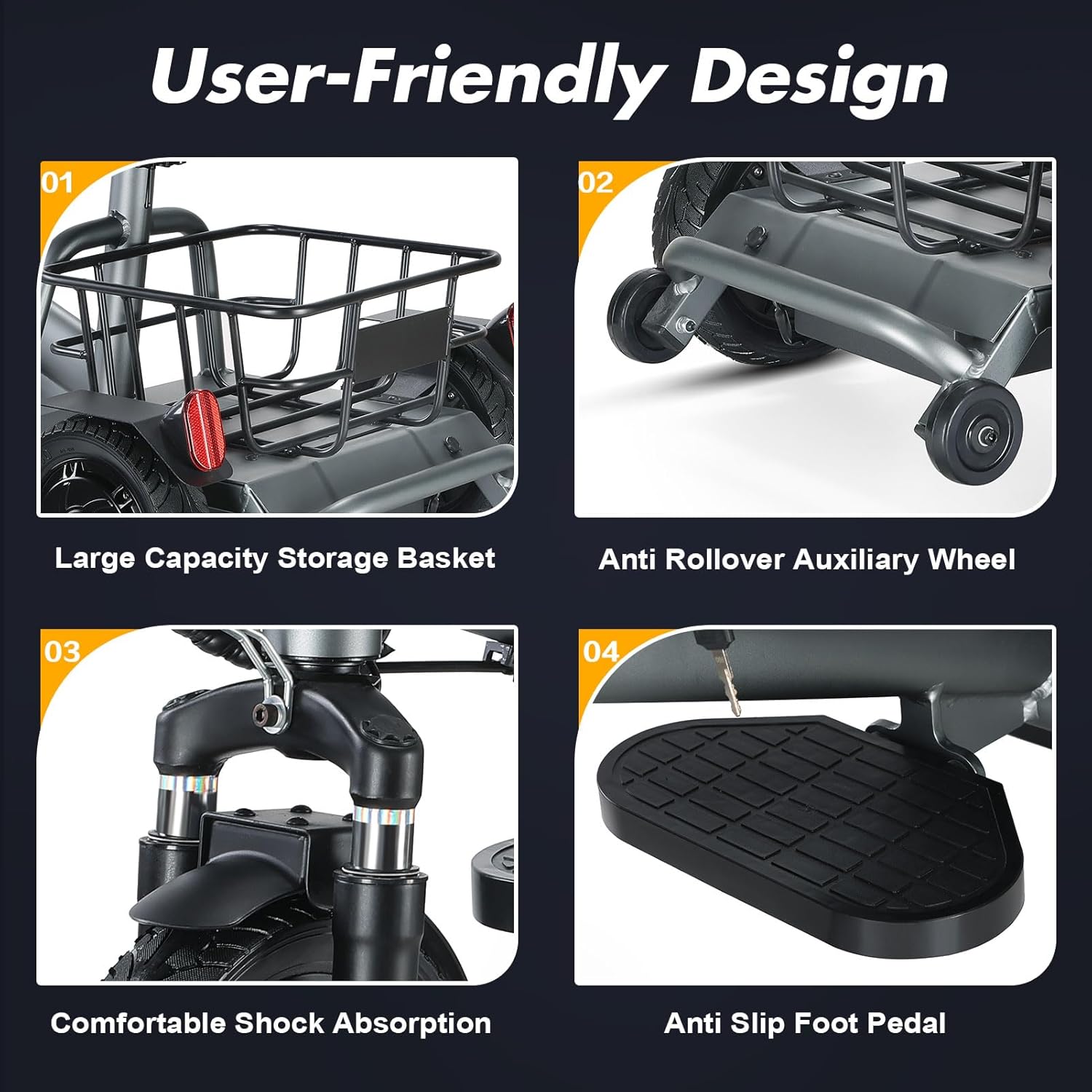

Сүрөт: деталдуу view of the scooter's user-friendly design elements, including the storage basket, anti-rollover wheel, shock absorption, and anti-slip foot pedal.

Кепилдик жана колдоо

The Mujocooker Folding Mobility Scooter comes with a Продукцияга 1 жылдык кепилдик сатып алынган күндөн тартып.

If you encounter any issues with your scooter or require assistance, please do not hesitate to contact Mujocooker customer support. Our team is available to provide assistance and resolve any concerns you may have.

For support, please refer to the contact information provided with your purchase or visit the official Mujocooker store on Amazon: Mujocooker Store.
