1. Продукт бүтүп калдыview
The HB-B3CE Three-Phase Stepper Motor Driver is an advanced industrial component specifically designed for applications such as bag making machines. It incorporates original imported Germany modules, ensuring high performance and reliability. This driver features high-speed chopping and constant current control, providing excellent anti-interference capabilities. It is equipped with optoelectronic isolation for control and inner signals, and includes comprehensive self-protection functions against over-current, over-voltage, жана ашыкча ысып кетүү.
The driver operates steadily and reliably, capable of driving all 110BYG and 130BYG series three-phase hybrid stepper motors with a maximum current output of 8A per phase.

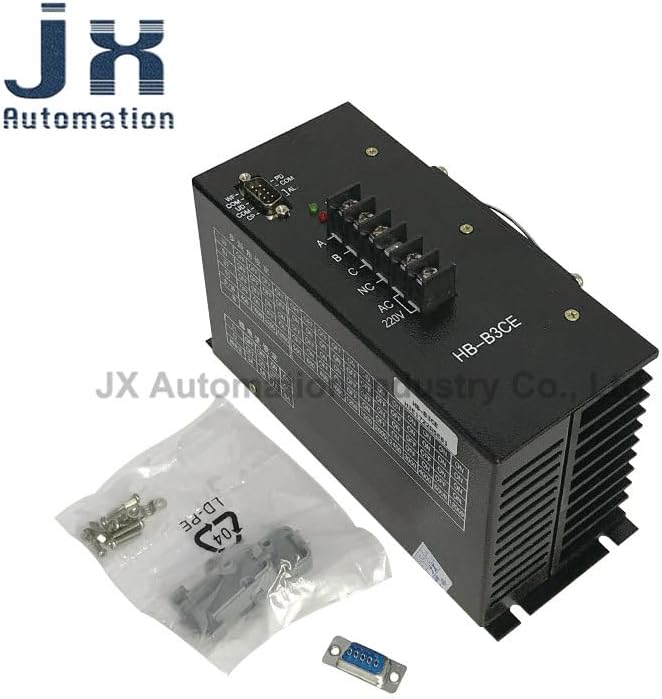

Сүрөт 1: Алдыңкы view of the HB-B3CE Stepper Motor Driver.
2. Орнотуу жана орнотуу
Proper installation is crucial for the optimal performance and longevity of the HB-B3CE driver. Ensure all connections are secure and follow safety guidelines for electrical installations.
2.1 Электр булагы
The driver requires an AC220V power supply. Connect the AC power lines to the designated terminals on the driver. Ensure the power source matches the specified voltage.
2.2 Мотор кошулуусу
Connect the three-phase hybrid stepper motor (110BYG or 130BYG series) to the driver's motor output terminals (A, B, C, N). Refer to your motor's wiring diagram for correct phase connections.
2.3 Control Signal Connection
The driver utilizes optoelectronic isolation for control signals. Connect your control system's signals to the WF (offline/FREE) input and COM terminals. The WF input provides an offline control signal, allowing the motor to be freely moved when activated.
2.4 DIP которуштуруу орнотуулары
The HB-B3CE driver features DIP switches for configuring step angle (subdivision) and phase current. These settings must be configured according to your specific application requirements and motor specifications.
Figure 2: DIP switch configuration for step angle and phase current settings.
Step Angle Setting (步距角设定): Use switches S0, S1, S2, S3 to set the desired step angle (subdivision). The table on the driver indicates the corresponding steps per revolution for various switch combinations (e.g., 400, 1600, 3200, 12800, etc.).
Phase Current Setting (相电流设定): Use switches I1, I2 to set the maximum current per phase. The available current settings are typically 3A, 5A, 7A, and 8A. Configure this based on your motor's rated current to prevent overheating or underperformance.
Caution: Ensure the power supply is disconnected before making any changes to the DIP switch settings to prevent damage to the driver or motor.
3. Иштөө принциптери
The HB-B3CE driver employs an AC servo motor current control mode, which ensures accurate current output and full-band output sine wave control. This advanced control method allows the stepper motor to operate with performance characteristics close to that of an AC servo motor.
- High-Speed Chopping: Enables precise control over motor movement, even at high speeds.
- Constant Current Driver: Maintains a stable current to the motor windings, improving motor efficiency and reducing resonance.
- Optoelectronic Isolation: Provides robust protection against electrical noise and interference between the control signals and the internal circuitry.
- Self-Protection Functions: The driver is equipped with built-in protection against over-current, over-voltage, and overheating, automatically shutting down to prevent damage in abnormal conditions.
- Offline (FREE) Control Signal (WF input): When activated, this signal disengages the motor, allowing it to be manually rotated or moved without resistance from the driver.
4. Техникалык тейлөө
The HB-B3CE driver is designed for robust industrial use and requires minimal maintenance. However, adhering to the following guidelines can extend its lifespan and ensure consistent performance:
- Тазалыкты сактоо: Regularly inspect the driver for dust and debris accumulation, especially around the cooling fan and heatsink fins. Use compressed air to gently clean these areas.
- Вентиляцияны камсыз кылуу: Verify that the installation environment provides adequate airflow around the driver to prevent overheating. Do not obstruct the cooling fan or heatsink.
- Байланыштарды текшерүү: Periodically inspect all electrical connections (power, motor, control signals) to ensure they are tight and free from corrosion. Loose connections can lead to intermittent operation or damage.
- Экологиялык шарттар: Operate the driver within its specified temperature and humidity ranges. Avoid exposure to excessive moisture, corrosive gases, or strong vibrations.
5. Кыйынчылыктарды
If you encounter issues with the HB-B3CE driver, refer to the following common problems and their potential solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Мотор кыймылдабайт же туруксуз кыймылдайт | Incorrect wiring; Insufficient power; Incorrect DIP switch settings; Motor incompatibility; Control signal issue. | Verify all wiring connections (power, motor, control). Check power supply voltagд. Review DIP switch settings for step angle and current. Ensure motor is a compatible 110BYG or 130BYG series. Check control signal integrity. |
| Driver shuts down unexpectedly | Ашыкча ток, ашыкча томtage, or overheating protection activated. | Check motor load for excessive current draw. Verify power supply voltage is stable and within limits. Ensure adequate ventilation and ambient temperature. Allow driver to cool down before restarting. |
| Motor vibrates excessively or makes unusual noise | Incorrect current setting; Mechanical issue with motor or load; Resonance. | Adjust phase current via DIP switches. Inspect motor and mechanical components for damage or misalignment. Consider adjusting step angle or adding damping if resonance is suspected. |
| Кубат индикатору жок | No power supply; Faulty power connection. | Check AC220V power source. Verify power cable connections to the driver. |
If the problem persists after attempting these solutions, contact technical support for further assistance.
6. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Продукт аты | Bag Making Machine Driver |
| Модель номери | HB-B3CE |
| Продукцияны сертификаттоо | CE |
| Модул түрү | For Mitsubishi original module |
| Номиналдуу томtage | AC220V |
| Maximum Current per Phase | 8A (конфигурациялануучу) |
| Response Speed Rate | 1000 |
| Adaptive Motors | 110BYG, 130BYG series three-phase hybrid stepper motors |
| Башкаруу режими | AC servo motor current control mode, sine wave control |
| Коргоо функциялары | Ашыкча ток, Ашыкча томtagд, Ашыкча ысып кетүү |
| Изоляция | Optoelectronic isolation for control and inner signals |
| Өзгөчөлүктөр | High-speed chopping, Constant current driver, Offline (FREE) control signal (WF input) |
7. Кепилдик жана колдоо
For warranty information and technical support regarding your HB-B3CE Stepper Motor Driver, please refer to the documentation provided at the time of purchase or contact your vendor or the manufacturer directly. Ensure you have your product model number (HB-B3CE) and purchase details available when seeking support.
