1. Продукт бүтүп калдыview
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Portable Air Compressor. Please read this manual thoroughly before operating the equipment.
The Portable Air Compressor is designed for heavy-duty applications requiring a robust air supply, such as powering pneumatic tools, inflating large volumes, and supporting manufacturing processes. Its durable construction ensures reliable performance and longevity.

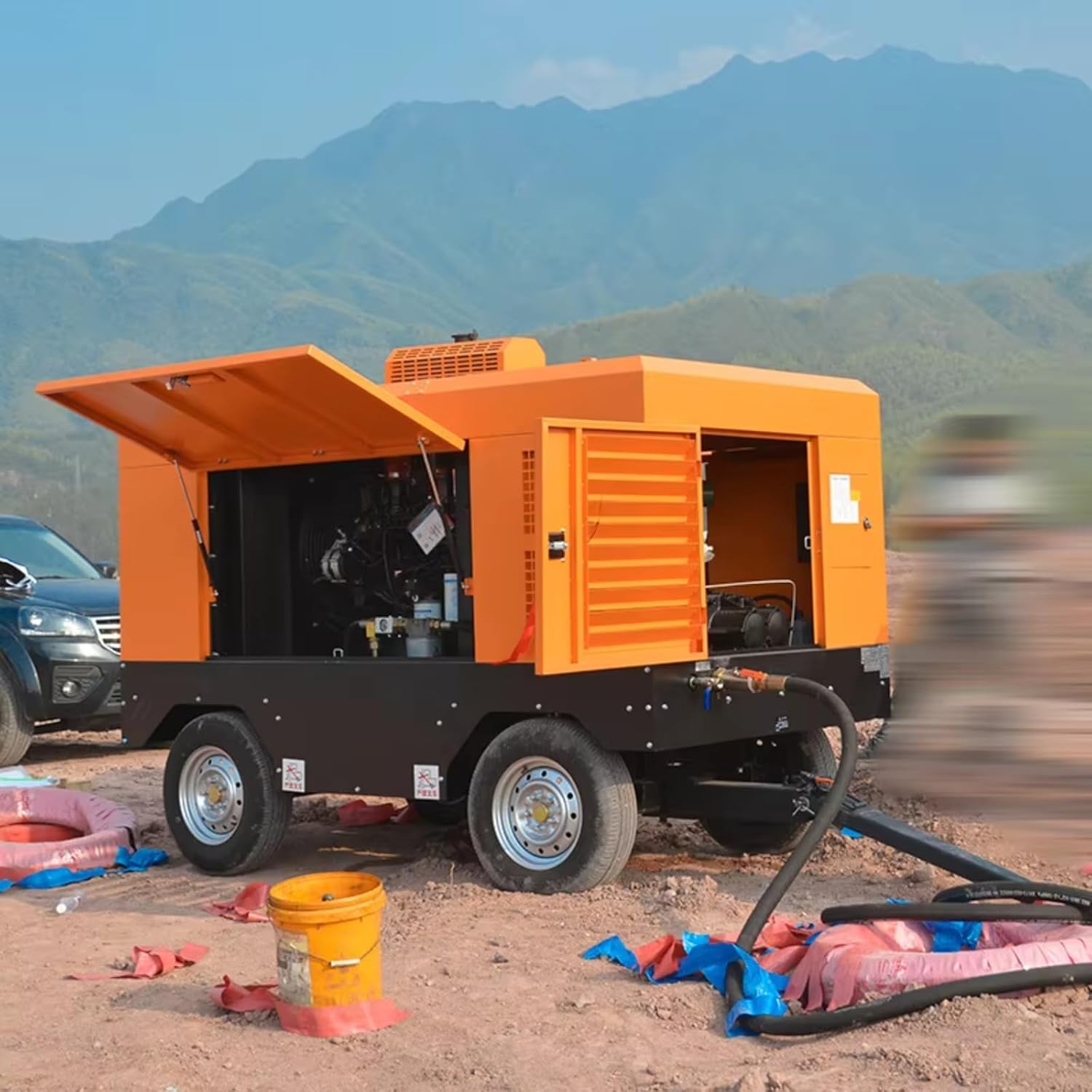

Figure 1.1: Portable Air Compressor in an outdoor setting, ready for operation.
Figure 1.2: Two portable air compressors, highlighting the "KS Portable Air Compressor" branding.
Негизги өзгөчөлүктөрү:
- Maximum Pressure (25 Bar): Capable of delivering a robust air supply for demanding tasks.
- Durability and Low Maintenance Costs: Constructed with durable materials for longevity and reduced operational costs.
- Кийүүгө каршылык: Components designed to withstand harsh operating conditions, maintaining performance and efficiency.
- Convex-Convex Engagement: Utilizes advanced design for hydrodynamic lubrication, reducing horizontal leakage and improving efficiency.
- Large Rotor, Large Bearing, Low Speed Design: Reduces noise, vibration, and exhaust temperature, while improving rotor rigidity and increasinг кызмат мөөнөтү.
- Кең кубаттуулук диапазону: Applicable to compressors with or without direct-coupled gearbox, supporting various power configurations.
- Энергия үнөмдүүлүгү: Conforms to and exceeds GB19153-2003 standards for energy conservation in displacement air compressors.
2. Коопсуздук нускамалары
Always prioritize safety when operating heavy machinery. Failure to follow these instructions may result in serious injury or equipment damage.
- Ensure the compressor is placed on a stable, level surface before operation.
- Verify all connections (air hoses, power supply) are secure and free from damage.
- Wear appropriate personal protective equipment (PPE), including hearing protection, eye protection, and safety footwear.
- Do not operate the compressor in poorly ventilated areas.
- Never attempt to service the compressor while it is running or connected to a power source.
- Балдарды жана уруксаты жок кызматкерлерди операциялык аймактан алыс кармаңыз.
- Авариялык токтотуу процедуралары менен таанышыңыз.
3. Орнотуу
Туура орнотуу оптималдуу аткаруу жана коопсуздук үчүн өтө маанилүү болуп саналат.
- Таңгактан чыгаруу жана текшерүү: Carefully unpack the compressor. Inspect for any visible damage that may have occurred during shipping. Report any damage to the carrier immediately.
- Жайгашкан жери: Position the compressor on a firm, level surface. Ensure adequate clearance around the unit for ventilation and maintenance access. Avoid confined spaces.
- Fuel/Power Connection: For diesel models, ensure the fuel tank is filled with the appropriate diesel fuel. For electric models, connect to a suitable power source as per the electrical specifications (refer to Section 7). Ensure the power supply matches the compressor's requirements.
- Аба линиясынын байланышы: Connect the air output hose to the desired pneumatic tools or air system. Ensure all connections are tight and leak-free.
- Ишке чейинки текшерүүлөр: Before starting, check oil levels, coolant levels (if applicable), and ensure all safety guards are in place.
4. Иштөө нускамалары
Аба компрессоруңуздун коопсуз жана эффективдүү иштеши үчүн бул кадамдарды аткарыңыз.
- Компрессорду ишке киргизүү:
- Ensure all pre-operation checks are complete.
- Негизги өчүргүчтү "ON" абалына буруңуз.
- Press the start button. The compressor will begin to build pressure.
- Monitor the pressure gauge to ensure it reaches the desired operating pressure.
- Жөнгө салуу басымы: Use the pressure regulator knob to adjust the output air pressure as needed for your application.
- Мониторинг операциясы: During operation, regularly check gauges for pressure, temperature, and oil levels. Listen for unusual noises or vibrations.
- Shutting Down the Compressor:
- Turn off any connected pneumatic tools.
- Press the stop button on the compressor.
- Негизги кубат которгучун "OFF" абалына буруңуз.
- Slowly open the drain valve to release any remaining air pressure from the system.

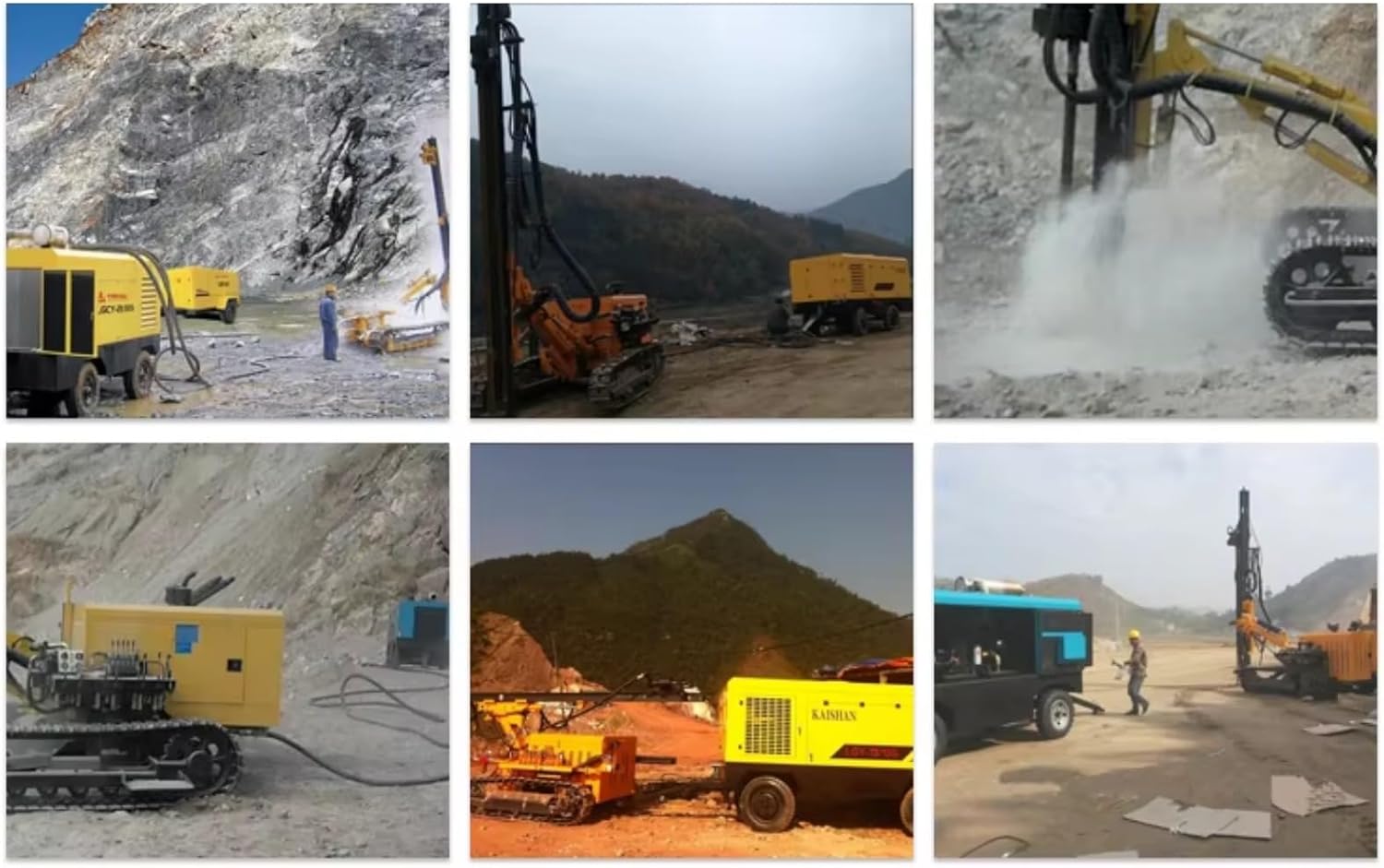

4.1-сүрөт: Мисamples of drilling rig applications where the air compressor can be utilized.
5. Техникалык тейлөө
Regular maintenance ensures the longevity and efficient operation of your compressor. Always disconnect power before performing any maintenance.
- Күнүмдүк текшерүүлөр:
- Check oil level and top up if necessary.
- Drain condensation from the air receiver tank.
- Inspect air filter for excessive dirt; clean or replace if needed.
- Апталык текшерүүлөр:
- Inspect all hoses and fittings for leaks or damage.
- Check belt tension (if applicable).
- Clean exterior of the compressor to prevent dust buildup.
- Monthly/Quarterly Checks:
- Change compressor oil according to manufacturer's recommendations.
- Аба чыпкасы элементин алмаштырыңыз.
- Коопсуздук клапанынын туура иштешин текшериңиз.
- Check electrical connections for tightness.
5.1-сүрөт: Детальдуу view of internal components, illustrating the "Convex-Convex" engagement for improved lubrication and efficiency.
5.2-сүрөт: Ички view showcasing the large rotor and bearing design, contributing to reduced noise and increased service life.
6. Кыйынчылыктарды
Бул бөлүмдө кеңири таралган операциялык көйгөйлөрдүн чечимдери берилген. Бул жерде көрсөтүлбөгөн көйгөйлөр боюнча кардарларды колдоо кызматына кайрылыңыз.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Компрессор иштебейт | No power supply; Emergency stop engaged; Low oil level. | Check power connection and circuit breaker; Reset emergency stop; Add oil to correct level. |
| Төмөн аба басымынын чыгышы | Air leaks in hoses/fittings; Clogged air filter; Worn compressor components. | Check and tighten connections; Clean or replace air filter; Contact service for inspection. |
| Ашыкча ызы-чуу же титирөө | Loose components; Worn bearings; Unbalanced motor/fan. | Inspect and tighten all fasteners; Contact service for professional diagnosis. |
| Компрессор ысып кетет | Insufficient ventilation; Clogged cooling fins; Low oil level. | Ensure adequate airflow around unit; Clean cooling fins; Check and add oil. |
7. Техникалык шарттар
| Атрибут | Деталь |
|---|---|
| Продукт аты | Portable Air Compressor Screw Air Compressor Mine Drilling Rig Compressor for Water Well |
| Модель аты | KYJ-08 |
| Бренд | Жалпы |
| Type | Screw Air компрессору |
| Конфигурация | Portable |
| Lubrication Style | Майланган |
| Үнсүз | Ооба |
| Негизги компоненттер | PLC, Engine |
| Муздатуу | Air Cooling Screw |
| Максималдуу иштөө басымы | 25 Бар |
| Сунушталган Колдонуулар | Drilling, Air System, Provide Compressed Air |
| Колдонулуучу тармактар | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction works, Energy & Mining, Food & Beverage Shops |
| Power Source | Электр зымдары |
| Өзгөчөлүктөр | Portable, Digital, Heavy Duty |
| Материал | Металл |
| Стиль | Вертикалдуу |
| Элемент Салмагы | 5520 фунт |
| Пакеттин өлчөмдөрү | 70 x 51 x 42 дюйм |
| Келип чыккан өлкө | Кытай |
| Дата биринчи жеткиликтүү | 17-январь, 2025-жыл |
8. Кепилдик жана колдоо
Кепилдик маалыматы:
The Portable Air Compressor comes with a 1 жылдык кепилдик from the date of purchase, covering manufacturing defects and material faults under normal operating conditions.
Кеңейтилген коргоо пландарын сатып алууга болот:
- 3 жылдык коргоо планы: Камтууну дагы эки жылга узартат.
- 4 жылдык коргоо планы: Камтууну дагы үч жылга узартат.
For details regarding warranty claims or extended protection plans, please refer to your purchase documentation or contact customer support.
Кардарларды колдоо:
Our professional technical team is available to provide one-on-one guidance and support. If you have any questions, require technical assistance, or need to report an issue, please contact us:
- Жалпы суроолор: Please leave us a message before purchasing for customisable styles and accessories.
- WhatsApp колдоо: +86 15837107896
- Өндүрүүчү: Generic (saiyijixie)
- Кайтаруулар: 30 күндүк жеңил кайтаруу саясаты.
