Eureka Nova UV+UF+HMR Water Purifier

1. Продукт бүтүп калдыview

The Eureka Nova UV+UF+HMR Water Purifier is designed to provide purified drinking water. This model offers flexible installation as either a wall-mounted or countertop unit. It incorporates dual purification technology, combining Ultraviolet (UV) and Ultrafiltration (UF) methods to remove impurities and neutralize harmful microorganisms. Additionally, it features Active Copper with Zinc Booster Cartridge and Mineral Guard technology to enhance water quality.

The purifier has a purification capacity of 1.5 liters per minute, ensuring a steady supply of clean water for households or small offices.

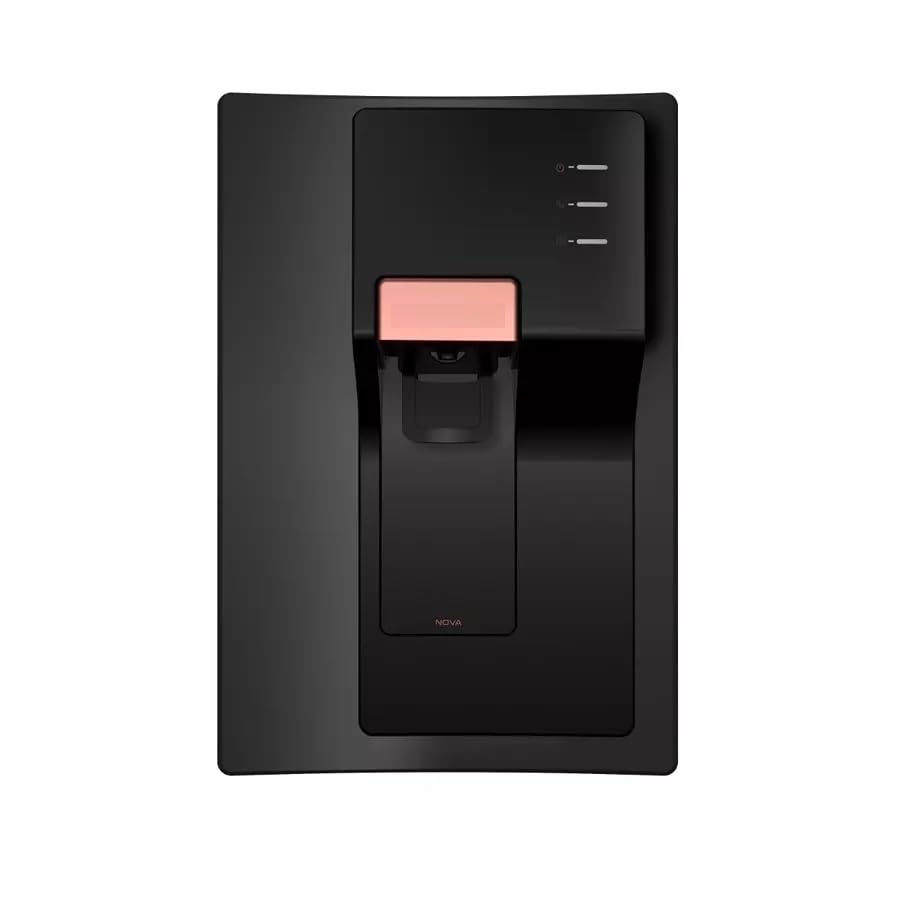

Сүрөт 1: Алдыңкы view of the Eureka Nova UV+UF+HMR Water Purifier, showing the dispenser and indicator lights.

2. Коопсуздук маалыматы

• Шайманды иштетүүдөн мурун бардык көрсөтмөлөрдү окуп чыгыңыз.
• Электр менен камсыздоо буюмдун этикеткасында көрсөтүлгөн мүнөздөмөлөргө дал келгенин текшериңиз.
• Шайманды, шнурду же сууга же башка суюктуктарга батырбаңыз.
• Keep the appliance away from direct sunlight, heat sources, and corrosive chemicals.
• Only use genuine replacement parts and filters.
• Балдар шайман менен ойнобошу үчүн аларды көзөмөлгө алуу керек.
• Disconnect from power before cleaning or performing maintenance.

3. Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• 1N Water Purifier Unit
• 1N Installation Kit (includes input pipe, diverter valve)
• 1N Warranty Card + QR Code

4. Орнотуу жана орнотуу

The Eureka Nova water purifier can be installed as a wall-mounted unit or placed on a countertop.

4.1 Дубалга орнотулган орнотуу

1. Choose a suitable location on a sturdy wall, ensuring sufficient space around the unit for maintenance.
2. Use the provided mounting template (if included) to mark drilling points.
3. Drill holes and insert wall plugs. Secure the mounting brackets (if separate) or hang the unit directly onto the screws.
4. Connect the input water pipe to the diverter valve on your water tap and to the purifier's inlet.
5. Connect the drain pipe to a suitable drainage point.

2-сүрөт: Артка view of the purifier, illustrating the wall mounting points.

4.2 Үстүнө орнотуу

1. Place the purifier on a flat, stable surface near a water source and electrical outlet.
2. Connect the input water pipe to the diverter valve on your water tap and to the purifier's inlet.
3. Ensure the drain pipe is routed to a sink or drainage area.

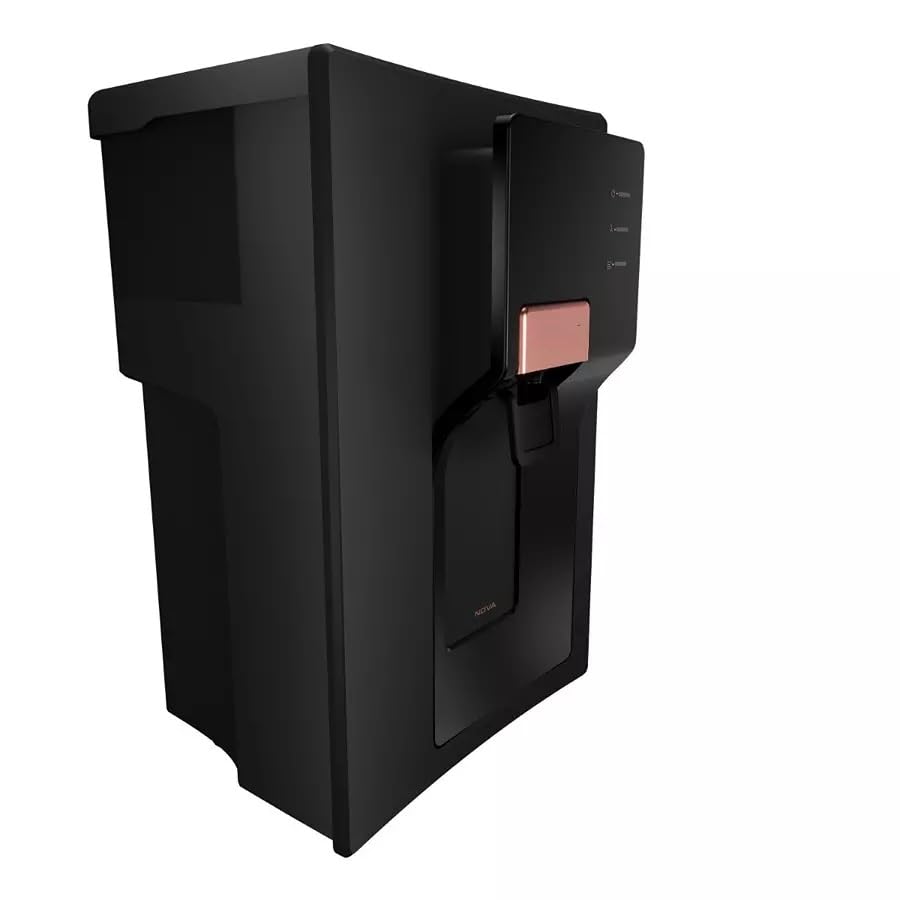

3-сүрөт: Каптал view of the purifier, demonstrating its compact design for countertop use.

4.3 Алгачкы ишке киргизүү

1. After connecting the water supply, slowly open the diverter valve to allow water to fill the purifier.
2. Кандайдыр бир агып кетүүнү текшериңиз.
3. Электр шнурын жерге туташтырылган электр розеткасына сайыңыз.
4. Allow the unit to run for a few minutes and discard the first few liters of purified water to flush the system.

5. Иштөө нускамалары

Once installed and powered on, the purifier will automatically begin the purification process. Indicator lights on the front panel will show the operational status.

5.1 Суу чыгаруу

Place a clean container under the water dispenser tap. Press the tap or lever to dispense purified water. Release to stop the flow.

5.2 Purification Process

The purifier utilizes multiple stages for comprehensive water treatment:

• I-Filter: Removes fine suspended particles like dust, dirt, and sand.
• Chemi-Block: Reduces excess chlorine and organic impurities.
• UF Filter (Ultrafiltration): Filters out ultra-fine suspended particles, cysts, and bacteria.
• UV e-boiling (Ultraviolet): Uses UV-C radiation to neutralize viruses and bacteria, ensuring microbiologically safe water.
• Active Copper with Zinc Booster Cartridge: Infuses essential copper and zinc minerals into the water.
• Mineral Guard / Mineral Magnet: Helps retain essential natural minerals in the purified water.

Figure 4: Advanced purification technologies: Ultraviolet (UV-C) for virus and bacteria elimination, and Ultrafiltration (UF) for removing ultra-fine suspended particles.

Figure 5: Mineral Charge Technology, which increases essential minerals like Calcium and Magnesium in purified water.

6. Техникалык тейлөө

Regular maintenance ensures optimal performance and longevity of your water purifier.

6.1 Фильтрди алмаштыруу

The various filters have a limited lifespan and require periodic replacement. The frequency depends on water quality and usage. Refer to the indicator lights or consult your service technician for recommended replacement schedules.

• I-Filter, Chemi-Block, UF Filter: Typically replaced every 6-12 months.
• Active Copper with Zinc Booster Cartridge: Typically replaced annually.
• УВ Лamp: Has an effective lifespan and should be replaced as recommended by the manufacturer.

Эскертүү: Filter replacement should ideally be performed by a certified service technician to ensure proper installation and hygiene.

6.2 Тазалоо

• Тазалоочу аппараттын сыртын жумшак менен сүртүңүз, гamp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
• Clean the water dispensing area regularly to prevent buildup.
• Ensure the water storage tank is cleaned periodically during routine service.

7. Кыйынчылыктарды

Эгер кандайдыр бир көйгөйгө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү чечүү кадамдарын караңыз. Татаал көйгөйлөр үчүн кардарларды колдоо бөлүмүнө кайрылыңыз.

8. Техникалык шарттар

9. Кепилдик жана колдоо

Your Eureka Nova water purifier comes with comprehensive support and warranty benefits.

9.1 Кепилдик маалыматы

• 1 Year Comprehensive Warranty: Сатып алынган күндөн тартып бир жыл өндүрүштүк кемчиликтерди камтыйт.

9.2 Post-Purchase Services

• Акысыз орнотуу: Professional installation services are provided at no additional cost.
• 2 Free Services: Benefit from two complimentary service visits.
• Access to a network of 8500+ certified service technicians across 800+ cities.

Figure 6: ашыкview of post-purchase and service benefits, including free installation, free services, and comprehensive warranty.

9.3 Кардарларды колдоо

For any queries, service requests, or technical assistance, please contact:

• Өндүрүүчү: Eureka Forbes Ltd
• Телефон: 18602661177 / 9212222051
• Электрондук почта: customercare@eurekaforbes.com

10. Продукт видеосу
