1. Киришүү
This instruction manual provides guidance for the installation and use of the Generic Car Radio Canbus Box Adaptor, models RZ-FT-01 and RZ-FT-02, along with the associated wiring cable. This product is designed to facilitate the integration of aftermarket car radios with the existing Canbus system in compatible Toyota vehicles, ensuring proper communication for functions such as steering wheel controls, ignition signals, and illumination.
It is crucial to verify the compatibility of this adaptor with your specific vehicle model and year before installation to ensure correct functionality and avoid potential issues. Please consult the compatibility list provided in this manual.
2. Пакеттин мазмуну
The package typically includes one or more of the following components, depending on the specific variant purchased:

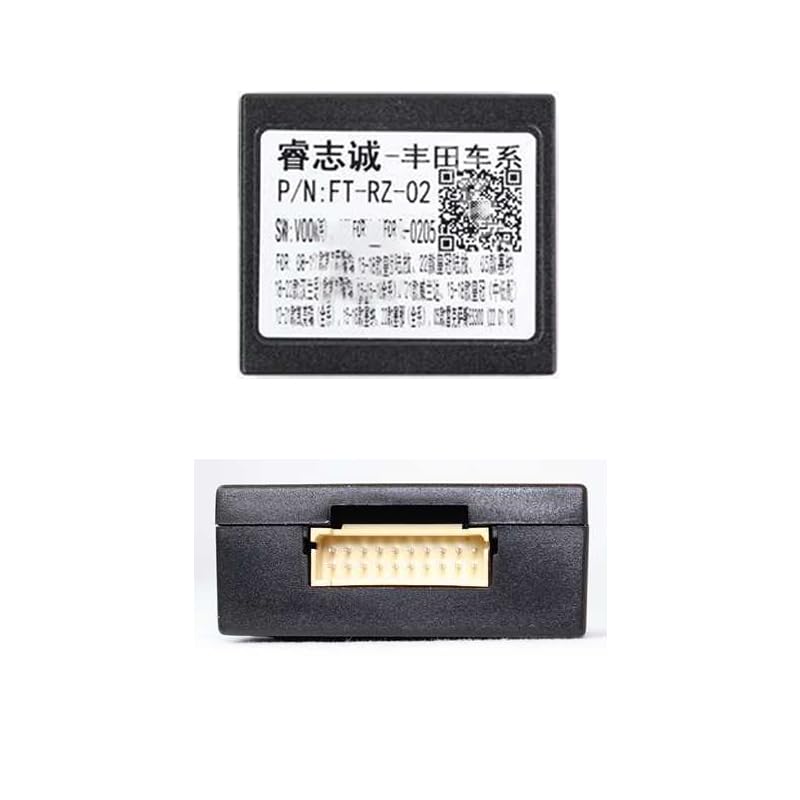

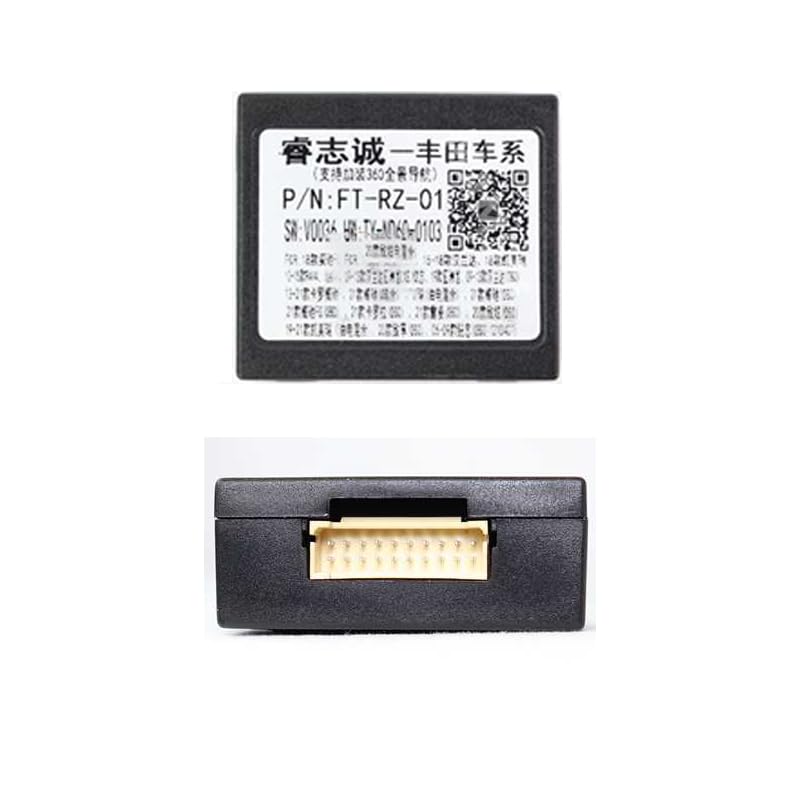

- Canbus Box (Model RZ-FT-01 or RZ-FT-02)

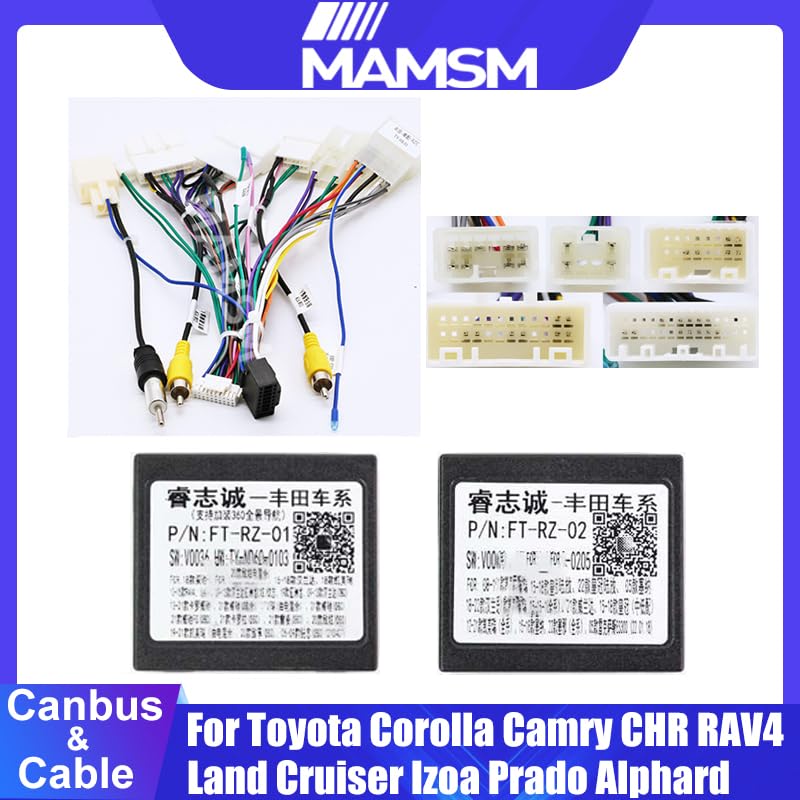

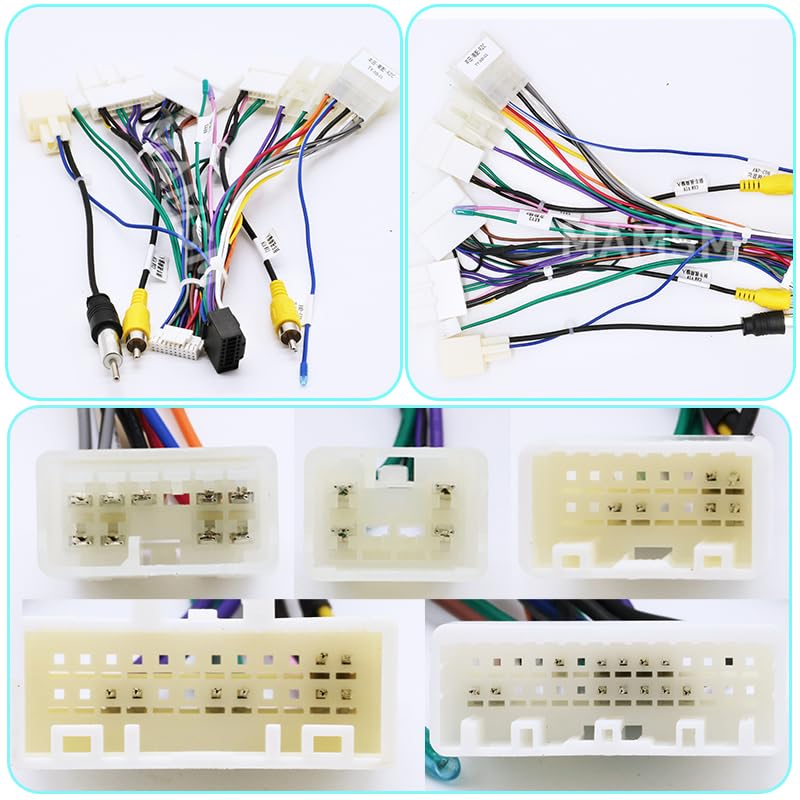

- Wiring Cable / Canbus Cable Set
Note: Other products not explicitly listed above are not included.
3. Унаа шайкештиги
This Canbus adaptor is compatible with various Toyota vehicles. Please identify the correct Canbus box model (RZ-FT-01 or RZ-FT-02) required for your specific vehicle based on the tables below. Incorrect selection may lead to non-functional or improperly functioning car radio systems.
3.1. FT-RZ-01 Cable Set Compatibility
| Унаа модели | Шайкеш келген жылдар |
|---|---|
| Toyota CAMRY | 2012-2015, 2015-2017, 2015 (American Camry) |
| Toyota RAV4 | 2013-2018 |
| Toyota REIZ/ MARK X | 2010-2020 |
| Toyota COROLLA | 2014-2016, 2017, 2014 |
| Toyota IZOA/ CHR | 2018 |
| Toyota SIENNA | 2011-2015, 2016-2018 |
| Toyota HIGHLANDER/ KLUGER | 2015-2019 |
| Toyota LEVIN | 2014 |
| Toyota LAND CRUISER | 2016+ |
| Toyota Coaster | 2015 |
| Тойота IZOA | (Year not specified, refer to 2018 for IZOA/CHR) |
3.2. FT-RZ-02 Cable Set Compatibility
| Унаа модели | Шайкеш келген жылдар |
|---|---|
| Toyota PRADO/120 | 2014-2017, 2018-2020 |
| Toyota TUNDRA | 2007-2013, 2014 |
| Toyota ALPHARD | 2008 |
| Toyota COROLLA /Altis/Auris | 2019 |
| Toyota RAV4 | 2019, 2020 |
| Toyota VENZA | 2011 |
4. Орнотуу жана орнотуу
Installation of the Canbus box and wiring harness requires basic knowledge of car audio systems and vehicle wiring. If you are unsure about any steps, it is recommended to seek professional installation to prevent damage to your vehicle or the product.
4.1. Жалпы орнотуу кадамдары
- Унаанын аккумуляторун ажыратыңыз: Кандайдыр бир электрдик жумушту баштоодон мурун, кыска туташуулардын алдын алуу үчүн унааңыздын аккумуляторунун терс терминалын ажыратыңыз.
- Remove Existing Car Radio: Carefully remove your vehicle's existing car radio or head unit according to your vehicle's service manual.
- Унаанын зымдарын аныктоо: Locate the factory wiring harness connectors for your car radio.
- Connect Canbus Box and Wiring Harness:
- Connect the vehicle-specific end of the provided wiring harness to your car's factory wiring.
- Connect the other end of the wiring harness to the Canbus box (RZ-FT-01 or RZ-FT-02). Ensure all connections are secure.
- Connect the remaining connectors from the wiring harness to your new aftermarket car radio. These typically include power, ground, speaker outputs, and signal wires.
- Коопсуз компоненттер: Ensure the Canbus box and all wiring are securely placed and not interfering with any moving parts or vehicle controls.
- Батареяны кайра туташтыруу жана сыноо: Reconnect the vehicle battery. Turn on the ignition and test the new car radio and all associated functions (e.g., steering wheel controls, illumination, reverse gear signal).
- Башкаруу панелин кайра чогултуу: Бардык функциялар текшерилгенден кийин, башкаруу панелинин компоненттерин кылдаттык менен кайра чогултуңуз.
4.2. Компонентти идентификациялоо
5. Иштөө жана функционалдык
The Canbus Box Adaptor acts as an interface between your vehicle's Canbus data network and your aftermarket car radio. It translates digital signals from the vehicle (e.g., ignition status, vehicle speed, reverse gear, steering wheel control commands) into analog or digital signals that your aftermarket radio can understand and utilize.
- Рулдун башкаруу элементтери: Enables the use of factory steering wheel audio controls with your new radio.
- Ignition (ACC) Signal: Provides a switched 12V accessory output for the radio, turning it on and off with the vehicle's ignition.
- Illumination Signal: Provides an illumination output that dims the radio's display when vehicle lights are turned on.
- Тескери тиштүү сигнал: Provides a signal for aftermarket radios with reverse camera input, activating the camera display when the vehicle is in reverse.
- Speed Pulse Signal: Provides a vehicle speed signal, which may be required for navigation systems or specific radio features.
Once correctly installed, the adaptor operates automatically without user intervention. The specific functions supported depend on the vehicle's original Canbus system and the features of the aftermarket radio.
6. Техникалык тейлөө
The Canbus Box Adaptor is a passive electronic component and requires minimal maintenance. To ensure long-term reliability:
- Бардык зымдардын туташууларынын бекем жана дат баспагандыгын текшериңиз.
- Keep the Canbus box and wiring away from excessive moisture, heat, or physical damage.
- Avoid exposing the unit to strong electromagnetic fields.
No user-serviceable parts are inside the Canbus box. Do not attempt to open or repair the unit.
7. Кыйынчылыктарды
Орнотуудан кийин көйгөйлөргө туш болсоңуз, көйгөйлөрдү чечүүнүн төмөнкү кадамдарын карап көрүңүз:
- Радио күйбөй жатат:
- Check all power and ground connections to the radio and the Canbus harness.
- Verify the vehicle battery is properly connected and charged.
- Ensure the Canbus box is correctly plugged into the harness.
- Рулдун башкаруу элементтери иштебейт:
- Confirm that your aftermarket radio supports steering wheel controls and that the corresponding wires are connected.
- Check the compatibility list to ensure the correct Canbus box model (RZ-FT-01 or RZ-FT-02) is used for your vehicle.
- Some radios require programming or learning of steering wheel controls in their settings menu. Refer to your radio's manual.
- No Illumination/Dimming:
- Verify the illumination wire from the Canbus harness is connected to the radio's illumination input.
- Check your radio's settings for illumination control.
- Other Functions (e.g., Reverse Signal, Speed Pulse) Not Working:
- Ensure the specific function wires are correctly connected from the Canbus harness to the corresponding inputs on your aftermarket radio.
- Confirm your radio supports these specific inputs.
- Жалпы бузулуу:
- Double-check all connections for looseness or incorrect wiring.
- Ensure the Canbus box itself is not damaged.
- Re-verify vehicle compatibility.
Бул кадамдарды аткаргандан кийин көйгөйлөр чечилбесе, кошумча жардам алуу үчүн сатуучуга же квалификациялуу унаанын аудио техникине кайрылыңыз.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Продукт түрү | Car Radio Canbus Box Adaptor |
| Моделдер | RZ-FT-01, RZ-FT-02 |
| Киргизүү көлөмүtage | 12V DC |
| Материал | Пластик |
| Түс | Black (Canbus Box), Multi-color (Wiring) |
| Origin | Материк Кытай |
9. Кепилдик жана колдоо
Кепилдик маалыматы: Specific warranty terms and duration for this product are provided by the seller or manufacturer at the time of purchase. Please retain your proof of purchase for any warranty claims. No explicit warranty details are provided in this manual.
Техникалык колдоо: For technical assistance, installation queries, or troubleshooting beyond the scope of this manual, please contact the seller from whom you purchased the product. They can provide specific guidance related to your purchase.
Additional information may be available by scanning the QR code found on the Canbus box or visiting the associated link: http://weixin.qq.com/r/t0xpcb7EQuM9rfoS9xml.
