Redkey W15 Wet and Dry Vacuum Cleaner

Модел: W15-O1 | Бренд: Redkey

User Manual

1. Киришүү

Thank you for choosing the Redkey W15 Wet and Dry Vacuum Cleaner. This appliance is designed to provide efficient and versatile cleaning for various sealed hard floor types, combining vacuuming, washing, and mopping functions in one device. Please read this manual thoroughly before operation to ensure proper use, maintenance, and to maximize the lifespan of your product.

2. Коопсуздук нускамалары

Өрт, электр шок же жаракат алуу коркунучун азайтуу үчүн электр шаймандарын колдонууда ар дайым негизги коопсуздук чараларын сактаңыз.

  • Шайманды сууга же башка суюктуктарга батырбаңыз.
  • Бул колдонмодо сүрөттөлгөндөй гана колдонуңуз. Өндүрүүчү сунуштаган тиркемелерди гана колдонуңуз.
  • Бузулган шнур же сайгыч менен колдонбоңуз. Эгерде шайман талаптагыдай иштебесе, кулап, бузулуп, көчөдө калып же сууга түшүп калса, аны тейлөө борборуна кайтарыңыз.
  • Шнурду тартпаңыз же көтөрбөңүз, шнурду туткасы катары пайдаланбаңыз, шнурдун эшигин жаппаңыз, же курч учтарын же бурчтарын тегерете тартпаңыз. Шнурду жылытылган беттерден алыс кармаңыз.
  • Штепсель же шайманды нымдуу кол менен кармабаңыз.
  • Чачты, кенен кийимдерди, манжаларды жана дененин бардык бөлүктөрүн тешиктерден жана кыймылдуу бөлүктөрдөн алыс кармаңыз.
  • Тамеки, ширеңке, ысык күл сыяктуу күйүп жаткан же чылым чеккен нерселерди албаңыз.
  • Тепкичтерде тазалоодо өзгөчө этият болуңуз.
  • Бензин сыяктуу күйүүчү же күйүүчү суюктуктарды алуу үчүн колдонбоңуз же алар болушу мүмкүн болгон жерлерде колдонбоңуз.
  • Колдонбогондо жана тейлөөгө чейин розеткадан сууруп алыңыз.
  • Бул шайман тиричиликте гана колдонуу үчүн.

3. Пакеттин мазмуну

Баардык буюмдар пакетиңизге камтылганын текшериңиз:

  • Redkey W15 Wet and Dry Vacuum Cleaner Unit
  • Заряддоо док
  • Кубаттуу адаптер
  • Brush Roller (Pre-installed)
  • Extra Brush Roller (x1)
  • HEPA Filter (Pre-installed)
  • Extra HEPA Filter (x1)
  • Тазалоо куралы
  • User Manual
Redkey W15 vacuum cleaner and included accessories

Image: Redkey W15 vacuum cleaner with its accessories including extra filters, brush rollers, and charging dock.

4. Продукт бүтүп калдыview

Familiarize yourself with the main components of your Redkey W15:

  • туткасы: Эргономикалык жактан ыңгайлуу кармоо жана башкаруу үчүн иштелип чыккан.
  • Clean Water Tank (910 ml): Holds fresh water for cleaning.
  • Dirty Water Tank (600 ml): Кир сууларды жана таштандыларды чогултат.
  • LED дисплей: Shows battery level, cleaning mode, and alerts.
  • Щетка башчысы: Contains the roller brush for scrubbing and vacuuming.
  • Өзүн-өзү тазалоо баскычы: Автоматтык түрдө өзүн-өзү тазалоо циклин баштайт.
  • Кубат баскычы: Turns the unit on/off and switches modes.
Redkey W15 vacuum cleaner showing its main components

Сүрөт: деталдуу view of the Redkey W15, highlighting its dual water tanks and brush head.

5. Орнотуу

5.1 Ассамблея

  1. Тутканы негизги корпуска чыкылдатмайынча киргизиңиз.
  2. Ensure the clean water tank and dirty water tank are securely installed.

5.2 Заряддоо

  1. Place the vacuum cleaner on the charging dock.
  2. Connect the power adapter to the charging dock and a power outlet.
  3. The LED display will indicate charging status. A full charge takes approximately 3-4 hours.
Redkey W15 on its charging dock

Image: The Redkey W15 vacuum cleaner docked for charging, showing the charging station.

6. Иштөө нускамалары

6.1 Таза суу резервуарын толтуруу

  1. Негизги блоктон таза суу сактагычты алып салыңыз.
  2. Open the tank cap and fill with clean tap water. For enhanced cleaning, a small amount of non-foaming floor cleaning solution can be added (refer to solution instructions).
  3. Капкагын бекем жаап, резервуарды кайра агрегаттын ичине салыңыз.

6.2 Ишти баштоо

  1. Press the Power Button to turn on the vacuum cleaner. It will start in Standard mode.
  2. LED дисплей учурдагы режимди жана батареянын деңгээлин көрсөтөт.
  3. To switch between cleaning modes (Standard, Suction, Powerful), press the Power Button repeatedly.

6.3 Тазалоо режимдери

  • Стандарттык режим: For general daily cleaning of light dirt and dust.
  • Соруу режими: Primarily for vacuuming liquids or wet spills without dispensing water.
  • Күчтүү режим: For stubborn dirt, dried stains, and heavy-duty cleaning.
Redkey W15 cleaning different types of dirt

Image: The Redkey W15 demonstrating its ability to clean various types of messes, including dry debris, wet spills, and sticky residue.

6.4 Тазалоо

The Redkey W15 features a 6mm edge cleaning design, allowing it to clean close to baseboards and into corners effectively. Simply guide the brush head along the edges of your room.

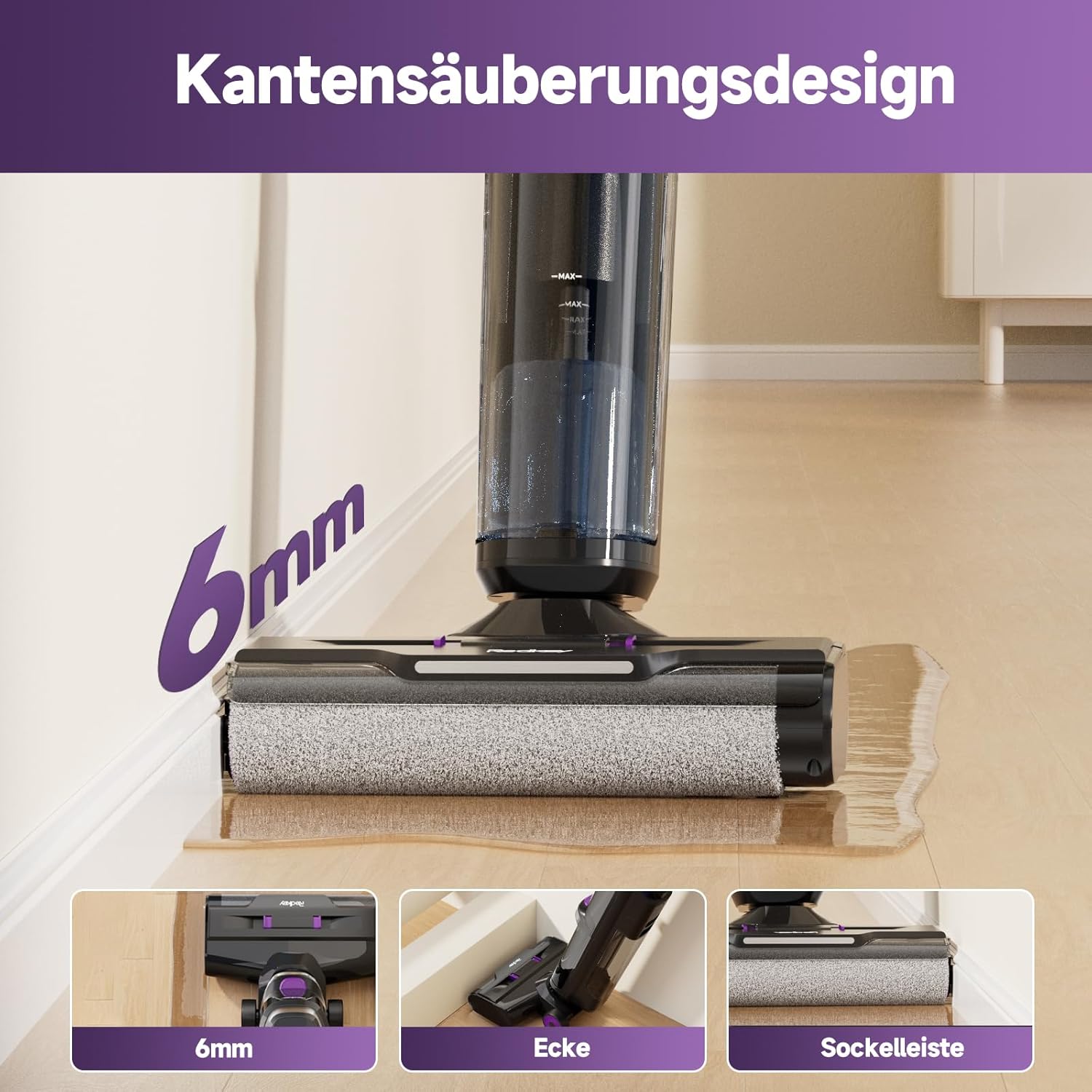

Redkey W15 demonstrating edge cleaning

Image: The Redkey W15 cleaning along a wall, showcasing its 6mm edge cleaning capability.

7. Техникалык тейлөө

7.1 Өзүн өзү тазалоо функциясы

  1. After each use, place the vacuum cleaner on the charging dock.
  2. Таза суу сактагычта жетиштүү таза суунун бар экенине ынаныңыз.
  3. Press the Self-Cleaning Button. The unit will automatically clean the brush roller and internal pipes.
  4. The process takes a few minutes and will stop automatically.

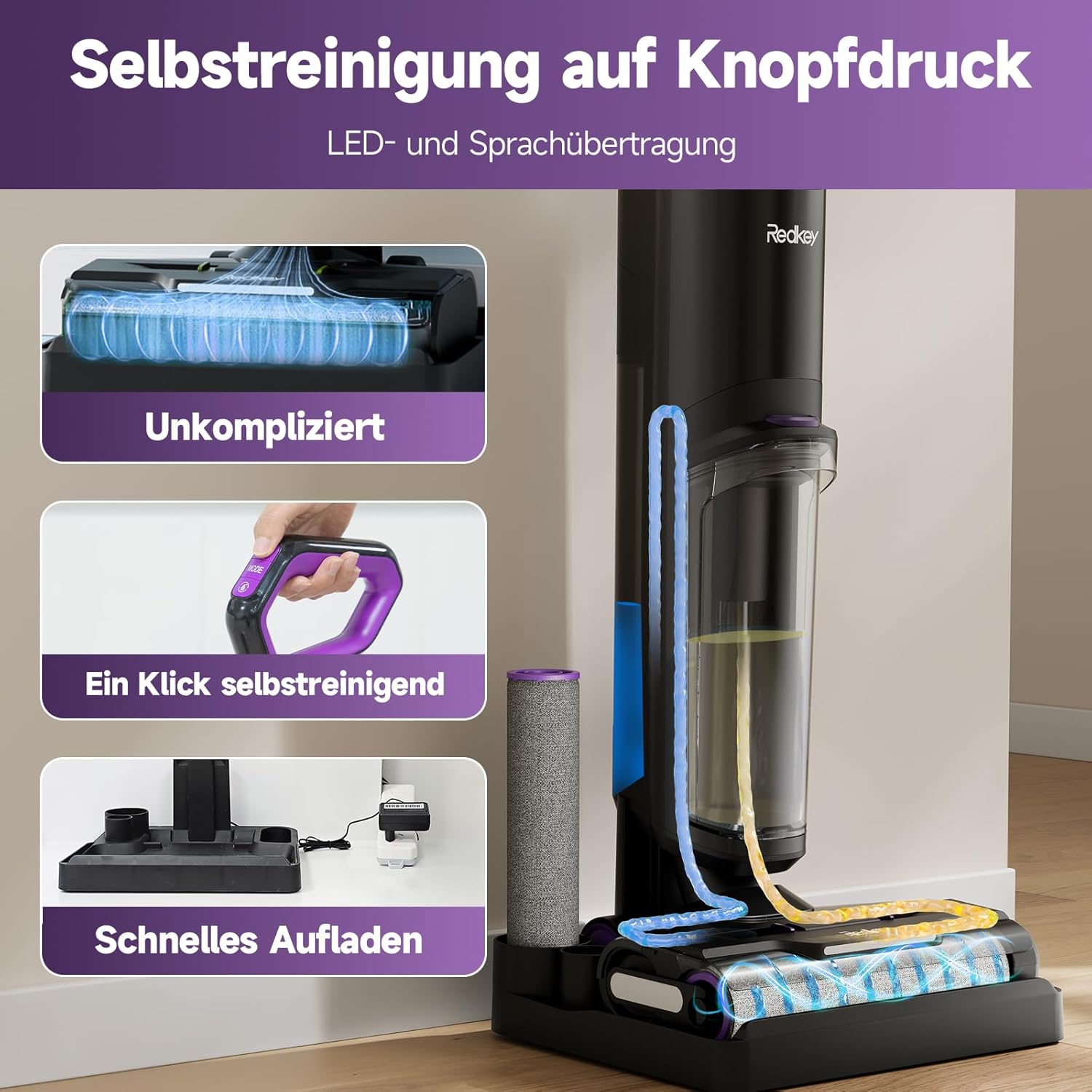

Redkey W15 self-cleaning process

Image: Illustration of the Redkey W15's one-touch self-cleaning function, showing water circulation to clean the roller and internal components.

7.2 Кир суу куюлган бактын ичин бошотуу жана тазалоо

  1. Кир суу куюлуучу бактын түтүгүн аппараттан алып салыңыз.
  2. Бакты этияттык менен ачып, кир сууну жана таштандыларды төгүп салыңыз.
  3. Танкты таза суу менен жакшылап чайкаңыз.
  4. Кайра салуудан мурун резервуарды толугу менен кургатууга уруксат бериңиз.

7.3 Cleaning the Roller Brush and Filter

  1. Remove the roller brush cover and then the roller brush.
  2. Rinse the roller brush under running water to remove any hair or debris. Use the provided cleaning tool if necessary.
  3. Remove the HEPA filter from the dirty water tank. Rinse it under running water.
  4. Allow the roller brush and HEPA filter to air dry completely for at least 24 hours before reassembling. Do not use if still wet.
HEPA чыпкасын тазалоо

Image: A person rinsing the HEPA filter under running water, demonstrating easy maintenance.

8. Кыйынчылыктарды

КөйгөйМүмкүн себепЧечим
Түзмөк күйбөйт.Батарея аз же түгөнүп калган.Аппаратты толук заряддаңыз.
Суу берилбейт.Таза суу сактагыч бош.Таза суу резервуарын кайра толтуруңуз.
Начар соргуч.Dirty water tank is full or clogged. Filter is dirty. Brush roller is tangled.Empty and clean the dirty water tank. Clean or replace the HEPA filter. Clean the brush roller.
Анормалдуу ызы-чуу.Brush roller obstructed or damaged.Check and clean the brush roller for obstructions. If damaged, replace it.
Voice prompts are in English only.Current software version limitation.This is a known limitation. Updates for other languages are in progress.

9. Техникалык шарттар

  • Модел: W15
  • Бренд: Redkey
  • Функциялары: 3-in-1 (Vacuum, Wash, Mop)
  • Таза суу резервуарынын сыйымдуулугу: 910 мл
  • Кир суу резервуарынын сыйымдуулугу: 600 мл
  • Батареянын иштөө убактысы: 35 мүнөткө чейин
  • Четтерин тазалоо: 6 мм
  • Салмагы: 4.0 kg (unit only), 6.9 kg (packaged)
  • Өлчөмдөрү: 70 x 31 x 33 см (пакеттелген)
  • Чыпка түрү: HEPA чыпкасы
  • Дисплей: LED with Voice Prompts (English only currently)

10. Кепилдик жана колдоо

Redkey offers comprehensive support for your W15 Wet and Dry Vacuum Cleaner.

  • Продукт Кепилдиги: 2-year warranty for the wet and dry vacuum cleaner.
  • Батареяга кепилдик: 2-year warranty for the battery.

For any spare parts or after-sales issues, please contact us through the following channel:

Your Account > Orders > Order Details > Sold by: WHSJ EU > Ask a Question

Биз 24 сааттын ичинде жооп берүүгө умтулабыз.

Кардарларды колдоо өкүлү

Image: A customer service representative, illustrating Redkey's commitment to support.
