Generic 31V Charger Instruction Manual

1. Киришүү

This manual provides essential information for the safe and effective use of your Generic 31V Replacement Power Adapter. This charger is specifically designed for Laresar Elite 1, 3, 4, 5, S6, 7, 8 cordless vacuum cleaners that utilize a 25.9V li-ion battery (model H015R).

Маанилүү шайкештик эскертүүсү: Бул заряддагыч түзүлүш ЖОК compatible with Laresar Elite 2, Ultra 7 cordless vacuums, or any vacuum requiring a 22.2V/29.6V li-ion battery or a 26.5V/36V charger. Please verify your vacuum's battery specifications before use.

Figure 1: Compatible Battery Types. This image illustrates the specific battery types (25.2V / 25.9V 7 Cell li-ion battery) that are compatible with this charger, and explicitly lists incompatible types (21.6V / 22.2V / 29.6V li-ion battery). It also shows where to check the battery label for details.

2. Коопсуздук маалыматы

Your charger is equipped with a built-in intelligent chip designed to provide multiple safety protections, ensuring safe operation and preventing damage to your device and the charger itself. These protections include:

• Ашыкча ток коргоо: Ашыкча ток агымынан келип чыккан зыяндын алдын алат.
• Overvoltage Коргоо: Коргоо чаралары томtagд толкундары.
• Ашыкча кубаттан коргоо: Protects the battery from being overcharged.
• Ашыкча ысып кетүүдөн коргоо: Prevents the charger from reaching unsafe temperatures during operation.
• Кыска туташуулардан коргоо: Кыска туташуу болгон учурда электр энергиясын автоматтык түрдө өчүрөт.
• Ашыкча жүктөөдөн коргоо: Ашыкча электр энергиясын сарптоодон коргойт.

The charger's PC+ABS shell is designed for durability, resisting impacts and enduring daily use. Its high-heat resistance further prevents overheating during fast charging cycles.

Figure 2: Safety Protection Features. This graphic displays the six key safety protections integrated into the charger: Overcurrent, Overvoltage, Overcharge, Overheating, Short Circuit, and Overloading Protection.

3. Продукт бүтүп калдыview

Кутуда эмне бар:

• 1 x AC/DC Adapter (31V Charger)

Негизги өзгөчөлүктөрү:

• Киргизүү: 100-240V, 50/60Hz (Universal AC input)
• Чыгуу: 31V
• Ватtage: 15.5 ватт
• Charging Cord Length: Болжол менен 5.9 фут (1.8 метр)
• Туташтыргыч түрү: Barrel Connector
• Кабель курулушу: Features a flexible PVC jacket and copper wire for durability and efficient power transfer.

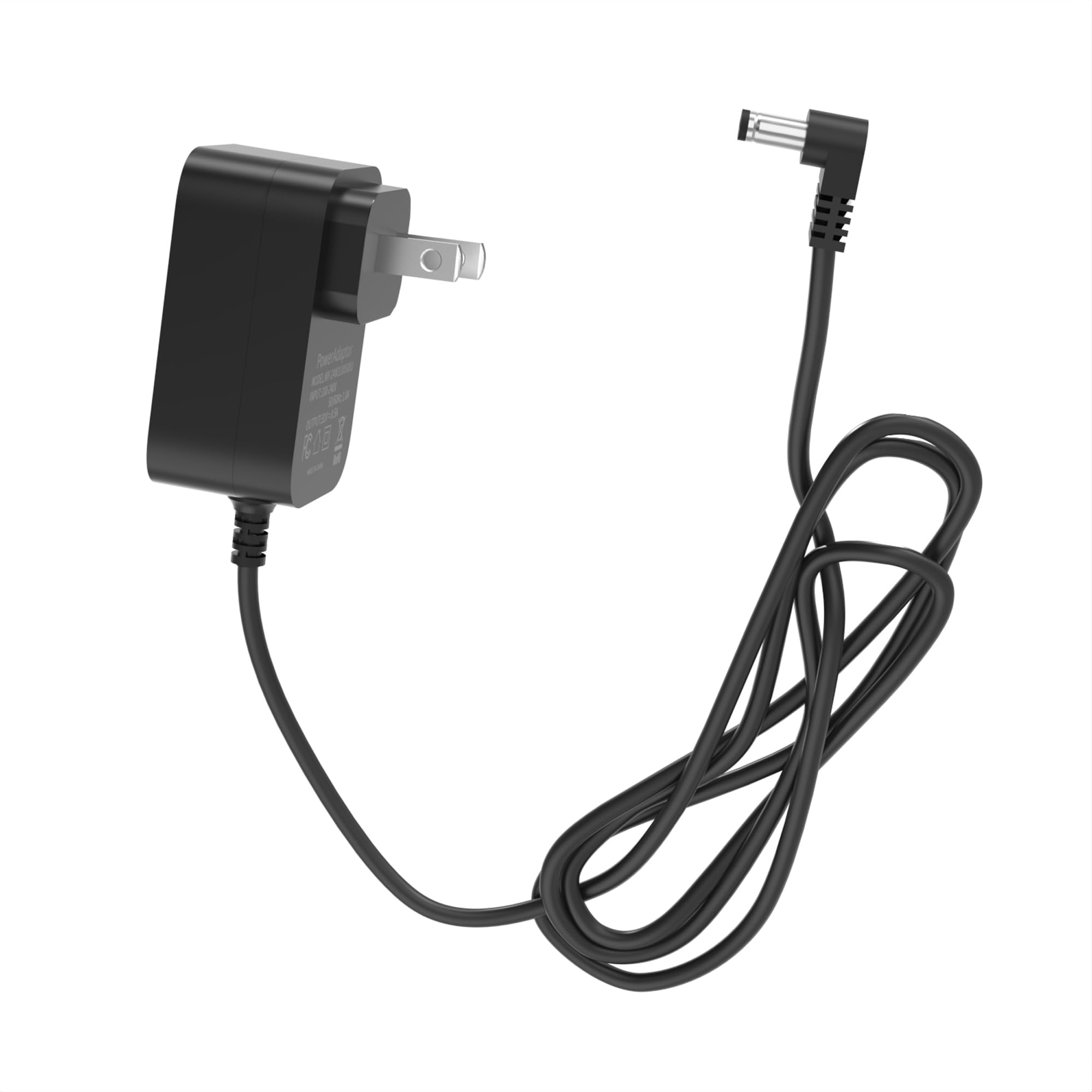

Figure 3: 31V Power Adapter. А ачык view of the replacement power adapter, highlighting its compact design.

Figure 4: Adapter Specifications. This image details the physical dimensions of the adapter (2.3 inches height, 1.2 inches width) and the barrel connector size (1.4 inches), along with the 6-foot cable length.

Figure 5: Premium Cable Construction. An illustration showing the internal structure of the charging cable, featuring a flexible PVC jacket and copper wire for enhanced durability and conductivity.

4. Орнотуу

1. Шайкештикти текшерүү: Before connecting, ensure your vacuum cleaner is a Laresar Elite 1, 3, 4, 5, S6, 7, or 8 model and uses a 25.9V li-ion battery (H015R). Check the power specifications on your vacuum's battery label or original charger.
2. Connect to Vacuum: Insert the barrel connector of the 31V charger into the charging port of your Laresar Elite cordless vacuum cleaner.
3. Розеткага туташуу: Plug the charger's AC plug into a standard 100-240V wall power outlet.
4. Confirm Power: The vacuum cleaner or charger may have an indicator light to show that charging has begun. Refer to your vacuum's specific manual for details on charging indicators.

Figure 6: Power Specification Check. This image advises users to check the power specifications on their existing charger label to ensure compatibility with 31V 0.5A or 30V 0.8A output, while explicitly showing incompatibility with 36V 0.5A and 26V 0.5A.

5. Иштөө нускамалары

Once properly connected, the charger will begin to supply power to your vacuum cleaner's battery. The charging process is automatic, and the built-in safety features will manage the power delivery to prevent overcharging.

• Allow the vacuum to charge fully before its first use or after extended periods of non-use.
• Unplug the charger from the wall outlet and the vacuum cleaner once charging is complete or when the vacuum is not in use for prolonged periods.
• Avoid operating the vacuum cleaner while it is connected to the charger, unless specified by the vacuum's manufacturer.

Figure 7: Vacuum Charging. A visual representation of the cordless vacuum cleaner connected to the power adapter for charging in a home environment.

6. Техникалык тейлөө

• Keep the charger and its cable clean and free from dust and debris.
• Заряддоо түзүлүштү колдонбогондо салкын, кургак жерде сактаңыз.
• Avoid bending or crimping the charging cable excessively, as this can damage the internal wires.
• Заряддоочу түзүлүштү сууга же өтө температурага дуушар кылбаңыз.
• Regularly inspect the charger and cable for any signs of damage. Discontinue use if any damage is observed.

7. Кыйынчылыктарды

Vacuum Battery Not Holding Charge:

If your vacuum cleaner's battery is not holding a charge, it may not necessarily indicate a charger malfunction. Rechargeable batteries typically have a lifespan of 1-3 years and can naturally deplete over time.

• Батареянын түгөнүп калышы: If the battery is old, its capacity to hold a charge will diminish. This is a natural process and not a fault of the charger.
• Диагноз: To accurately determine if the issue is with the battery or the charger, consider using a voltage tester. This can help identify if the problem is due to battery aging or a device failure.
• Заряддагыч текшерүү: Ensure the charger is securely plugged into both the wall outlet and the vacuum. Check for any visible damage to the charger or cable.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information or technical support, please refer to the documentation provided with your original purchase or contact the seller directly. The manufacturer of this product is ChapeLi.

Ар кандай кепилдик дооматтары үчүн сатып алуу дүмүрчөгүңүздү сактап калуу сунушталат.
