User Manual: Car Rearview Mirror LED Turn Signal Indicator Lamp

1. Продукт бүтүп калдыview

This product is a Car Rearview Күзгү LED жарыгы Капталдан артка бурулуучу күзгү бурулуучу сигналдын индикатору Lamp designed for Hyundai I40 models from 2011-2018. It serves as a direct replacement for original equipment part numbers 876143Z000 and 876243Z000.

лamp is constructed from high-quality ABS material, ensuring durability and resistance to corrosion, rust, and scratches. Its primary function is to enhance visibility and traffic safety by clearly signaling turns to other road users, especially in low-light conditions, heavy rain, snow, or dense fog.

Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:

• Жогорку сапаттагы материалдар: Made of ABS plastic shell and PC lens for anti-corrosion, anti-rust, anti-scratch properties, low power consumption, high light purity, and long service life.
• Жакшыртылган көрүнүш: Improves brightness for night driving and ensures other drivers can clearly identify turn signals.
• Энергияны үнөмдүү: Features low power consumption for sustainable energy saving.
• Түздөн-түз алмаштыруу: Designed for easy, plug-and-play installation.

Сүрөт 1: Алдыңкы view of the Car Rearview Mirror LED Turn Signal Indicator Lamp. This image shows the clear lens and the LED array within, designed for optimal light output.

2. Орнотуу боюнча колдонмо

This turn signal lamp is designed for straightforward replacement. It is intended for installation on the front left and front right rearview mirrors of compatible Hyundai I40 vehicles (2011-2018 models).

2.1 Орнотуудан мурун

• Ensure the vehicle's ignition is off and the battery is disconnected to prevent electrical hazards.
• Verify that the product model and part numbers (876143Z000, 876243Z000) match your vehicle's requirements. If unsure, consult a professional or the manufacturer.
• Gather necessary tools, which typically include a screwdriver set and potentially a trim removal tool.

2.2 Орнотуу кадамдары

1. Access the Existing Lamp: Carefully remove the rearview mirror cover or trim panel to gain access to the existing turn signal lamp. Refer to your vehicle's specific service manual for precise instructions on trim removal.
2. Disconnect Old Lamp: Disconnect the electrical connector from the old turn signal lamp.
3. Эски Лamp: Unfasten any screws or clips holding the old lamp in place and carefully remove it from the mirror assembly.
4. Жаңы L орнотууamp: Position the new LED turn signal lamp into the mirror assembly. Ensure it fits securely.
5. Connect New Lamp: Connect the electrical connector to the new lamp. Ensure a firm and secure connection.
6. Сыноо функциясы: Before reassembling the mirror cover, reconnect the vehicle's battery and test the turn signal functionality to ensure the new lamp туура жарык берет.
7. Кайра чогултуу: Once confirmed working, carefully reattach the mirror cover or trim panel, ensuring all clips and screws are properly secured.

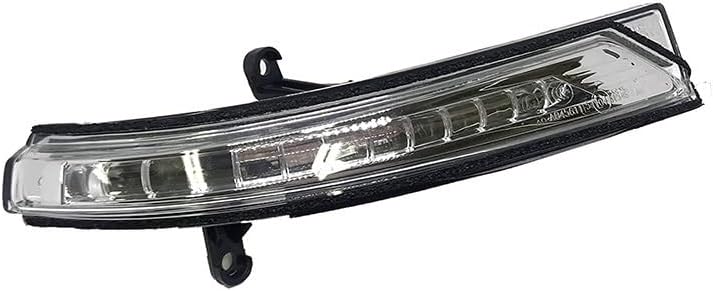

2-сүрөт: Каптал view лamp, highlighting the mounting tabs. These tabs are crucial for securing the lamp within the rearview mirror housing.

3-сүрөт: Арткы view лamp, showing the housing and the area for the electrical connector. This view is important for understanding how the lamp connects to the vehicle's wiring.

3. Операция

The LED turn signal indicator lamp operates automatically in conjunction with your vehicle's existing turn signal system. When the turn signal lever is activated (left or right), the corresponding lamp артындаview mirror will flash, providing an additional visual cue to other drivers.

Бул лamp is designed for low power consumption, contributing to energy efficiency while providing bright and clear signaling. Its purpose is to increase the visibility of your turning intentions, thereby enhancing overall road safety.

4. Техникалык тейлөө

The LED turn signal lamp requires minimal maintenance due to its durable construction and long-lasting LED technology. However, regular cleaning and inspection are recommended to ensure optimal performance and longevity.

• Тазалоо: Periodically clean the outer lens of the lamp with a soft cloth and mild automotive cleaning solution. Avoid abrasive cleaners or harsh chemicals that could damage the plastic lens.
• Текшерүү: дайыма текшерип туруу лamp for any signs of physical damage, cracks, or loose connections. Ensure the lamp is securely seated in its housing.
• Функционалдык текшерүү: Periodically test the turn signals to confirm both left and right lamps are functioning correctly and illuminating brightly.

5. Кыйынчылыктарды

If you experience issues with your LED turn signal lamp, төмөнкү көйгөйлөрдү чечүү кадамдарын карап көрүңүз:

• Lamp Not Illuminating:
  • Check the electrical connection to the lamp. Ensure it is firmly plugged in.
  • Verify that the vehicle's turn signal fuse is intact and not blown. Refer to your vehicle's owner's manual for fuse box location and diagram.
  • Ensure the vehicle's turn signal switch is functioning correctly.
• Intermittent Flashing:
  • This could indicate a loose connection. Re-check the electrical connector.
  • Inspect the wiring for any signs of damage or corrosion.
• Күңүрт жарыктандыруу:
  • Ensure the lens is clean and free from dirt or debris.
  • While rare for LEDs, a faulty unit could be the cause.

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified automotive technician for diagnosis and repair. Always ensure the product is compatible with your specific vehicle model and year before installation.

6. Техникалык шарттар

7. Кепилдик жана колдоо

This product is typically covered by a standard return policy, allowing for returns or replacements within 30 days of purchase if the item is defective or not as described. For specific warranty details, please refer to the terms and conditions provided by your retailer at the time of purchase.

For technical support, installation queries, or assistance with product compatibility, please contact the seller or manufacturer directly. When contacting support, please provide your vehicle information (make, model, year), VIN, and any relevant pictures to help expedite assistance.
