Sunster TB10 8KW TOOLBOX Diesel Air Heater Instruction Manual

1. Продукт бүтүп калдыview

The Sunster TB10 8KW TOOLBOX Diesel Air Heater is a portable heating solution designed for various environments including vehicles, RVs, campers, tents, garages, and homes. It features an integrated toolbox design for portability, dual power supply options (12/24V DC and 110-240V AC), quiet operation, smart APP control, and all-terrain adaptive performance with altitude compensation.

This manual provides essential information for the safe and efficient setup, operation, and maintenance of your diesel air heater.

Figure 1: Sunster TB10 Diesel Heater with key features.

2. Орнотуу жана орнотуу

2.1 Пакеттен чыгаруу жана компоненттерди текшерүү

Upon receiving your Sunster TB10 Diesel Air Heater, carefully unpack all components and verify that all accessories are present according to the packing list. Refer to the 'Product Information' section for a detailed list of included parts.

Figure 2: Included components for the Sunster TB10 Diesel Air Heater.

2.2 Электр булагы

The heater supports dual power options: 12/24V DC and 110-240V AC. Ensure the power cord is connected directly to the car battery for DC power. Do not connect it to main cable wires, cigar lighters, or fuse boxes, as this may lead to unstable power supply or machine malfunction.

• DC туташуу: Connect the red wire (positive) and black wire (negative) directly to your vehicle's battery terminals.
• AC туташуу: Use the provided AC-DC power adapter to connect the heater to a standard 110-240V AC power outlet.

Figure 3: Dual power supply options.

2.3 Exhaust and Intake Pipe Assembly

For safe operation, ensure the exhaust pipe is routed outdoors to prevent carbon monoxide buildup. The air intake and exhaust must be in different directions to avoid re-circulating exhausted air.

• Чыгаруучу түтүк: Connect the flexible metal exhaust pipe to the heater's exhaust port. Secure it tightly with the provided clamp агып кетүүсүн алдын алуу үчүн.
• Intake Pipe: Connect the air intake pipe to the heater's intake vent. Secure it with a clamp.
• Жылуулук коргоо: Apply the heat protection sleeve to the exhaust pipe to reduce heat transfer.

Figure 4: Exhaust pipe and air filter assembly.

2.4 Hot Air Outlet Connection

Connect the hot air duct to the heater's air outlet. Fasten the joint securely with the iron loop (clamp).

2.5 Fuel Tank Filling

The integrated 6L fuel tank is located within the toolbox design. Open the fuel tank cap and carefully fill it with diesel fuel. Ensure the cap is securely closed after filling.

2.6 Control Panel Extension

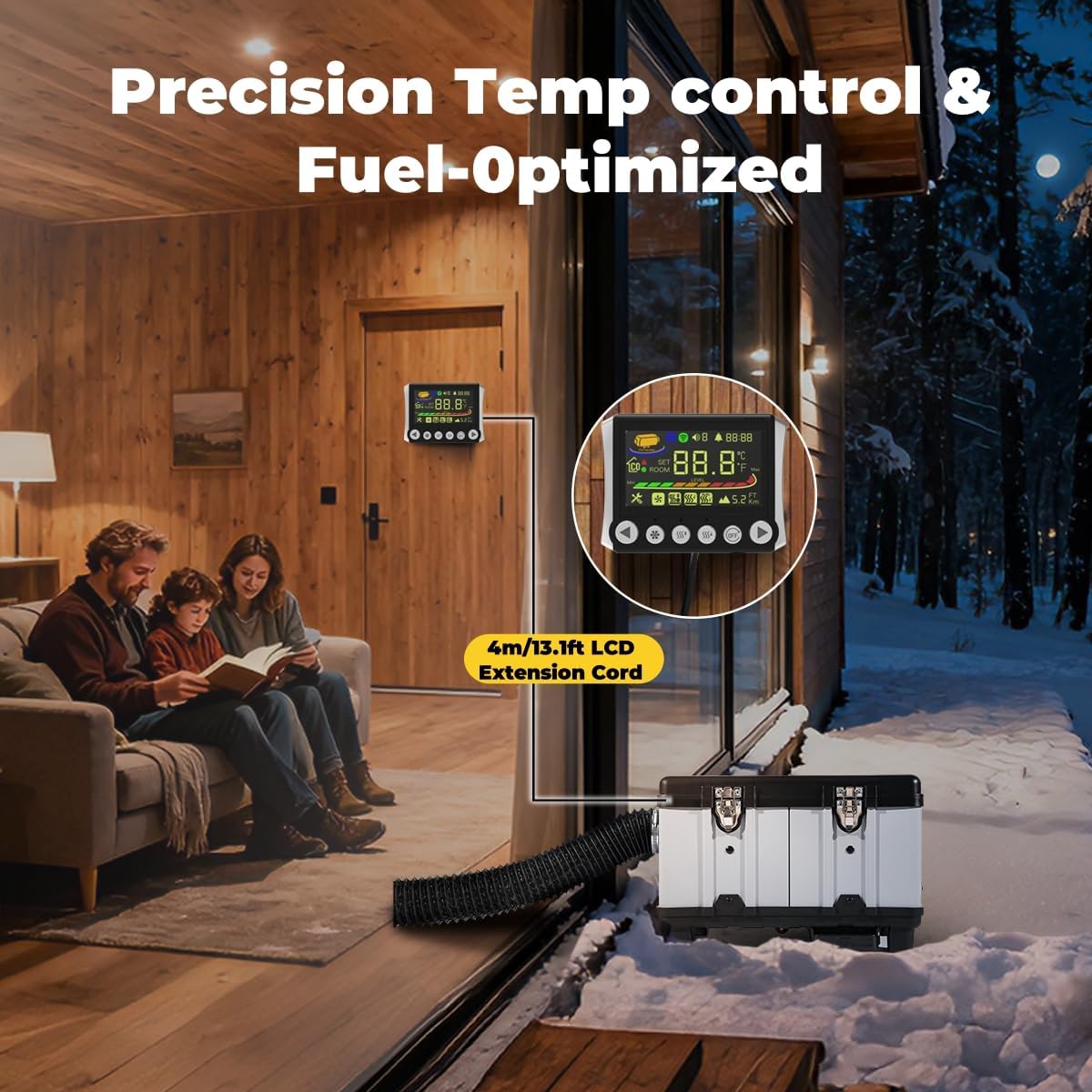

The heater includes a 4-meter extension cable for the LCD control panel, allowing for indoor mounting and easier temperature monitoring and adjustment.

Figure 5: Extended LCD control panel for indoor climate control.

2.7 Орнотуу видеолору

3. Иштөө нускамалары

3.1 Control Panel and APP Control

The Sunster TB10 Diesel Air Heater can be controlled via its integrated LCD display, a remote control, or a Bluetooth-enabled smartphone application. The smart app offers comprehensive control over temperature, timers, power levels, altitude mode, constant temperature, and ventilation mode settings.

Figure 6: Multiple control options for the heater.

Figure 7: LCD Monitor details and functions.

3.2 Automatic Start-Stop and Ventilation

The heater features an automatic start-stop function to maintain a constant temperature and optimize energy efficiency. The ventilation function helps keep fresh air circulating and maintains suitable temperature and air quality in enclosed spaces.

3.3 Adaptive Plateau Performance

The TB10 heater automatically adjusts its combustion for optimal performance at altitudes up to 5500 meters, ensuring full heat output and fuel economy in mountainous terrain.

Figure 8: Smart APP control features.

3.4 Operating Videos

4. Техникалык тейлөө

Regular maintenance ensures the longevity and efficient operation of your diesel air heater. Always disconnect power before performing any maintenance.

• Күйүүчү май чыпкасы: Periodically check and clean or replace the fuel filter to ensure clean fuel delivery.
• Аба чыпкасы: Inspect the air filter regularly and clean it as needed to maintain optimal airflow.
• Чыгаруу системасы: Ensure the exhaust pipe and muffler are free from blockages and leaks. Tighten all clamps.
• Жалпы тазалоо: Жылыткычтын сыртын таза жана чаңдан жана таштандылардан таза кармаңыз.

5. Кыйынчылыктарды

If you encounter issues with your Sunster TB10 Diesel Air Heater, refer to the following common troubleshooting tips:

• Жылыткыч иштебей жатат: Check power connections (DC/AC), ensure sufficient fuel in the tank, and verify the control panel settings.
• Жылуулук чыгаруу жок: Confirm the heater is in heating mode, check for fuel blockages, and ensure the air intake and exhaust are clear.
• Ашыкча түтүн: This may indicate incomplete combustion. Check fuel quality, air intake, and exhaust for obstructions.
• адаттан тыш үндөр: Inspect for loose components or obstructions in the fan or pump. The upgraded silent fuel pump should minimize ticking sounds.
• Ката коддору: Refer to the LCD monitor's fault display section (Figure 7) for specific error code meanings and solutions.

For persistent issues, contact Sunster customer support.

6. Техникалык шарттар

7. Кепилдик жана колдоо

For warranty information, product support, or technical assistance, please contact Sunster direct. Refer to your purchase documentation for specific warranty terms and contact details.

Manufacturer: Sunster
Place of Business: RenQiuShiXinSiTeQiChePeiJian Co., Ltd CN-Dajiang Village, Liangzhao Town, Renqiu City, Hebei Province, China
Contact: sunster202@163.com
