Washer Drain Pump Assembly Instruction Manual
Model: GTW538ASW0WS
Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your new Washer Drain Pump Assembly. This component is designed to replace the original drain pump in compatible GE and Hotpoint washing machine models, ensuring proper water drainage during wash and spin cycles. Please read this manual thoroughly before attempting any installation or maintenance.
Коопсуздук маалыматы
WARNING: Disconnect power to the washing machine before attempting any installation, repair, or maintenance. Failure to do so can result in electric shock, injury, or death.
- Always wear appropriate personal protective equipment (PPE), such as gloves and eye protection, during installation and maintenance.
- Жумуш аймагы жакшы жарыктандырылсын жана тоскоолдуктардан таза болсун.
- Эгер кандайдыр бир кадамды так билбесеңиз, квалификациялуу техника боюнча адиске кайрылыңыз.
- Балдарды жана үй жаныбарларын жумуш аймагынан алыс кармаңыз.
- Properly dispose of old parts and any drained water.
Продукт бүттүview
The Washer Drain Pump Assembly is a critical component responsible for expelling water from the washing machine tub. It consists of an electric motor and an impeller that creates suction to draw water out and push it through the drain hose.
Сүрөт 1: Алдыңкы view of the Washer Drain Pump Assembly, showing the motor housing and outlet port.

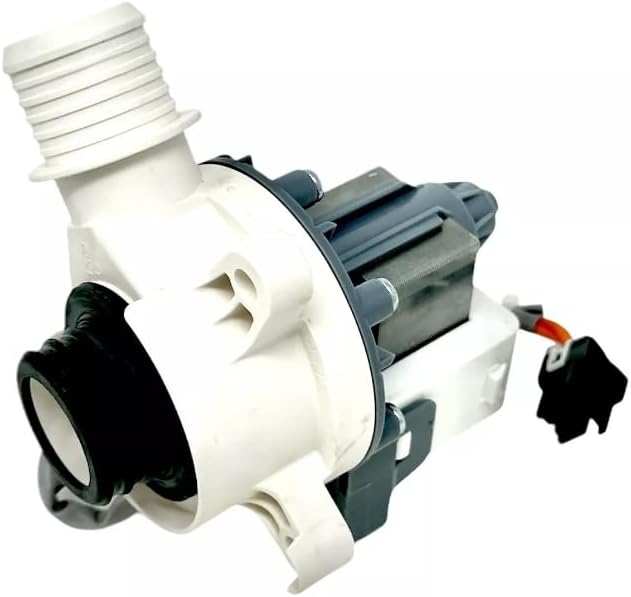

Сүрөт 2: Каптал view of the Washer Drain Pump Assembly, highlighting the electrical connector and mounting points.
Сүрөт 3: View of the impeller housing and inlet port of the Washer Drain Pump Assembly.
Орнотуу жана орнотуу
Installation of the drain pump assembly typically requires disassembling parts of the washing machine. It is recommended that this procedure be performed by a qualified technician.
Керектүү куралдар:
- Бурагычтар (Phillips жана Flathead)
- Кычкач
- Розетка ачкычтарынын топтому
- Сүлгүлөр же чүпүрөктөр
- Bucket or Drain Pan
Орнотуу кадамдары:
- Кубатты өчүрүү: Кир жуугуч машинаны электр розеткасынан сууруп салыңыз. Суу менен камсыздоо клапандарын өчүрүңүз.
- Калган сууну төгүү: Place a bucket or pan under the drain hose and lower the hose to drain any remaining water from the tub.
- Насоско кирүү: Depending on your washer model, you may need to remove the front panel, back panel, or tilt the machine to access the drain pump. Refer to your specific washing machine's service manual for exact access instructions.
- Шлангдарды жана зымдарды ажыратыңыз: Carefully disconnect the inlet and outlet hoses from the old drain pump. Be prepared for some water spillage. Disconnect the electrical wiring harness.
- Эски насосту алып салуу: Эски дренаждык насосту орнотуу кронштейнинен бурап чыгарыңыз же алып салыңыз.
- Жаңы насосту орнотуу: Position the new drain pump assembly and secure it to the mounting bracket.
- Шлангдарды жана зымдарды кайра туташтырыңыз: Reattach the inlet and outlet hoses, ensuring clamps are secure. Reconnect the electrical wiring harness, ensuring a firm connection.
- Кир жуугучту кайра чогултуу: Reattach any panels or components that were removed to access the pump.
- Сыноо операциясы: Restore water supply and plug in the washing machine. Run a short drain/spin cycle to check for leaks and proper pump operation.
Иштөө принциптери
The washer drain pump operates when the washing machine's control board sends a signal to initiate a drain cycle. The electric motor within the pump activates, rotating an impeller. This impeller creates a centrifugal force that draws water from the washer tub through the pump's inlet and expels it through the outlet port into the drain hose. This process effectively removes dirty water from the machine, preparing it for rinsing or the completion of the wash cycle.
Техникалык тейлөө
Regular maintenance helps ensure the longevity and efficient operation of your drain pump.
- Тоскоолдуктарды текшерүү: Periodically inspect the drain pump filter (if accessible on your washer model) and the pump's impeller area for lint, coins, buttons, or other small objects that can impede water flow or damage the pump.
- Шлангдарды текшерүү: Ensure that the drain hoses connected to the pump are not kinked, clogged, or damaged.
- Адаттан тыш үндөрдү угуңуз: Pay attention to any grinding, humming, or excessive vibration during the drain cycle, which could indicate an issue with the pump or an obstruction.
- Дайыма тазалоо: If your washer has a clean-out filter for the drain pump, clean it according to your washing machine's user manual.
Проблемаларды чечүү
If your washing machine is experiencing drainage issues, consult the table below for common problems and potential solutions.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кир жуугуч суу агып келбейт | Clogged drain pump filter or hose | Clean the drain pump filter and check hoses for obstructions. |
| Кир жуугуч суу агып келбейт | Дренаждык түтүк ийилген | Дренаж түтүгүн түздөңүз. |
| Pump making loud noise but not draining | Object stuck in impeller | Disconnect power, access pump, and remove obstruction. |
| Насос иштебей жатат | No power to washer or faulty wiring | Check power supply and wiring connections. Consult a technician if wiring is suspect. |
| Насос иштебей жатат | Насос мотору бузулган | If other solutions fail, the pump motor may be faulty and require replacement. |
Эгерде бузулууларды жоюу кадамдары маселени чечпесе, анда квалификациялуу шайман оңдоочу адиске кайрылуу сунушталат.
Техникалык шарттар
- Бөлүк түрү: Washer Drain Pump Assembly
- Модель номери: GTW538ASW0WS
- Кубат булагы: Электр зымдары
- Шайкештик: Designed for various GE and Hotpoint washing machine models (refer to product description for full list).
- Камтылган компоненттер: Кир жуугучтун дренаждык насосу
- Келип чыккан өлкө: Кытай
Кепилдик жана колдоо
This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact the seller directly. For technical support or assistance with installation, it is recommended to consult a professional appliance repair service.
