1. Продукт бүтүп калдыview
The Soozier Home Gym Machine is a versatile 3-in-1 fitness system designed for comprehensive strength training. It integrates a Smith machine, a dual cable pulley system, and a barbell bar within a multi-functional power cage. This equipment offers over 35 possible exercises, providing a complete workout experience for various fitness levels.
Key features include a height-adjustable squat rack, a robust dual cable pulley system compatible with 1" and 2" weight plates, and a sturdy alloy steel construction.
Image 1.1: The Soozier Home Gym Machine, illustrating its compact design and a user performing a squat exercise.
2. Коопсуздук маалыматы
Read all instructions before assembling or using this equipment. Keep this manual for future reference. Failure to follow these instructions can result in serious injury or property damage.
- Врач менен кеңешиңиз: Before starting any exercise program, consult with a physician to ensure you are in good health.
- Ассамблея: Колдонуудан мурун бардык тетиктер туура чогултулуп, бекемделгенин текшериңиз. Чогултуу боюнча нускамаларды кылдаттык менен карап чыгыңыз.
- Жайгашкан жери: Place the equipment on a flat, stable surface. Ensure adequate clearance around the machine for safe operation.
- Салмактык чектөөлөр: Do not exceed the maximum weight capacities: 220 lbs (100 kg) for the squat rack and 55 lbs (25 kg) per side for the cable pulley system. The maximum user weight is 265 lbs (120 kg).
- Балдар жана үй жаныбарлары: Колдонуу учурунда балдарды жана үй жаныбарларын жабдуулардан алыс кармаңыз.
- Текшерүү: Regularly inspect the equipment for worn or damaged parts. Do not use if any components are compromised.
- Туура унутат: Wear appropriate athletic clothing and footwear during exercise.
- Кызытуу: Always perform a warm-up before exercising and a cool-down afterwards.
- Спотер: Consider using a spotter for heavy lifting exercises, especially with the barbell.
3. Орнотуу жана чогултуу
The Soozier Home Gym Machine is shipped in three separate packages and may arrive on different dates. Ensure all packages have been received before beginning assembly.
Image 3.1: Product packaging, indicating shipment in three separate boxes.
3.1 Таңгактан чыгаруу жана инвентаризация
- Open all packages and carefully remove all components.
- Бардык бөлүктөрүн таза, тегиз бетке коюңуз.
- Compare the contents with the parts list provided in the separate assembly manual (not included in this document).
- Report any missing or damaged parts to customer service immediately.
3.2 Чогултуу кадамдары
Follow the detailed step-by-step instructions provided in the dedicated assembly manual. Ensure all bolts, nuts, and washers are securely fastened. Do not overtighten components until instructed.
3.3 Орнотуу
Position the assembled gym machine on a level, solid floor. The recommended floor area required is 70.9" L x 65" W x 88.6" H (180 x 165 x 225 cm). Ensure sufficient space around the machine for safe movement and exercise.
Image 3.2: Dimensional diagram of the Soozier Home Gym Machine.
4. Иштөө нускамалары
This section details the operation of the various components of your Soozier Home Gym Machine.
Сүрөт 4.1: Мисamples of exercises possible with the multi-exercise weight cage.
4.1 Smith Machine and Barbell Bar
- Loading Weight Plates: The barbell bar is designed to accommodate standard 1" (2.5 cm) and Olympic 2" (5 cm) diameter weight plates. Secure plates with collars before use.
- Safety Catches: Always use the adjustable safety catches when performing exercises like squats or bench presses. Adjust them to a height that prevents the barbell from descending too far.
- Engaging/Disengaging: To disengage the barbell from the rack, rotate it slightly to unlock it from the safety hooks. To re-engage, lift the barbell and rotate it back into the safety hooks.
Image 4.2: Demonstrating a bench press within the machine's walk-in space.
4.2 Height-Adjustable Squat Rack
- The squat rack features 17 different levels for height adjustment, ranging from 9.8" to 72.8" (25-185 cm).
- To adjust the height, locate the adjustment pins or levers on the squat rack uprights.
- Pull out the pins, slide the barbell supports to the desired height, and re-insert the pins securely. Ensure both sides are adjusted to the same height.

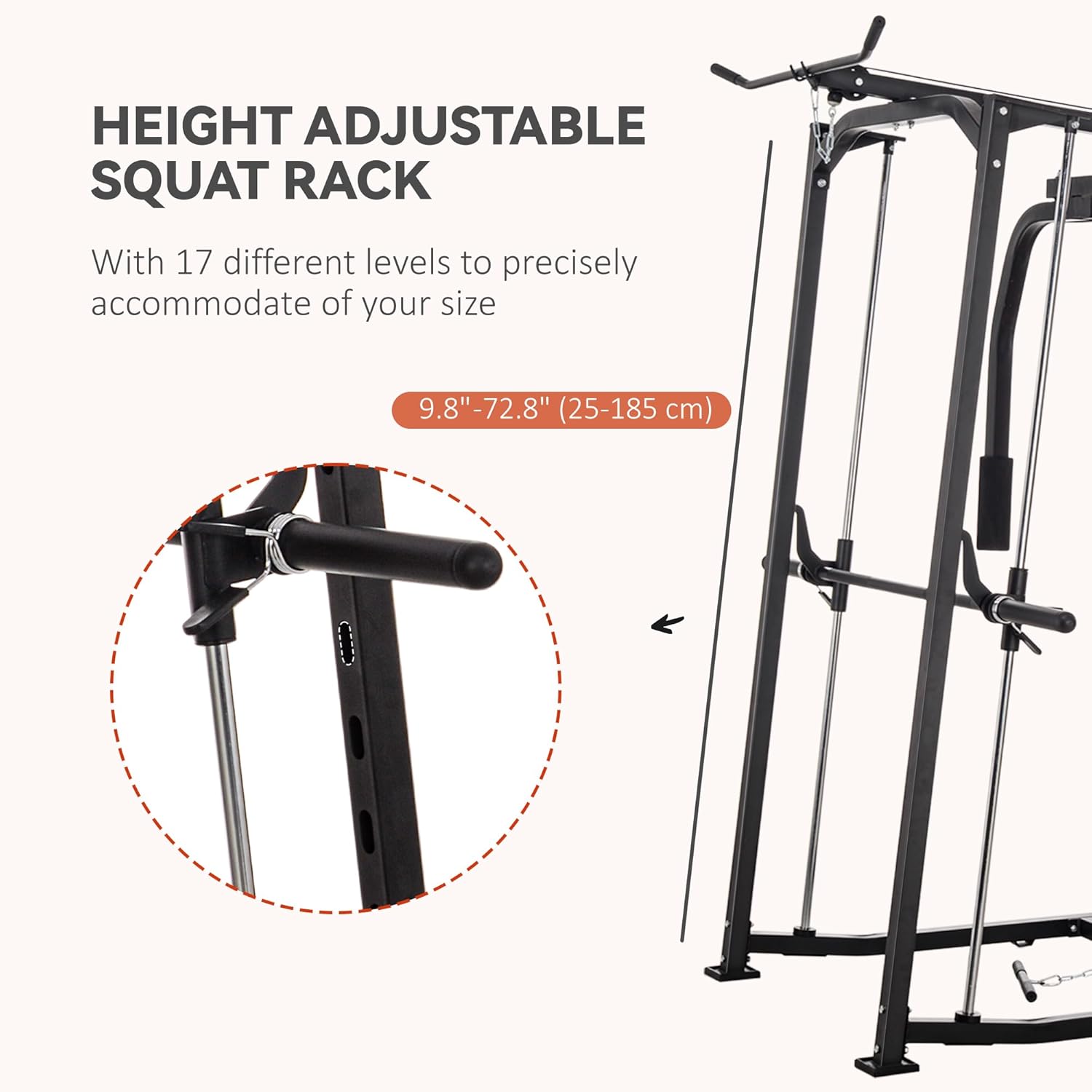

Image 4.3: Detail of the height-adjustable squat rack mechanism.
4.3 Dual Cable Pulley System
- The dual cable system accommodates both 1" and 2" weight plates, offering up to 55 lbs (25 kg) of resistance on each side.
- Loading Weight Plates: Slide the desired weight plates onto the weight plate pegs. Secure them with the provided collars.
- Аксессуарларды тиркөө: Various cable attachments (e.g., handles, ankle straps, lat bar) can be connected to the carabiners at the end of the cables.
- Жылмакай операция: Ensure cables run freely through the pulleys. Avoid sudden jerking movements.
Image 4.4: Weight plate compatibility for the cable pulley system.
Image 4.5: Detail of the cable pulley system.
4.4 Chest Press Station
The integrated chest press station allows for various chest exercises. Ensure proper form and adjust the seat (if applicable) for optimal positioning.
Image 4.6: Non-slip handle detail.
5. Техникалык тейлөө
Regular maintenance ensures the longevity and safe operation of your Soozier Home Gym Machine.
- Тазалоо: Жарнама менен машинаны өчүрүңүзamp терди жана чаңды кетирүү үчүн ар бир колдонуудан кийин чүпүрөк менен сүртүңүз. Абразивдүү тазалагычтардан алыс болуңуз.
- Майлоо: Periodically apply a silicone-based lubricant to the guide rods of the Smith machine and the pulleys of the cable system to ensure smooth operation.
- Аппараттык камсыздоону текшерүү: Every 1-3 months, inspect all bolts, nuts, and connections. Tighten any loose hardware.
- Кабелдик текшерүү: Check cables and pulleys for signs of wear, fraying, or damage. Replace any worn components immediately. Nylon-coated steel wires were tested for 1000 lbs capacity, but regular inspection is crucial.
- Жөндөө: Inspect any padded sections for tears or excessive wear.
6. Кыйынчылыктарды
This section addresses common issues you might encounter with your home gym machine.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Иш учурунда кычыраган же майдалоочу үндөр | Loose hardware, lack of lubrication on moving parts, worn pulleys. | Tighten all bolts and nuts. Lubricate guide rods and pulleys with silicone spray. Inspect pulleys for damage. |
| Cable system feels rough or sticky | Dust or debris in pulleys, dry cables, misaligned cables. | Clean pulleys and cables. Apply silicone lubricant to cables and pulleys. Check cable routing for proper alignment. |
| Barbell movement is not smooth on Smith machine | Dust or debris on guide rods, insufficient lubrication. | Clean guide rods thoroughly. Apply silicone lubricant to guide rods. |
| Equipment feels unstable | Uneven floor, loose assembly bolts. | Ensure the machine is on a level surface. Check and tighten all assembly bolts. |
Эгер бул жерде көрсөтүлбөгөн маселелерге туш болсоңуз же чечимдер көйгөйдү чечпесе, кардарларды колдоо кызматына кайрылыңыз.
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | A91-321V00BK |
| Продукциянын өлчөмдөрү (L x W x Y) | 180 x 165 x 225 см (70.9" L x 65" W x 88.6" H) |
| Элемент Салмагы | 72.48 кг (159.8 фунт) |
| Материал | Эритме болот |
| Түс | Кара |
| Колдонуучунун максималдуу салмагы | 120 кг (265 фунт) |
| Squat Rack Max Weight Capacity | 100 кг (220 фунт) |
| Cable Pulley System Resistance | Up to 25 kg (55 lbs) per side |
| Squat Rack Height Adjustment | 17 levels, 25-185 cm (9.8"-72.8") |
| Салмак плитасынын шайкештиги | 1" (2.5 cm) and 2" (5 cm) diameter |
| Камтылган компоненттер | Dual Cable Pulley System, Barbell Bar, 17-Level Squat Rack |
| Өндүрүүчү | Аосом Канада |
| GTIN/UPC | 673986382998 |
8. Кепилдик жана колдоо
8.1 Кепилдик маалыматы
This Soozier Home Gym Machine comes with a 90 күндүк өндүрүүчүнүн кепилдиги. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, accident, alteration, or improper assembly.
Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
8.2 Кардарларды колдоо
For assistance with assembly, operation, troubleshooting, or warranty claims, please contact Aosom Canada customer support:
- Телефон: 1-416-792-6088
- Дарек: Маркхэм, Онтарио, CA
When contacting support, please have your model number (A91-321V00BK) and proof of purchase readily available.
