1. Киришүү
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your new Generic Replacement Dishwasher Drain Pump. This component is designed to effectively remove water from your dishwasher tub during wash and rinse cycles. Please read these instructions carefully before attempting any installation or repair to ensure safe and proper functioning.
Продукт модели: SHX5ER55UC/86 (Generic Replacement)
Бренд: Жалпы
2. Коопсуздук маалыматы
Always prioritize safety when working with electrical appliances and water. Failure to follow these safety guidelines may result in electric shock, personal injury, or property damage.
- Кубатты өчүрүү: Before beginning any installation, maintenance, or troubleshooting, always disconnect the dishwasher from its power supply by unplugging it or turning off the circuit breaker.
- Суу менен камсыздоо: Turn off the water supply to the dishwasher before starting work.
- Кесиптик орнотуу: If you are not comfortable performing appliance repairs, it is highly recommended to seek assistance from a qualified technician.
- Коргоочу шаймандарды кийүү: Травмалардын алдын алуу үчүн кол кап жана коргоочу көз айнек сыяктуу тиешелүү жеке коргоочу шаймандарды колдонуңуз.
- Агышууларды текшерүү: After installation, carefully check all connections for leaks before fully restoring power and water.
3. Шайкештик
This replacement drain pump is compatible with a wide range of Bosch and Thermador dishwasher models. Please verify your dishwasher's model number against the lists below to ensure proper fitment.
Compatible Bosch Models:
- SHE68T55UC/02, SHP53T55UC/02, SGE63E06UC/51, SPX5ES55UC/06, SPX5ES55UC/26, SHV68T53UC/01, SHX9PT75UC/98, SPX5ES55UC/07, SHP7PT55UC/02, SGE63E06UC/72, SHE7PT52UC/02, SHX9ER55UC-01, SGE63E06UC/52, SPE5ES55UC/15, SGE63E15UC/80, SHX9PT55UC/C9, SHX7ER55UC/73, SGE63E15UC/44, SHX68T52UC/01, SHE65T52UC/02, SHX7PT55UC/04, SPV5ES53UC/07, SHX7ER55UC/50, SHX9PT75UC/87, SHX9PT55UC/87, SHV53T53UC/01, SHE9PT55UC/70
- SGE63E06UC/87, SGE63E15UC/A3, SGE63E15UC/86, SHE9PT55UC/A5, SHX9PT75UC/80, SHX65T55UC/02, SHE53TF5UC/02, SHE9PT55UC/93, SHE53TF5UC/01, SHP53T55UC/01, SHE9PT55UC/86, SHE8PT55UC/05, SHX9PT75UC/D5, SHE7PT52UC/01, SHE9PT55UC/76, SHX68T55UC/01, SHX7ER55UC/82, SHP65TL5UC/02
- SHX53T55UC/01, SHV9PT53UC/01, SPV5ES53UC/19, SPV5ES53UC/04, SHE7PT56UC/02, SHE53T55UC/02, SHE7PT55UC/03, SHX9PT75UC/B4, SPV5ES53UC/30, SHX8PT55UC/02, SGE63E15UC/48, SHV53T53UC/02, SHP65T55UC/01, SGE63E06UC/50, SHE8PT55UC/02, SGV63E03UC/73, SHV68TL3UC/04, SHP65TL6UC/02, SPV5ES53UC/15, SGE63E06UC/73, SHE53TF6UC/02, SGE63E15UC/72, SHE9PT55UC/B4, SHP65T52UC/01, SGE63E06UC/80, SHX9PT55UC/D5, SHE9PT55UC/87, SPE5ES55UC/19, SGE63E06UC/74, SPV5ES53UC/23, SGE63E15UC/51, SHE53T56UC/01, SHE68T55UC/01, SGE63E06UC/A3, SHX7PT55UC/01, SHX9PT75UC/B3, SHP65T56UC/02, SHX9PT55UC/B3, SHE65T55UC/02, SHX9PT55UC/93, SHE53TF2UC/01, SHV9PT53UC/80, SHX9PT75UC/76, SPV5ES53UC/20, SPX5ES55UC/04, SGE63E06UC/82, SHE53TF2UC/02, SGE63E15UC/87, SHE8PT55UC/01, SHX53TL5UC/01, SPV5ES53UC/26, SHX9PT75UC/A5, SPE5ES55UC/01, SPE5ES55UC/28, SHE53T52UC/02, SGE63E06UC/21, SHE9PT55UC/98, SGE63E06UC/44, SHE68T52UC/01, SHX9PT75UC/01, SHE68T56UC/01, SHP65TL2UC/02, SHE9PT55UC/73, SPE5ES55UC/04, SHE53TL2UC/01, SHX68T55UC/02, SPX5ES55UC/28, SGE63E15UC/55, SGE63E15UC/82, SPX5ES55UC/23, SHV9PT53UC/C9, SHX8PT55UC/01, SHXN8U55UC/06, SHX9PT55UC/82, SHE53TF6UC/01, SGE63E06UC/55, SHV9PT53UC/93, SPV5ES53UC/14, SHE7PT55UC/02, SHV68TL3UC/01, SHE9PT55UC/C9, SHV9PT53UC/82, SPE5ES55UC/23, SHE9PT55UC/82, SHX7PT55UC/02, SHX7ER55UC/93, SPE5ES55UC/26, SHV68T53UC/04, SGE63E15UC/01, SHE65T56UC/01, SHV9PT53UC/70, SPX5ES55UC/15, SGE63E06UC/86, SHE7PT56UC/01, SHE53T55UC/01, SPV5ES53UC/06, SGE63E06UC/98, SHE9PT55UC/B3, SHX7ER55UC/55, SHX9PT75UC/93, SHP65T52UC/02, SHE7PT55UC/01, SHX9PT55UC/86, SHX68T56UC/01, SHX9PT75UC/74, SHX65T55UC/01, SHX9PT55UC/B4, SHX7ER55UC/51, SHX68T52UC/02, SHX9PT75UC/73, SGV63E03UC/01, SHE68T52UC/02, SHE53TL2UC/02, SGE63E15UC/98, SHX9PT75UC/C9, SHX9ER55UC/01, SHX7ER55UC/74, SGE63E06UC/93, SPE5ES55UC/07, SHXN8U55UC/01, SHX53T55UC/02, SHE53T56UC/02, SHP65T55UC/02, SHX7ER55UC/52, SGE63E06UC/48, SPE5ES55UC/30, SGE63E15UC/74, SHX53TL5UC/02, SHX9PT75UC/70, SHP7PT55UC/01, SHV9PT53UC/B3, SGE63E15UC/52, SPV5ES53UC/28, SHV9PT53UC/87, SHV9PT53UC/76, SHE65T55UC/01, SHE53T52UC/01, SHP65TL2UC/01, SHP65T56UC/01, SHV9PT53UC/98, SHV68TL3UC/02, SPE5ES55UC/06, SHV9PT53UC/D5, SHV9PT53UC/86, SHX68T56UC/02, SHP68T55UC/01, SHV9PT53UC/B4, SHX7ER55UC/01, SHX68TL5UC/02, SHV7PT53UC/04, SPX5ES55UC/30, SHE9PT55UC/D5, SPX5ES55UC/20, SHE9PT55UC/74, SPE5ES55UC/20, SPE5ES55UC/14, SGE63E15UC/50, SHX7ER55UC/86, SHE68T56UC/02, SGE63E15UC/73, SHE65T56UC/02, SHX9PT55UC/98, SHE68T55UC/03, SHE65T52UC/01, SHV9PT53UC/73, SHX7ER55UC/48, SHP68TL5UC/01, SGE63E15UC/93, SHX8PT55UC/05, SHX7ER55UC/44, SHV9PT53UC/A5, SHV9PT53UC/74, SPX5ES55UC/01, SHE9PT55UC/80, SPX5ES55UC/19, SPX5ES55UC/14, SHX9PT75UC/86, SHX9PT55UC/A5, SHE9PT55UC/01, SHV68T53UC/02, SHX9PT75UC/82, SHP65TL5UC/01
Compatible Thermador Models:
- SHE65T52UC/01, SHX5ER55UC/86, DWHD640JFP/98, SHX5ER55UC/73, SHE33T56UC/02, SHX5ER55UC/55, SHX5ER55UC/98, SHP68T55UC/01, SHX5ER55UC/01, DWHD440MFP/01, SHS63VL2UC/01, SHX53TL5UC/01, SHE33T56UC/01, SHX5ER55UC/72, SHX68T52UC/02, SHX53TL5UC/02, SHP65T55UC/01, SHE53TL6UC/02, SHX5ER55UC/82, SHP65T55UC/02, SHV7PT53UC/02, SHX5ER55UC/87, SHS63VL5UC/01, SHV7PT53UC/01, SHX5ER55UC/50, SHX5ER55UC/80, SHX68TL5UC/01, SHX5ER55UC/74, SHX5ER55UC/93, DWHD440MFP/02
4. Пакеттин мазмуну
Сиздин пакетиңиз төмөнкү нерсени камтышы керек:
- 1 x Generic Replacement Dishwasher Drain Pump
5. Орнотуу жана орнотуу
Replacing a dishwasher drain pump typically involves working with water and electrical connections. If you are unsure about any step, consult a qualified appliance technician.
Керектүү шаймандар (өзгөрүшү мүмкүн):
- Бурагычтар (Phillips жана Flathead)
- Кычкач
- Жөнгө салынуучу ачкыч
- Towels or Rags
- Bucket or Pan
Жалпы орнотуу кадамдары:
- Электр менен сууну өчүрүү: Ensure the dishwasher is unplugged and the water supply valve is closed.
- Насоско кирүү: Depending on your dishwasher model, you may need to pull the dishwasher out from under the counter, or access the pump from the front by removing the lower access panel. Some models require tilting the dishwasher on its back.
- Калган сууну төгүү: Place towels and a pan under the dishwasher to catch any remaining water when disconnecting hoses.
- Шлангдарды жана зымдарды ажыратыңыз: Carefully disconnect the drain hose and any other hoses connected to the pump. Disconnect the electrical wiring harness from the old pump. Note the orientation of all connections.
- Эски насосту алып салуу: Unfasten any clamps, screws, or mounting brackets securing the old drain pump. Remove the old pump.
- Жаңы насосту орнотуу: Position the new Generic Replacement Drain Pump in place. Secure it with the appropriate clamps, screws, or mounting brackets.
- Шлангдарды жана зымдарды кайра туташтырыңыз: Reconnect the drain hose and other hoses, ensuring all connections are tight and secure. Reattach the electrical wiring harness.
- Агышуу үчүн сыноо: Partially restore the water supply and power. Run a short cycle and carefully check for any leaks around the pump and hose connections. Address any leaks immediately.
- Жыйынтыктоочу жыйын: Once you confirm there are no leaks, fully restore power and water. Reinstall any access panels or reposition the dishwasher.
6. Иштөө
The drain pump operates automatically as part of your dishwasher's wash cycle. Its primary function is to pump out dirty water from the dishwasher tub at specific stages of the cycle, ensuring clean water is used for rinsing and that the tub is empty at the end of the cycle.
No direct user interaction is required for the drain pump's operation once correctly installed.
7. Техникалык тейлөө
While the drain pump itself requires minimal maintenance, regular checks of your dishwasher's drainage system can help prolong its life and prevent issues.
- Таза чыпкалар: Regularly clean your dishwasher's food trap and filters to prevent debris from reaching and clogging the drain pump.
- Дренаждык түтүктү текшерүү: Суунун агышына тоскоол боло турган ийилген жерлерди, бүтөлүп калган жерлерди же бузулууларды мезгил-мезгили менен текшерип туруңуз.
- Ашыкча жүктөөдөн качыңыз: Do not overload the dishwasher, as this can sometimes lead to improper drainage.
8. Кыйынчылыктарды
If your dishwasher is experiencing drainage issues after installing the new pump, consider the following common troubleshooting steps:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Идиш жуугучтан суу чыкпай жатат | Clogged drain hose or air gap; clogged filter; faulty check valve; improper installation. | Check and clear drain hose/air gap. Clean dishwasher filters. Verify check valve operation. Re-check pump installation and connections. |
| Дренаж учурунда катуу ызы-чуу | Debris in pump impeller; loose pump mounting; worn bearings (less likely for new pump). | Disconnect power, inspect pump impeller for foreign objects. Ensure pump is securely mounted. |
| Насос аянтынан суу агып жатат | бош шланг clamps; damaged gasket/seal; cracked pump housing (unlikely for new pump). | Бардык шланг clamps are tight. Verify gaskets and seals are properly seated and undamaged. |
9. Техникалык шарттар
| Спецификация | Деталь |
|---|---|
| Өндүрүүчү | жалпы |
| Элемент моделинин номери | SHX5ER55UC/86 |
| Стиль | Inline |
| Материал | Дат баспаган болот |
| Power Source | Электр зымдары |
| Пакеттин өлчөмдөрү | 1 x 1 x 1 дюйм |
| Дата биринчи жеткиликтүү | 1-май, 2025-жыл |
10. Продукциянын сүрөттөрү

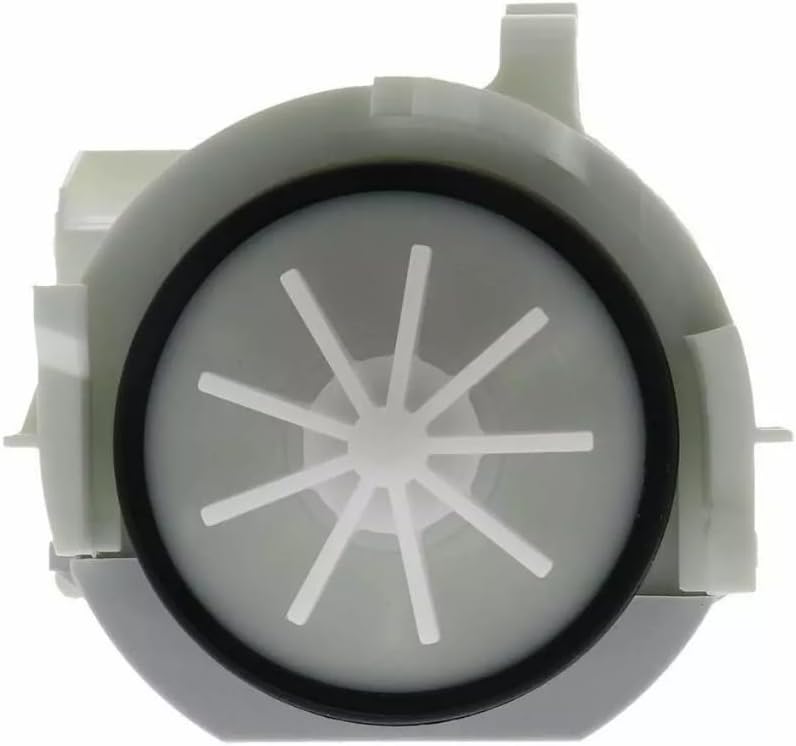

Refer to the following images for visual reference of the drain pump.
11. Кепилдик жана колдоо
Specific warranty information for this Generic Replacement Dishwasher Drain Pump is not provided in the product details. For any warranty inquiries or technical support, please contact the seller directly through your purchase platform.
